| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | Safetran Type 3 E Bell | Safetran Type 3 E Bell |
| Base: | Safetran 5" Double Sided | Safetran 5" Double Sided |
| Lights: | 4 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" Safetran w/ Dialight Ball LEDs |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO | 4" RECO |

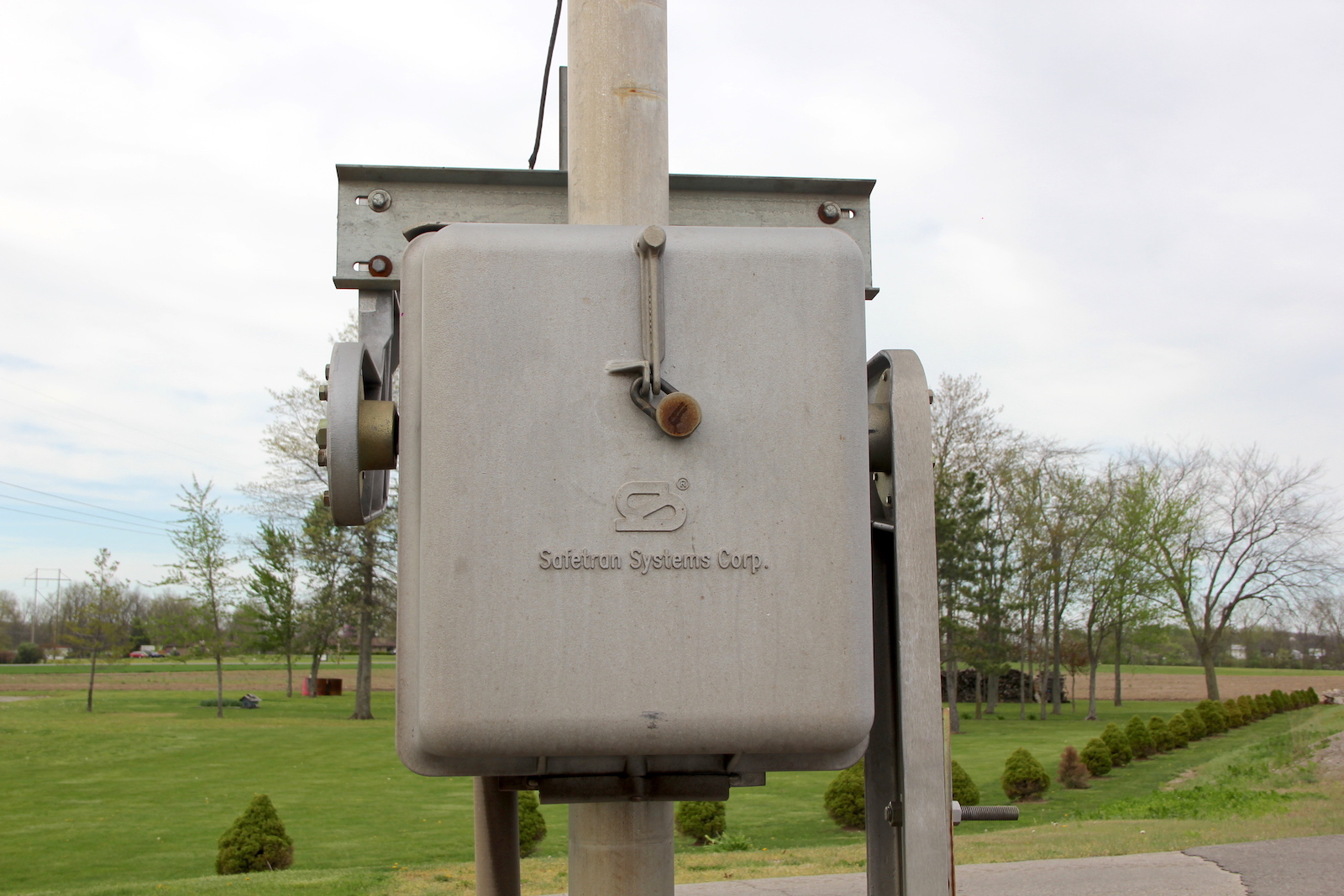

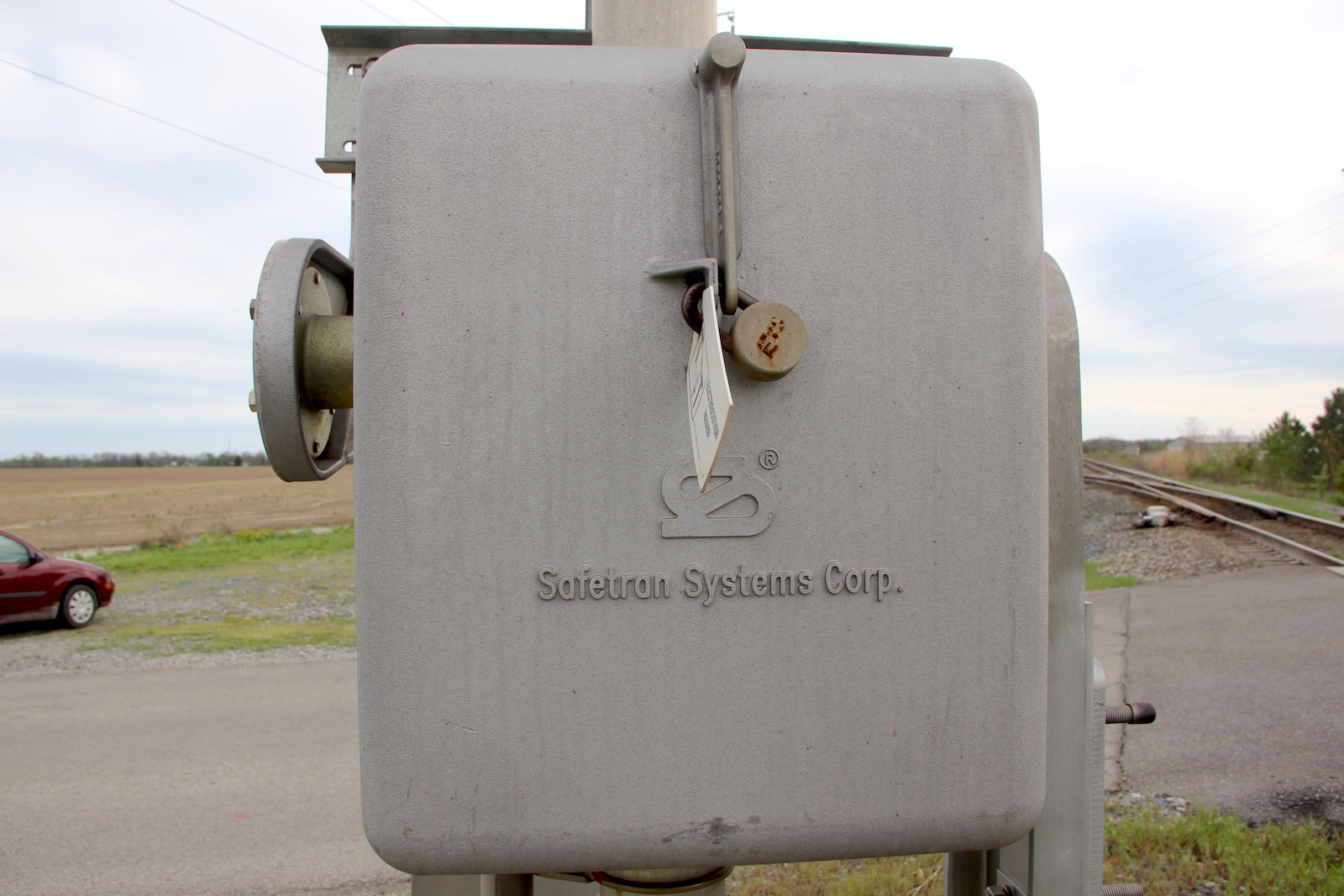

| Gate Mechanism: | Safetran 2000s w/ Standard Mount | Safetran 2000s w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

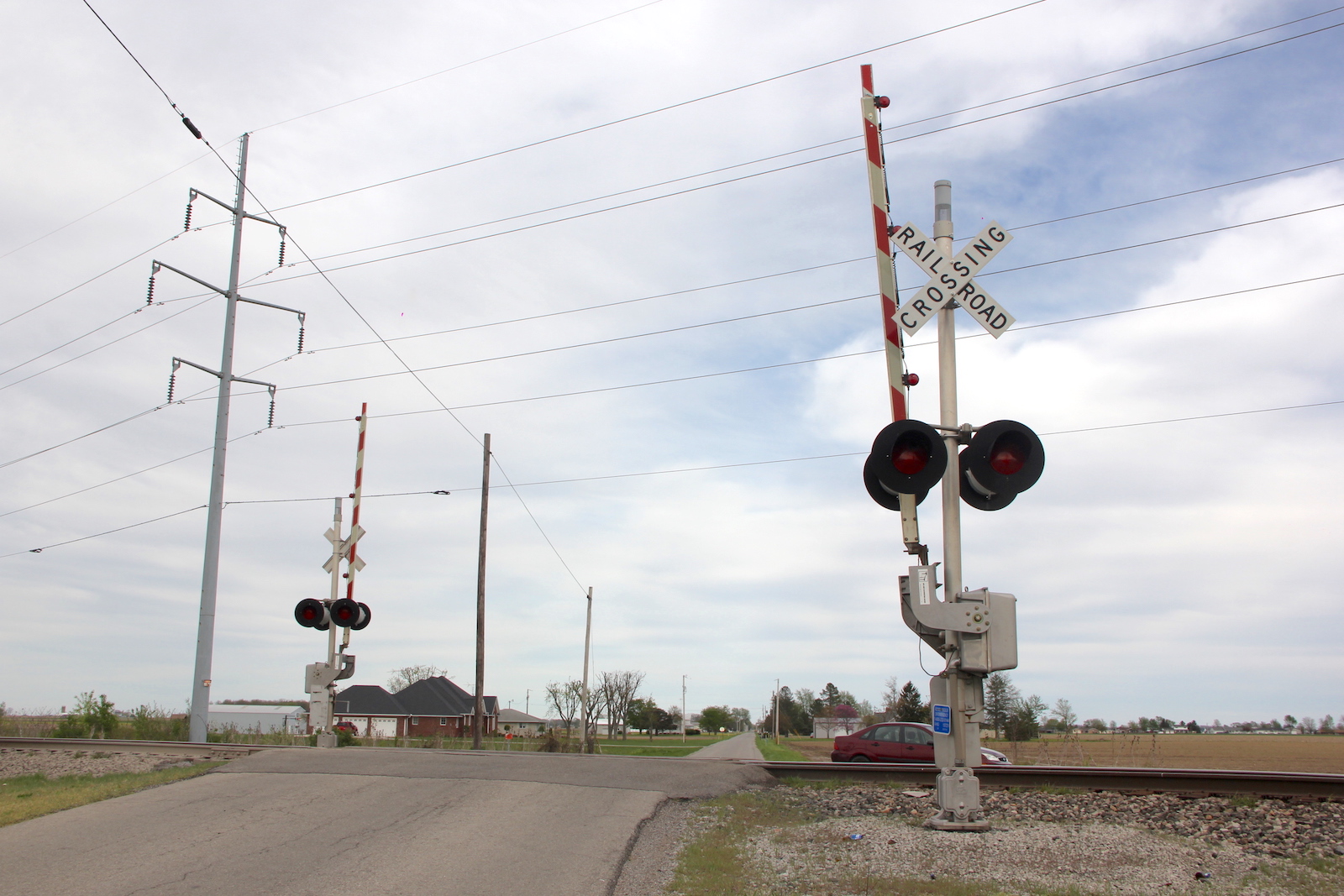

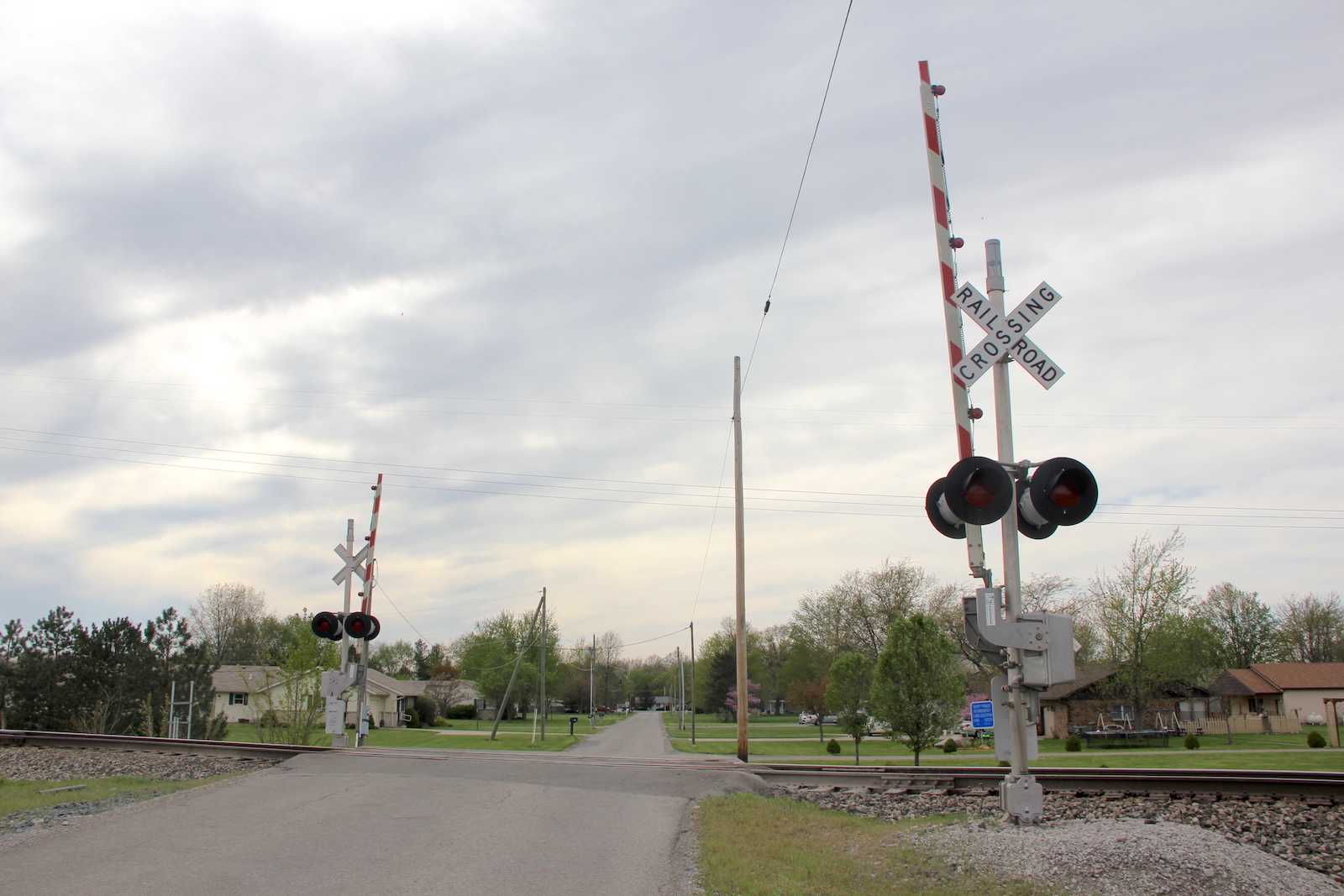

| Overview of 2 gated signals facing west. |
Overview facing east. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

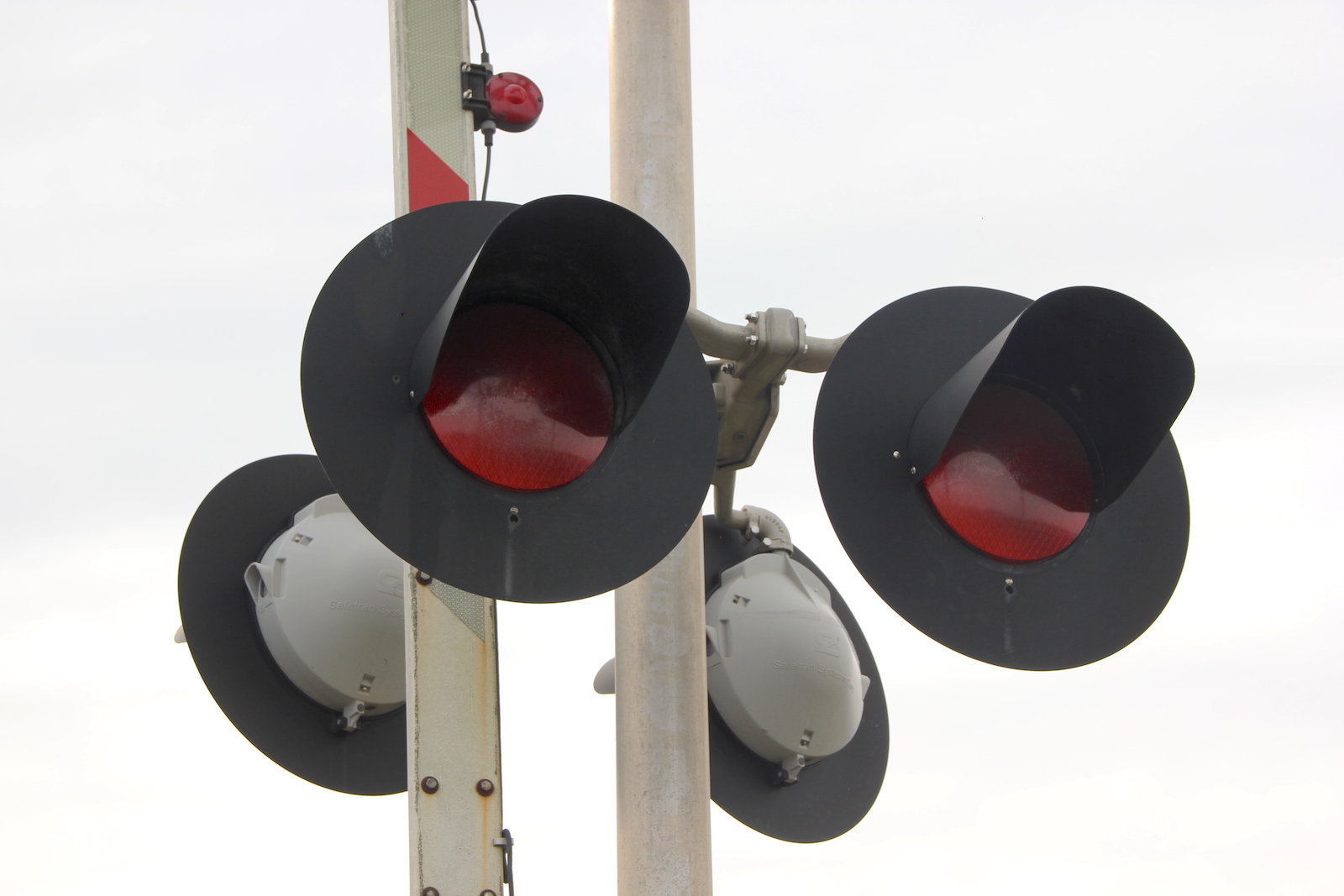

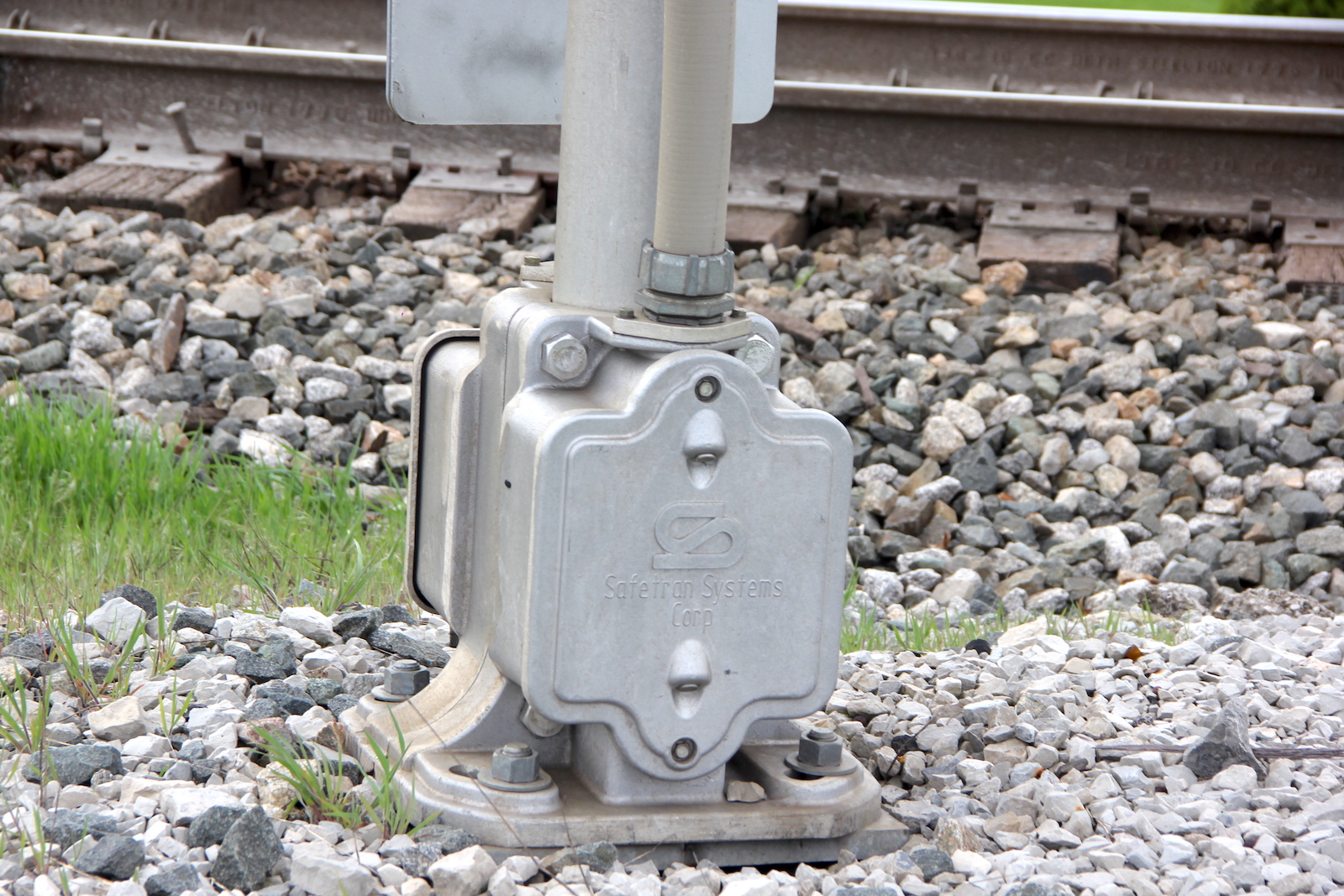

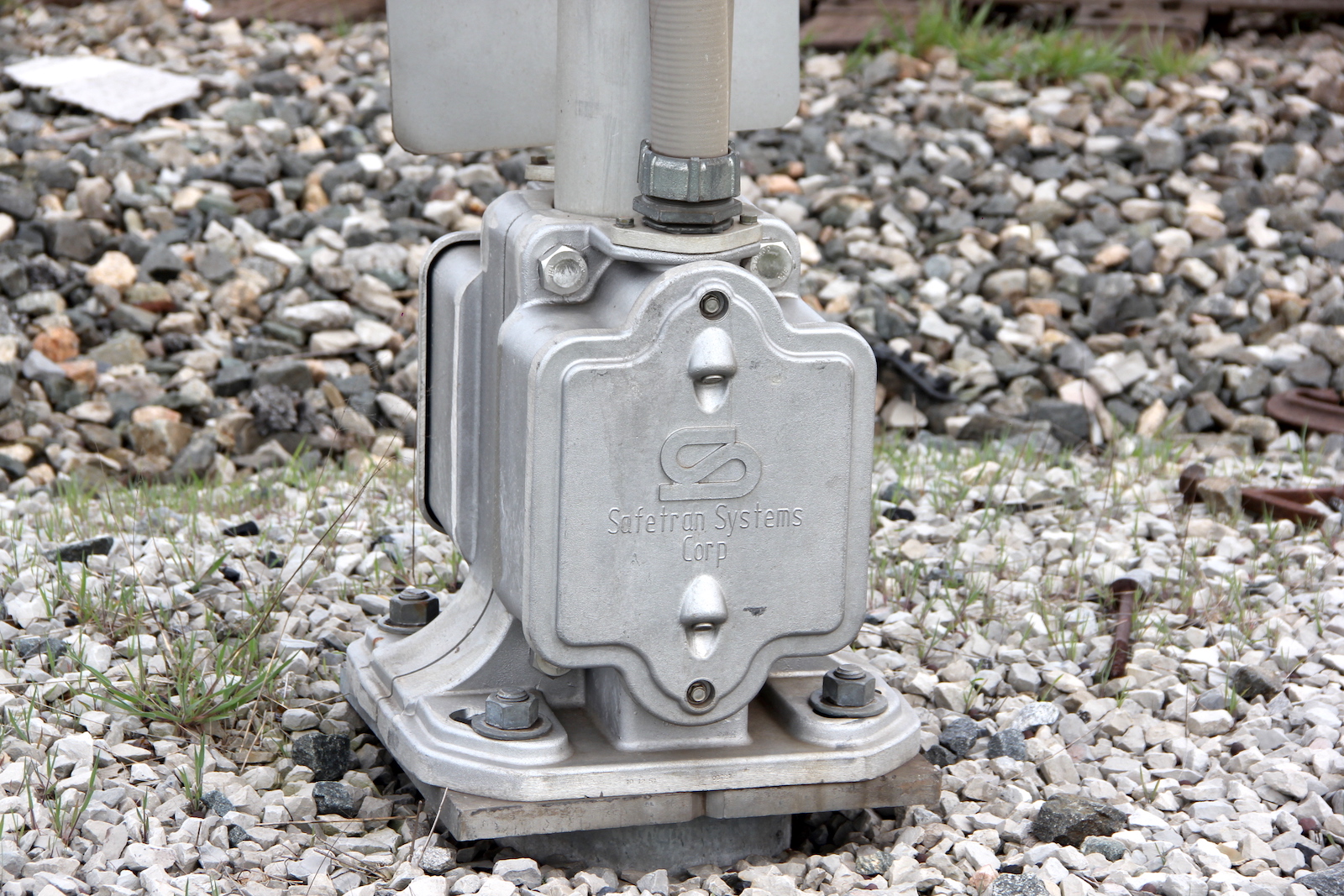

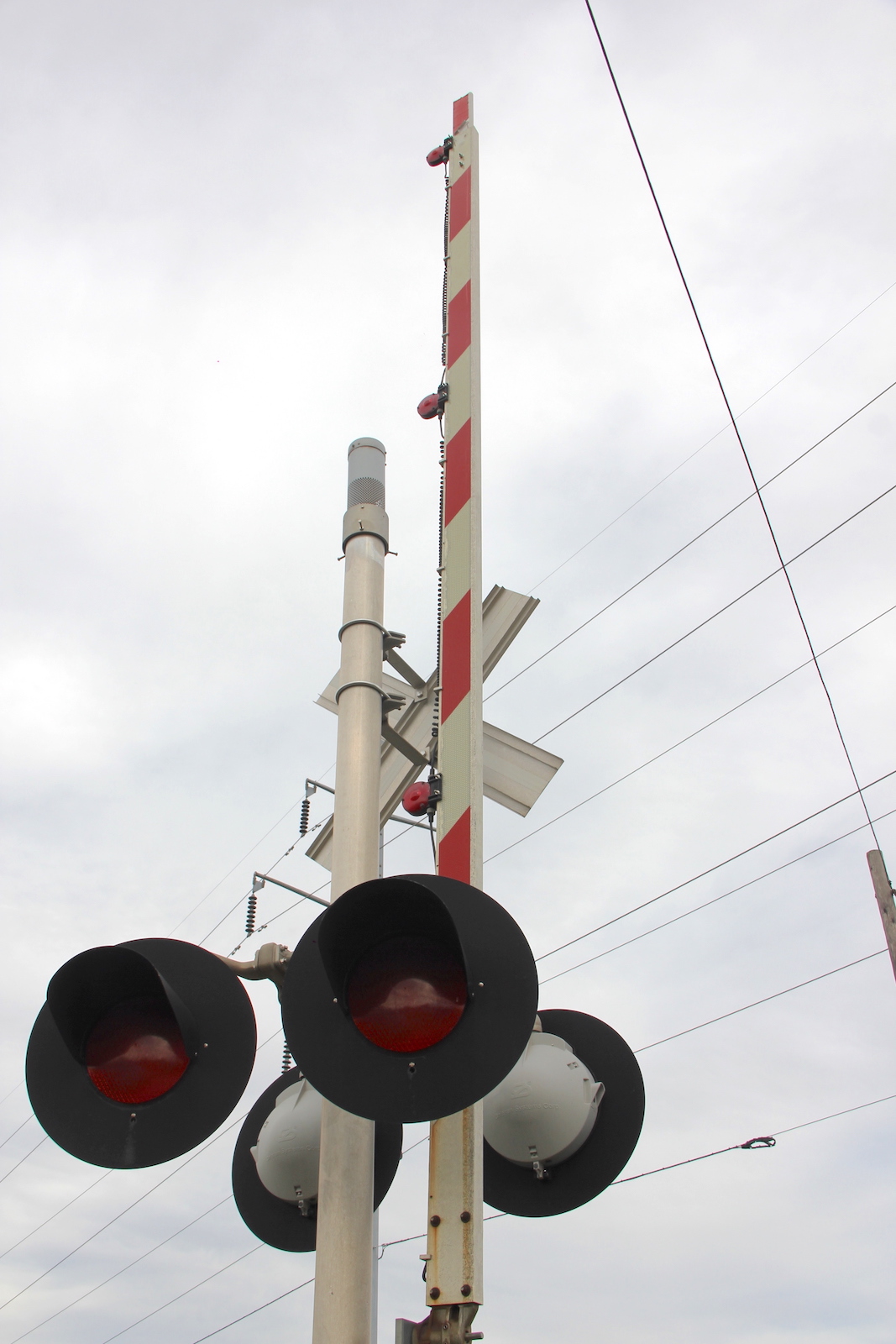

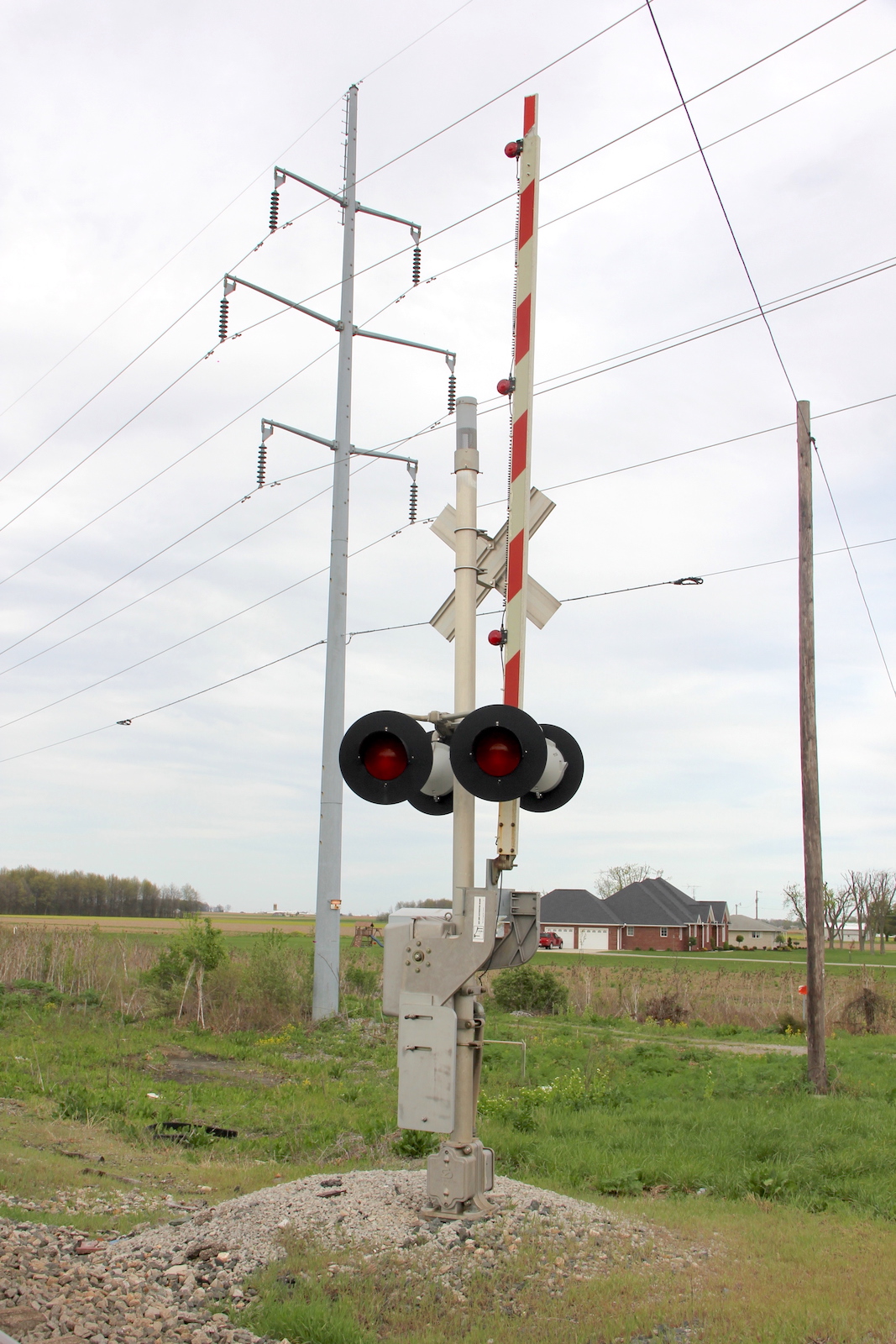

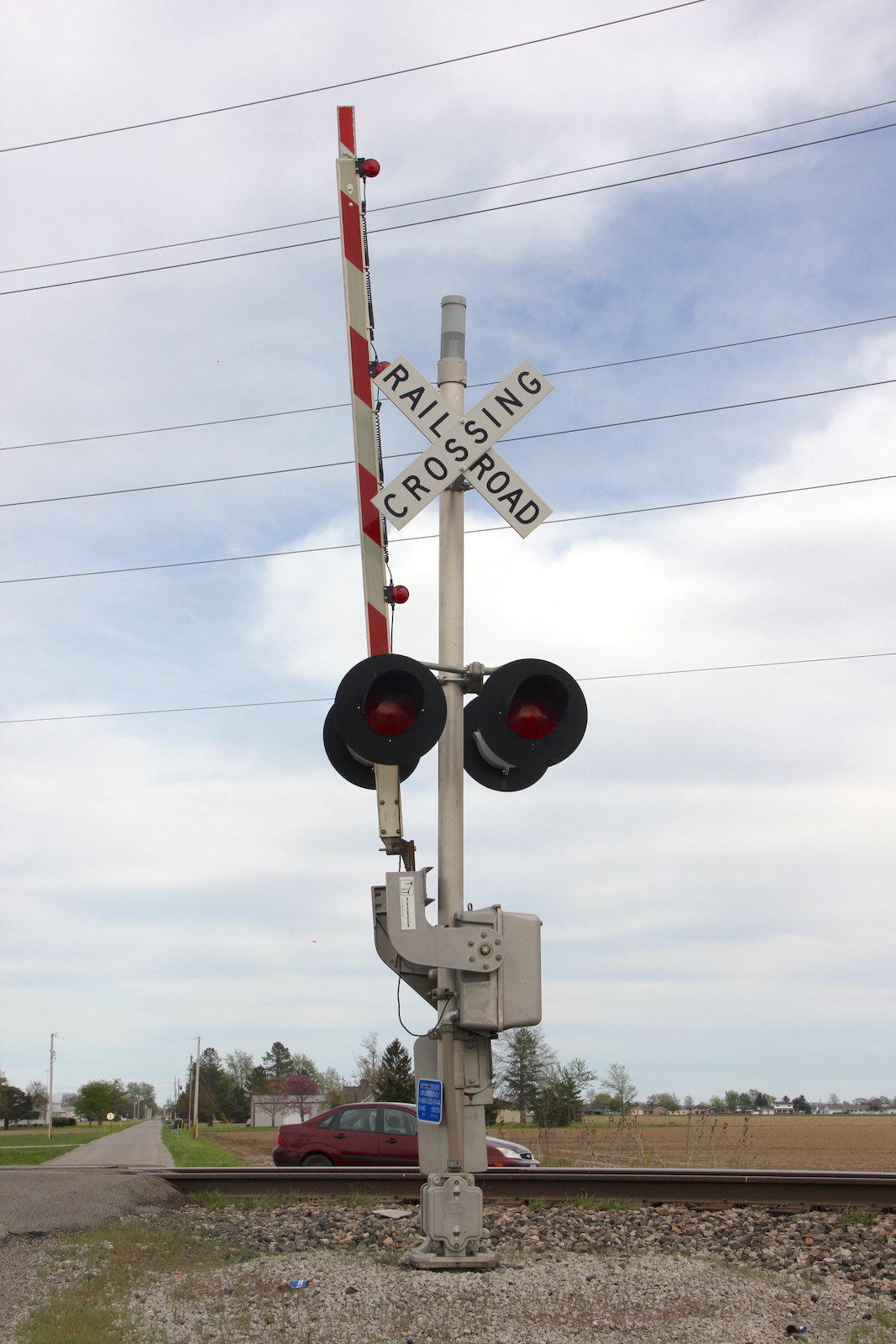

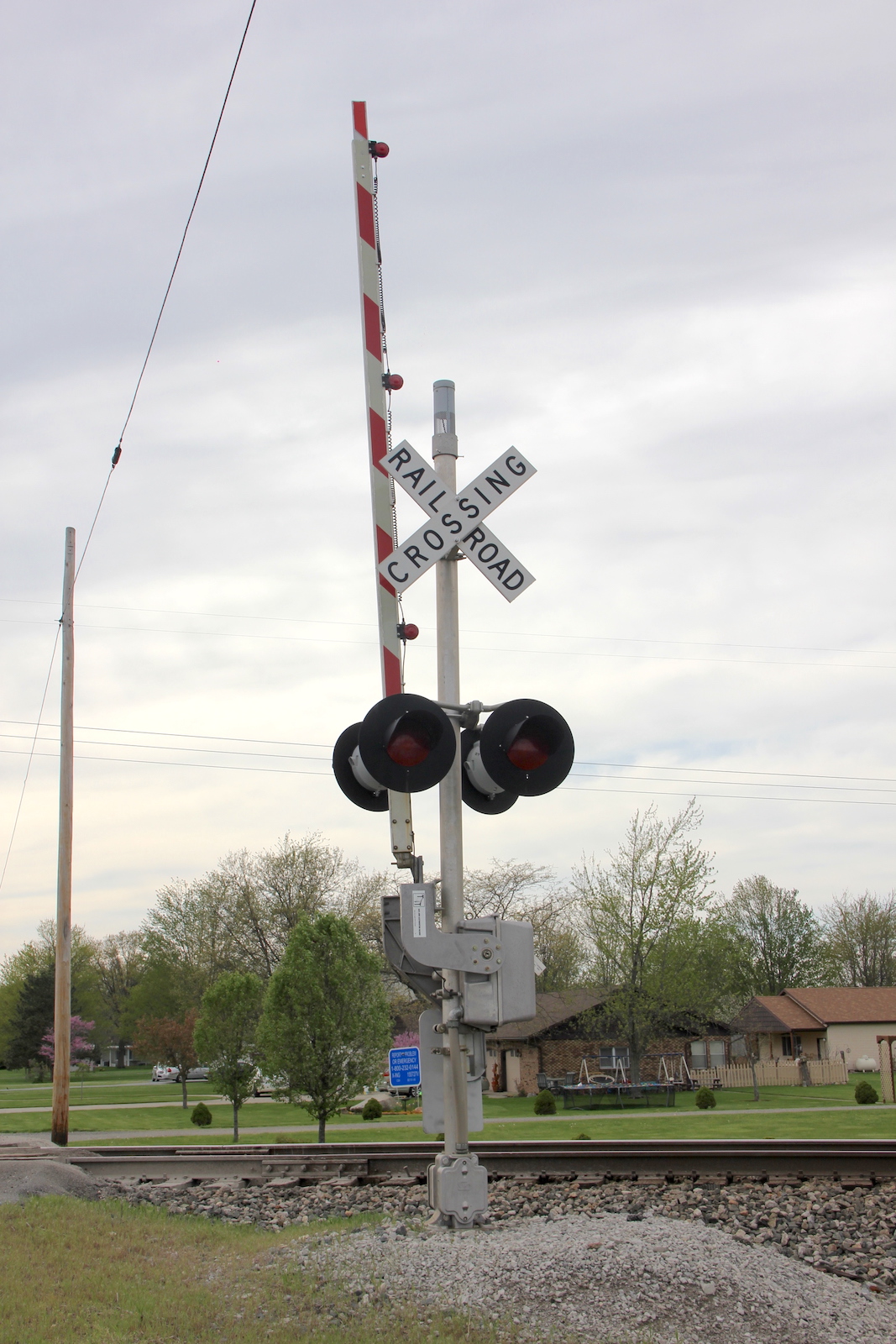

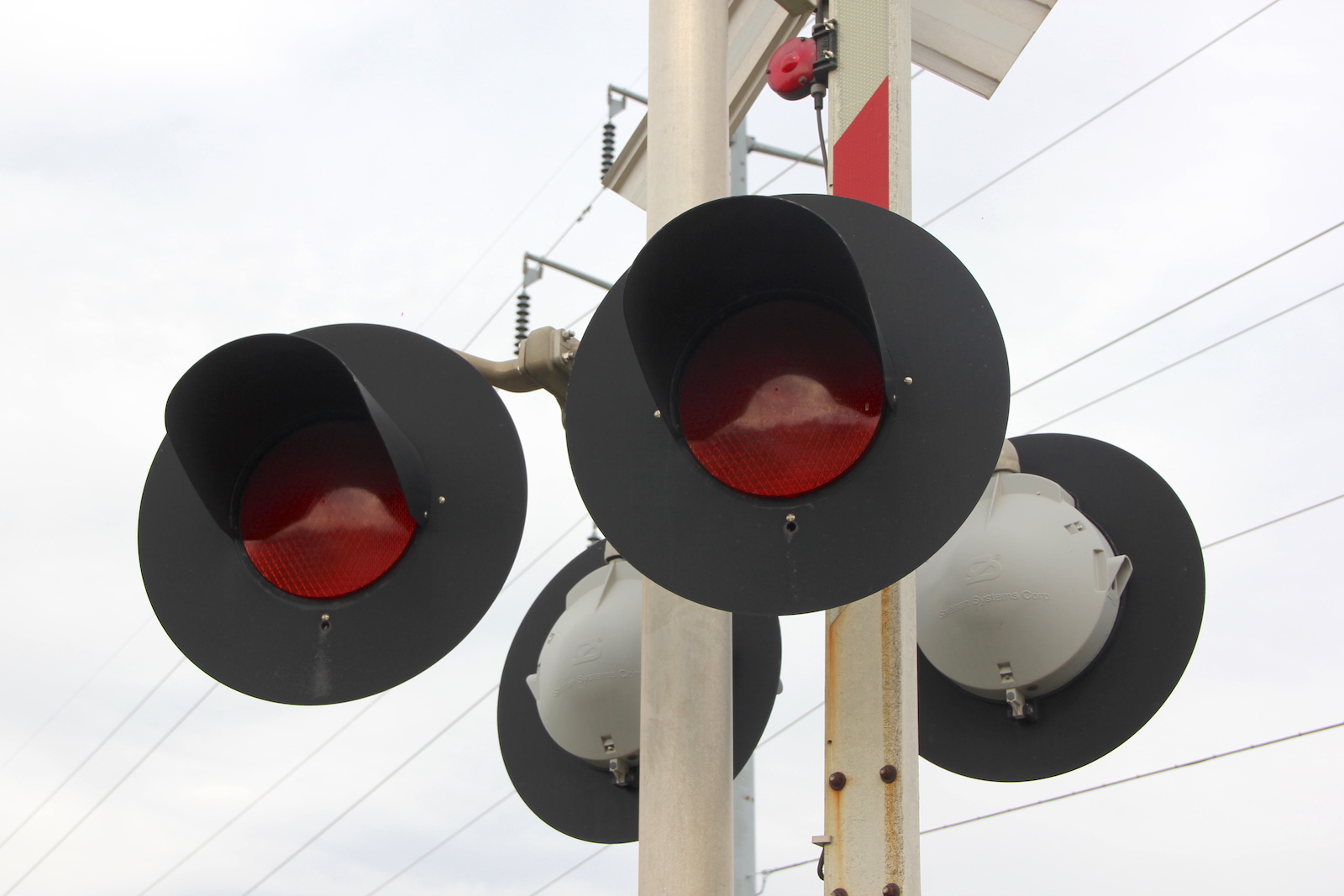

| The eastern signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|

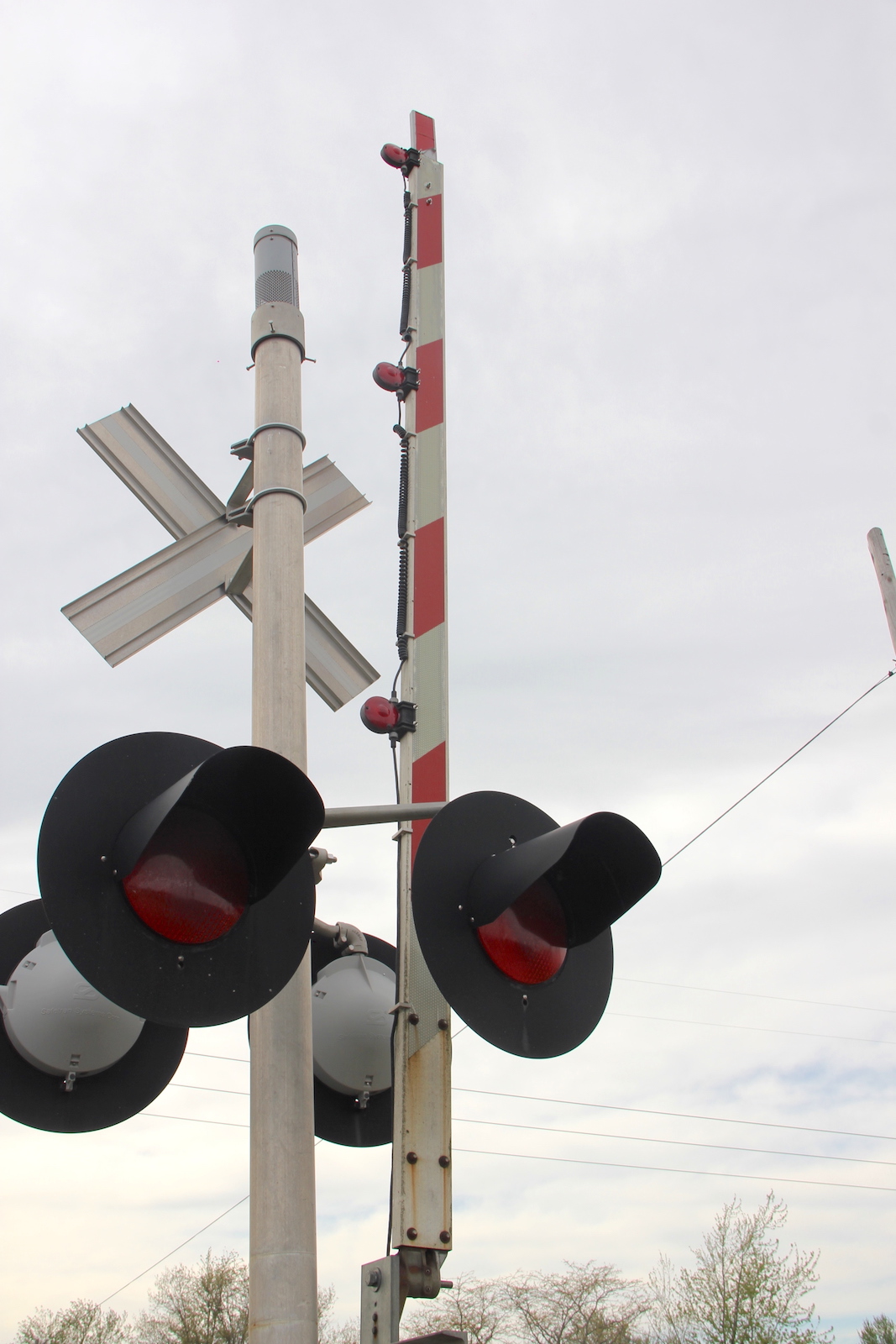

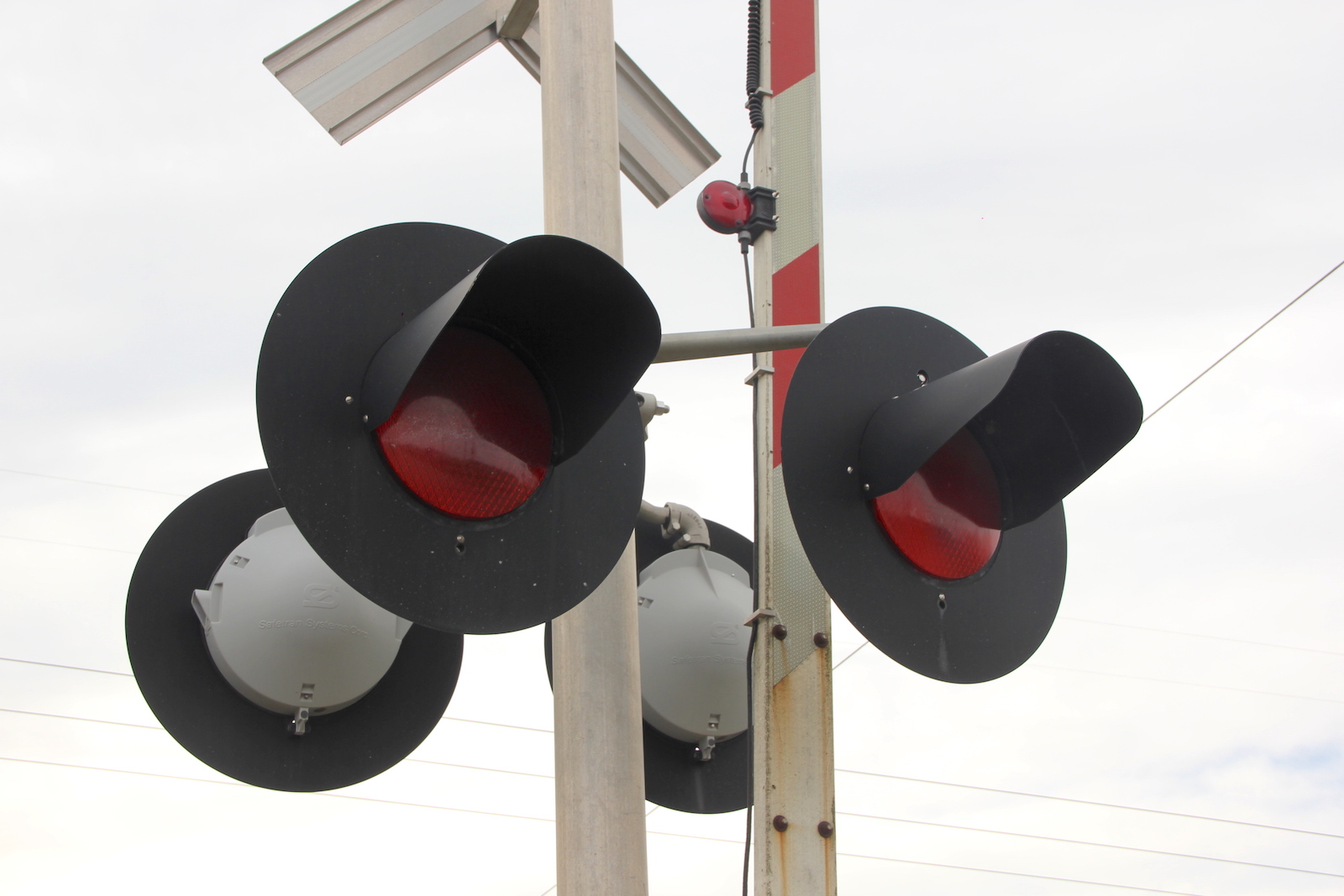

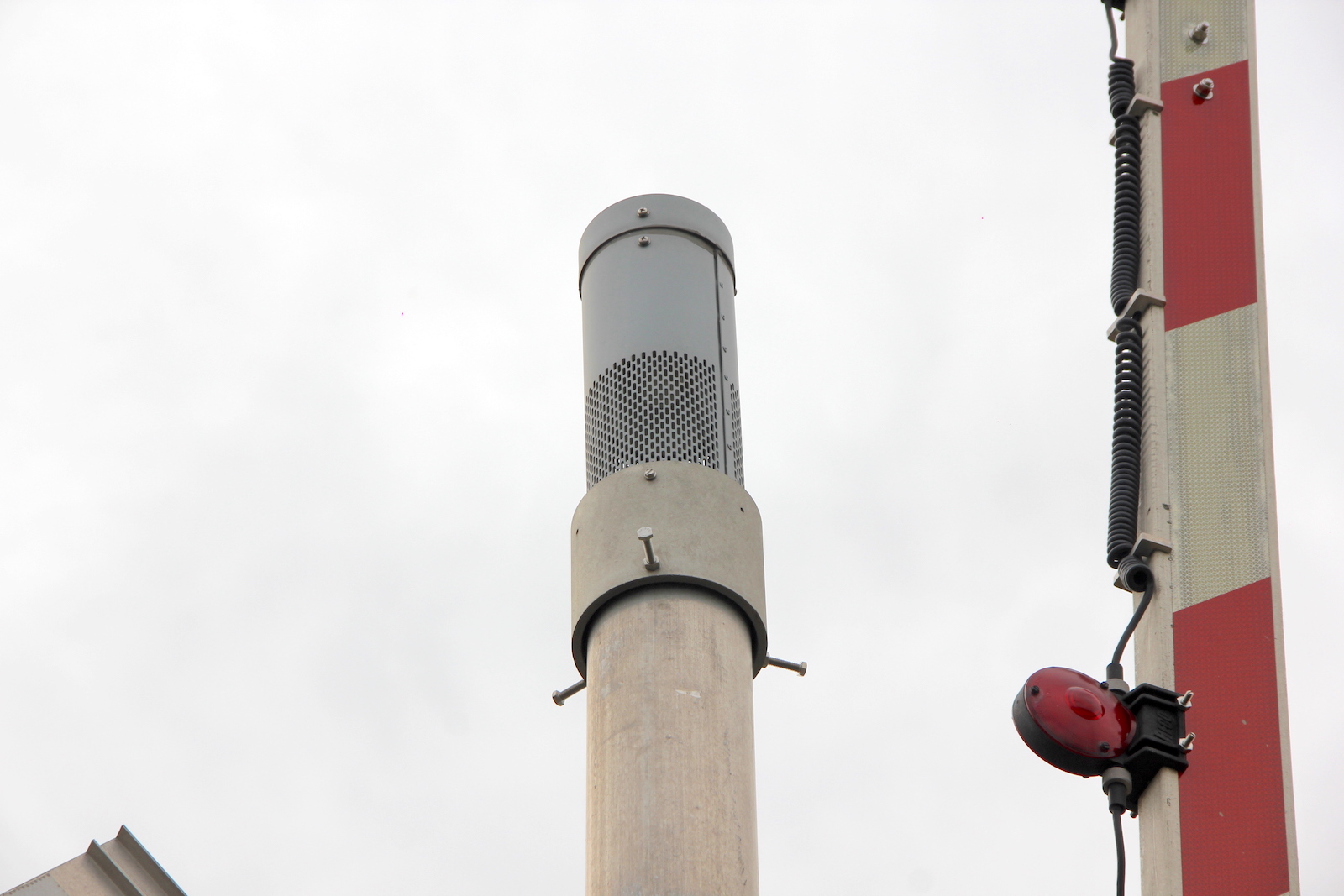

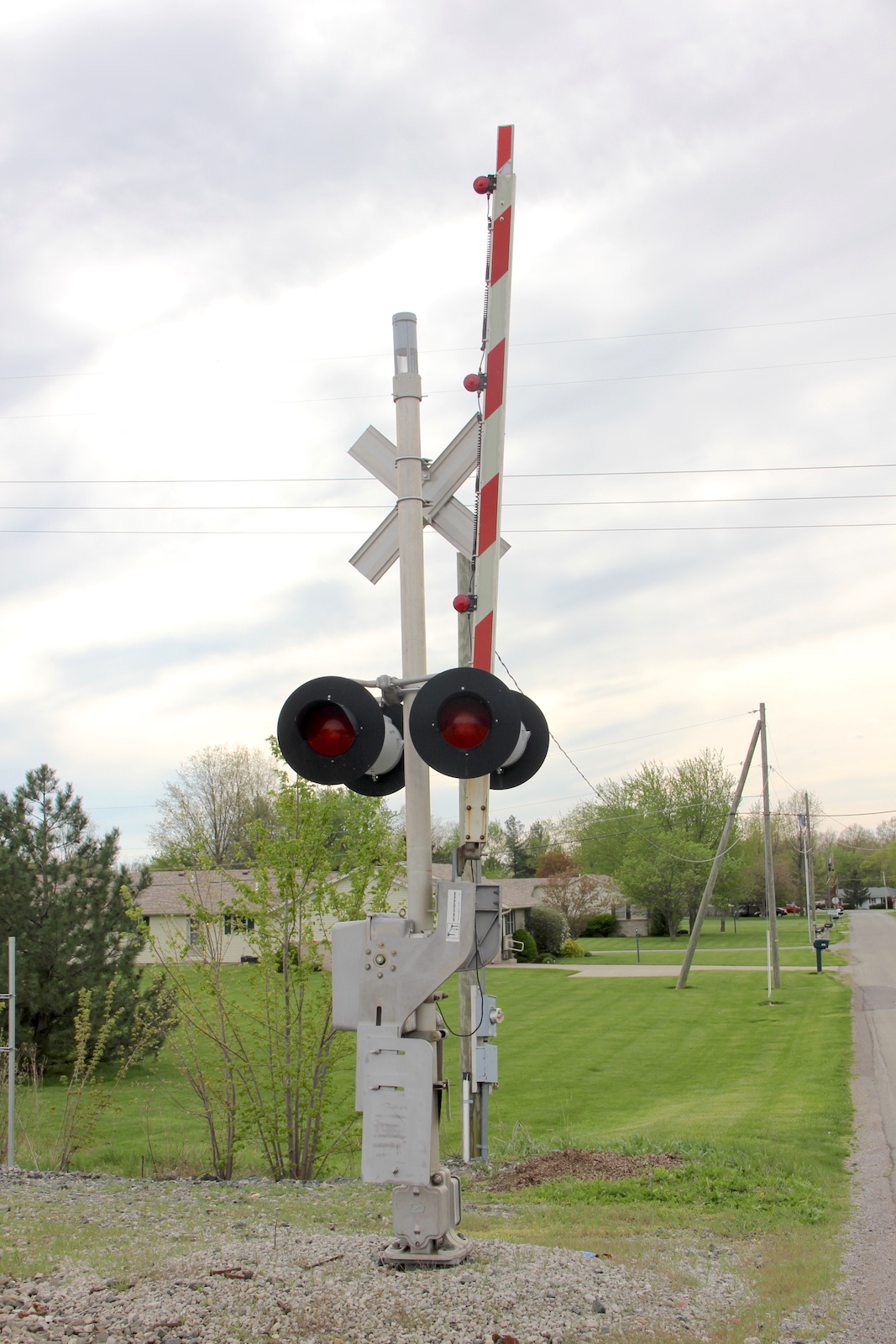

| The western signal. |
22
|
23
|
24
|
25
|

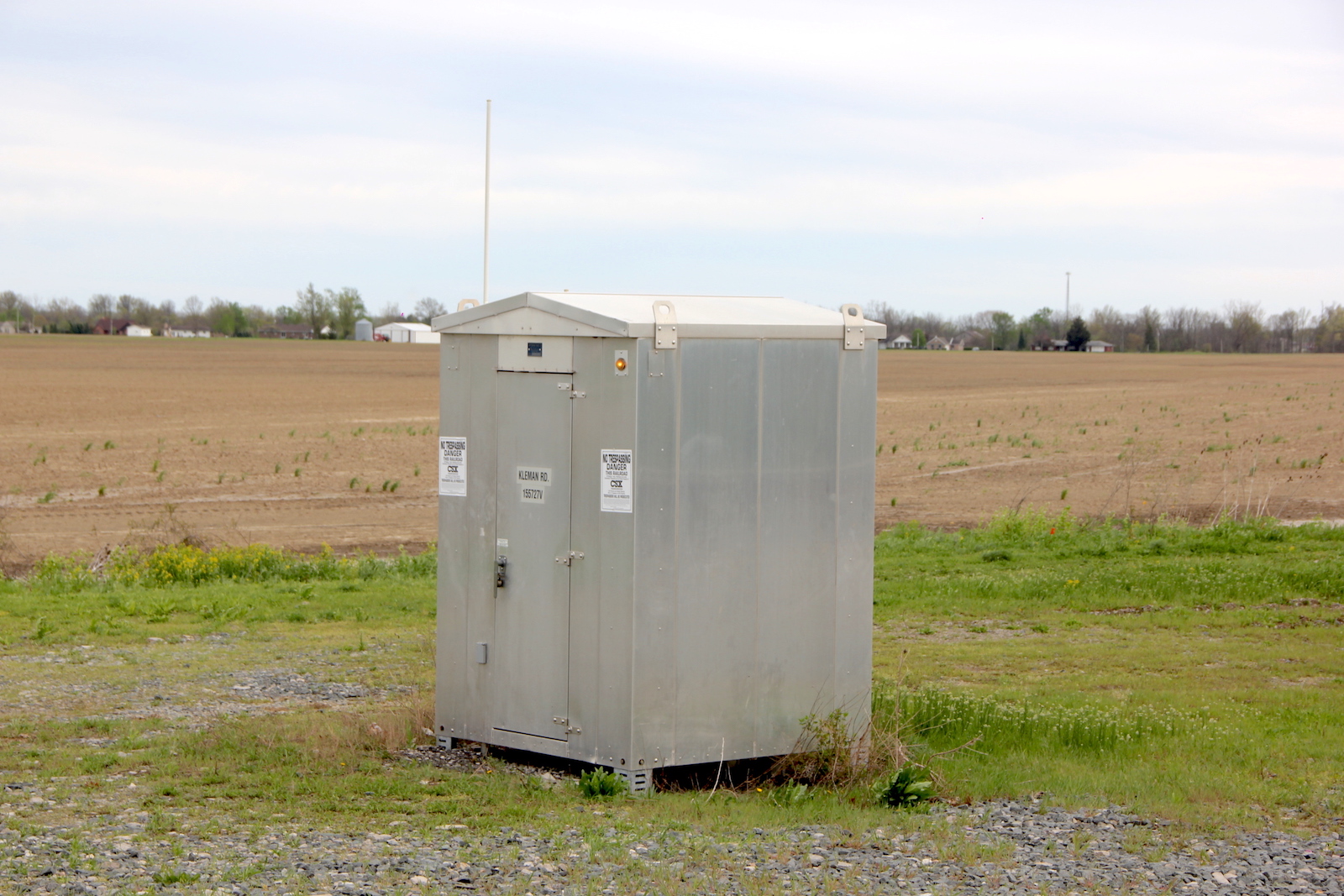

| The relay bungalow in the southeast quadrant. |

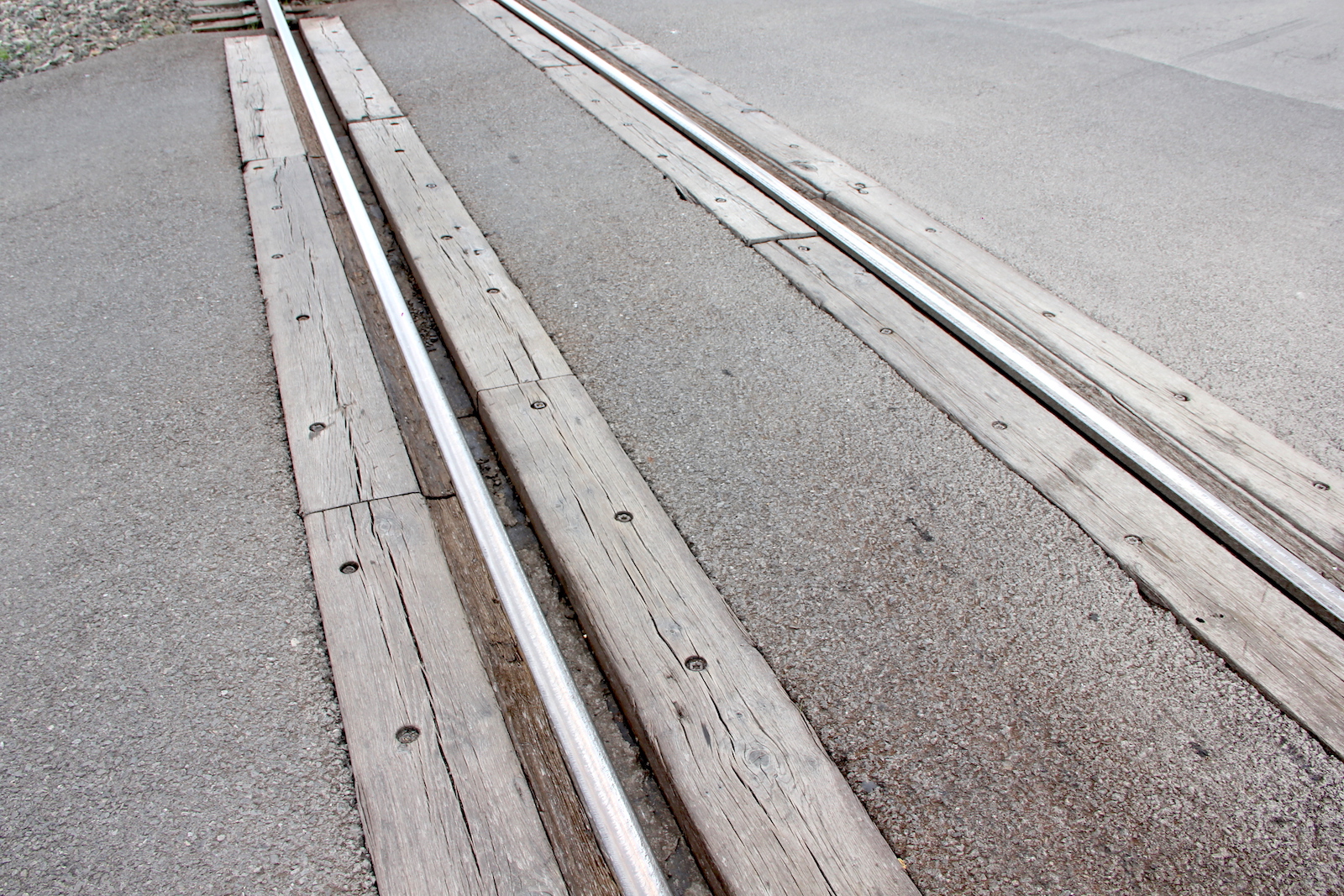

The grade is wood and asphalt. |

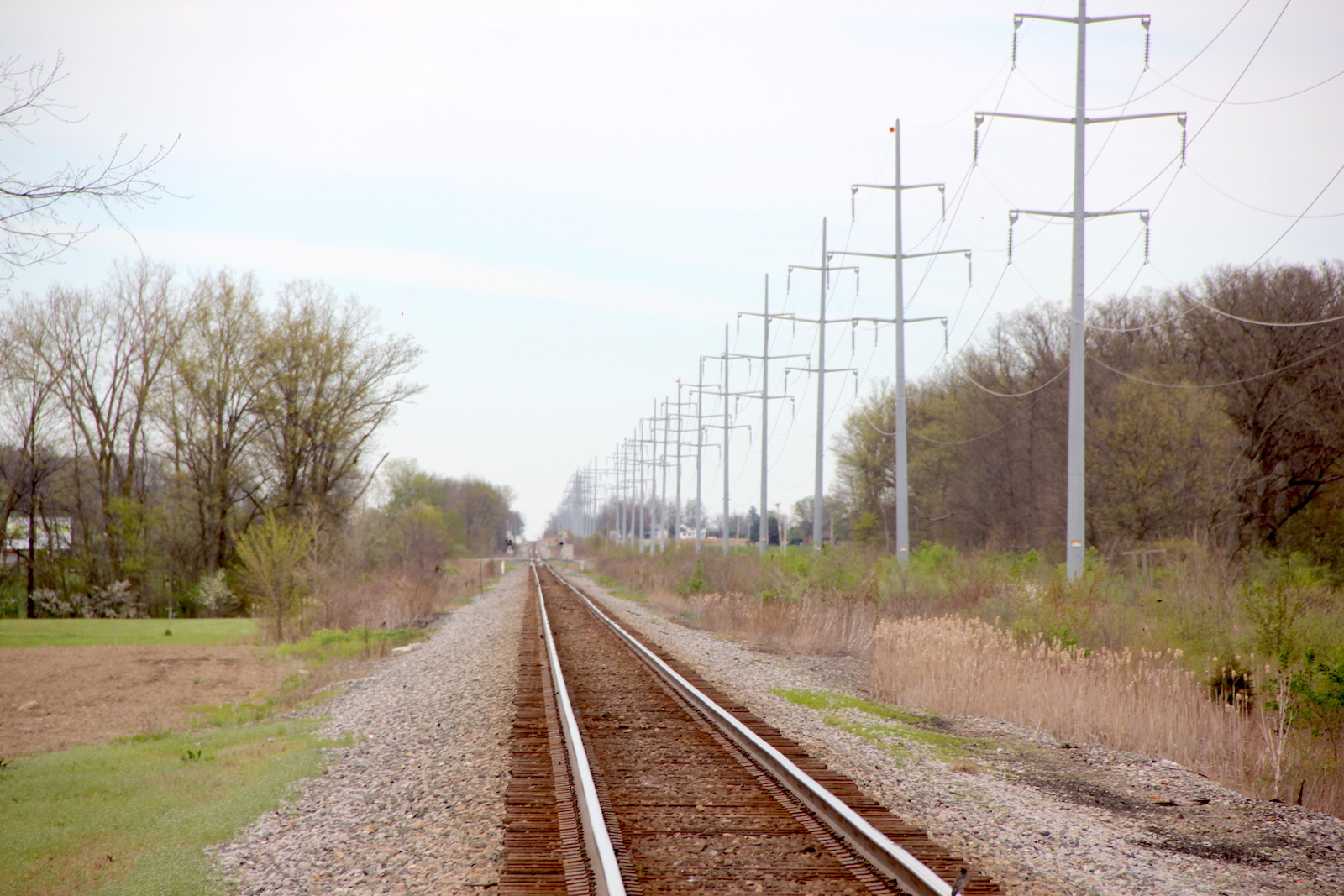

Track view facing north towards Route 65. |
Track view facing south on the CSX towards 11th St. #1. |
26 | 27
|
| Track view facing south on the IORY towards 11th St. #2. |

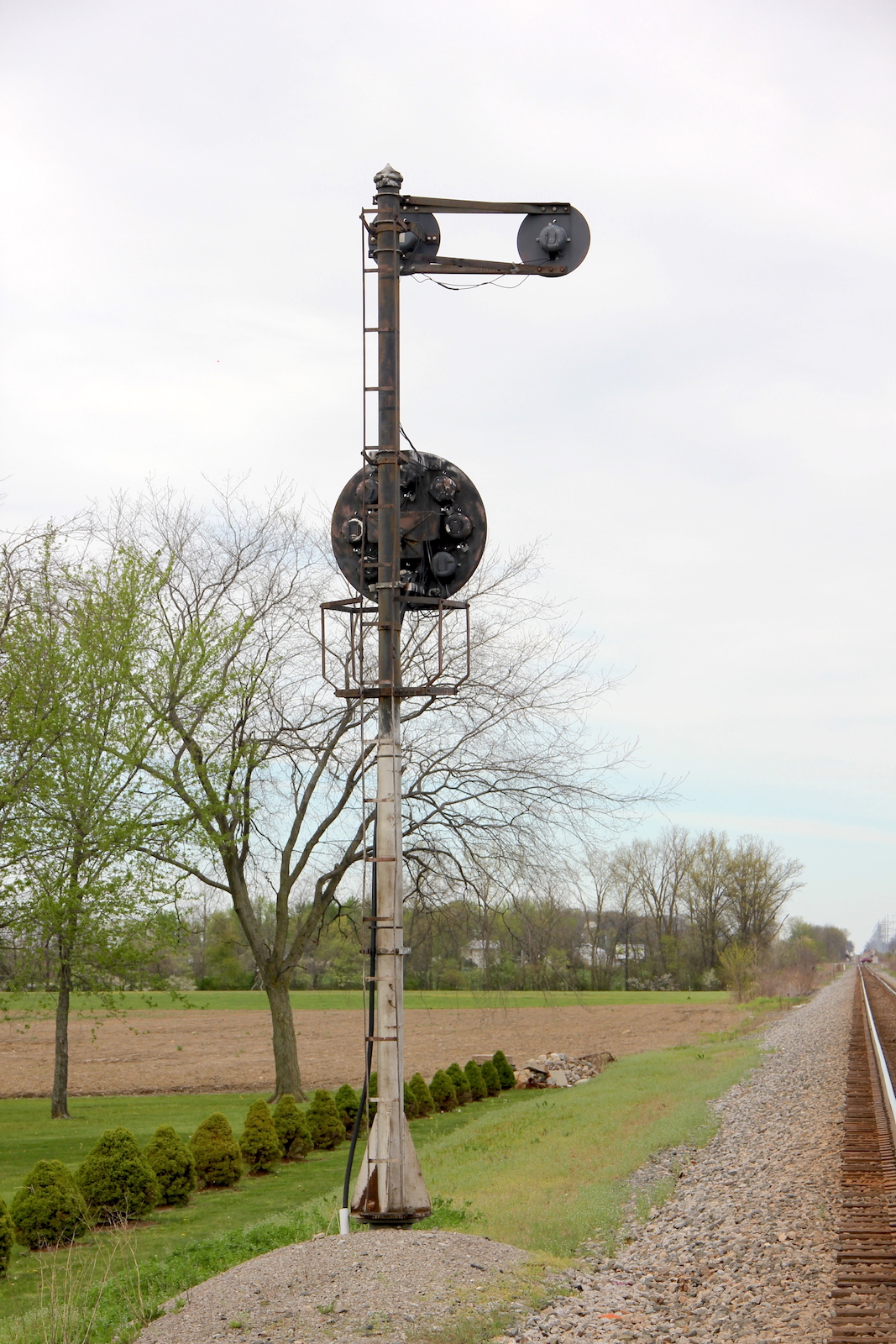

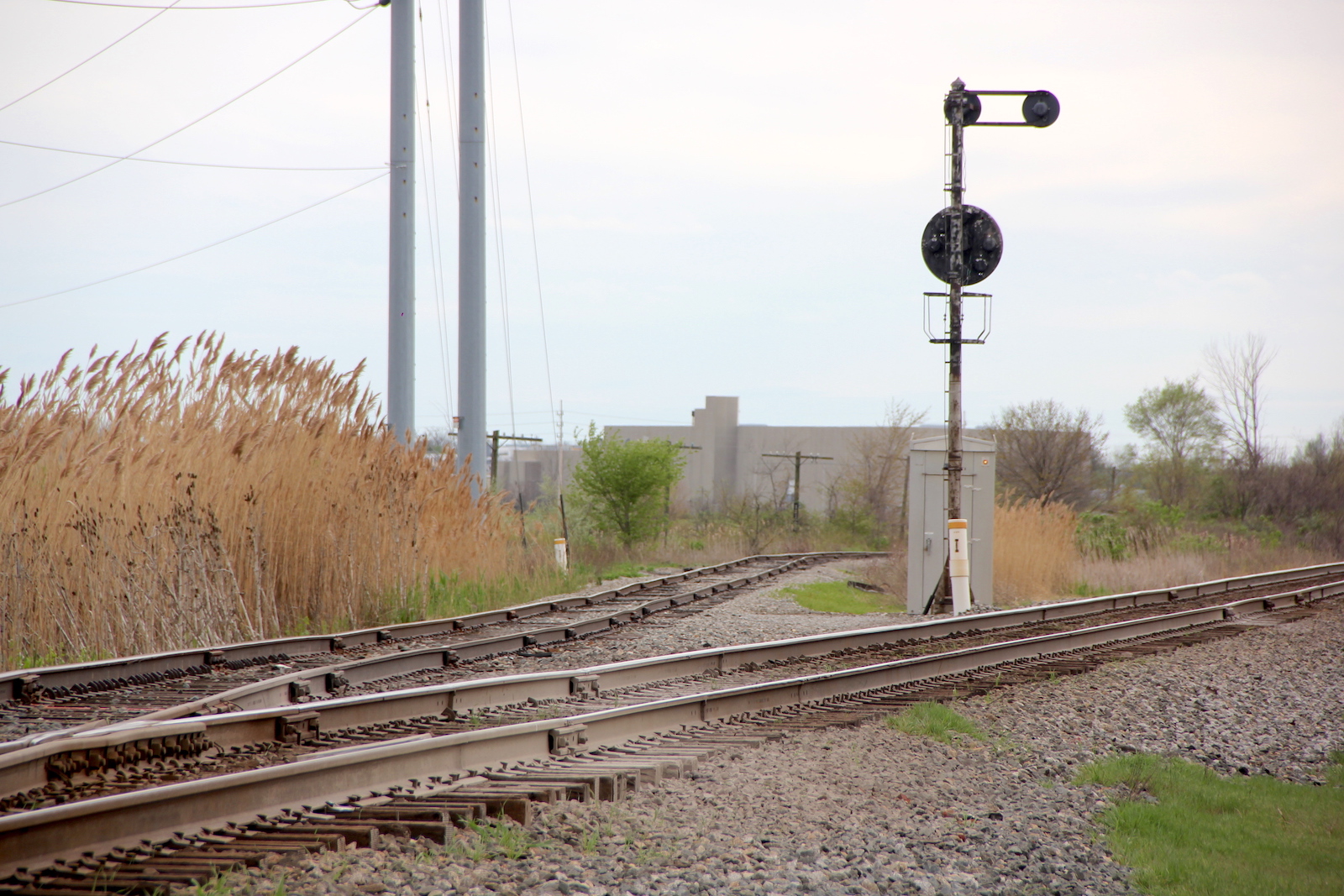

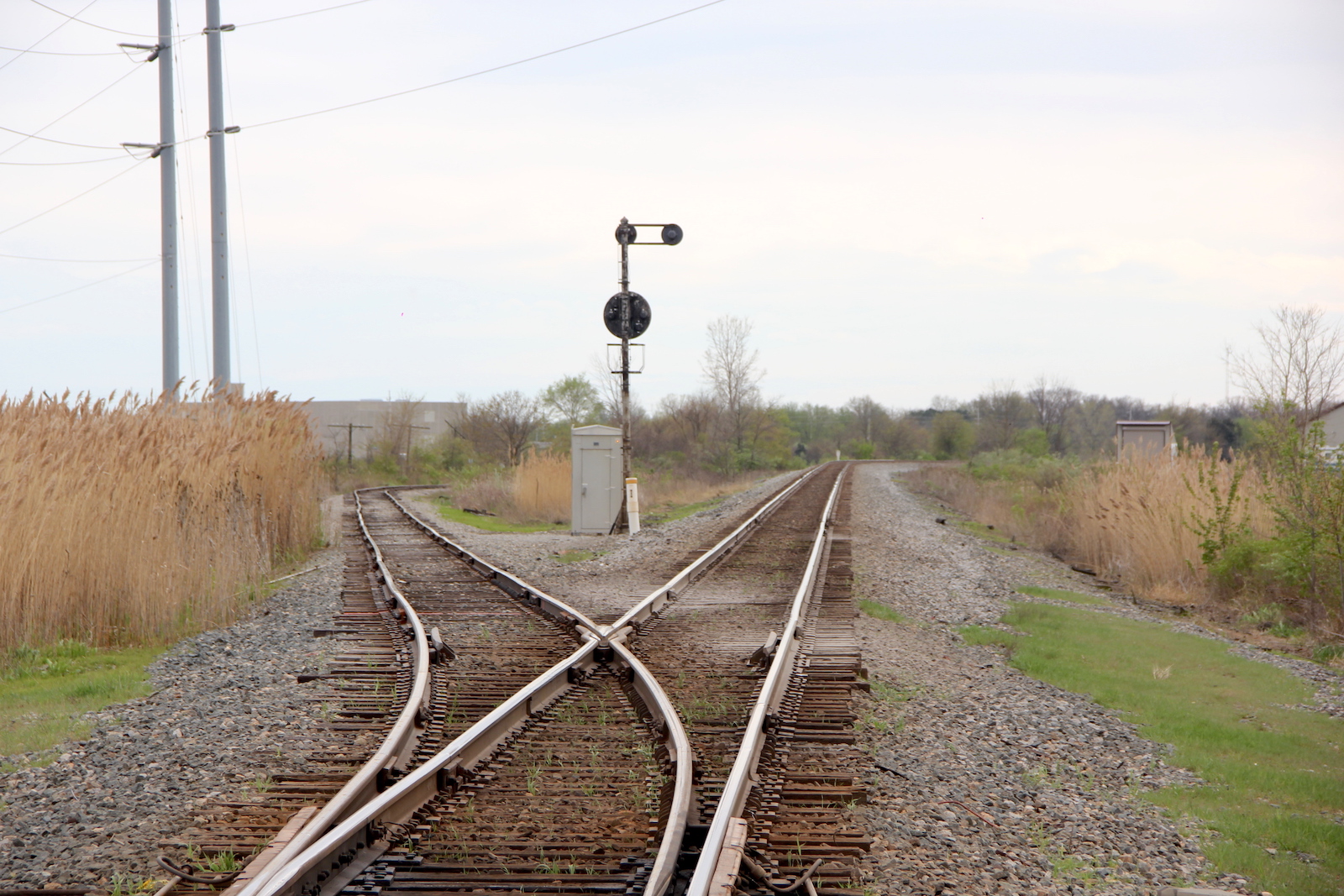

A very nice old set of B&O CPLs still guard the junction. |
