MP: 0194.54 |
Updated June 2025
Total Accidents:
0

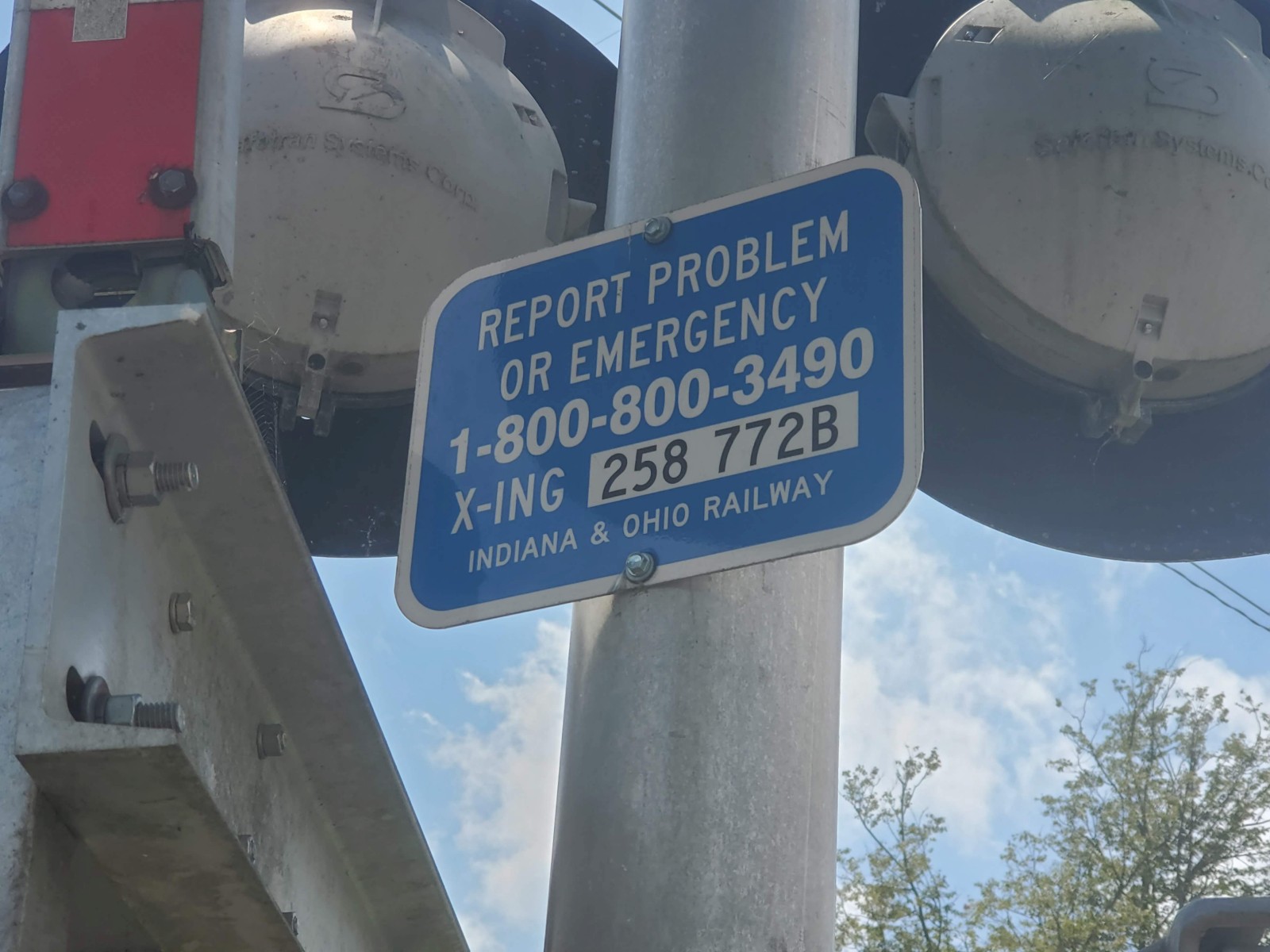

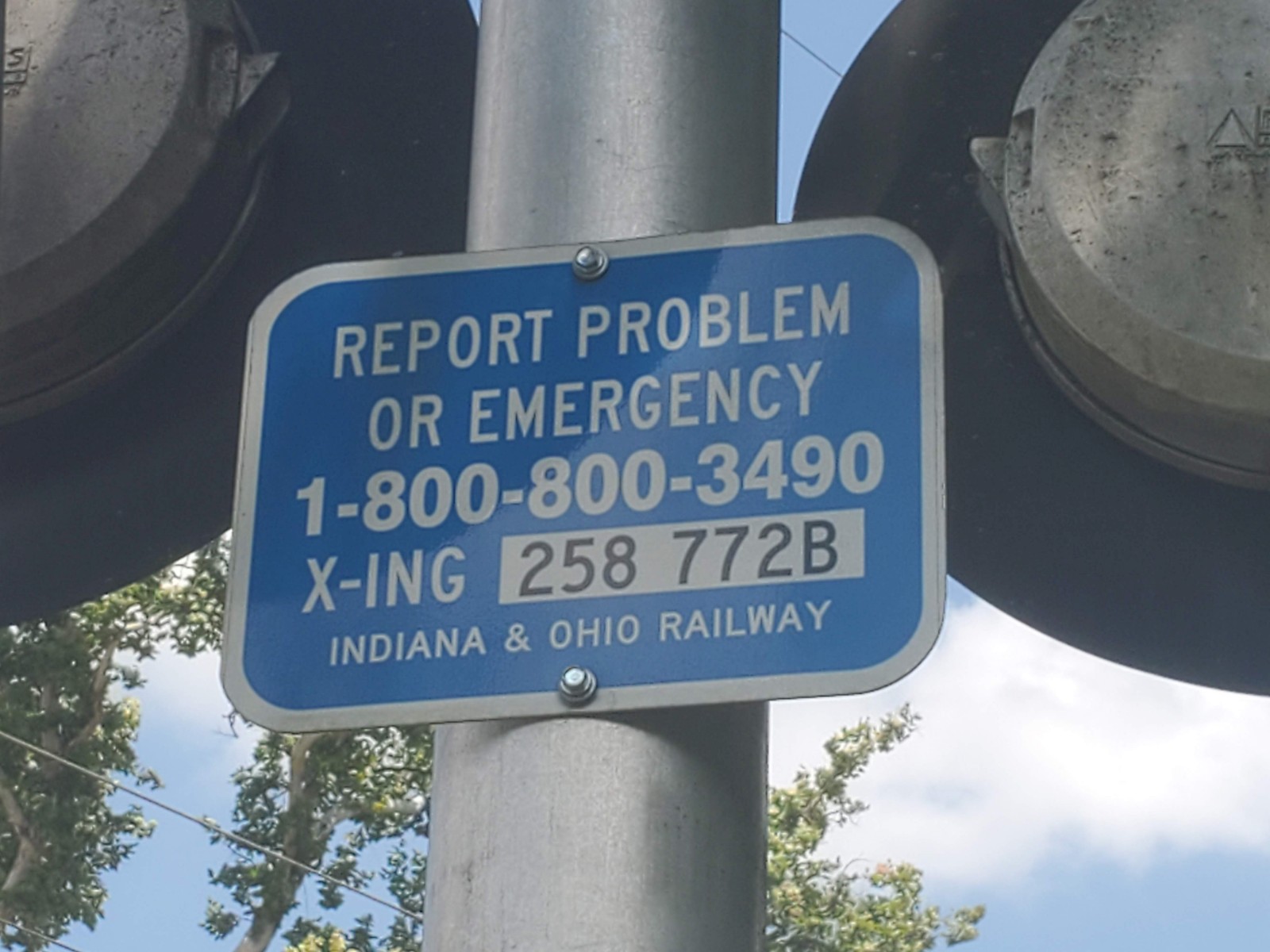

Crossing DOT #: 258772B
TOTAL DAILY
TRAINS: 4 (AS OF 2020)
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS E-Bell | GS E-Bell |

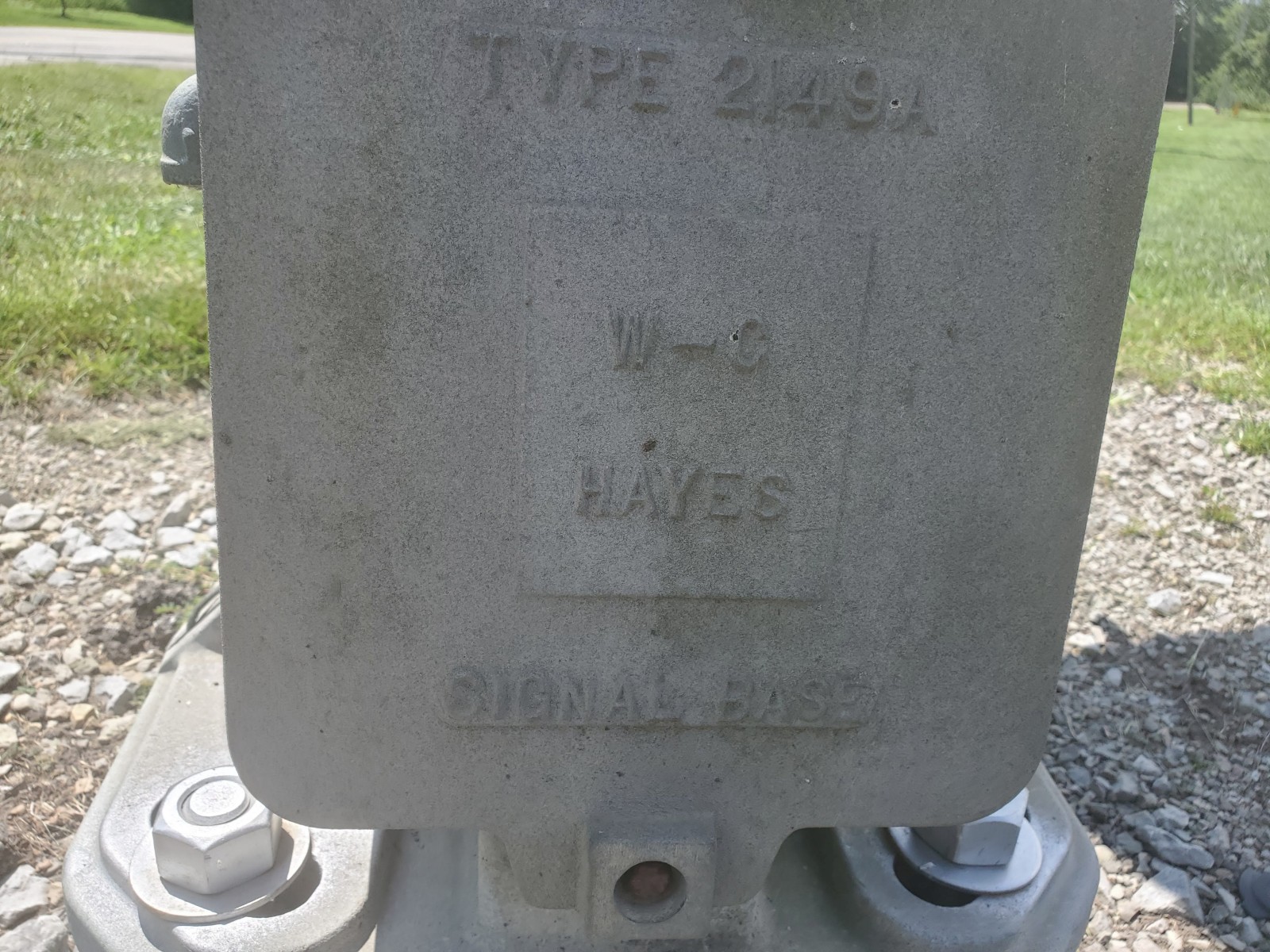

| Base: | WCH 5" Single Sided |

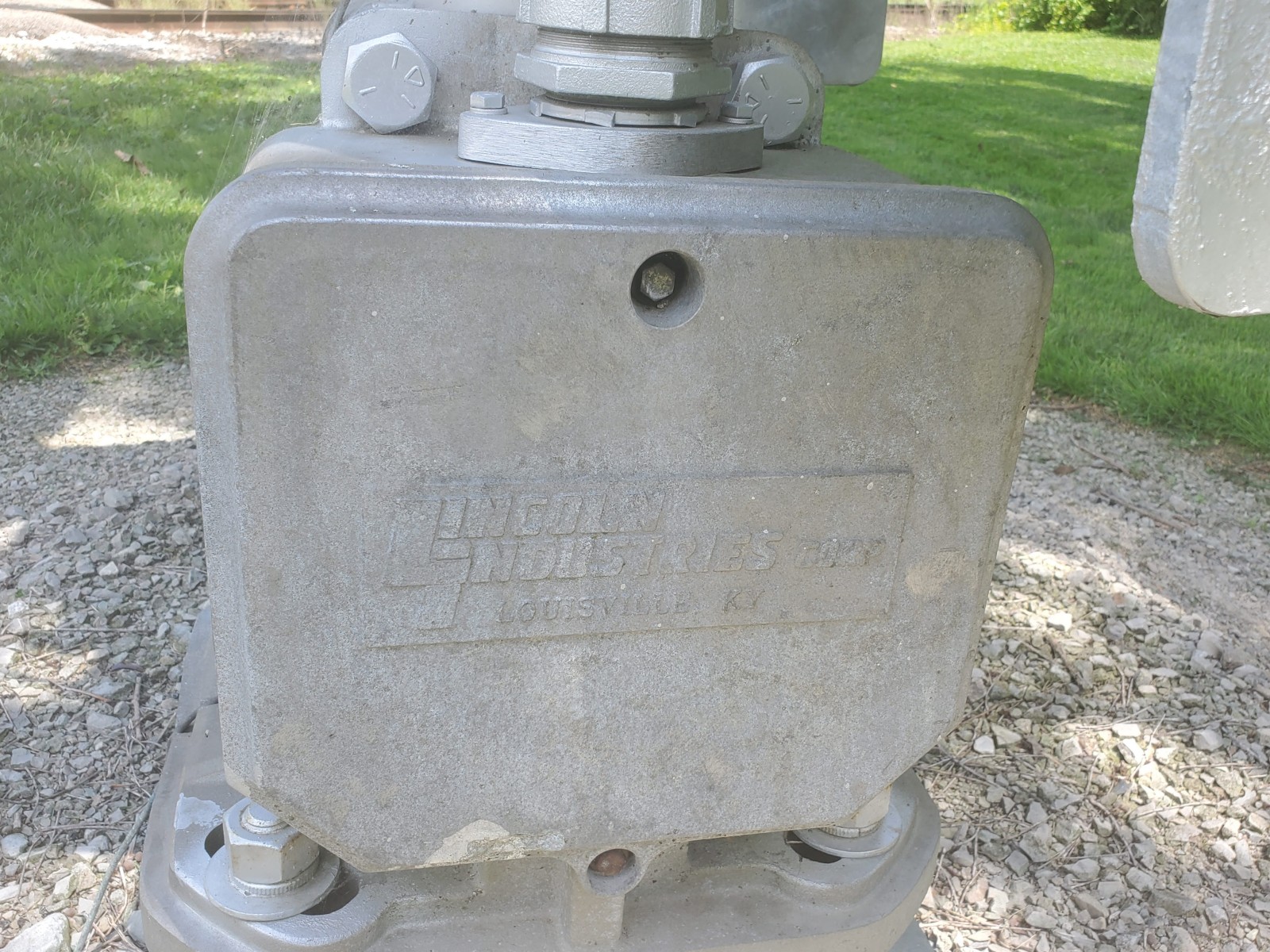

Lincoln Industries 5" Single Sided |

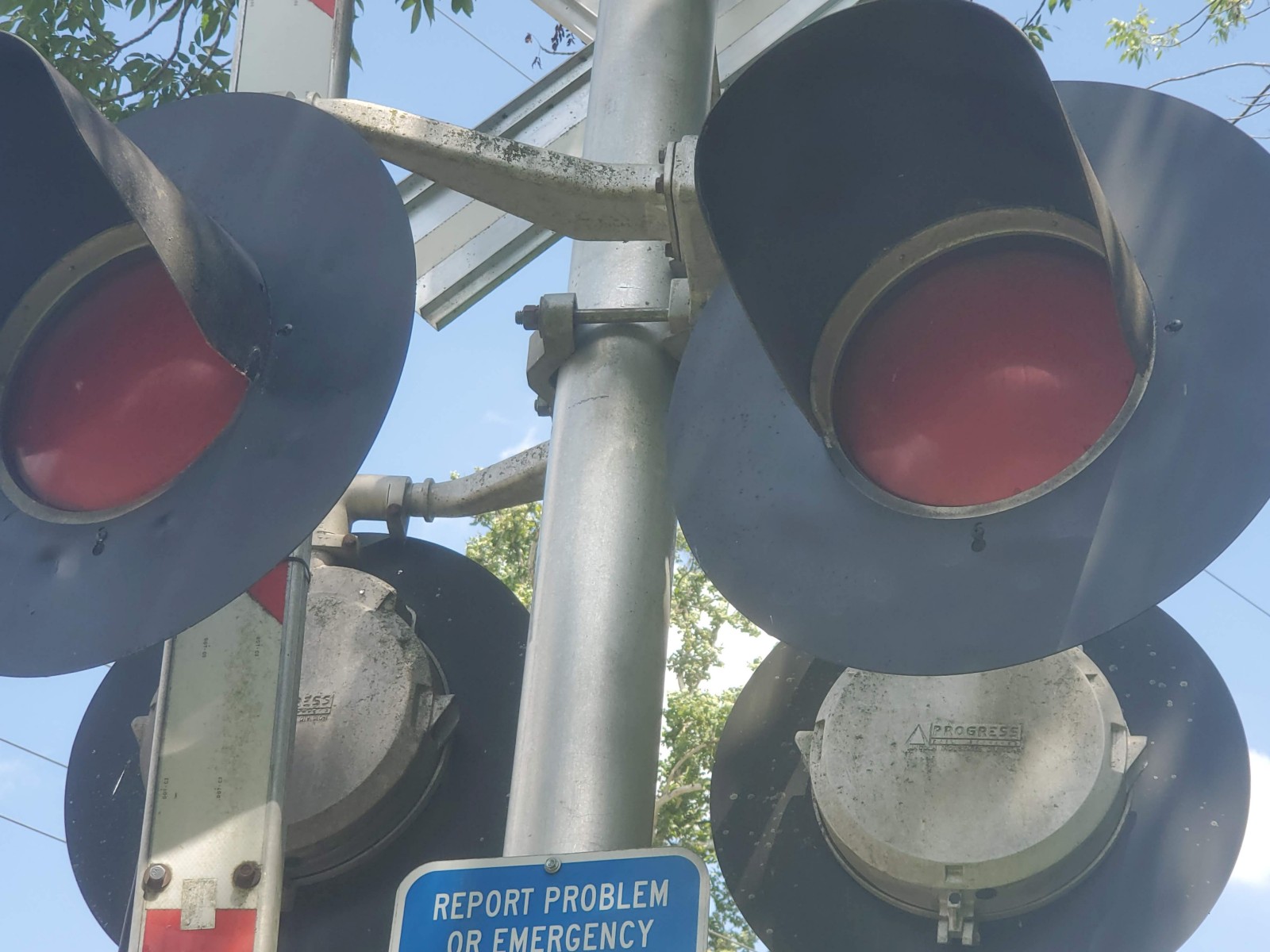

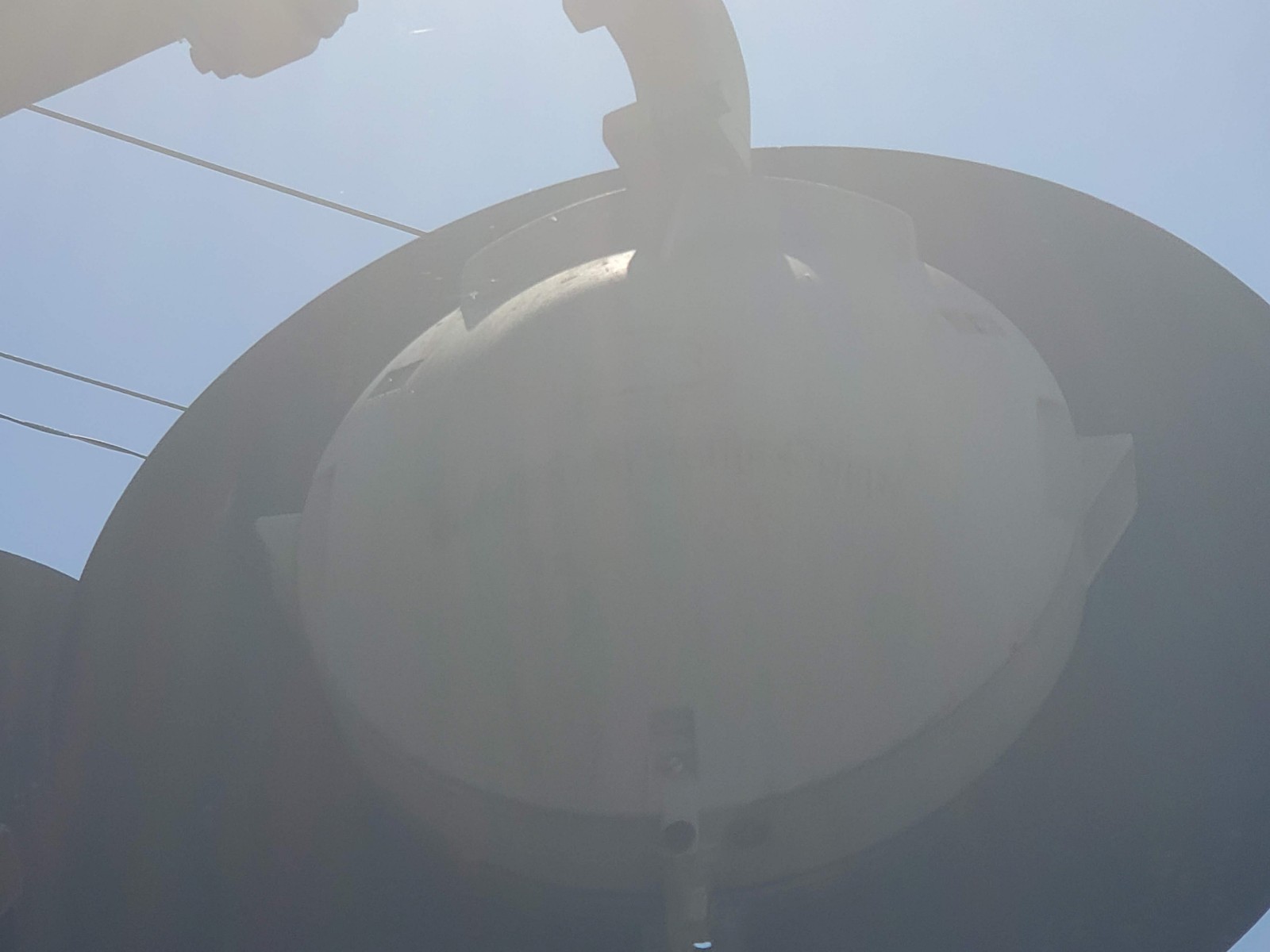

| Light Frames: | 4 - 12"x24" Safetran w/ Safetran Fading LEDs | 4 - 12"x24" Progress Rail Flatback w/ Progress Rail LEDs |
| Light Brackets: |
Safetran |

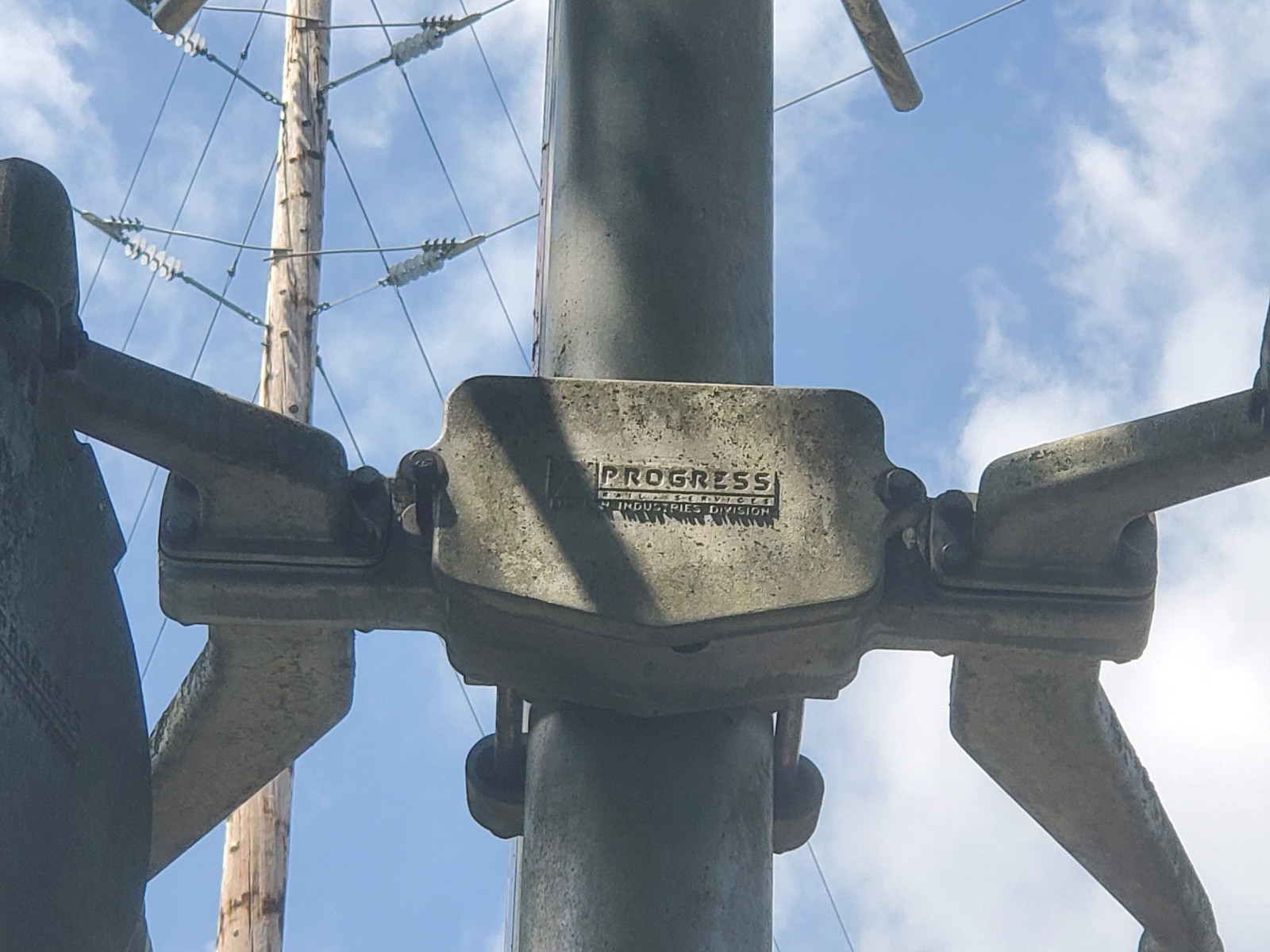

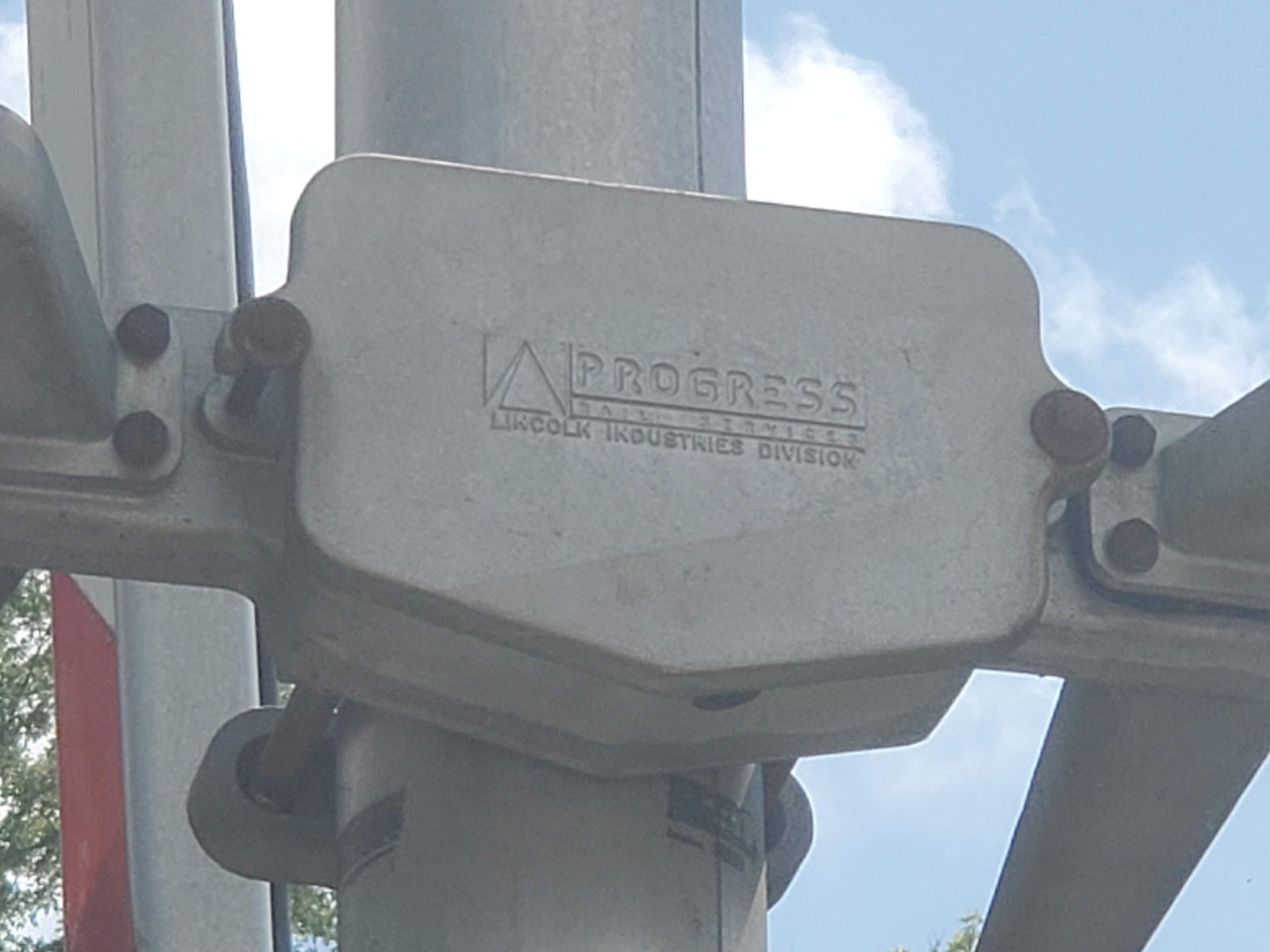

Progress Rail |

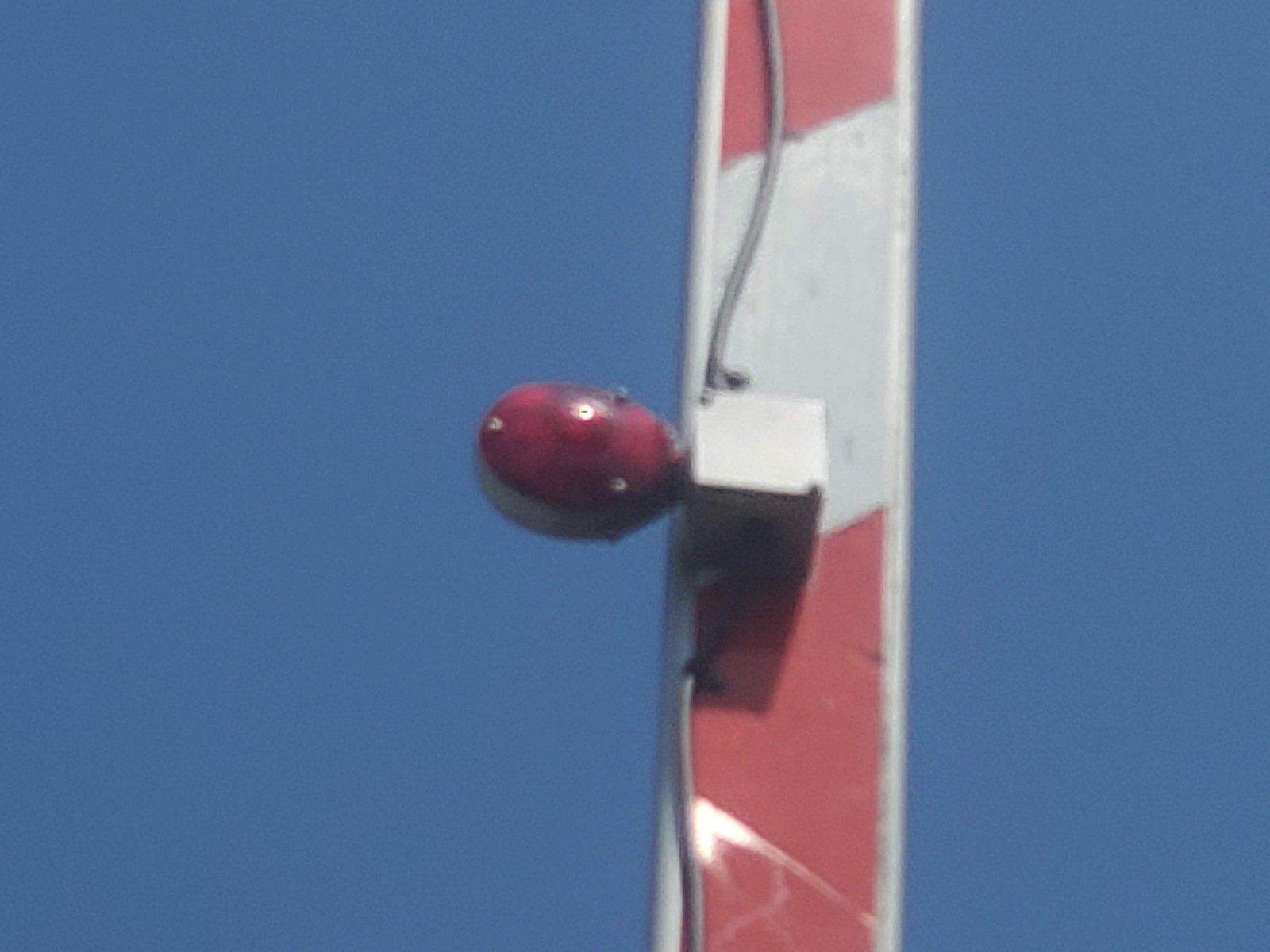

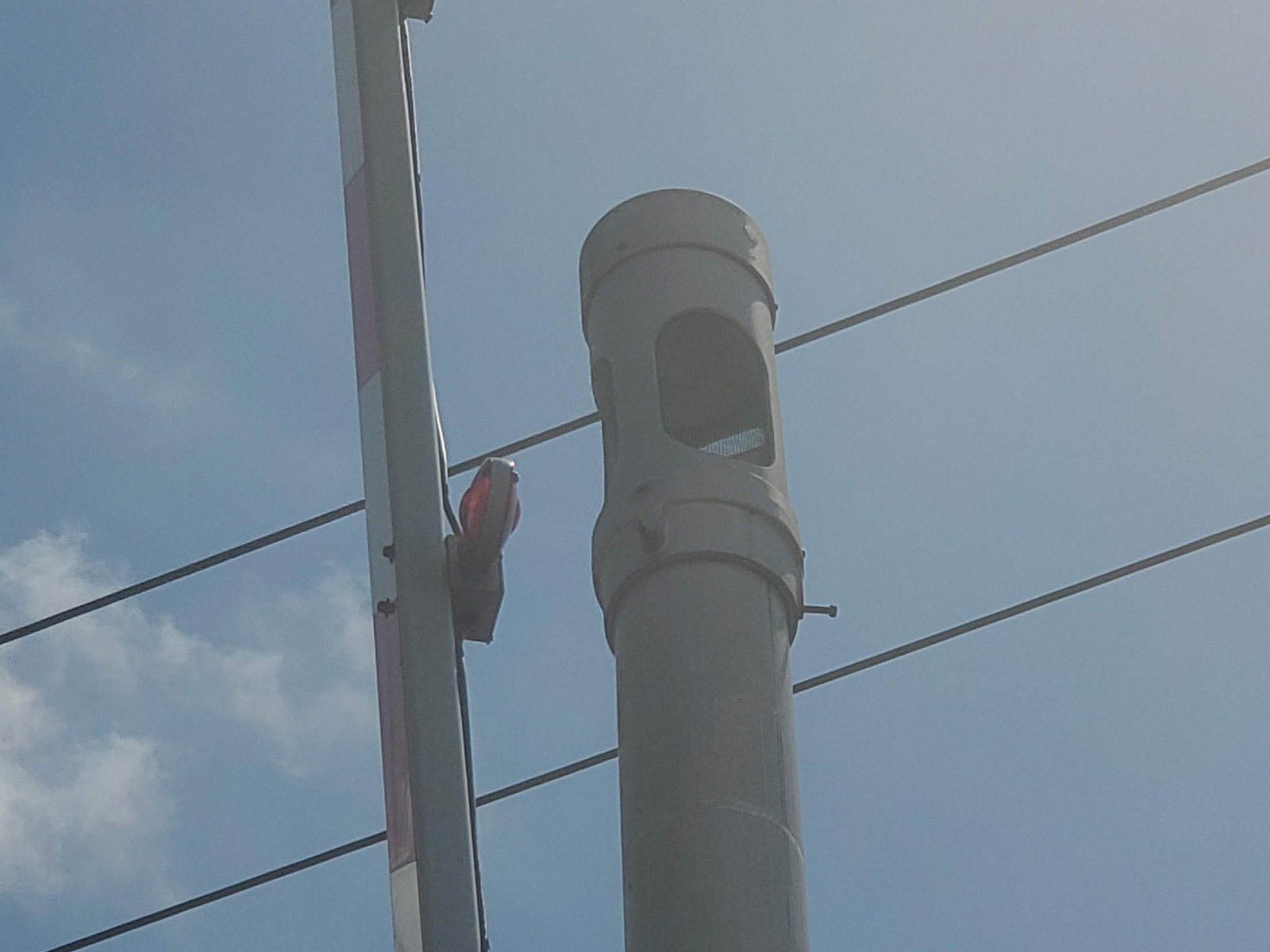

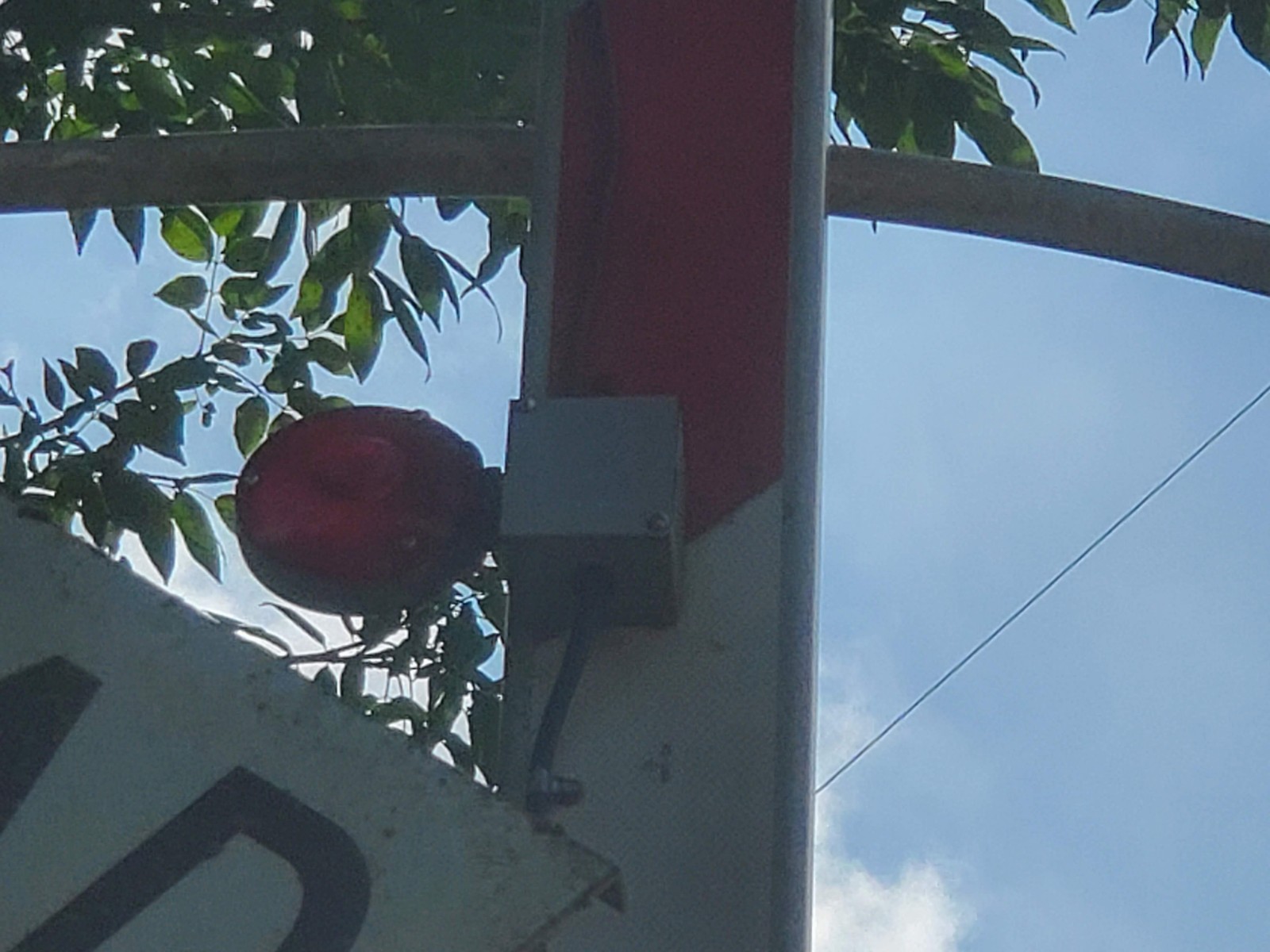

| Gate Lights: | 3 - 4" L&W incandescents |
3 - 4" L&W incandescents |

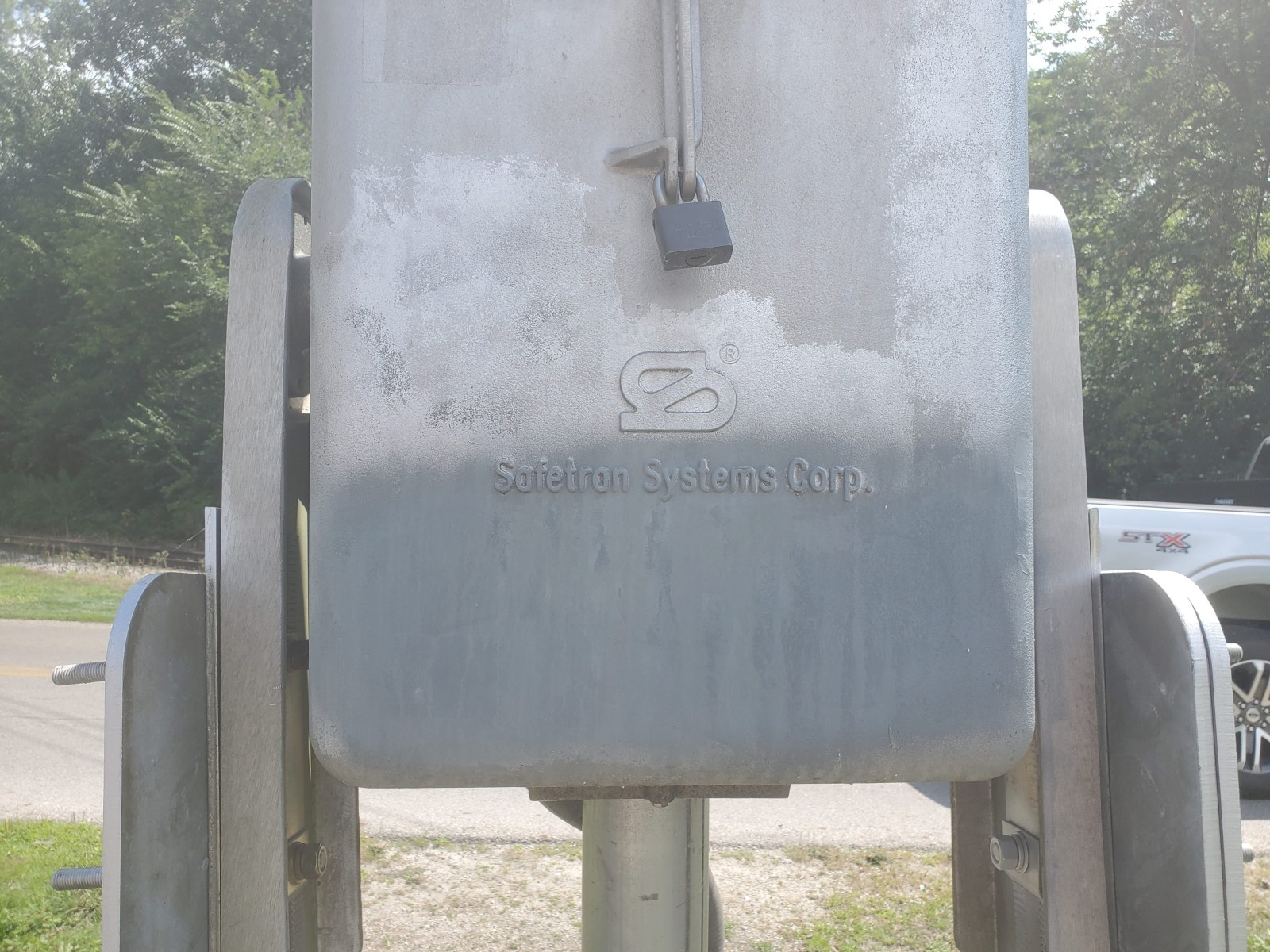

| Gate Mechanism: | Safetran 2000s w/ NEG 1 Way Saver |
Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
Page created by: Ethan the Railfanner
Pictures 1-28 were taken on August 3, 2022, by Sir Fluent.
This crossing is located on the IORY DT&I Middle Subdivision.
|
O1 |
O2 |
O3 |
O4 |
|

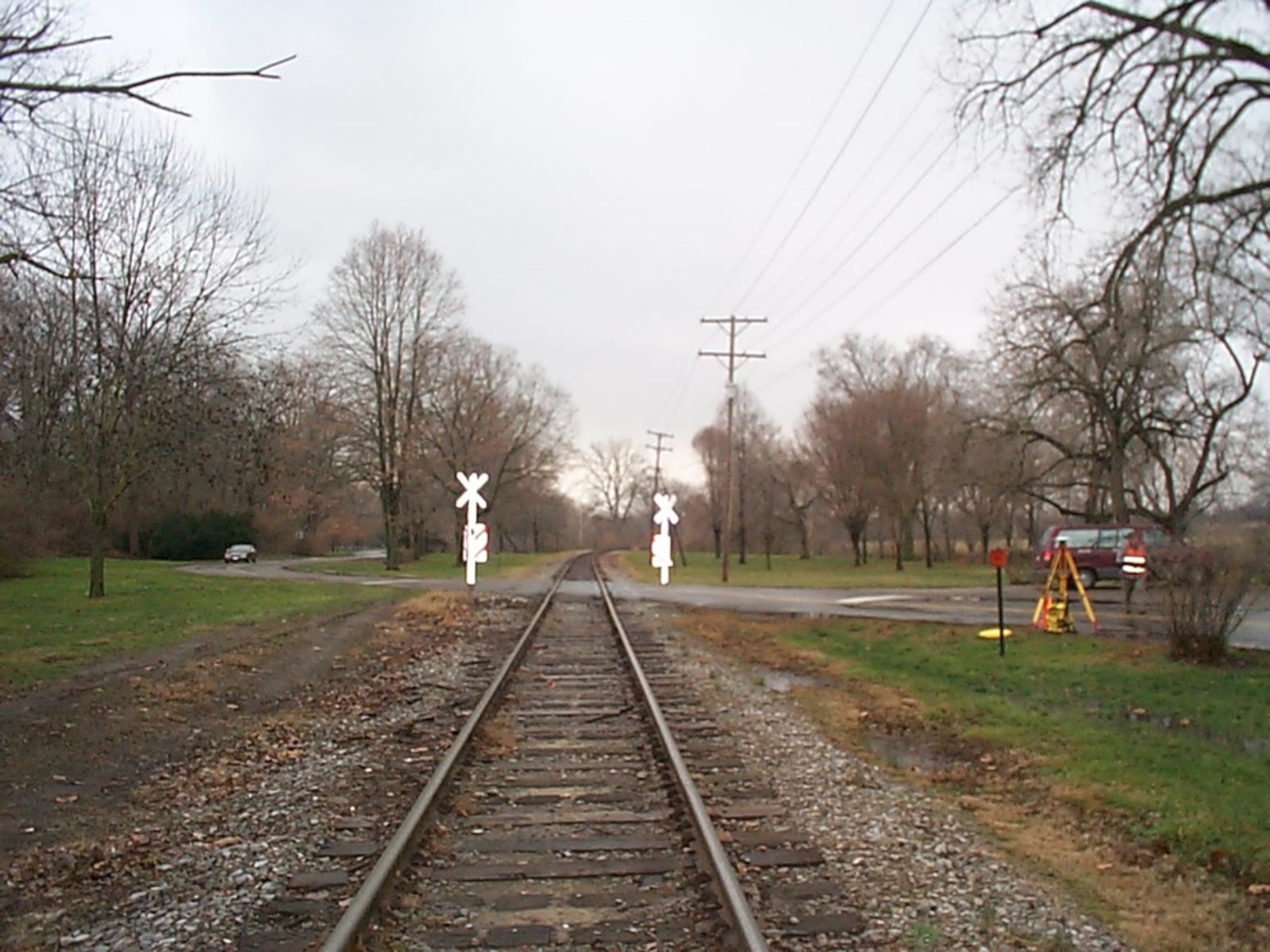

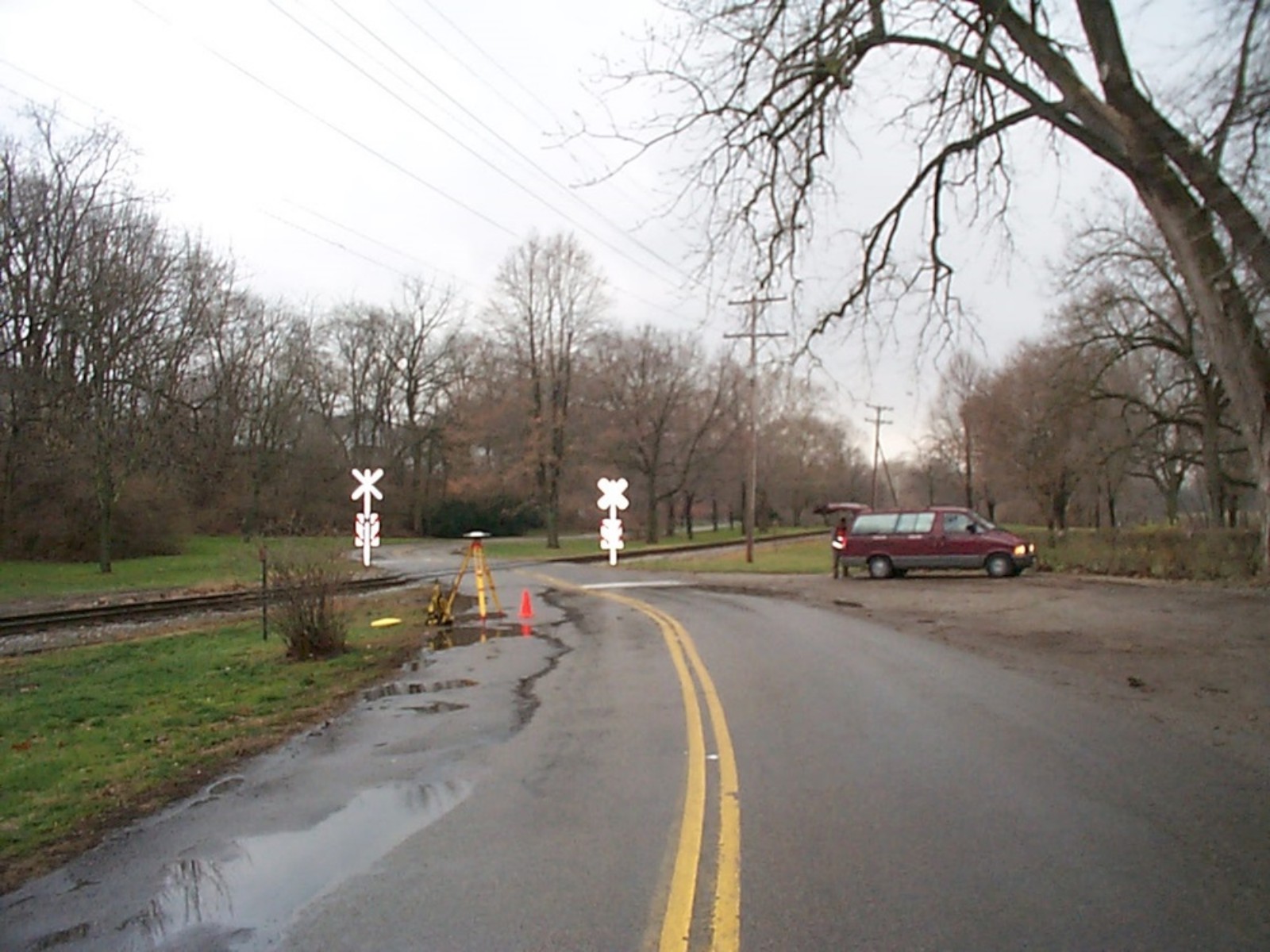

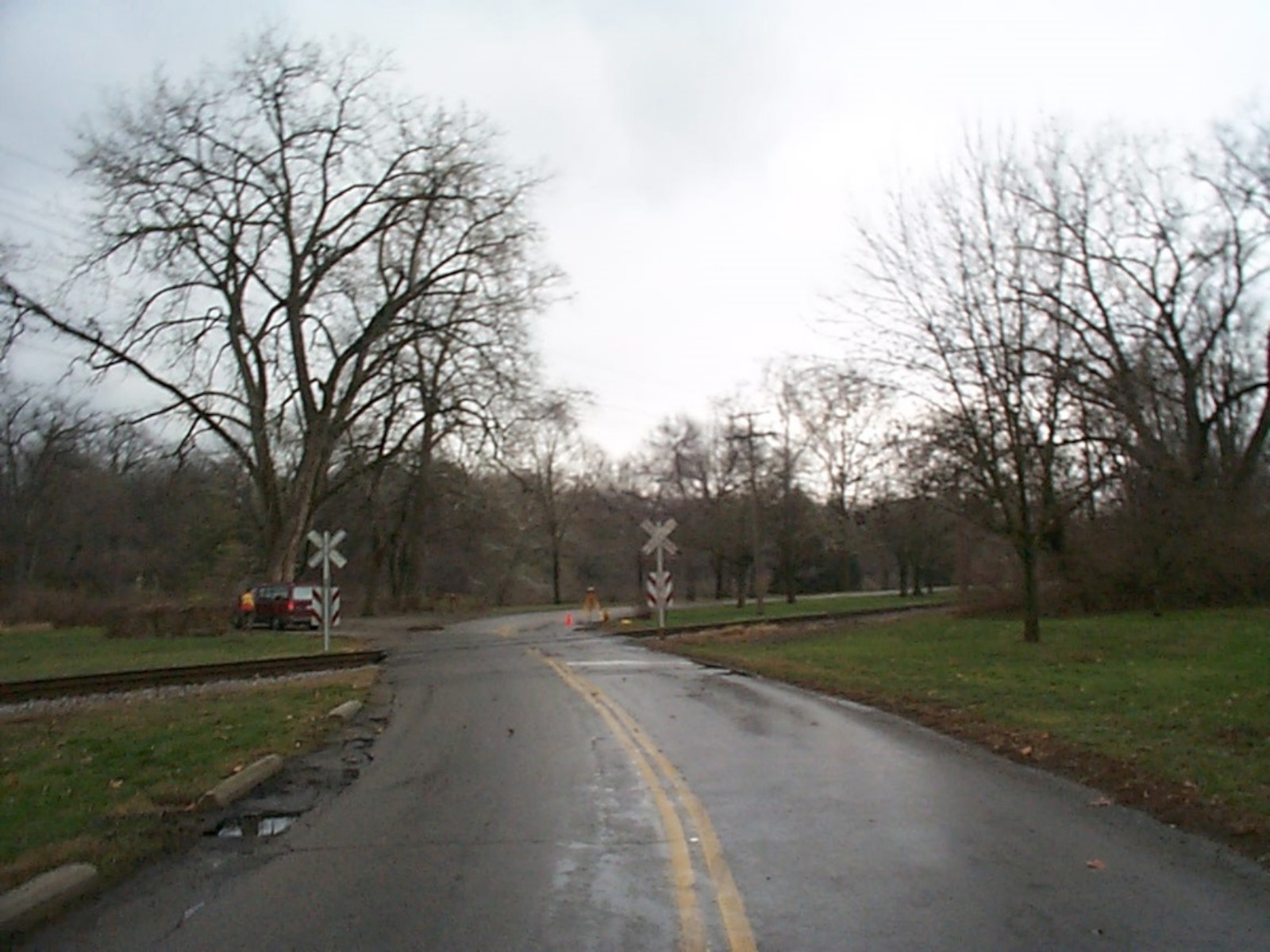

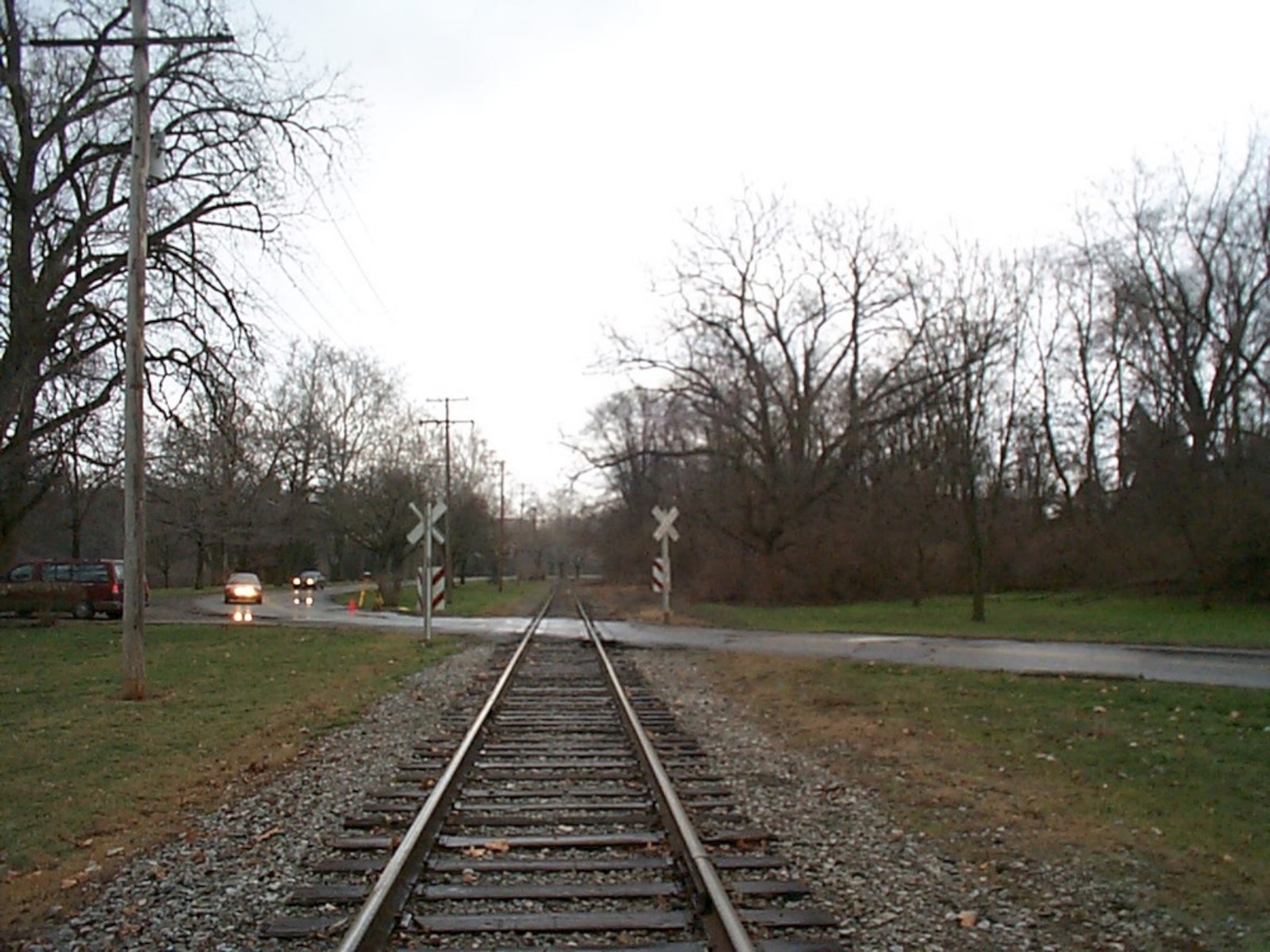

PUCO pictures from the late 90s shows
two buckeye crossbuck posts protecting the crossing.
|
|||
|
O5 |
O6 |
O7 |
O8 |
|

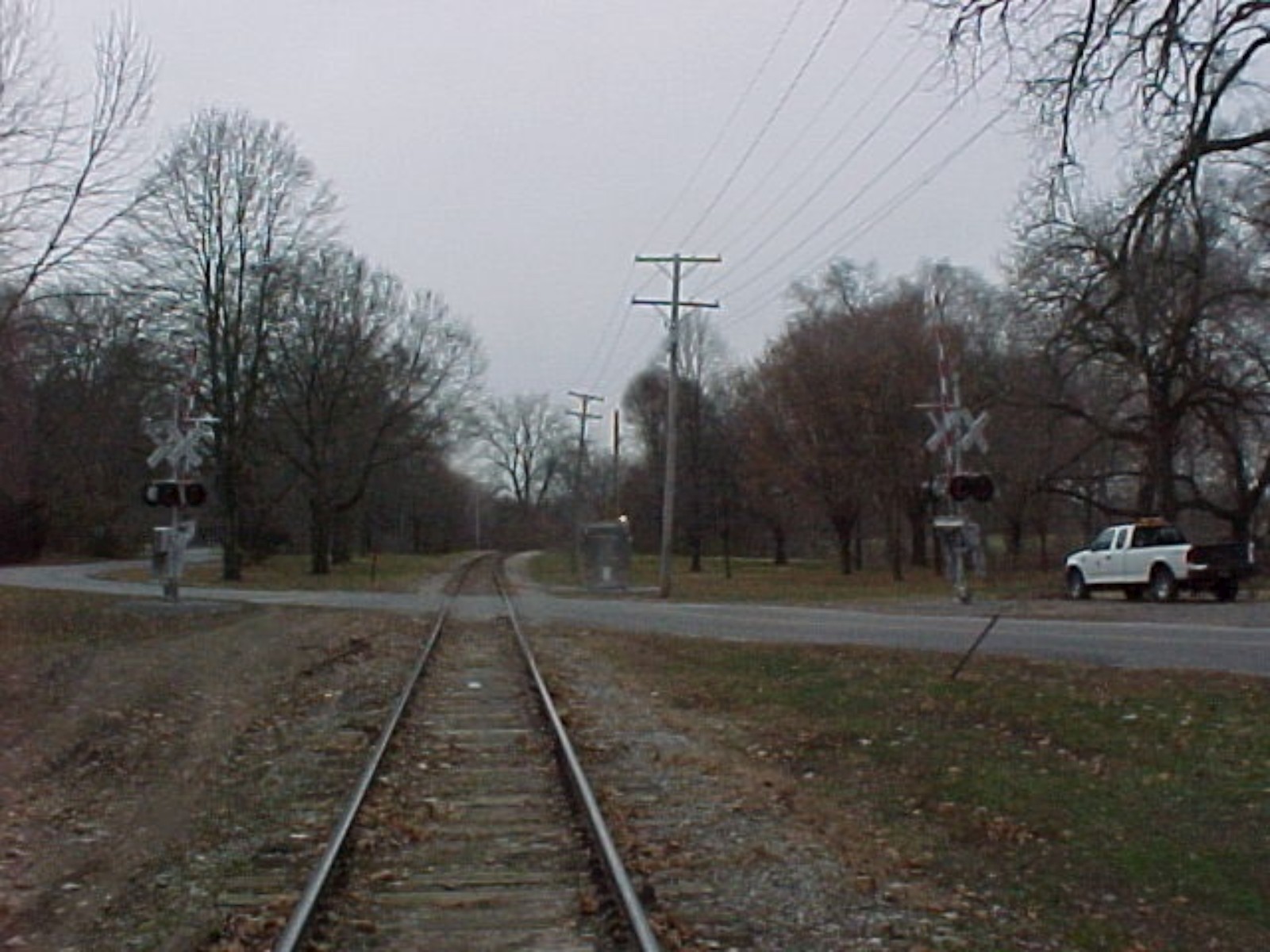

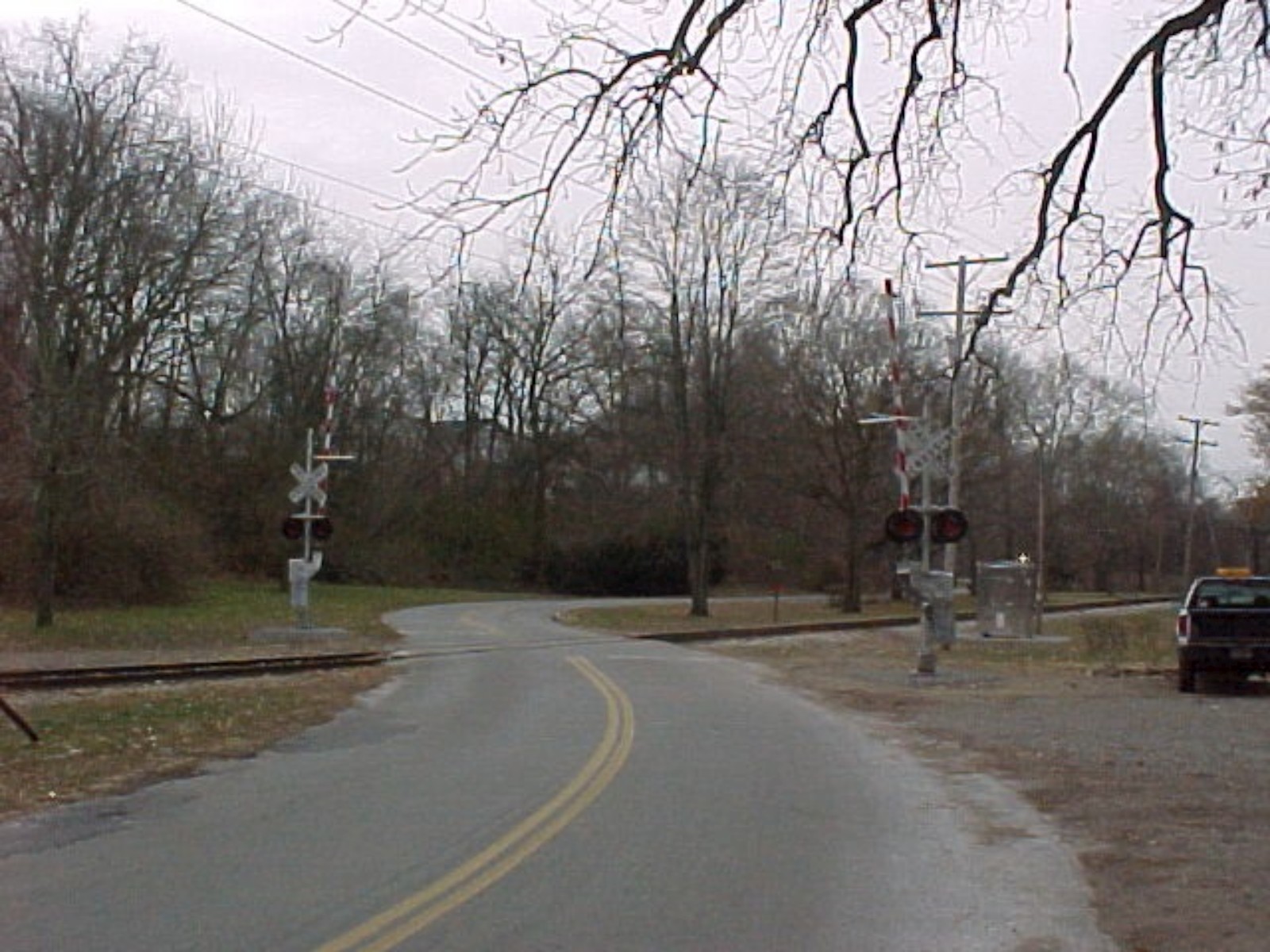

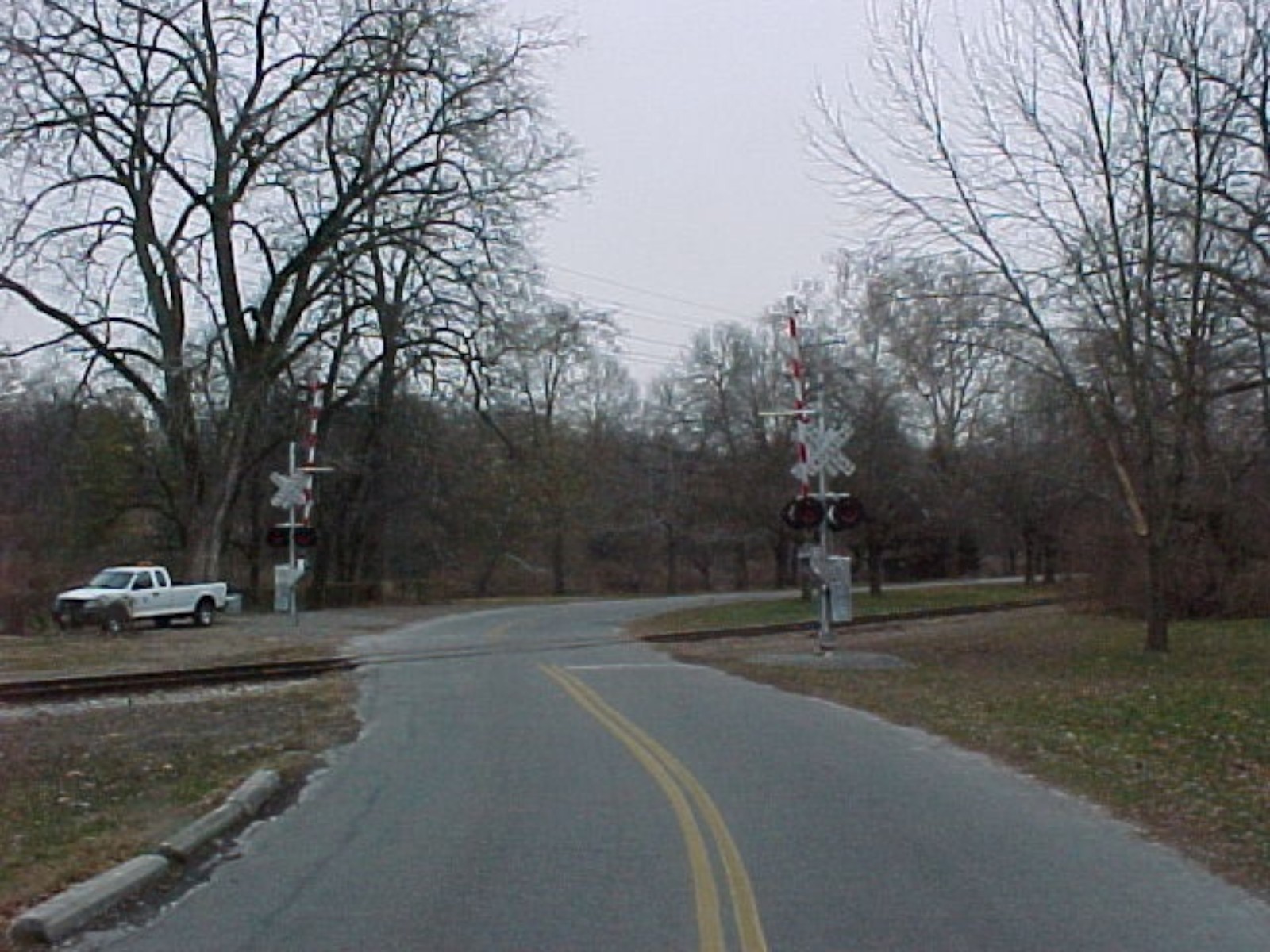

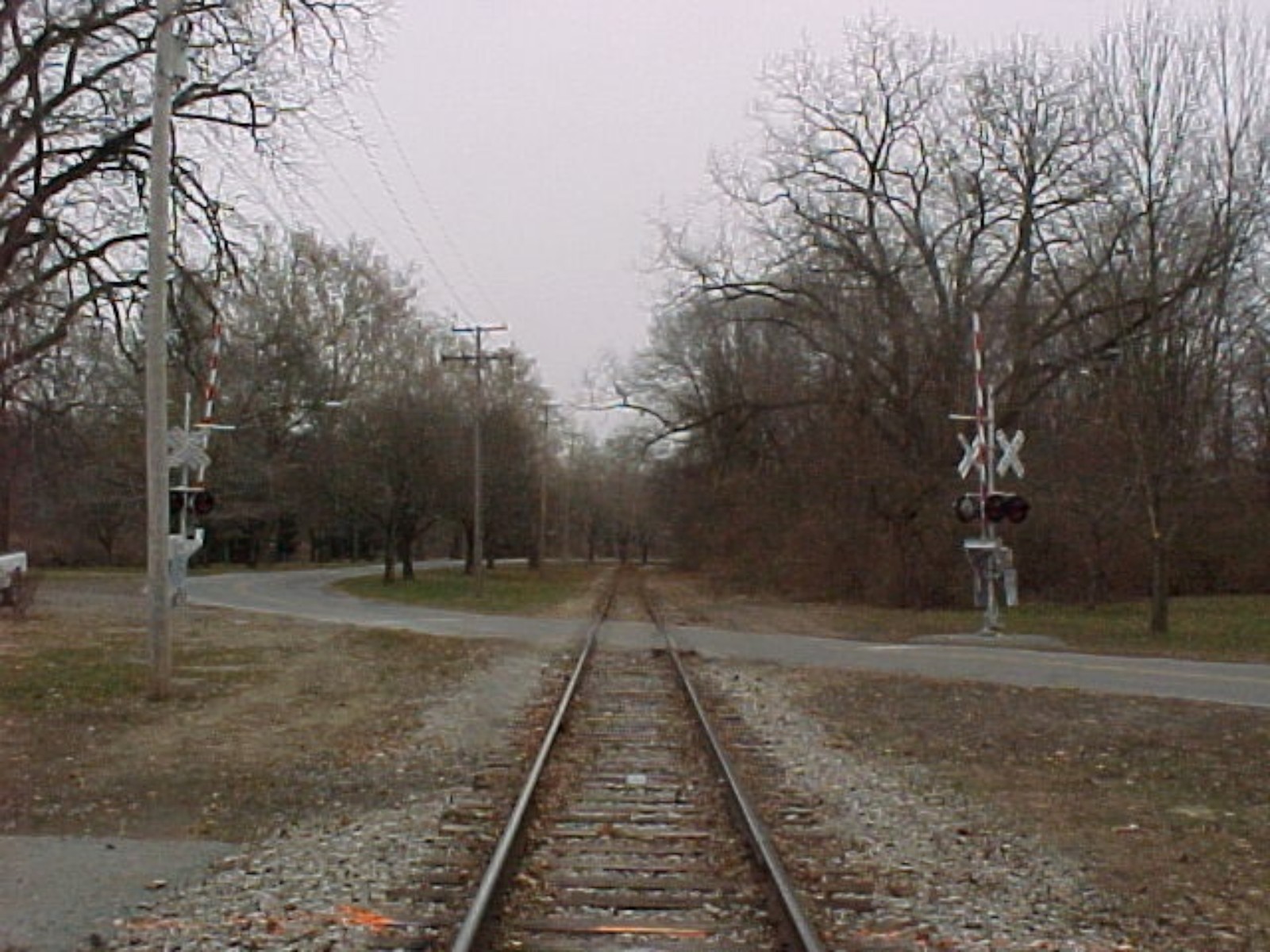

Then sometime in the 2000s, both posts
were replaced with 2 gated mast signals. At the time,
both signals had all 4 - 12"x24" Progress Rail Flatback
w/ Progress Rail LEDs, but in 2015, the northern signal
recieved 4 - 12"x24" Safetran w/ Safetran Fading LEDs.
I'm not sure if this had to do with a derailment that
occured here back in 2015, but its still interesting to
see this crossing with Safetran Fading LEDs.
|
|||
|
1 |
2 |
|
Overview of 2 gated signals facing
south.
|
Overview facing north.
|
|
3 |
4 |
5 |
|
6 |
7 |
8 |
9 |
|
10 |
11 |
12 |
13 |
|

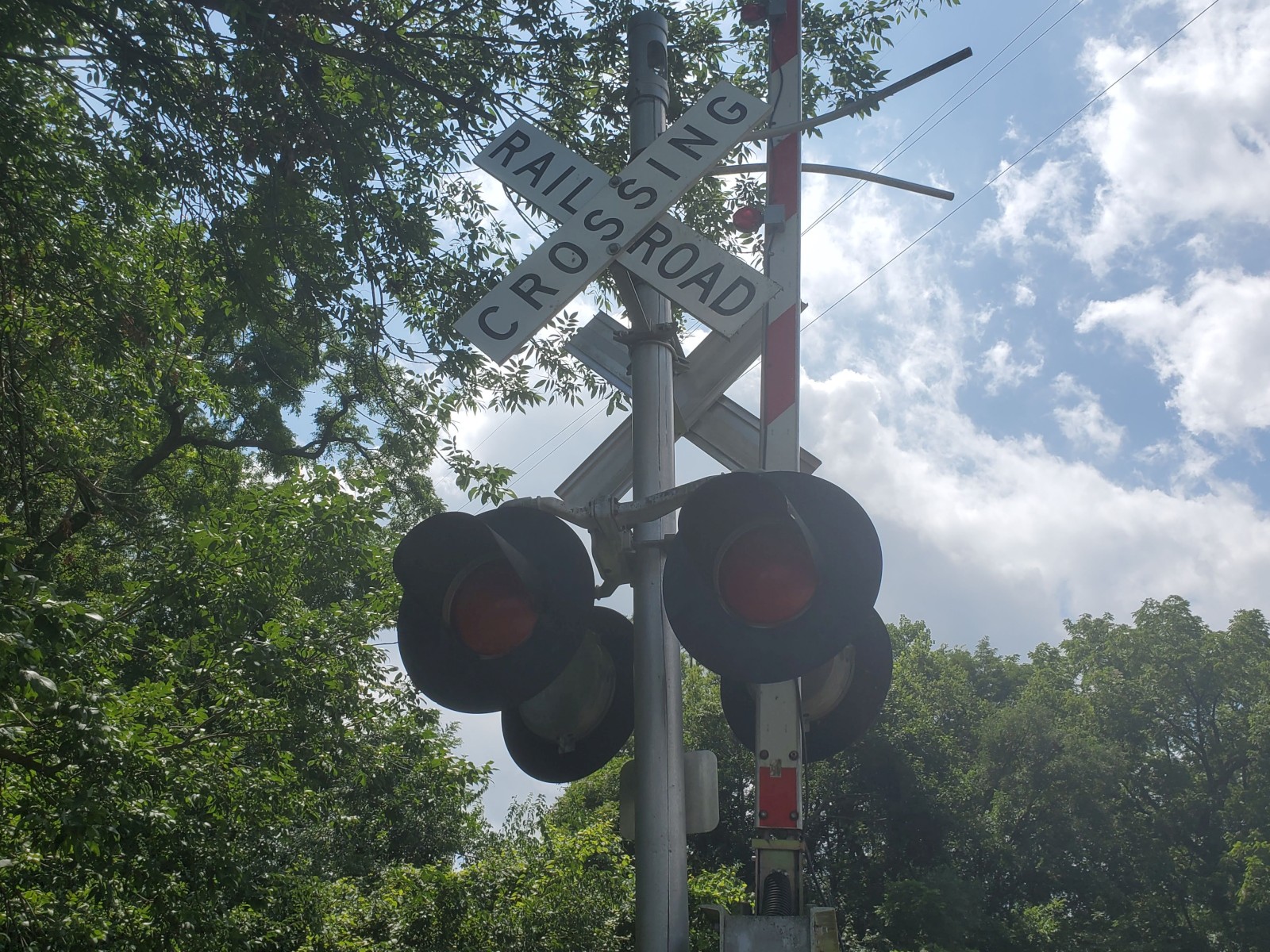

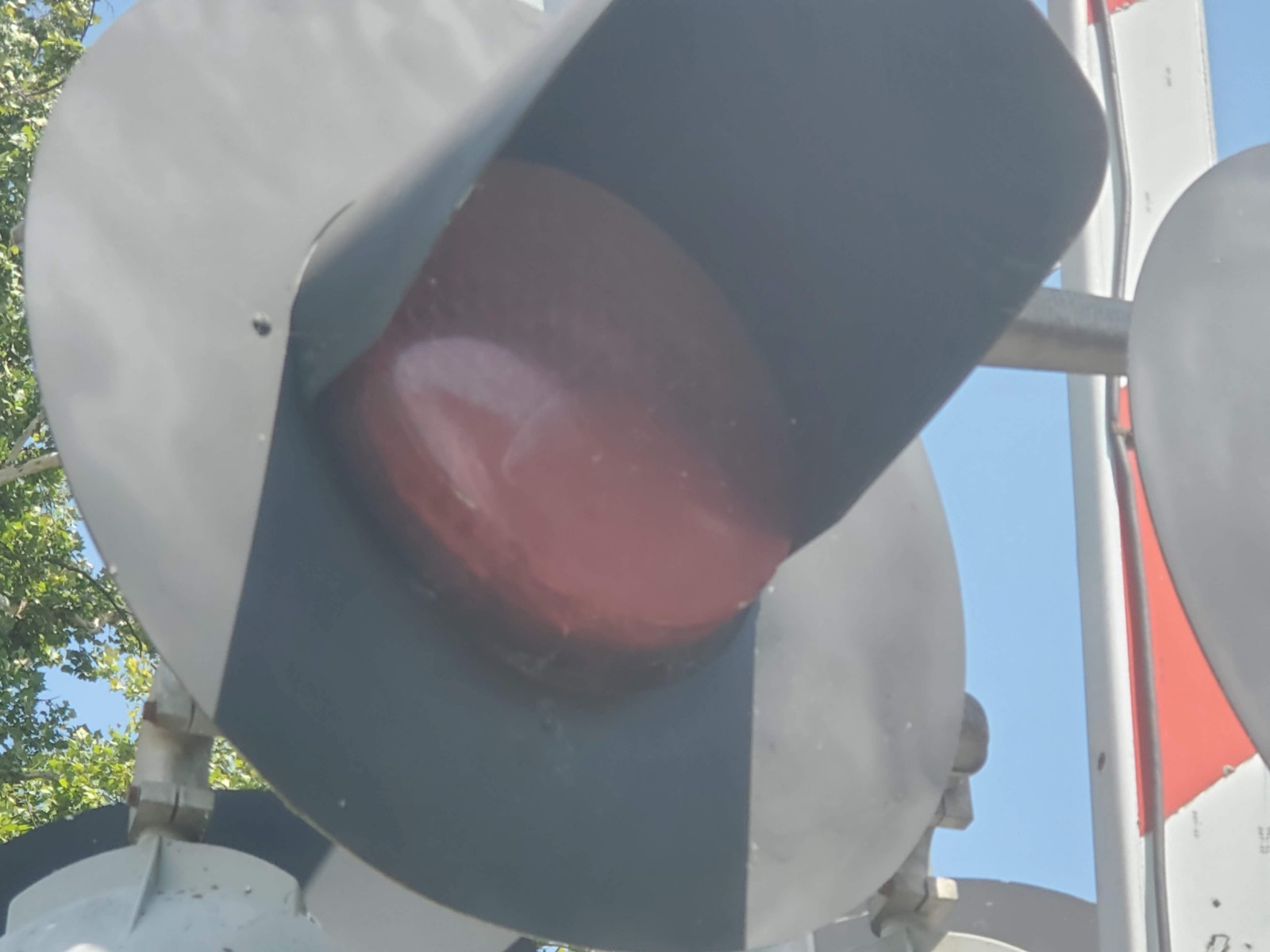

The northern signal.
|
|||
|
14 |
15 |
16 |
17 |
|
18 |
19 |
20 |
21 |
|
22 |
23 |
24 |
25 |
|

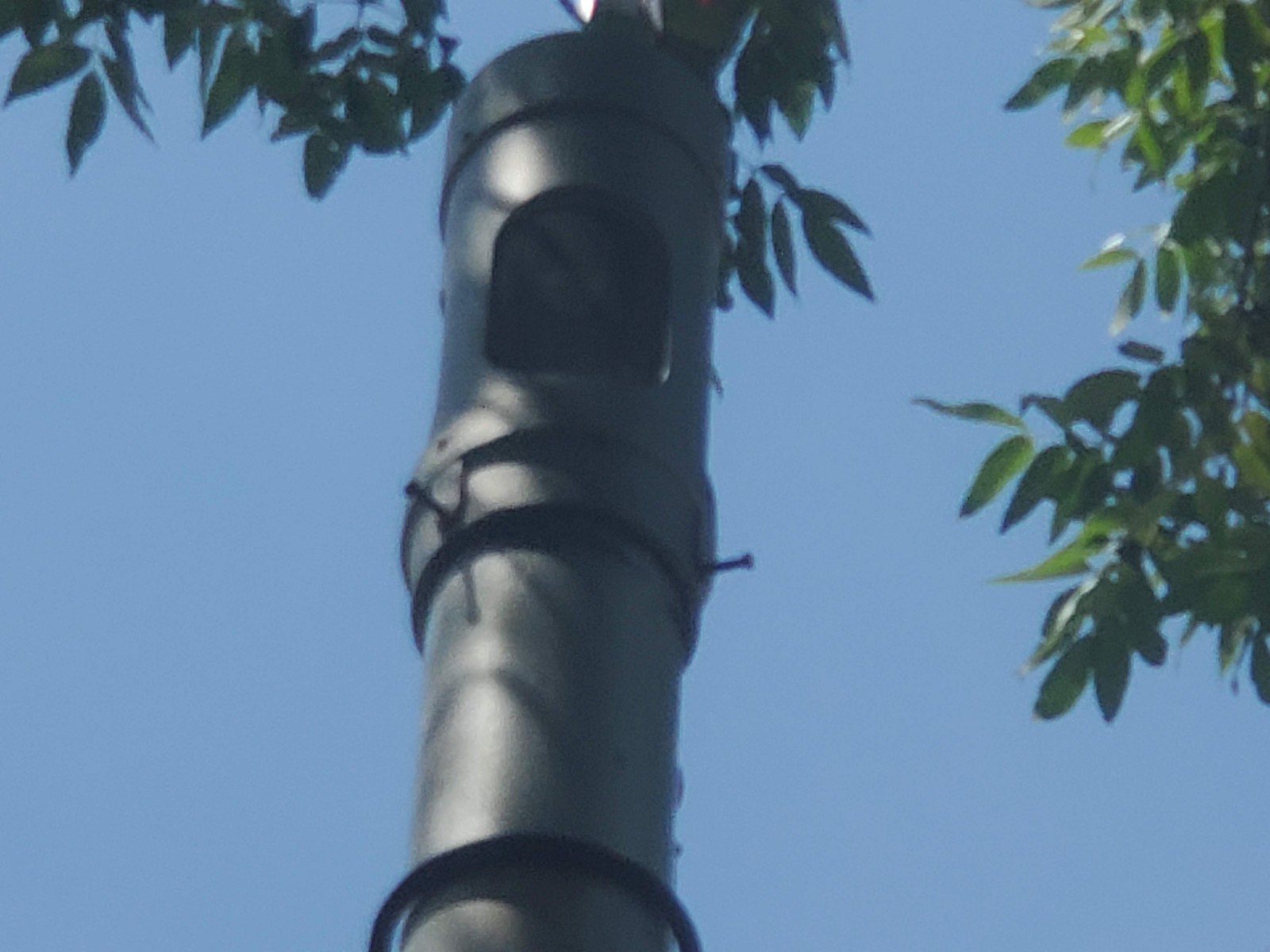

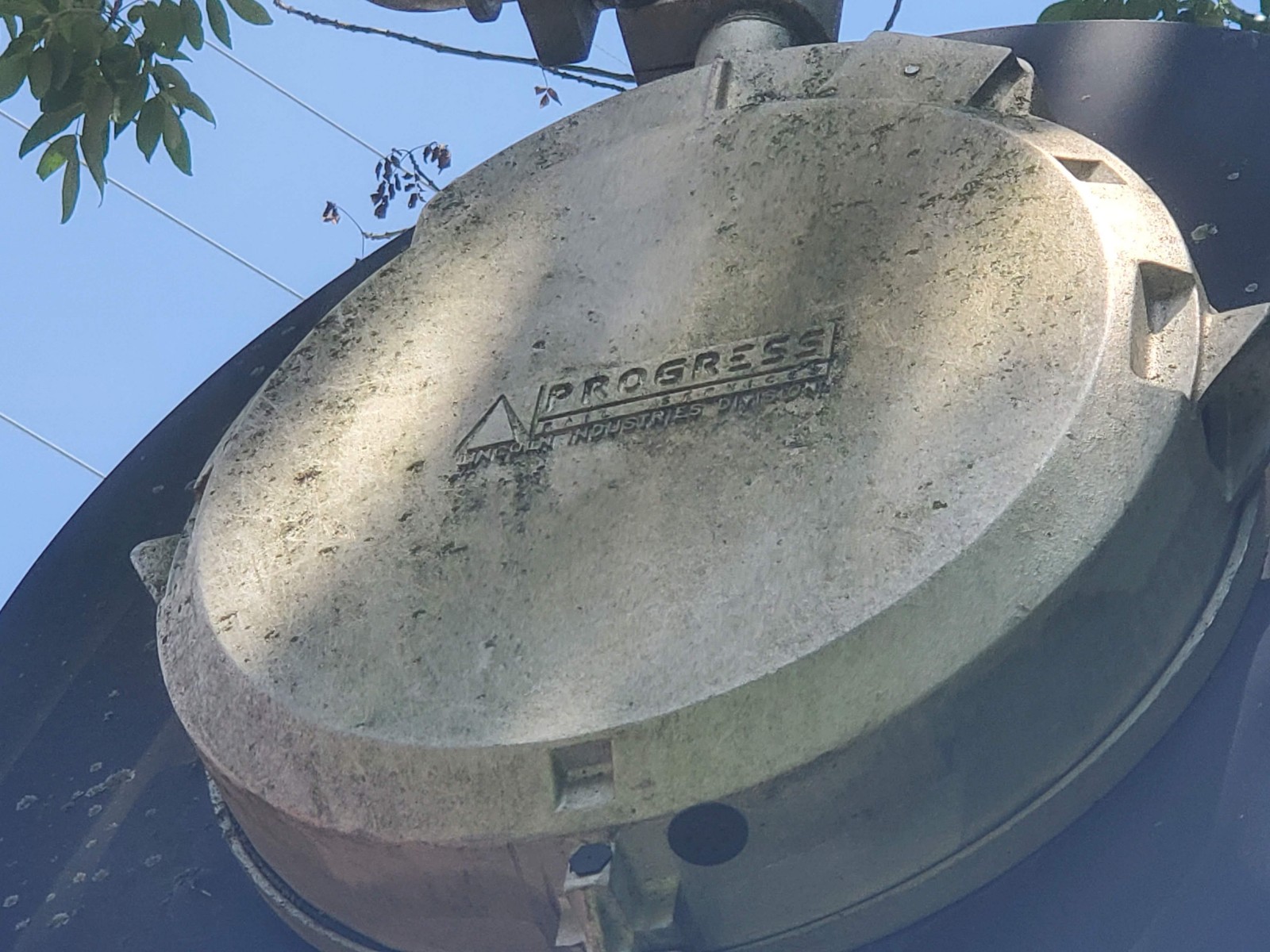

The southern signal.
|
|||
|
26 |
27 |
28 |
|
The relay bungalow.
|
Track view facing east towards Water Street.
|
Track view facing west towards Hyer Avenue.
|
