| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | NEG E Bell |

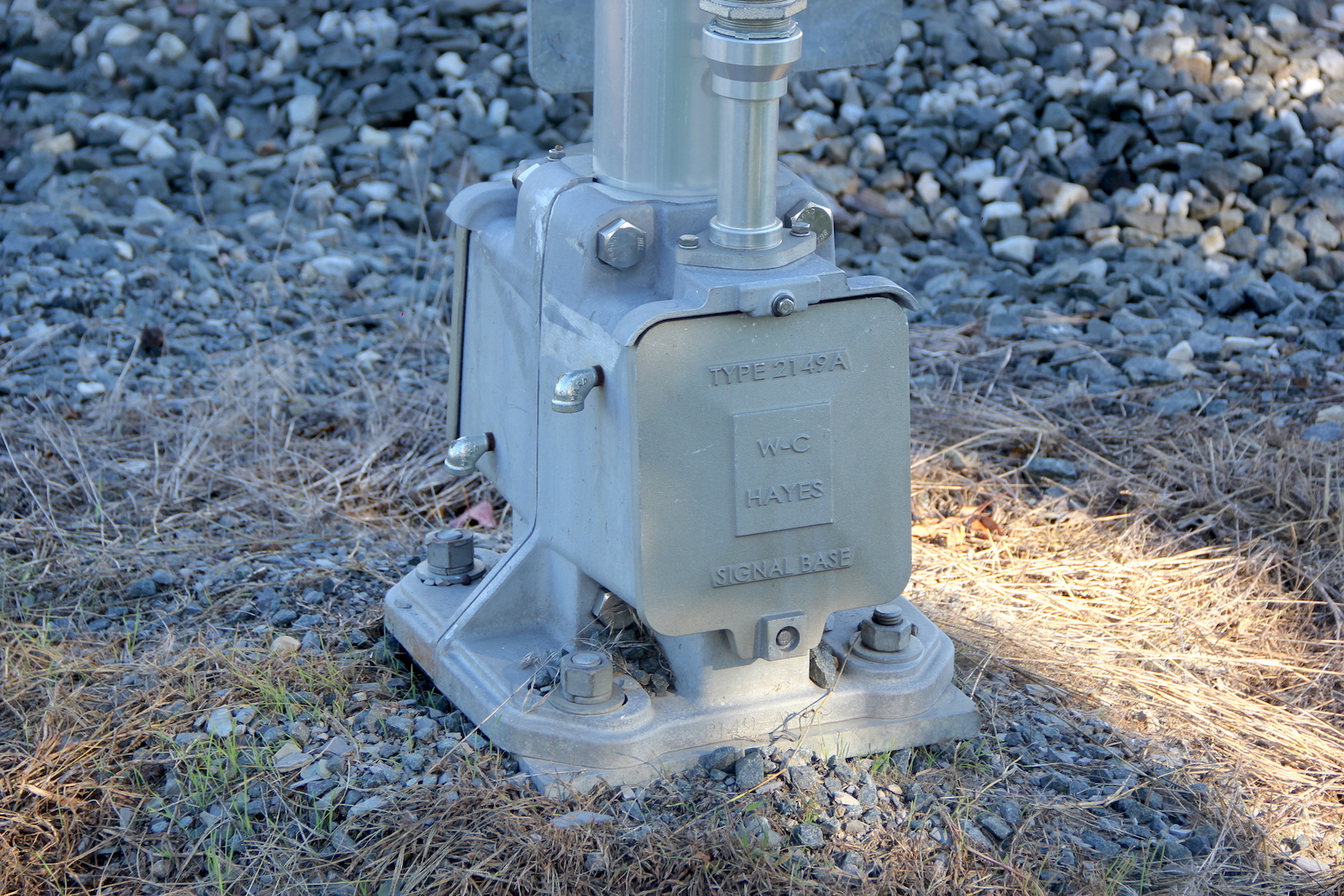

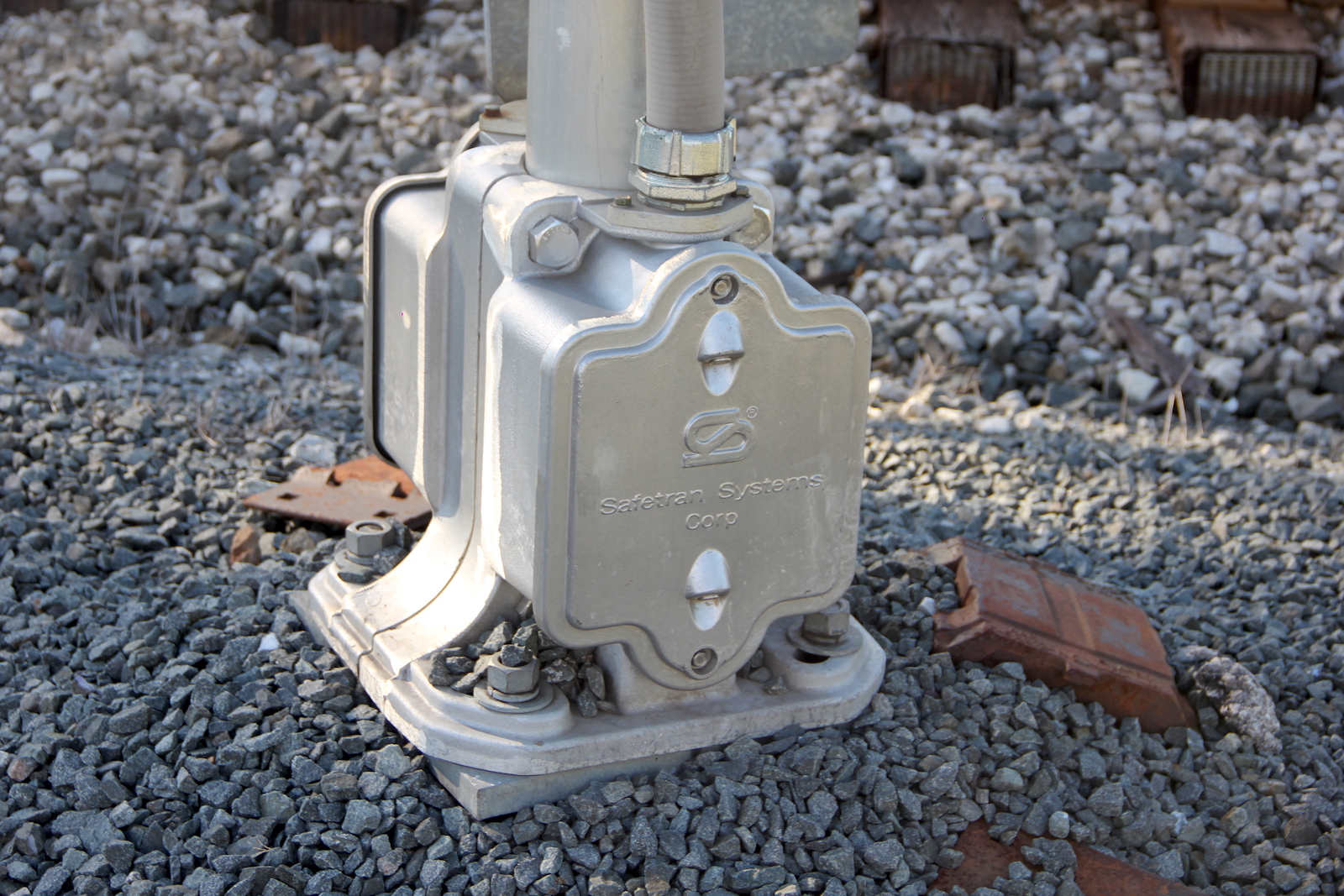

| Base: | WCH 5" Double Sided ^ | Safetran 5" Double Sided ^ |

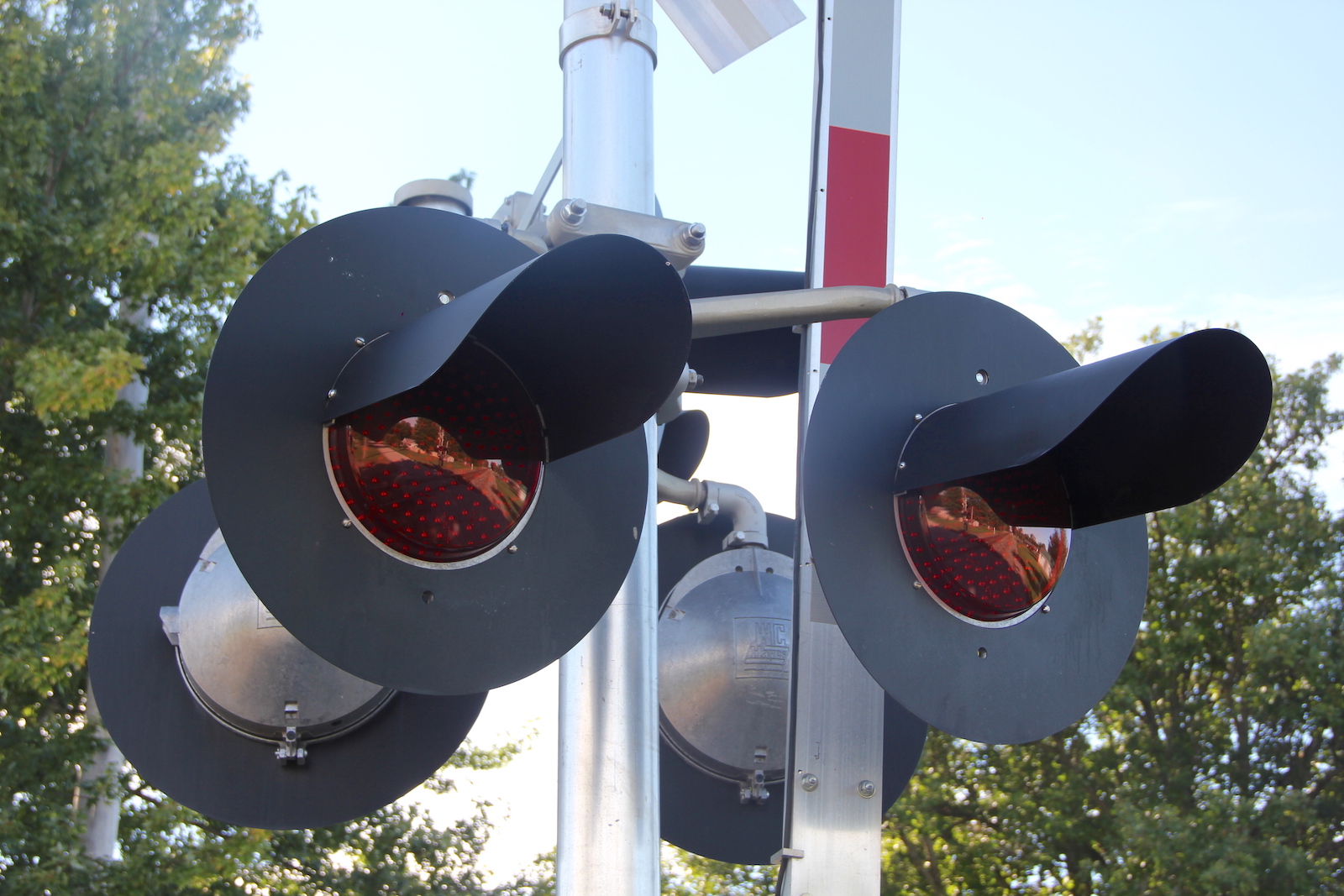

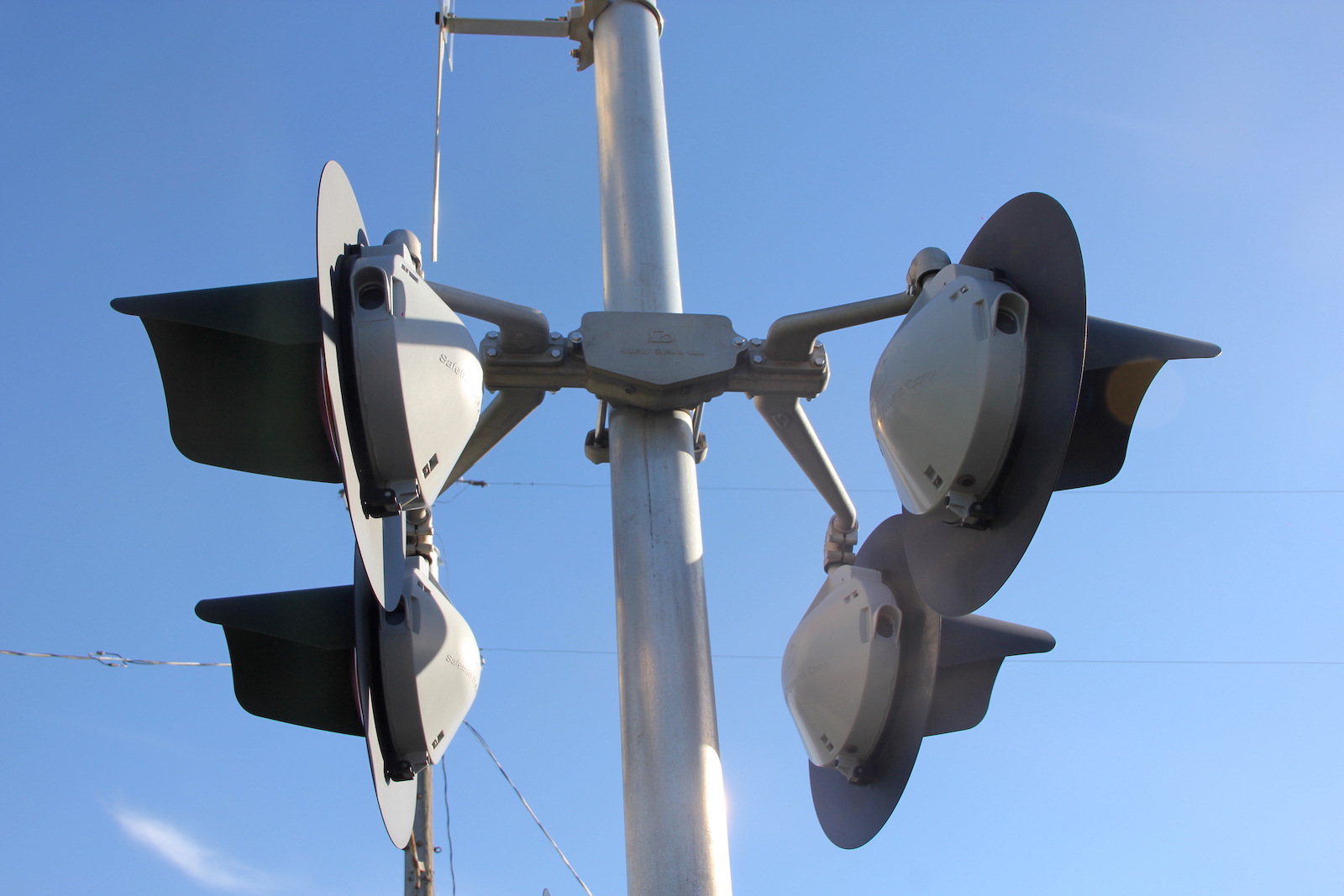

| Lights: | 6 - 12"x24" WCH w/ 2nd Gen WCH LEDs | 4 - 12"x24" Safetran w/ 2nd Gen WCH LEDs |
| Junction Boxes: | WCH | Safetran |
| Gate Lights: | 4" RECO | 4" RECO |

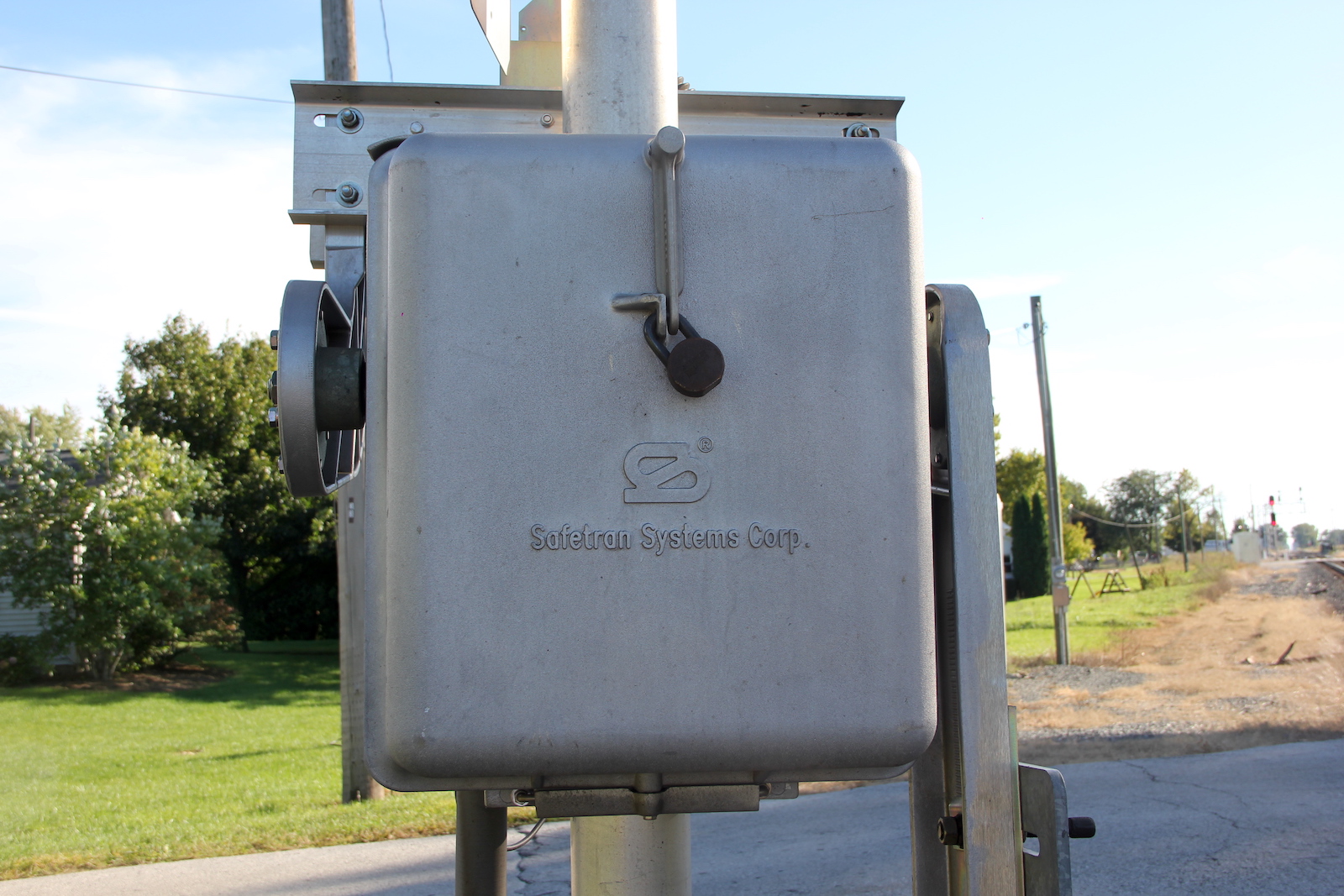

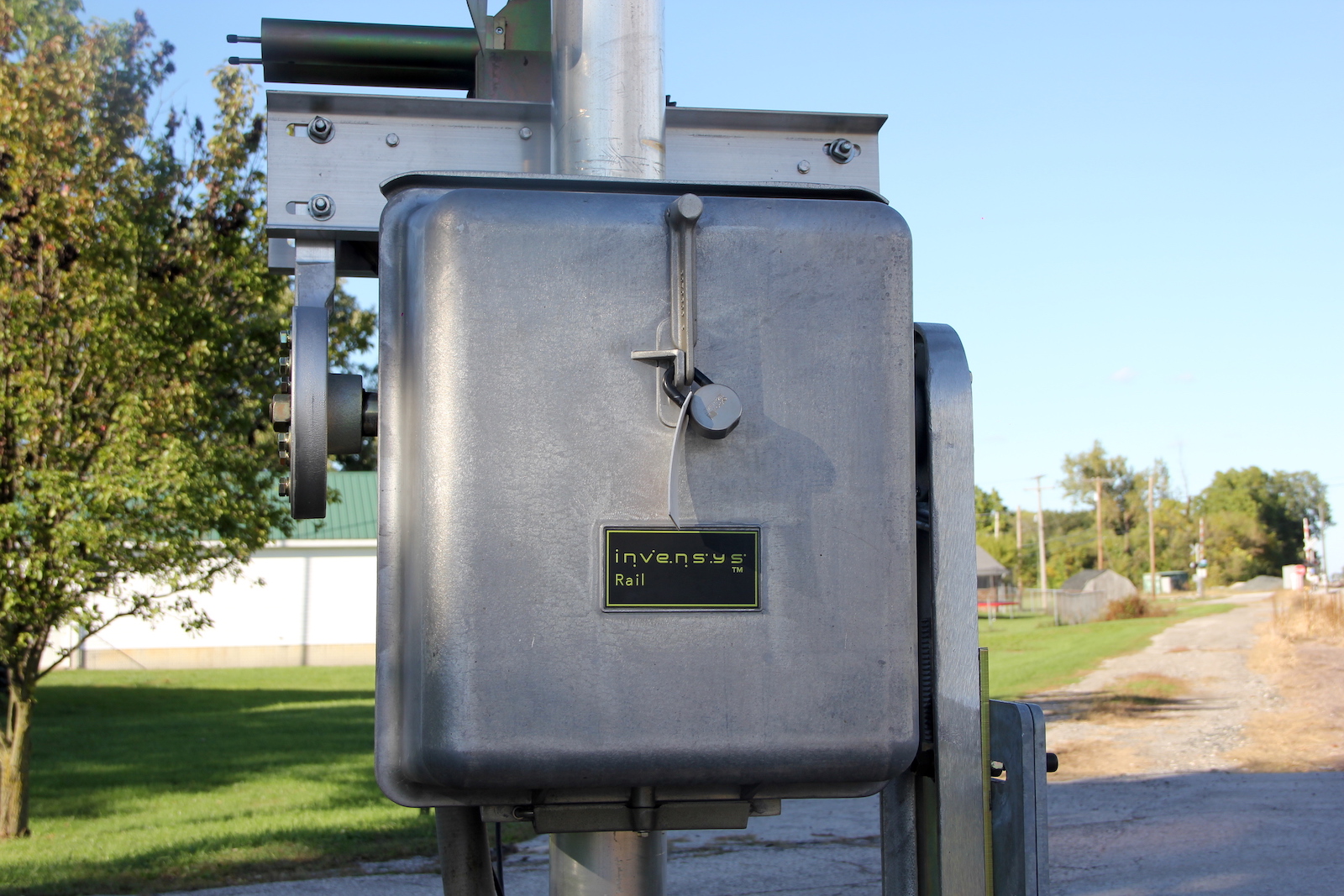

| Gate Mechanism: | Invensys Rail w/ Old NEG 2 Way Saver | Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Vertical Striping | Diagonal Striping |
1 |
2
|
| Overview of 2 gated signals facing west. |
Overview facing east. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11 | 12
|

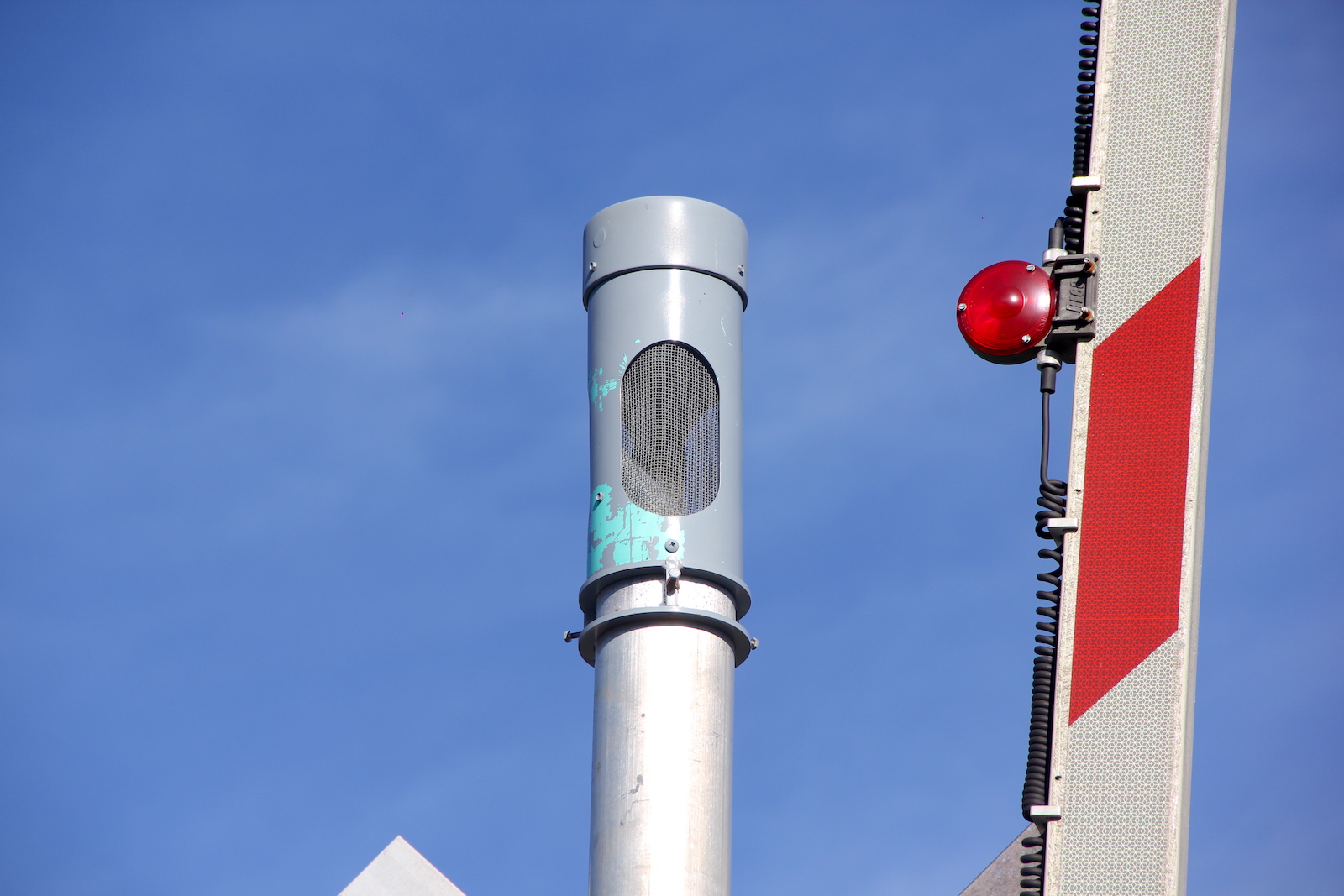

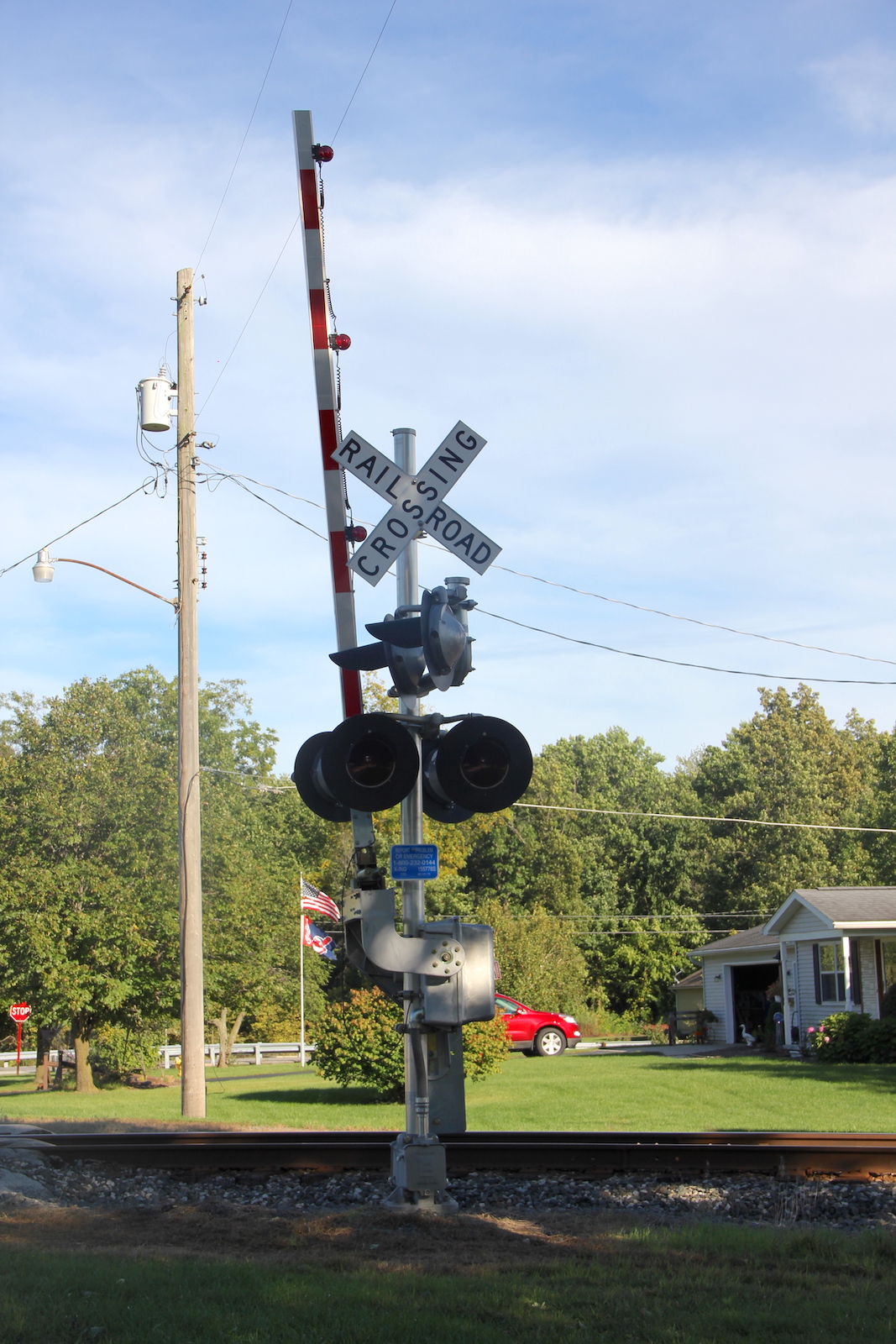

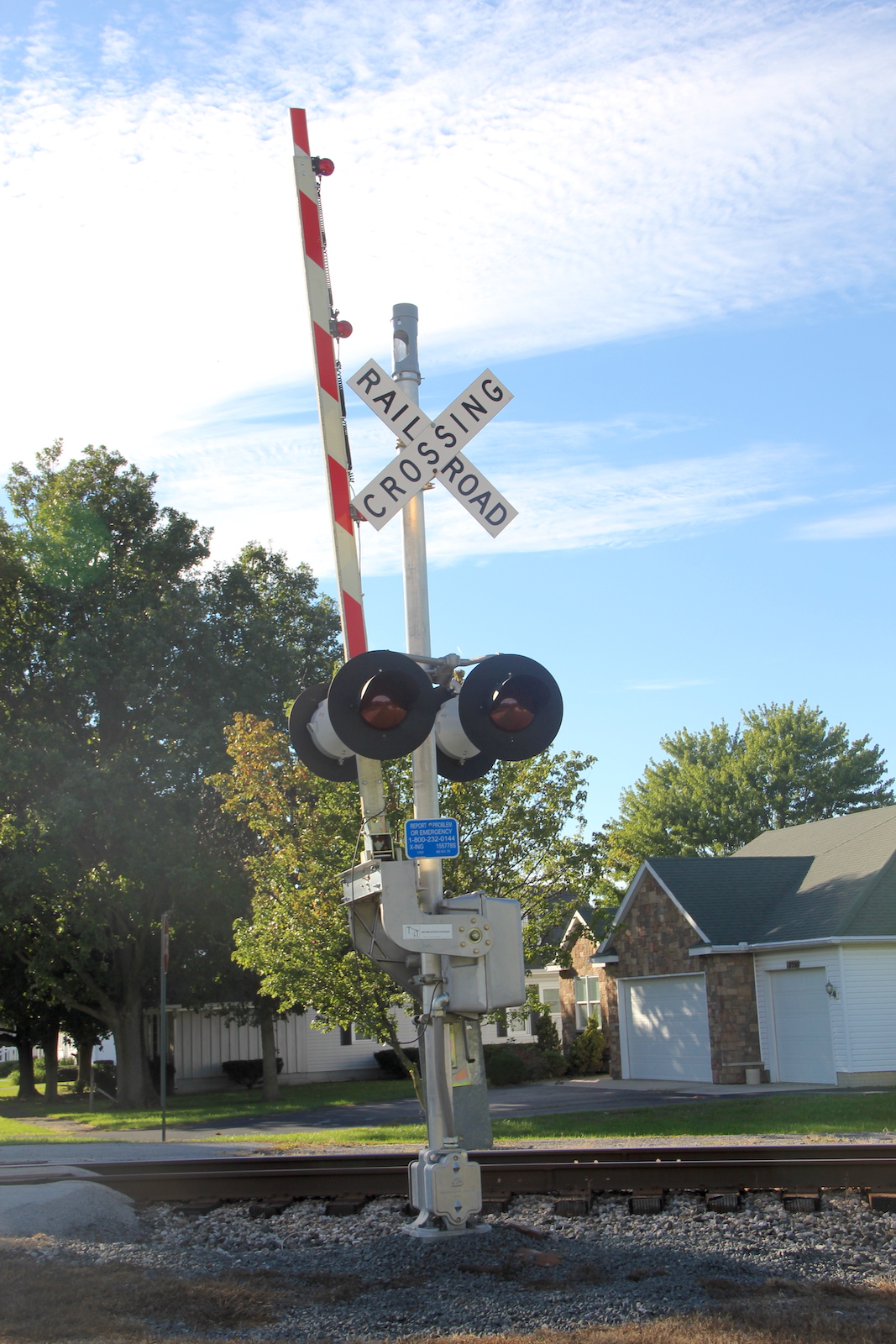

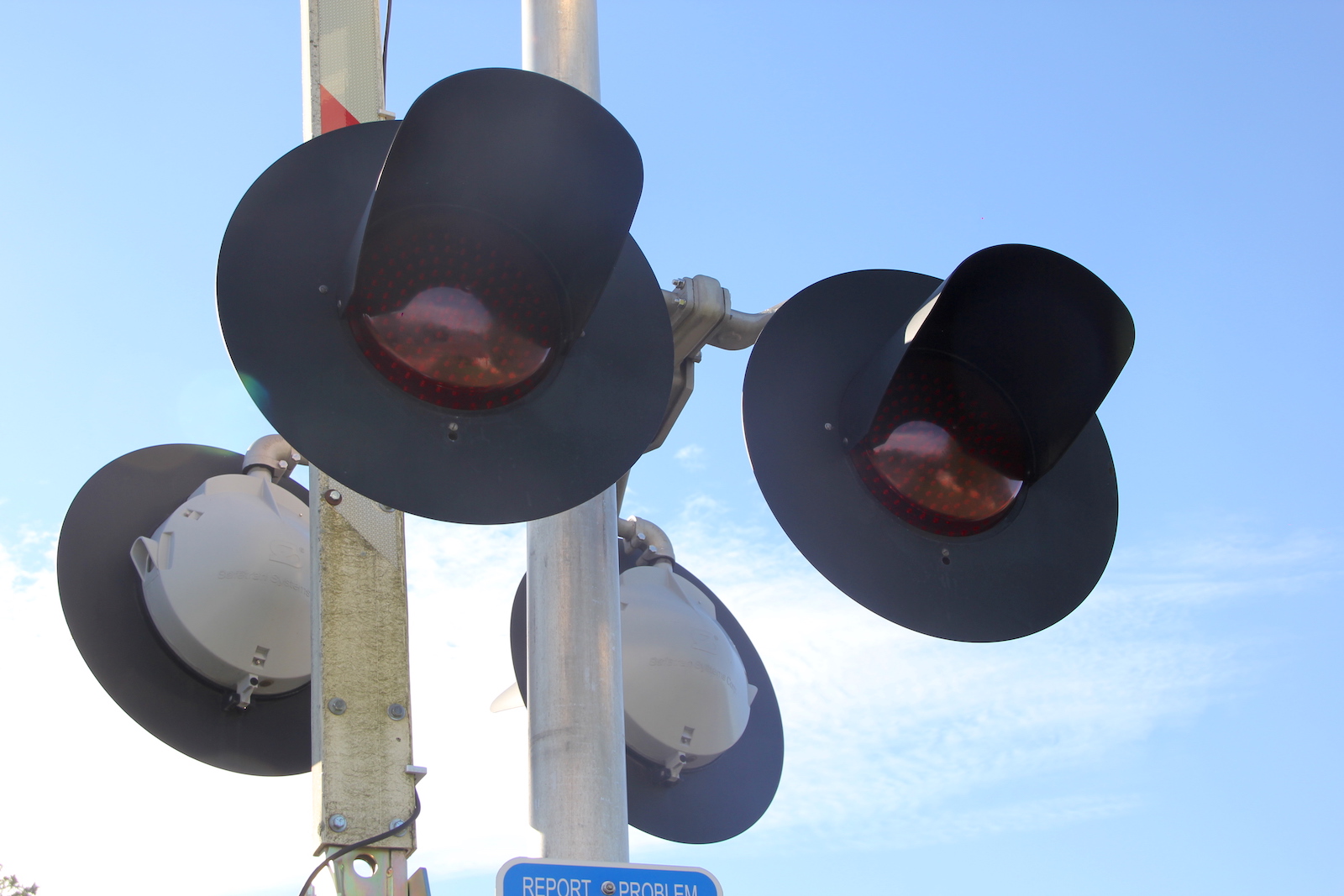

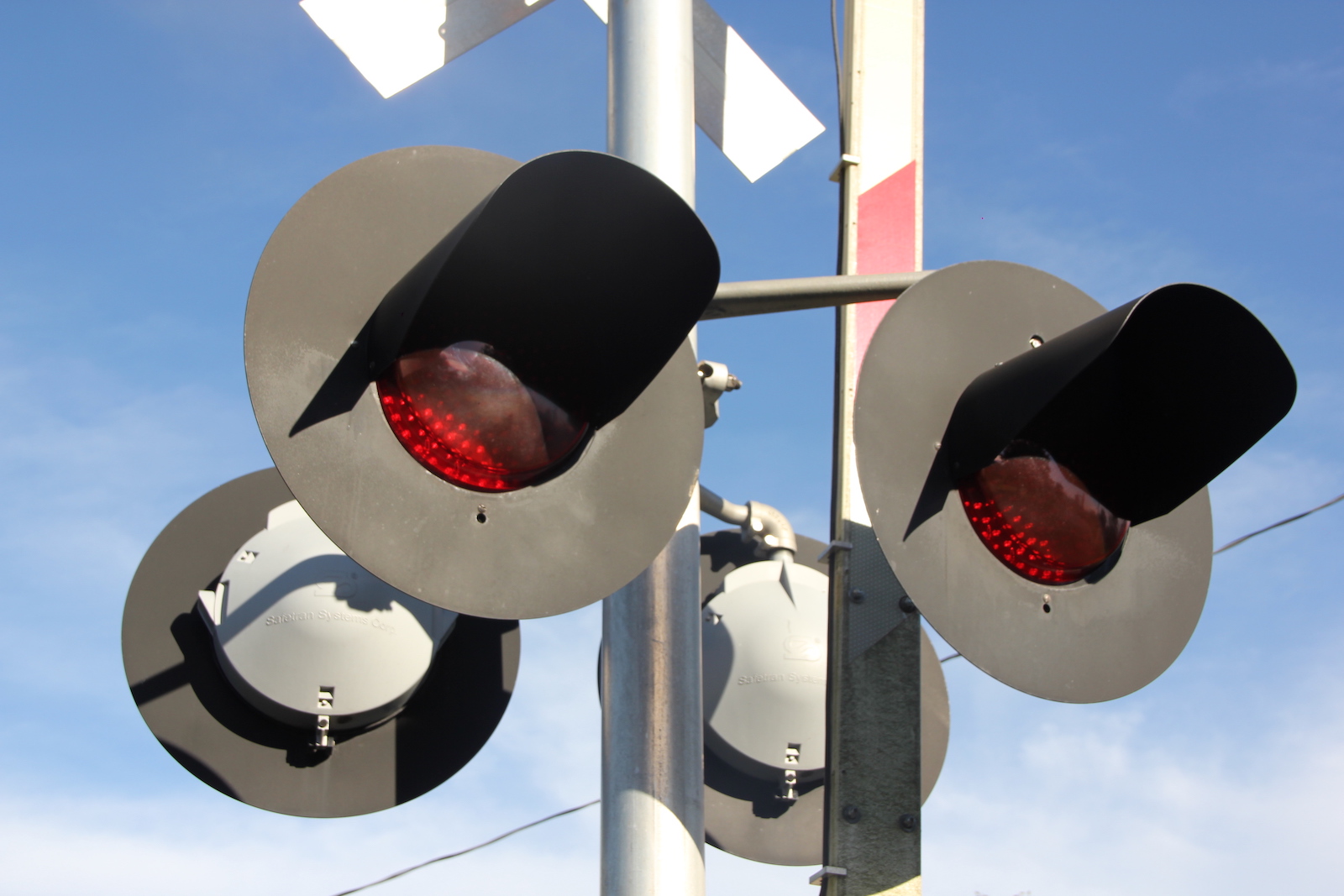

| The eastern signal. The NEG bell replaced a Safetran Type 3 E Bell. |
13
| 14
| 15
|
16
| 17
| 18
| 19
|
20
| 21
| 22 | 23
|

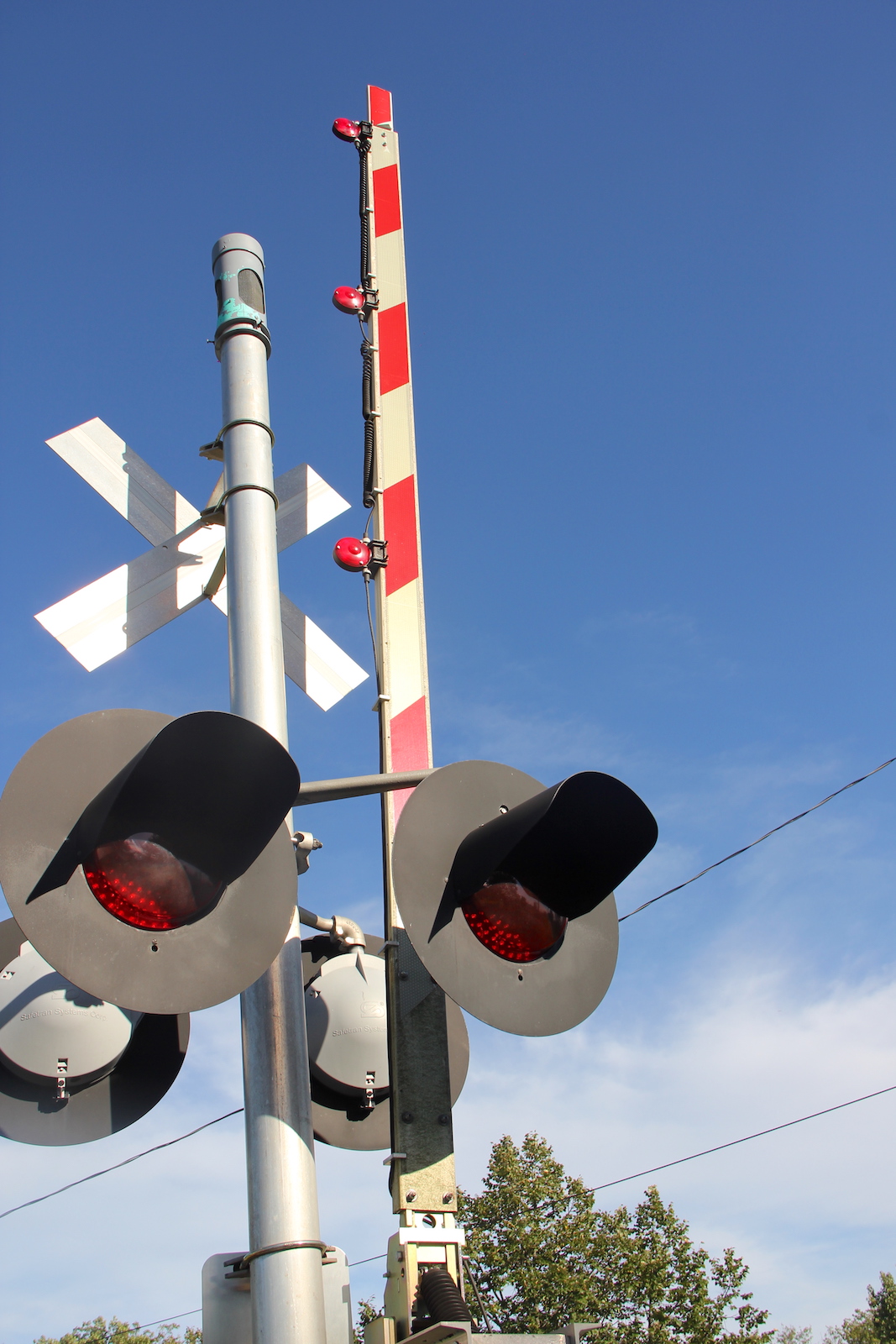

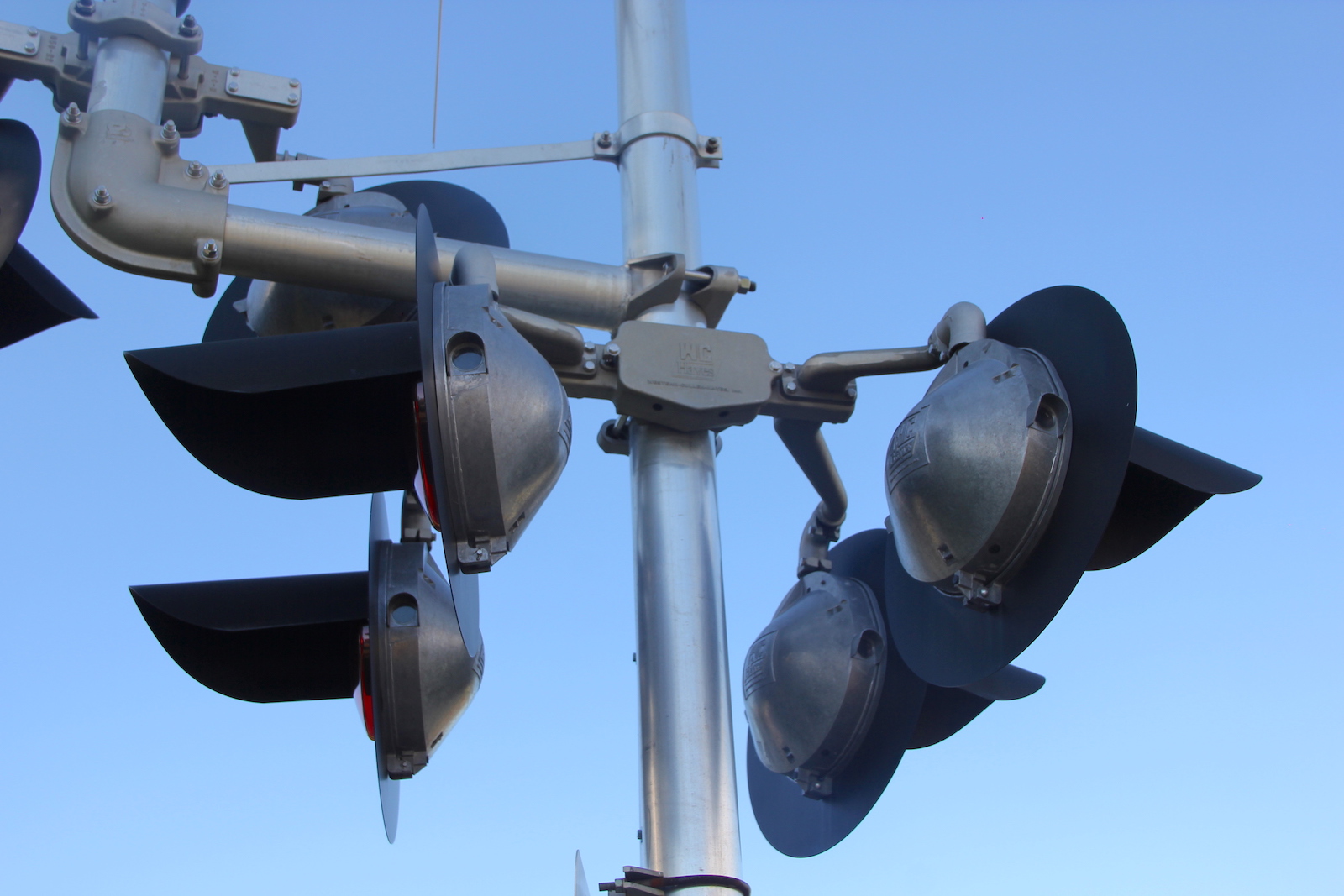

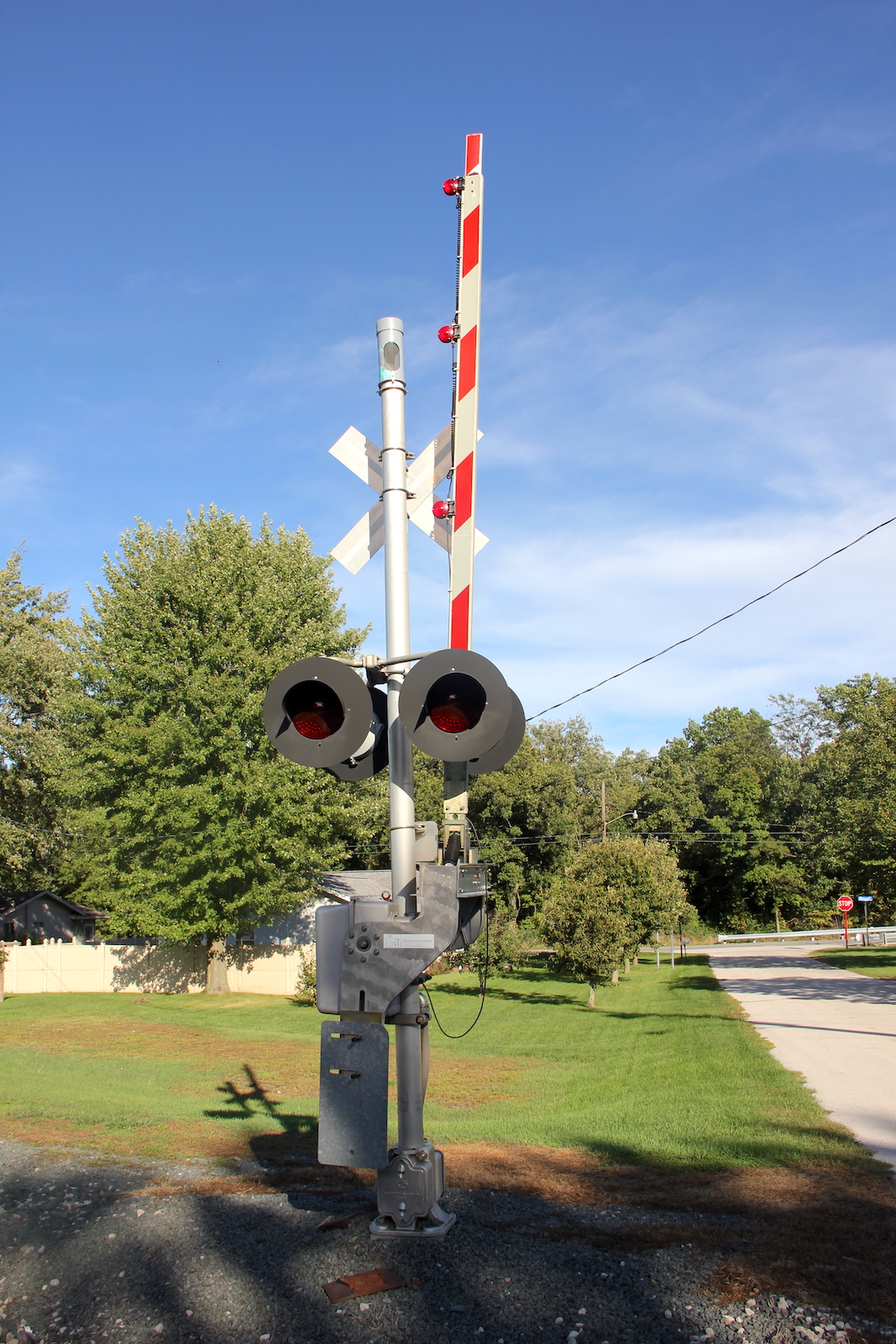

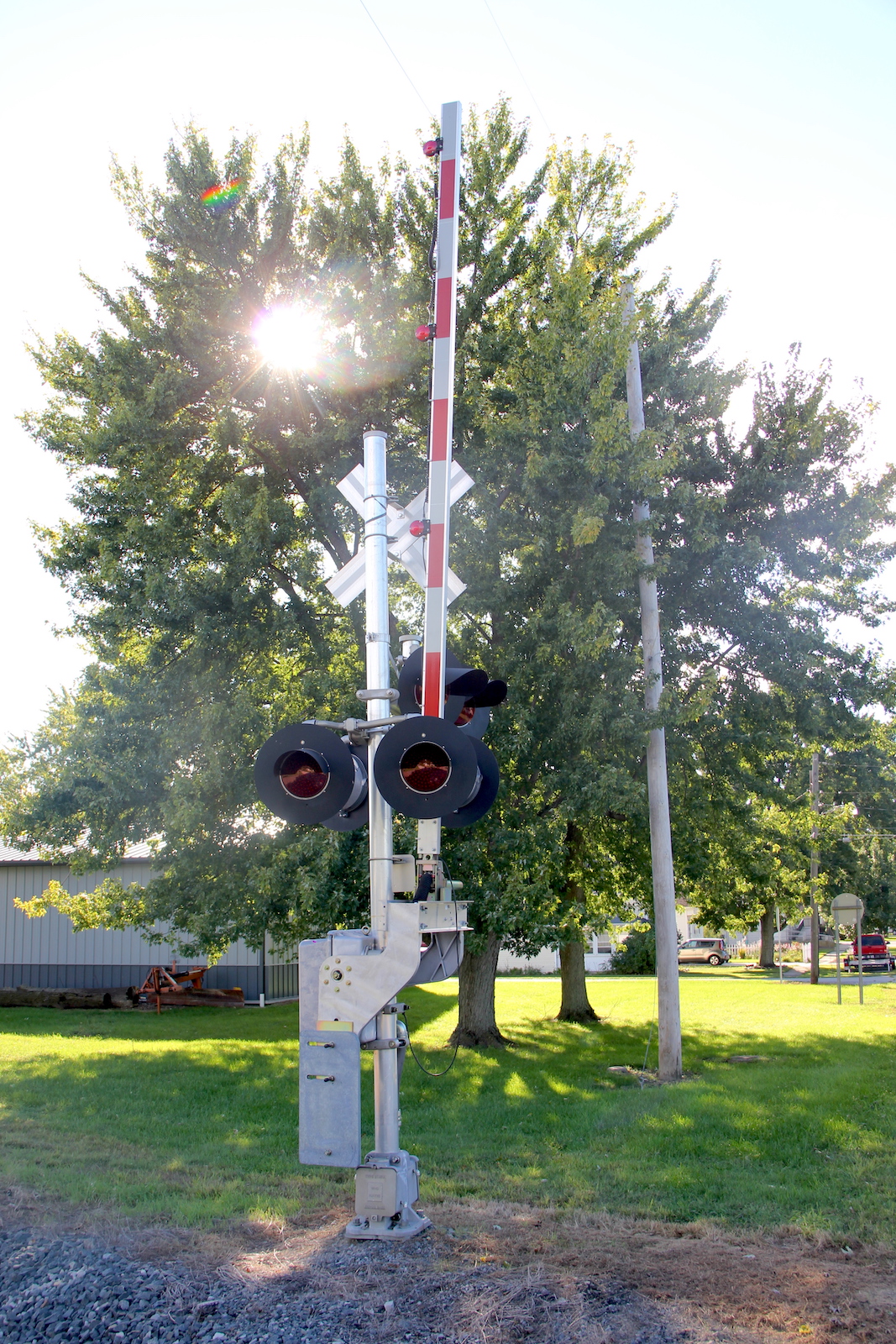

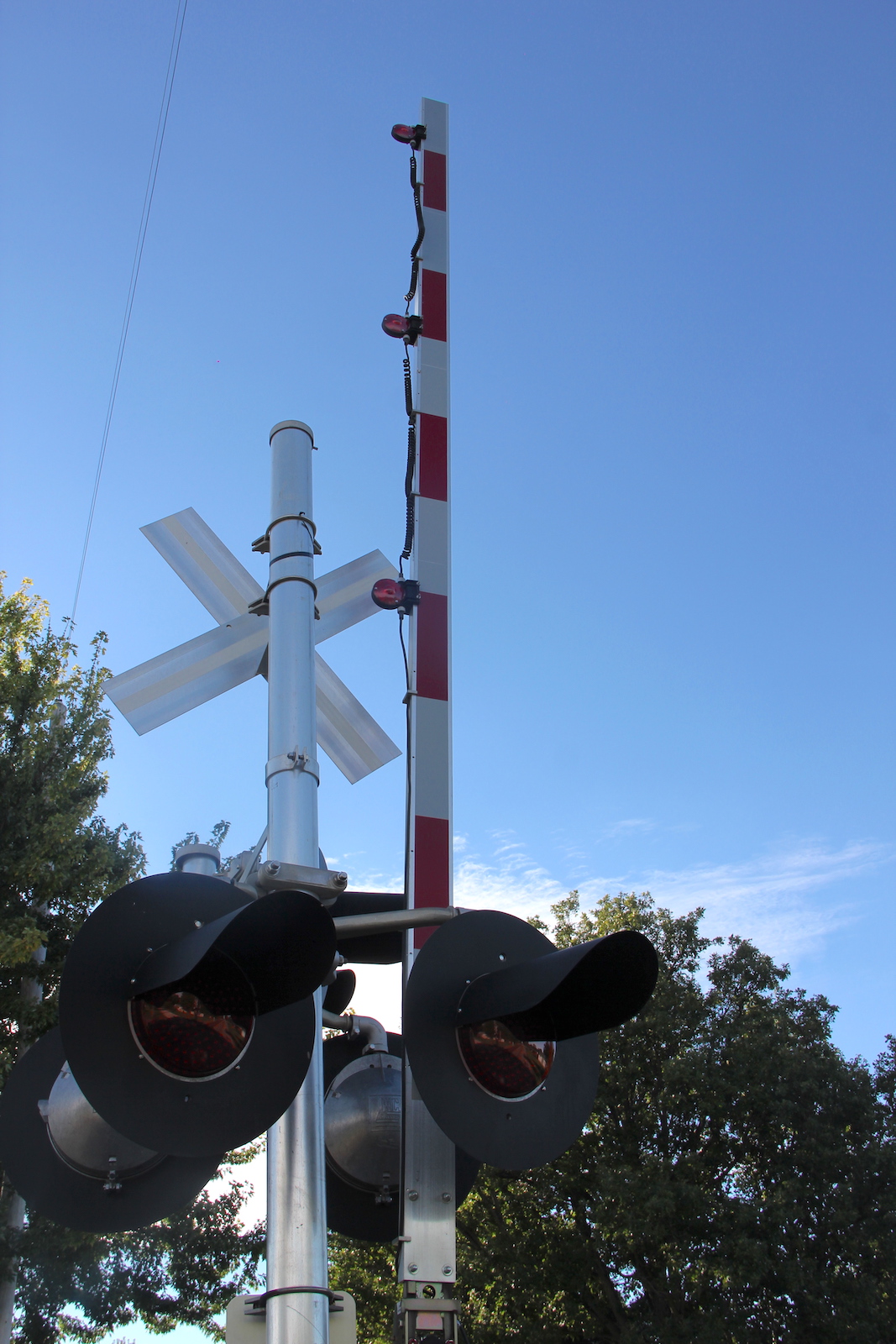

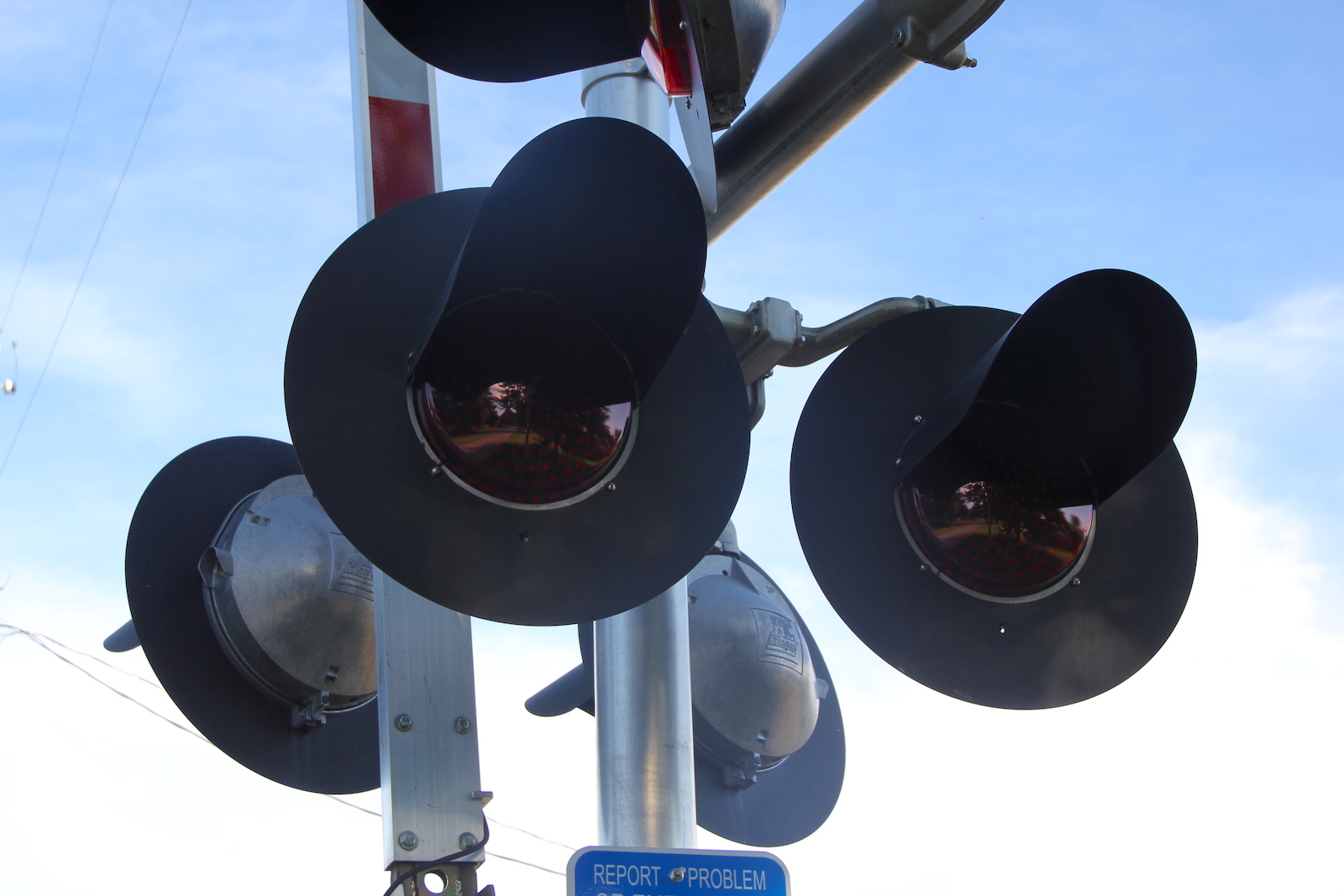

| The western
signal. This signal was installed in 2014 replacing a signal
similar to the eastern signal. The old signal was destroyed as a
result of a derailment that happened on February 18, 2014. |
24
|
25
|
26
|
27
|

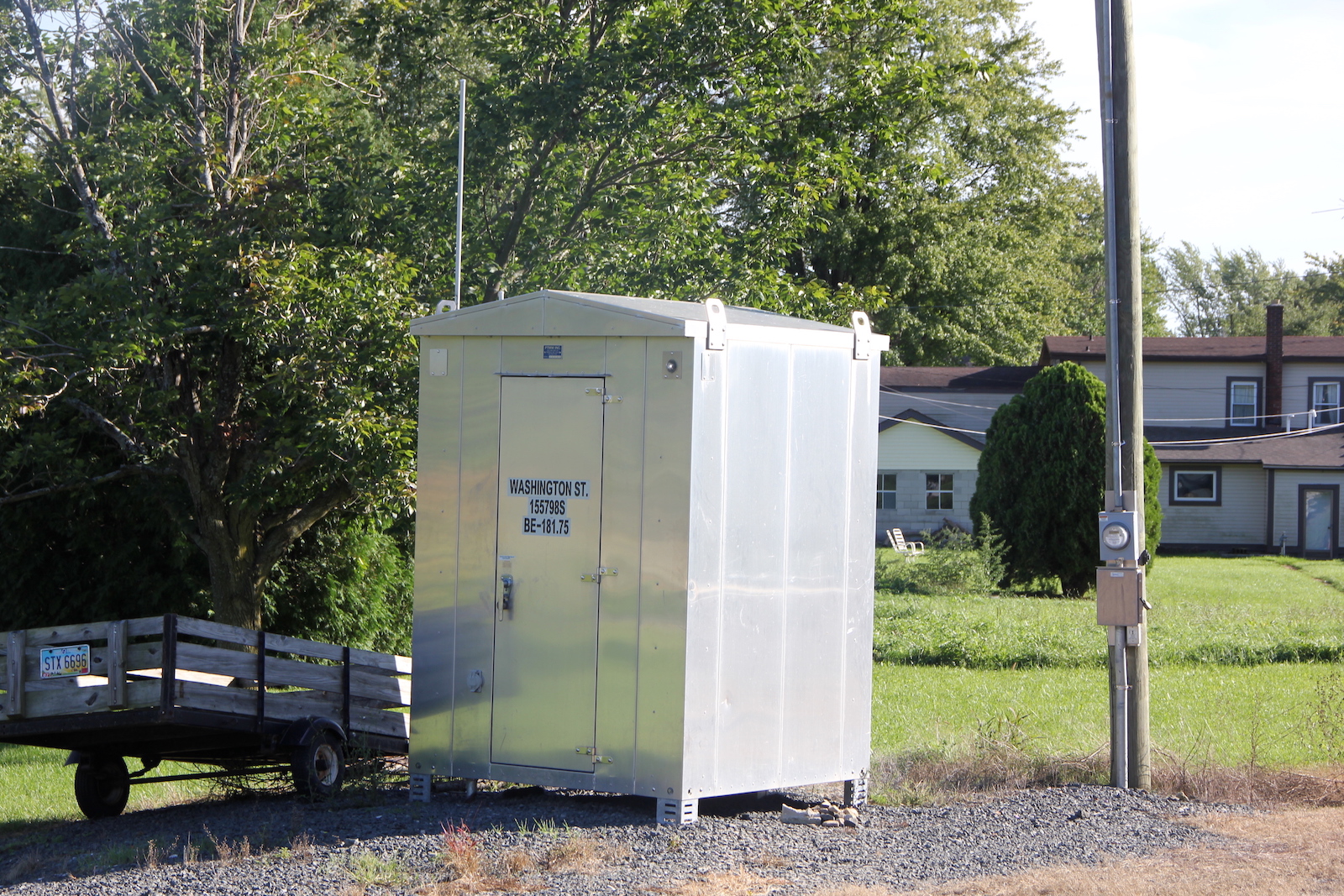

| The relay bungalow in the southeast quadrant. |

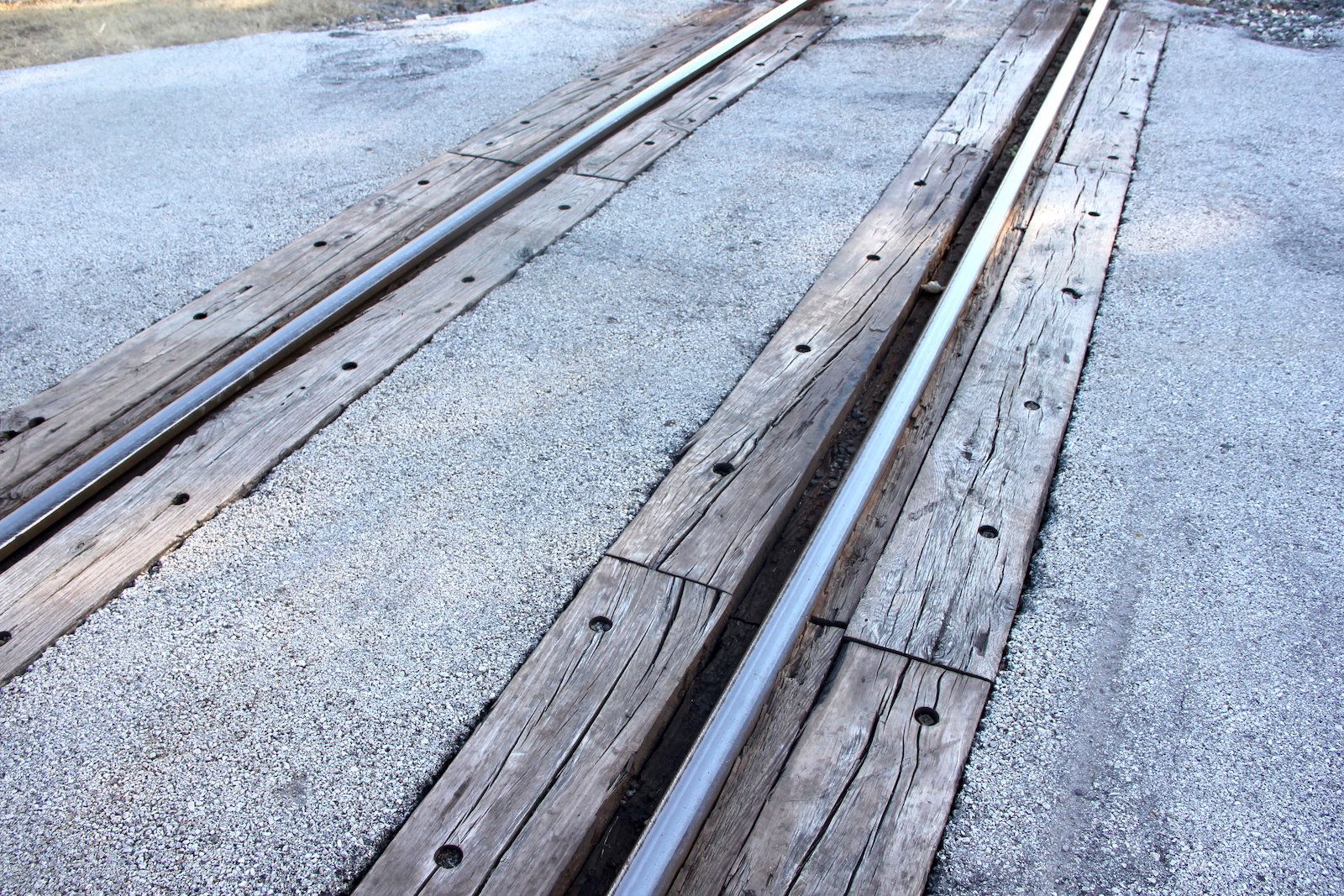

The grade is wood and asphalt. |

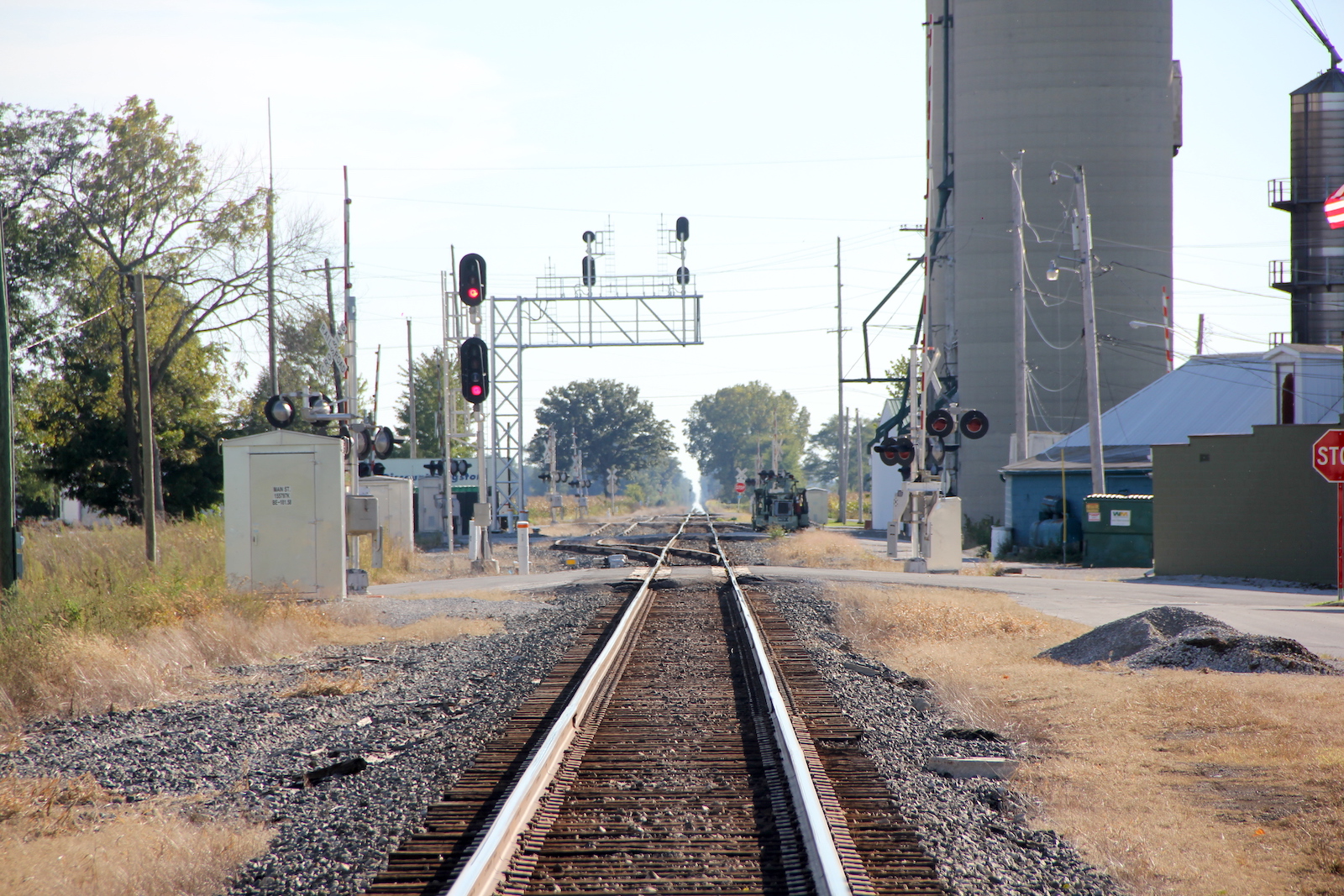

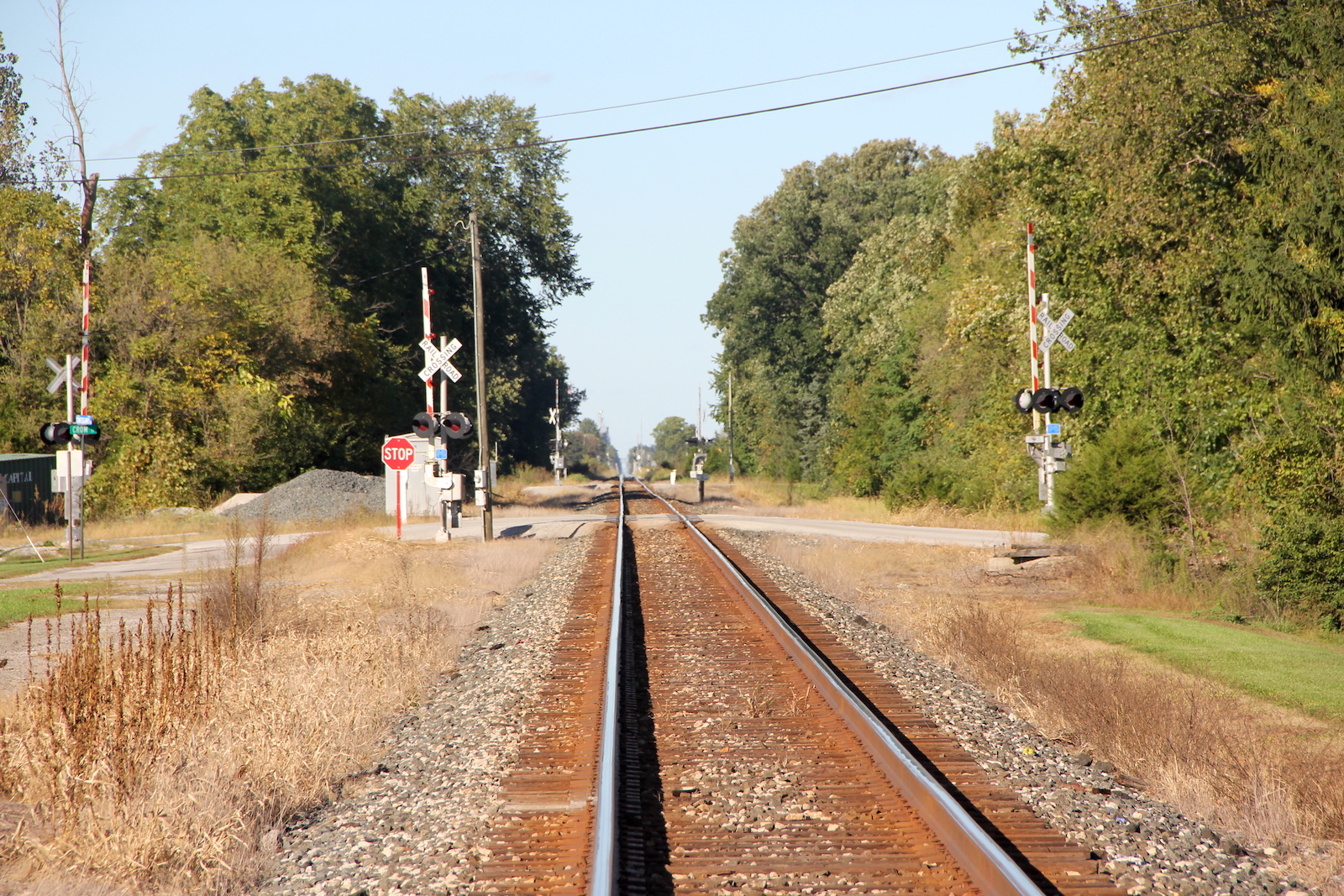

Track view facing north at Tontogany Rd. |
Track view facing south at Main St. |
