>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None WCH Mechanical Bell 2nd Gen
Base: PPI 5" Single Sided ^ PPI 5" Single Sided ^
Lights: 4 - 12"x20" Harmon incandescents 4 - 12"x20" Harmon incandescents
Junction Box: Harmon Harmon
Gate Lights: 4" WCH incandescents 4" WCH incandescents
Gate Mechanism: WCH Style 3.5 w/ Standard Mount WCH Style 3.5 w/ Standard Mount
Gate Striping: Diagonal Striping Diagonal Striping


>>>>>>>>>>>> Northern Pedestrian Gate Southern Pedestrian Gate
Base: PPI 5" Single Sided ^ PPI 5" Single Sided ^
Gate Light: 4" NEG incandescent 4" NEG incandescent
Gate Mechanism: Safetran 2000s Safetran 2000s
Gate Striping: Diagonal Striping Diagonal Striping

All pictures were taken on October 22, 2021, by Tommy McGowan.
This crossing is located on the Buffalo and Pittsburgh Northern Sub.

1 2

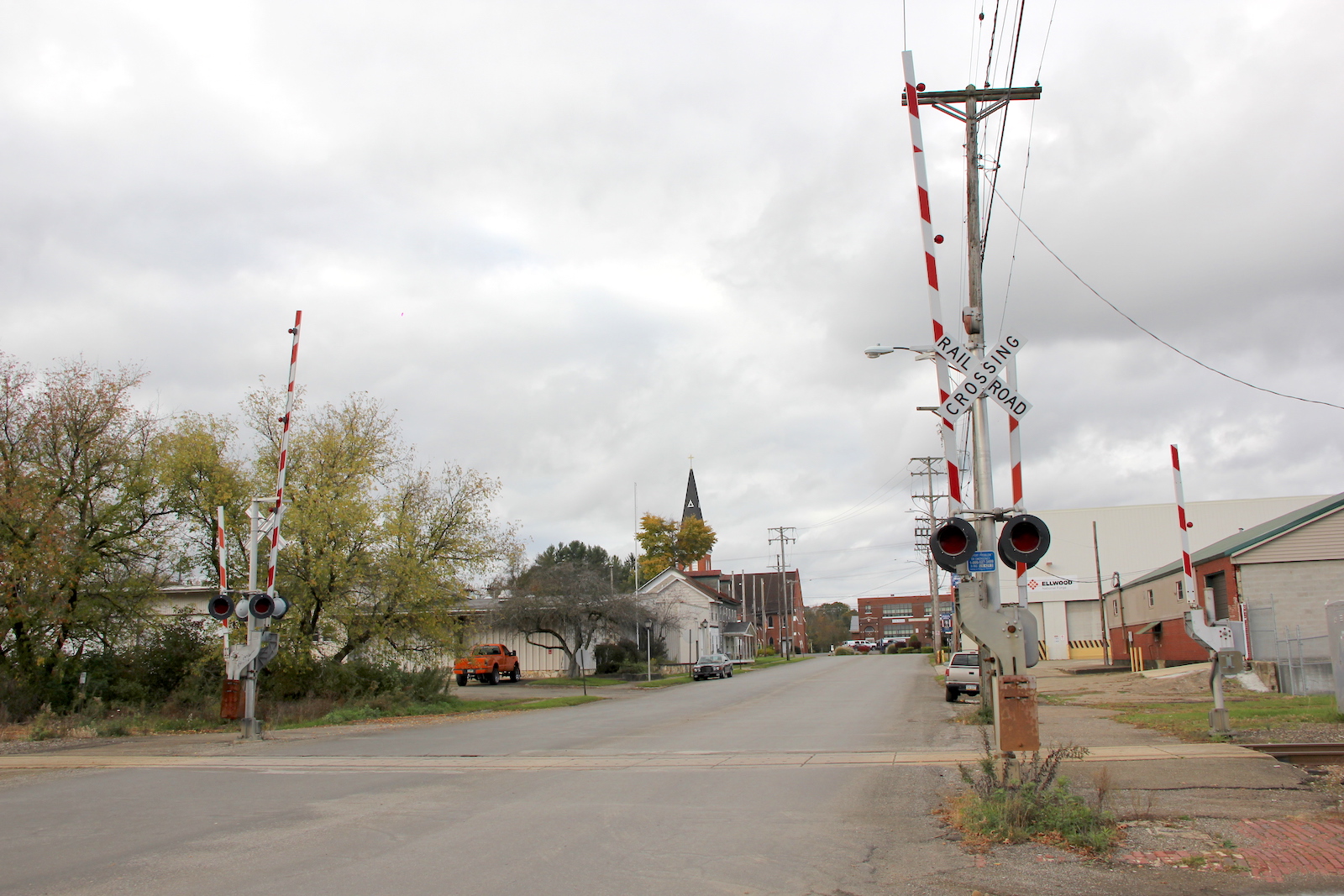

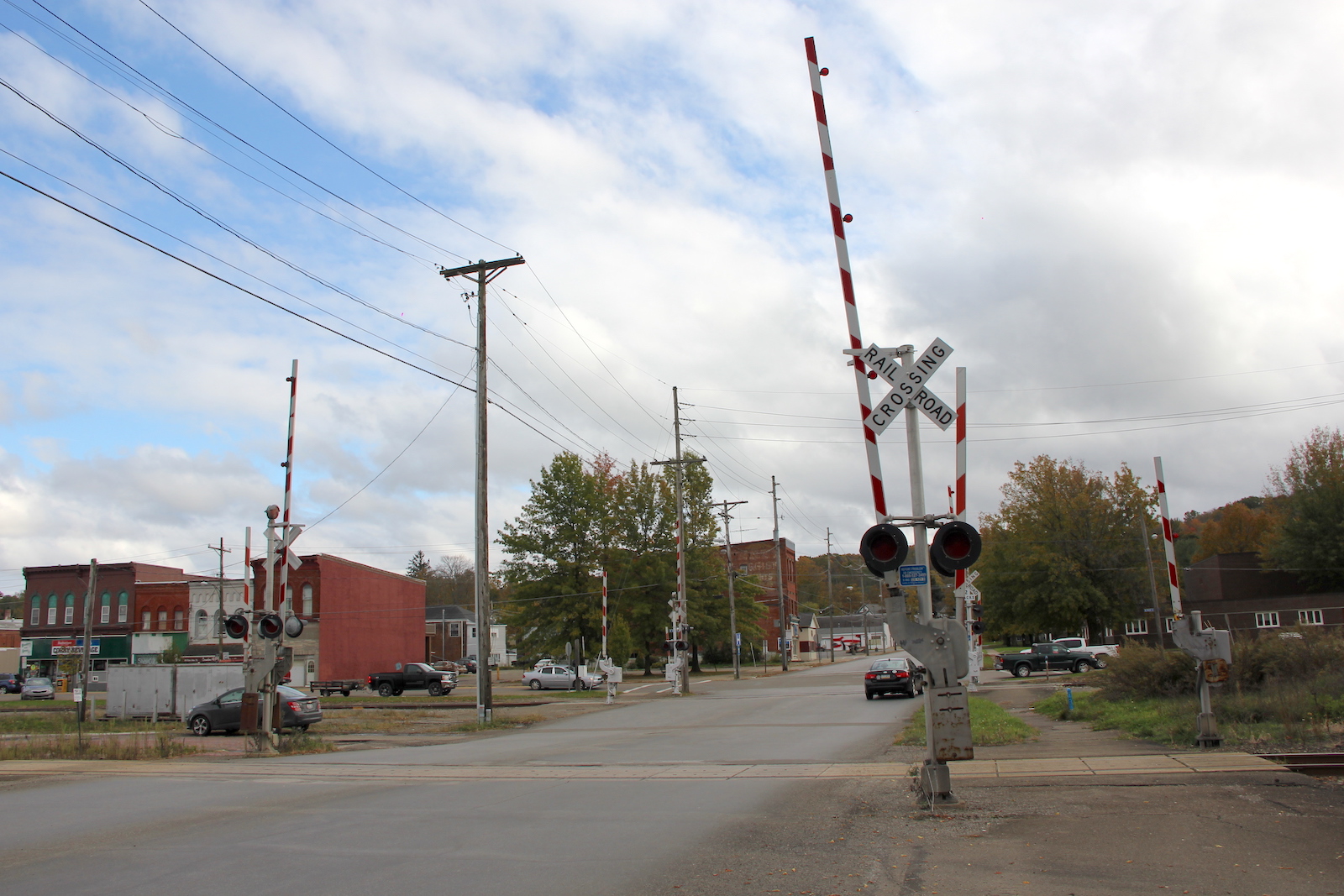

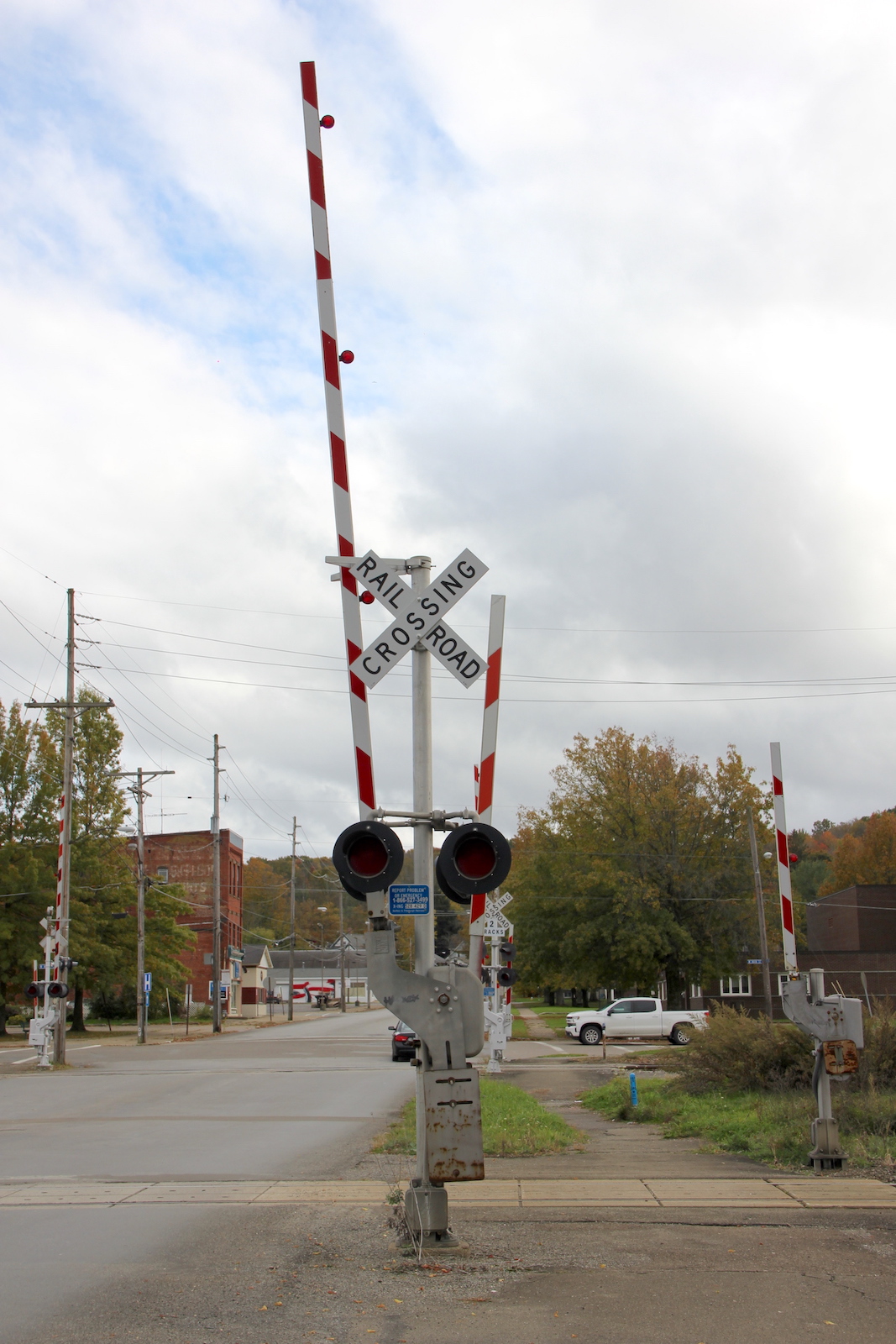

Overview of 2 gated signals and 2 pedestrian gates facing south. Overview facing north.
3 4 5
6 7 8 9
10 11 12 13

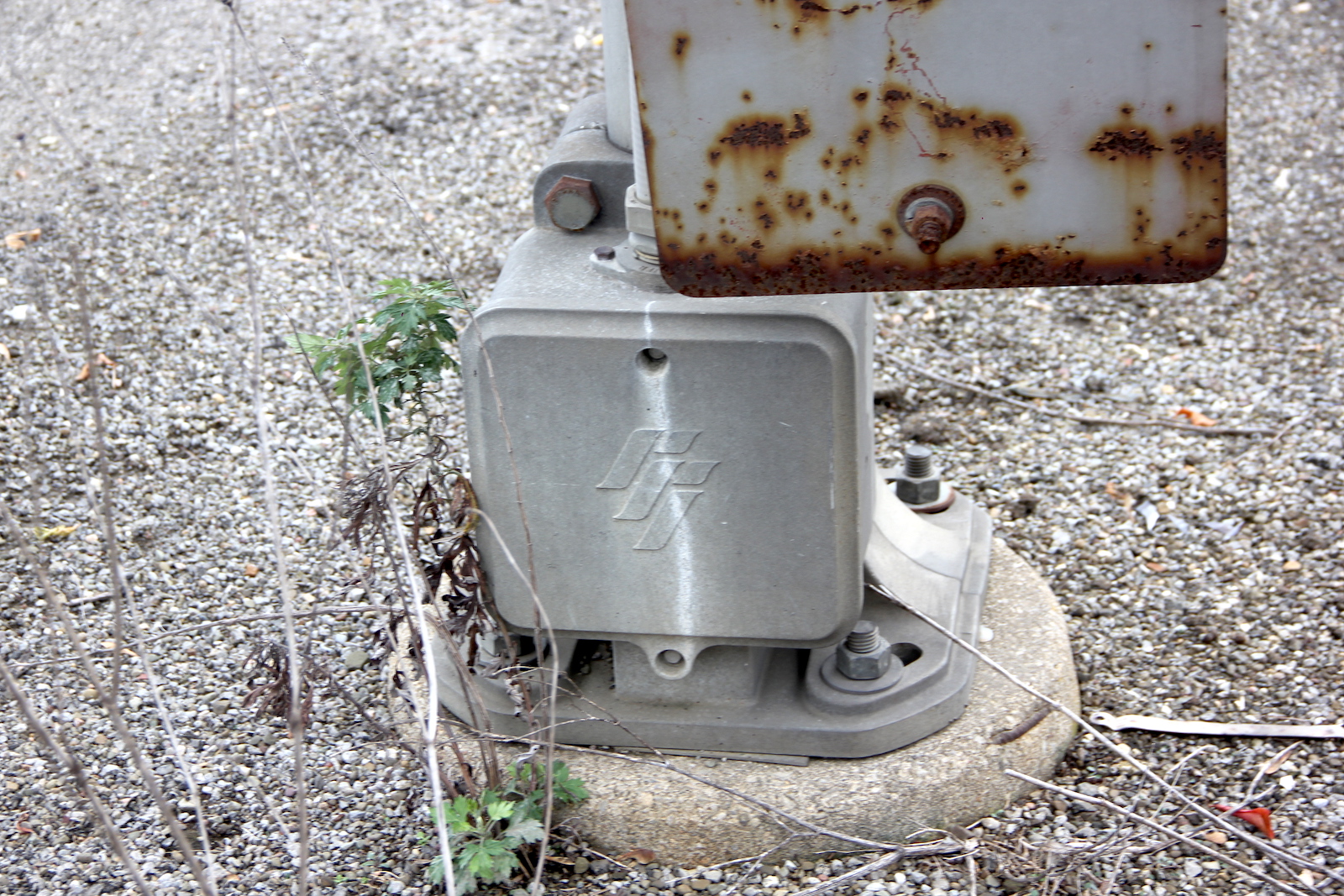

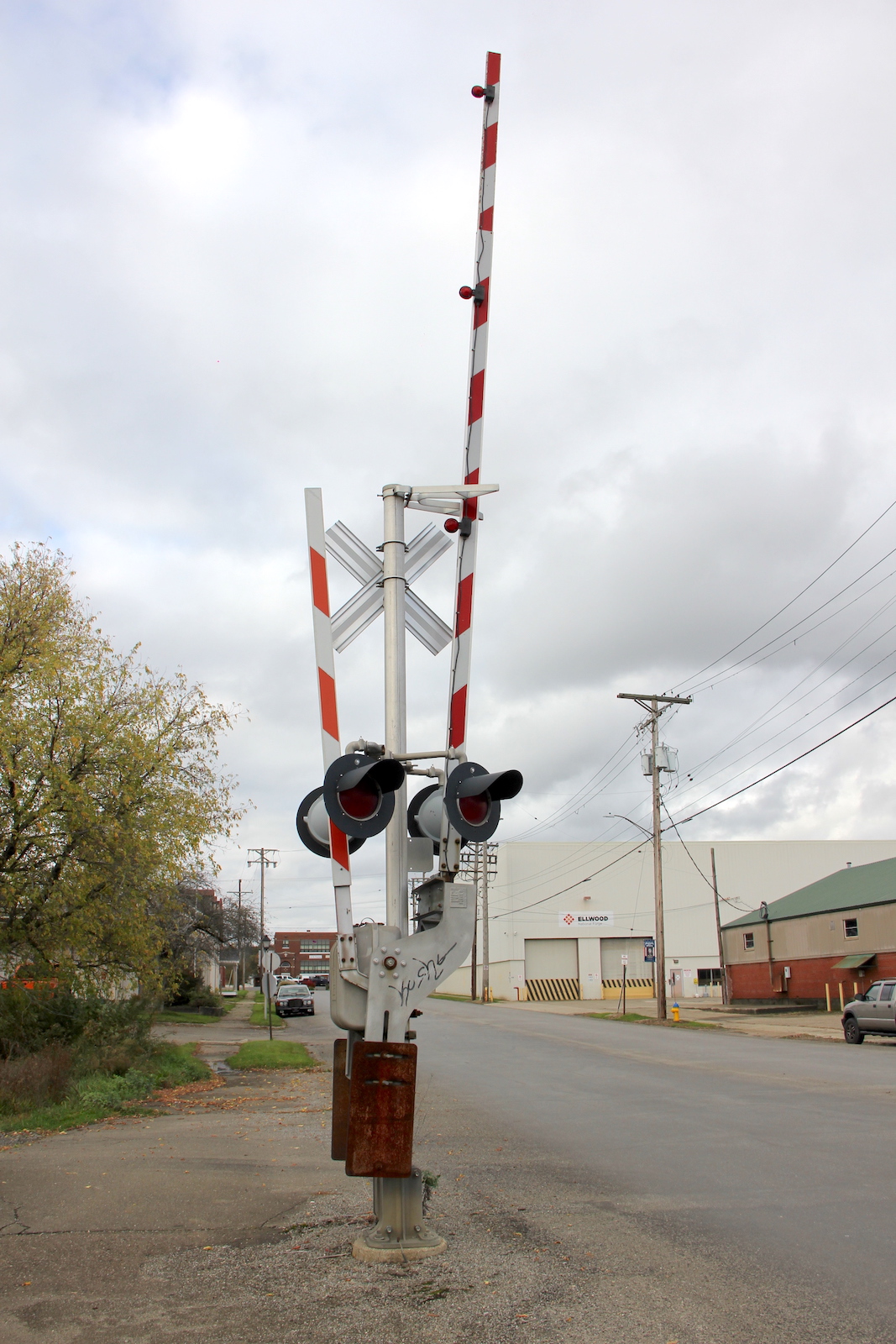

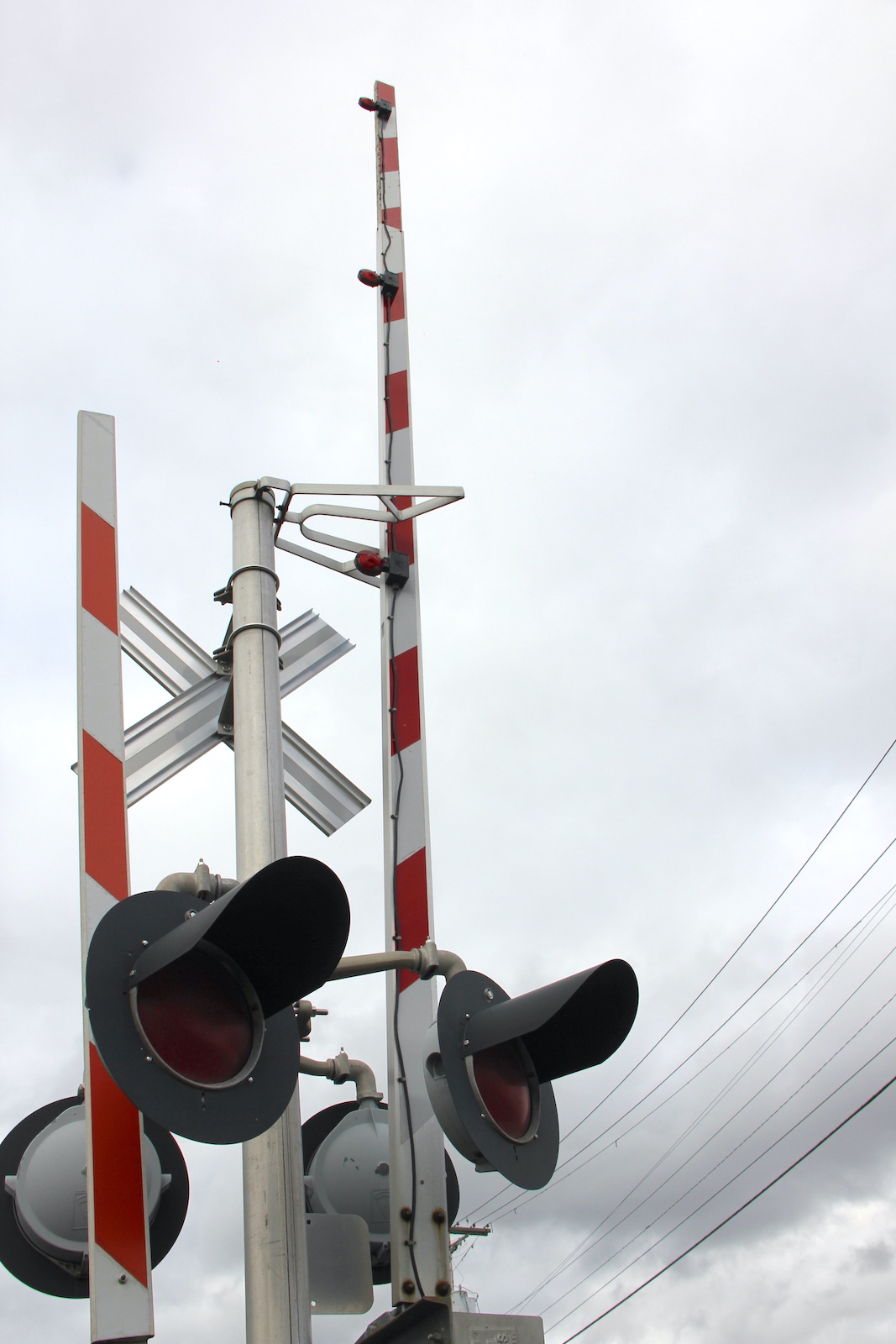

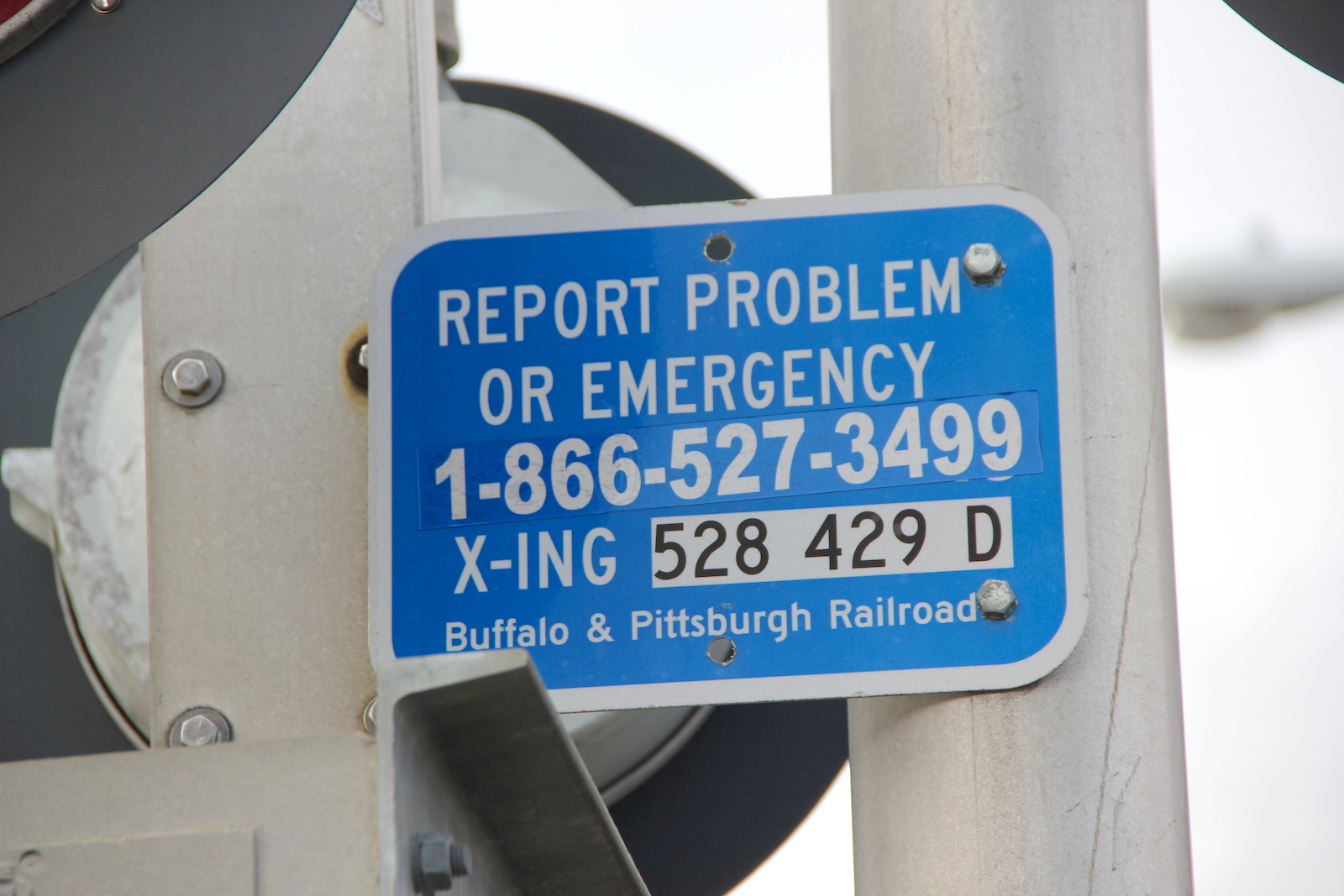

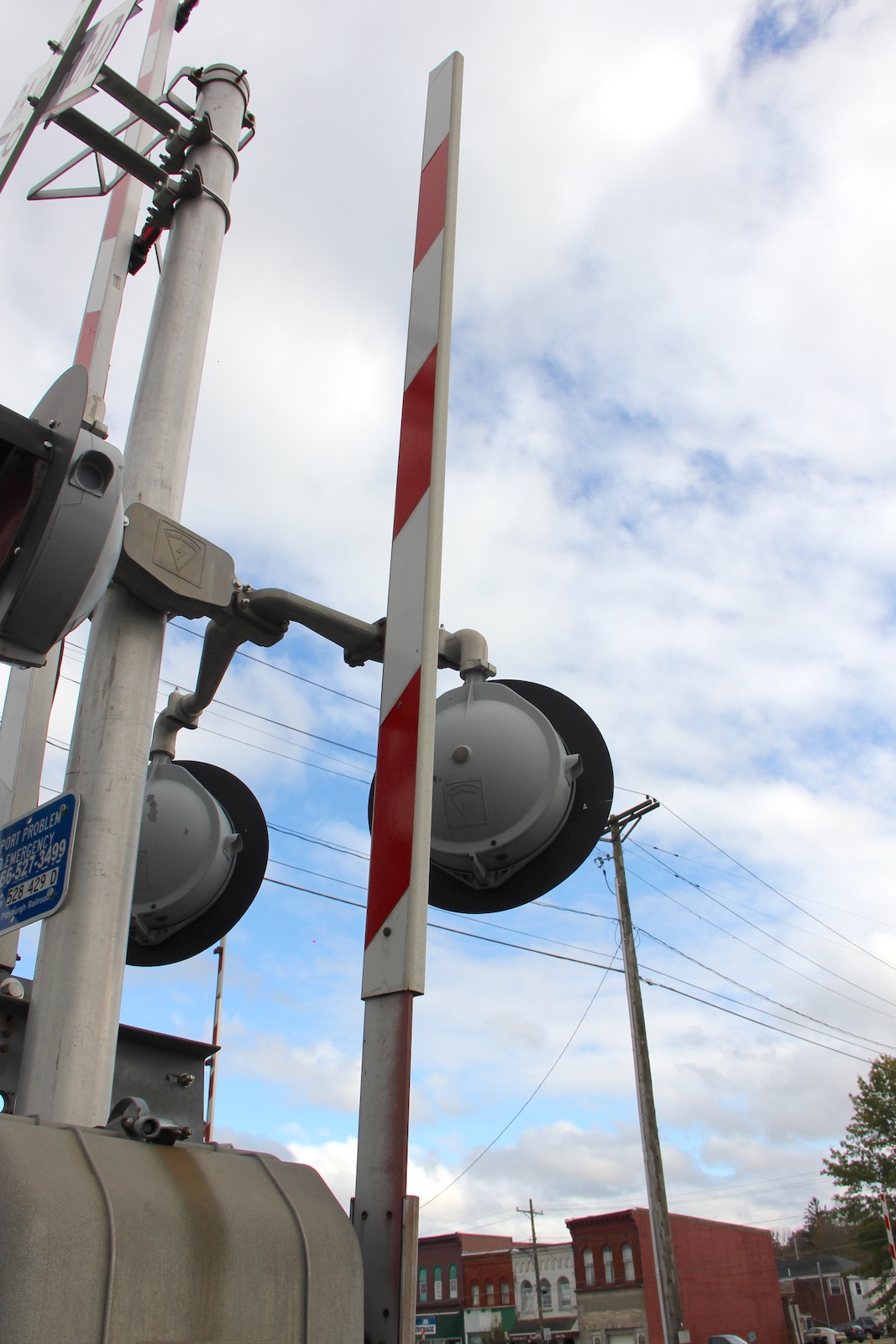

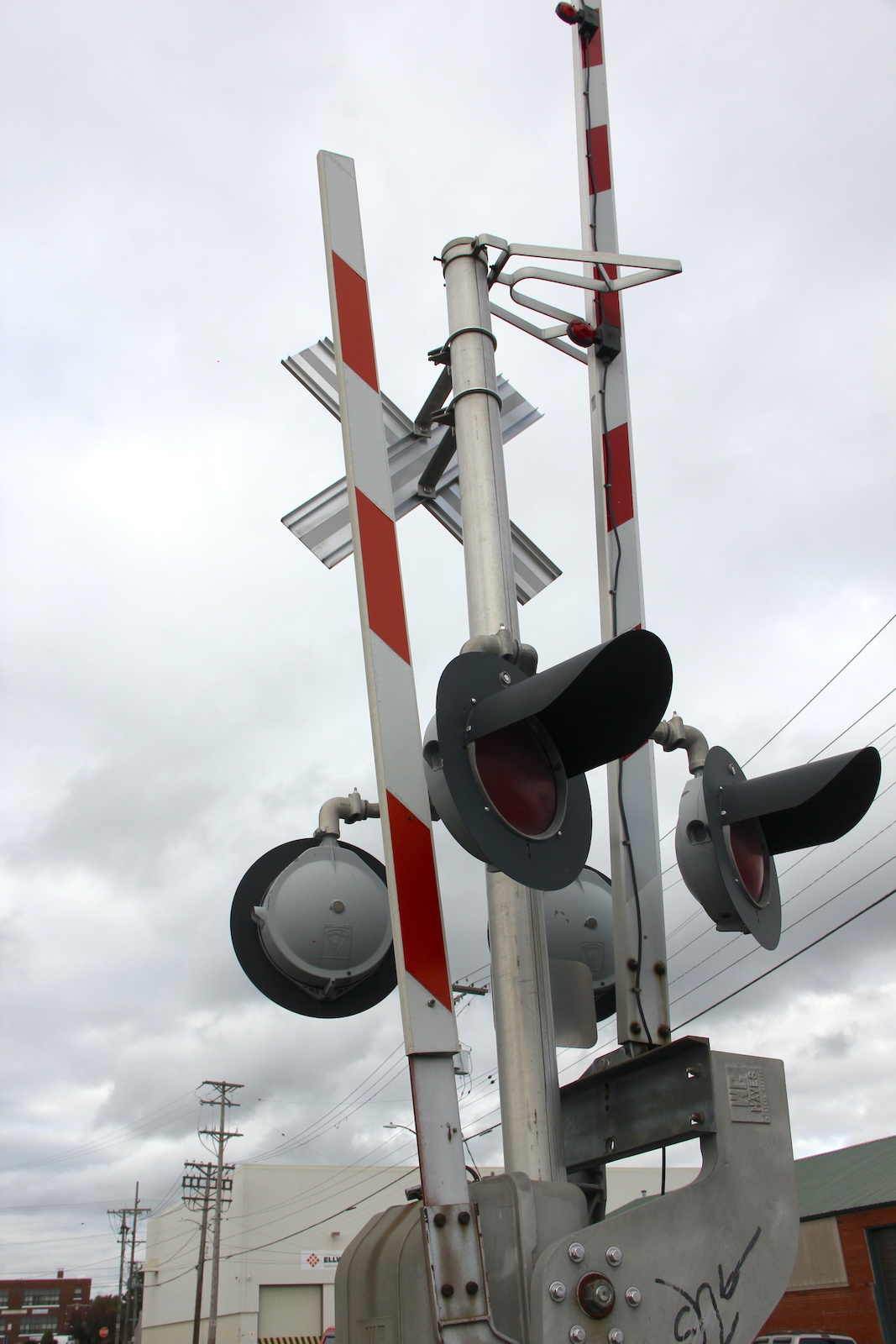

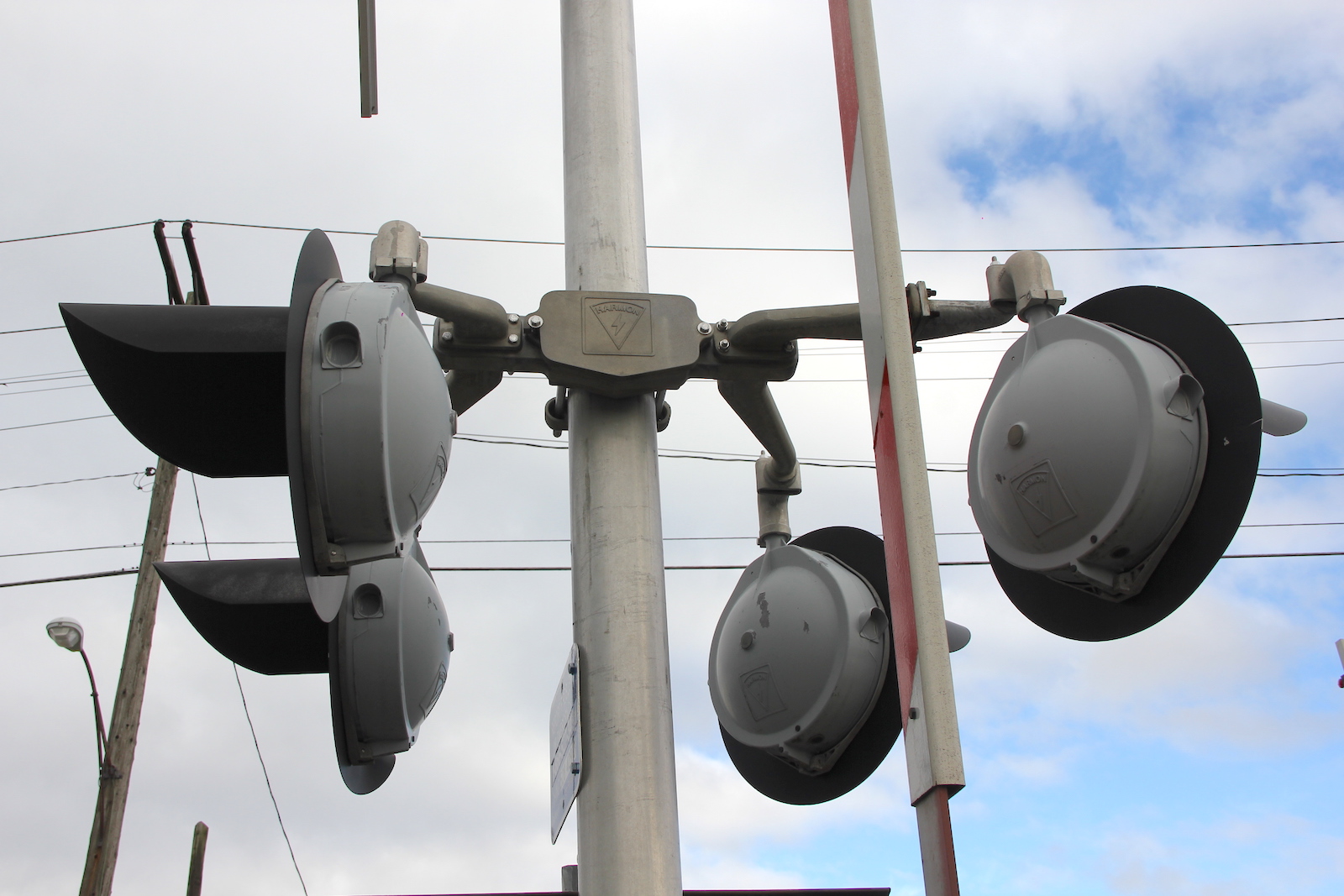

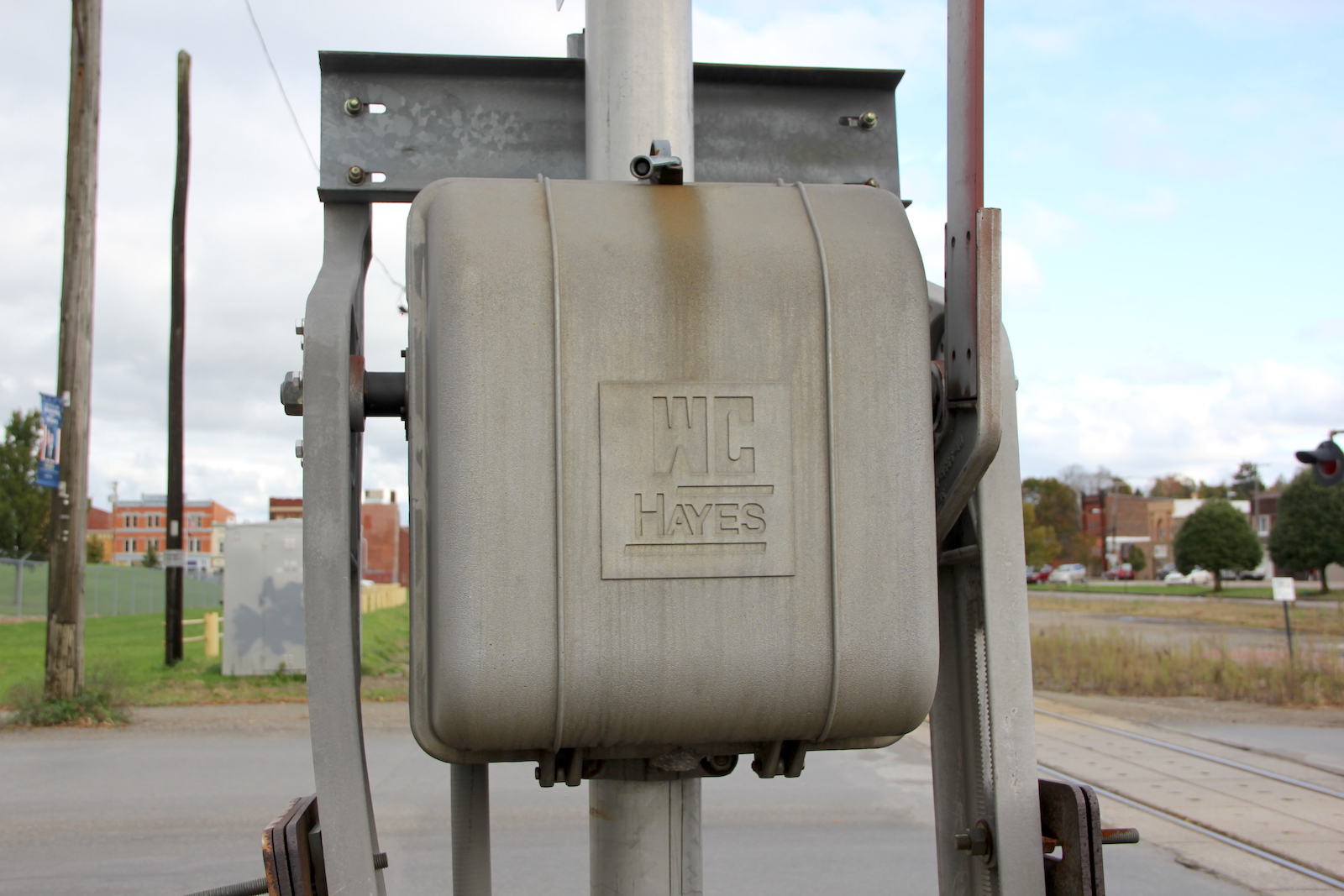

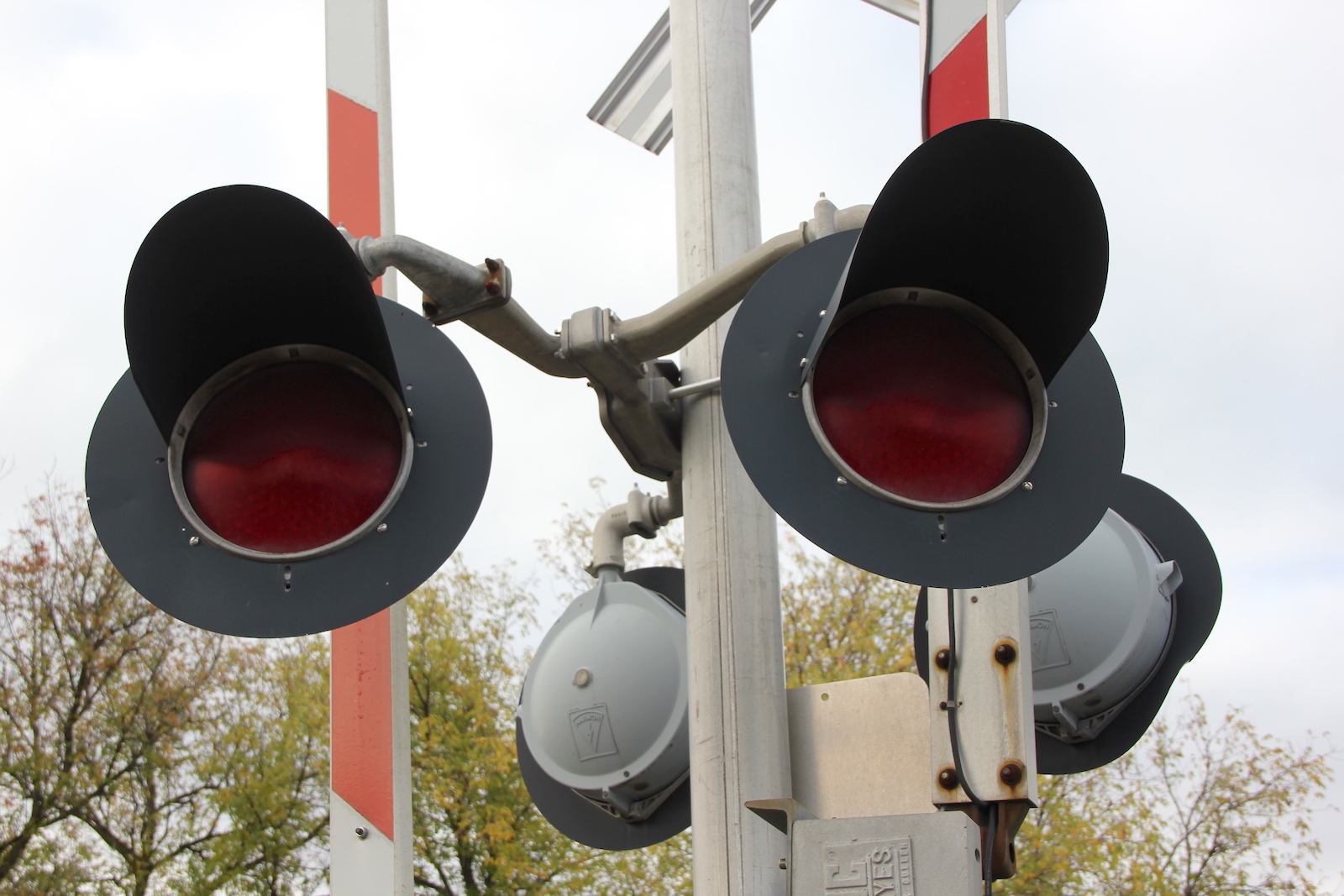

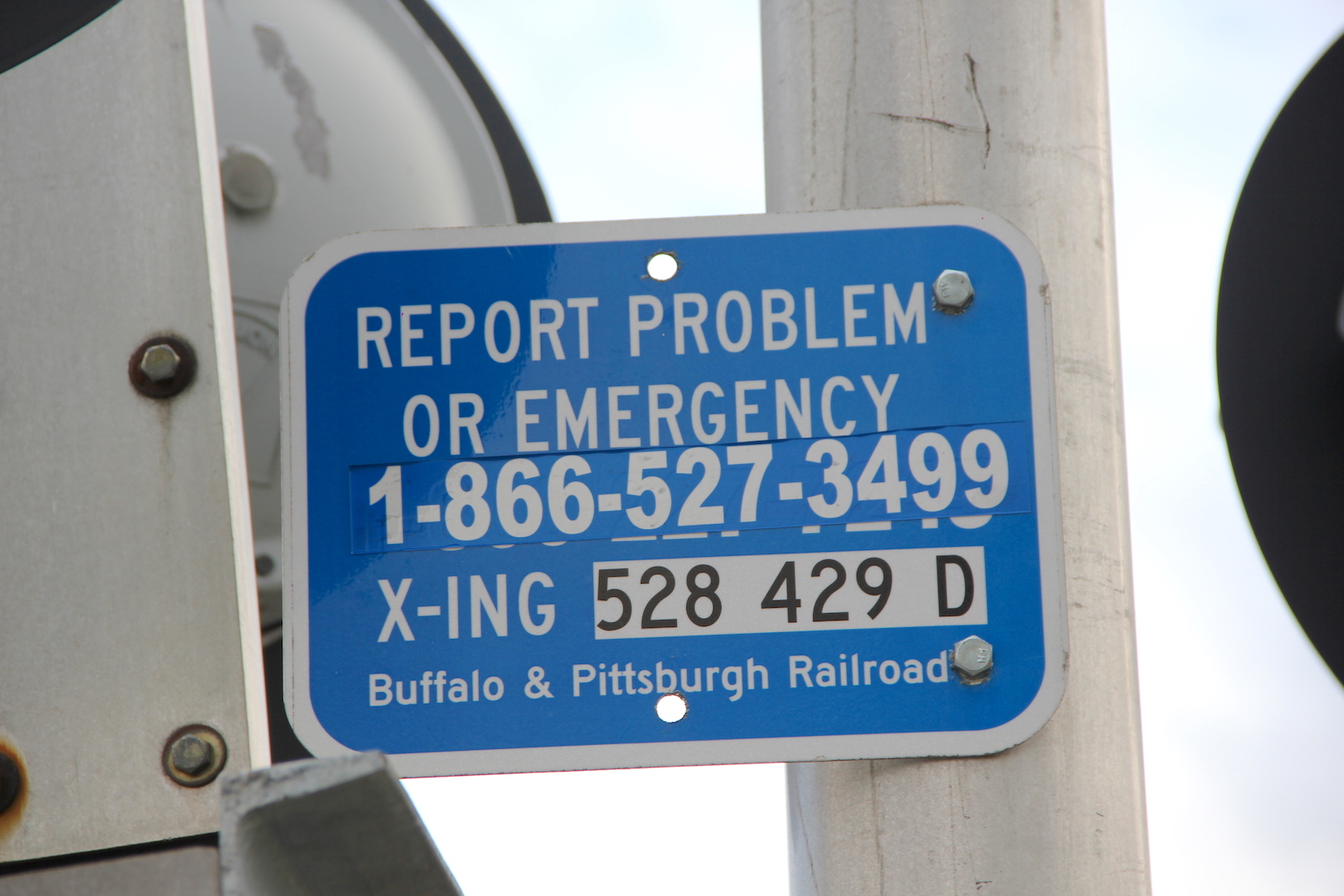

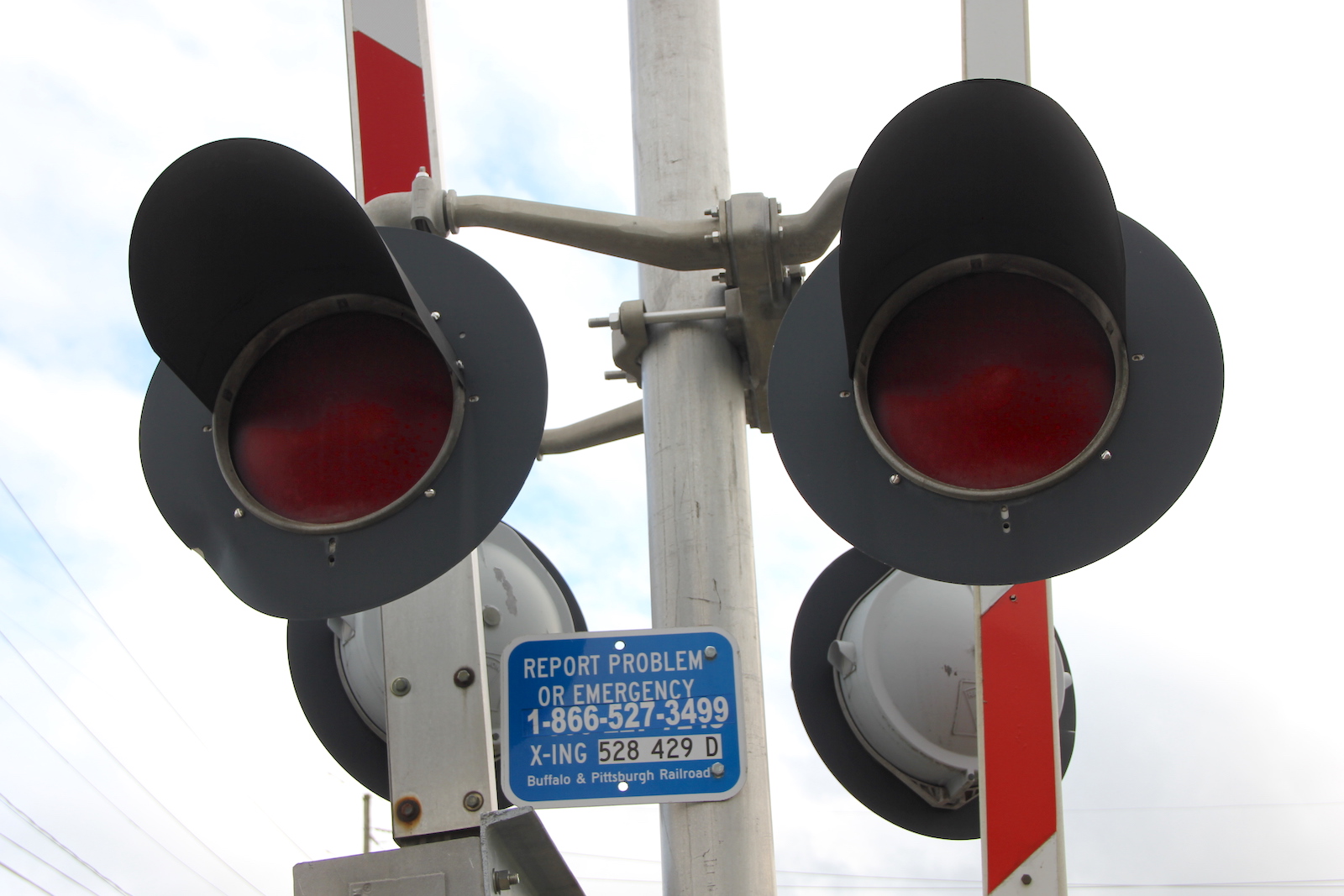

The northern signal.
14 15 16 17
18 19 20 21
22 23 24 25

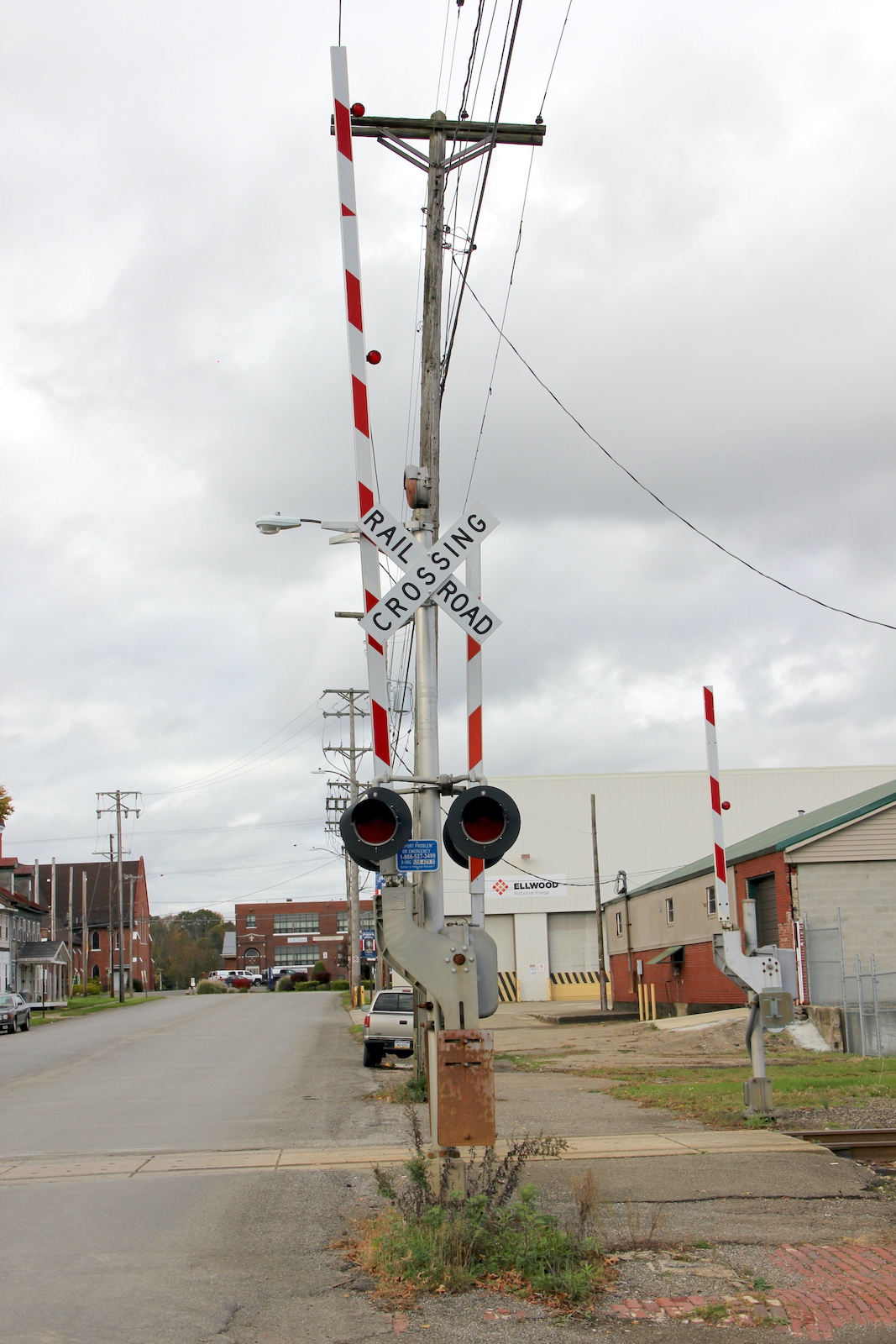

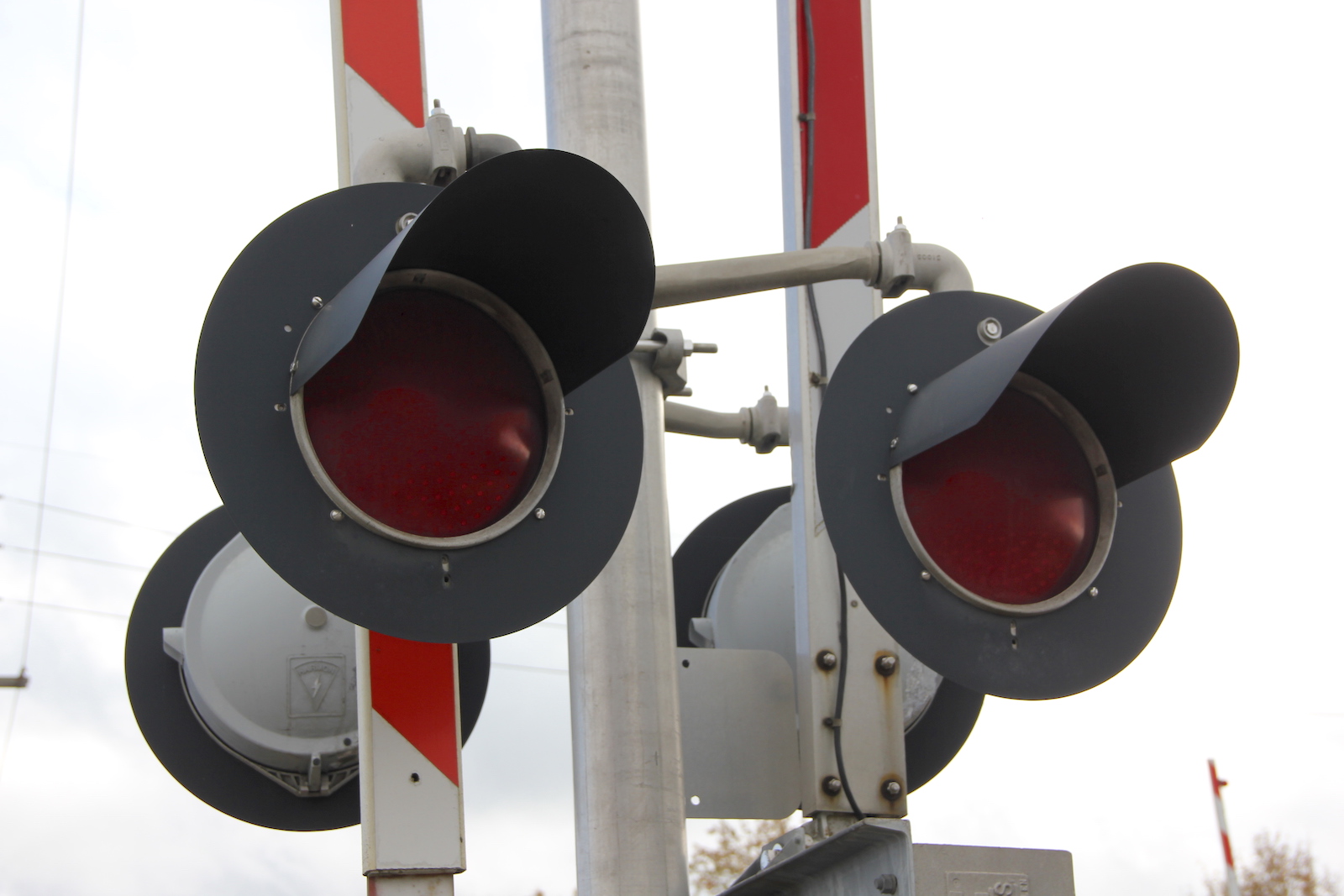

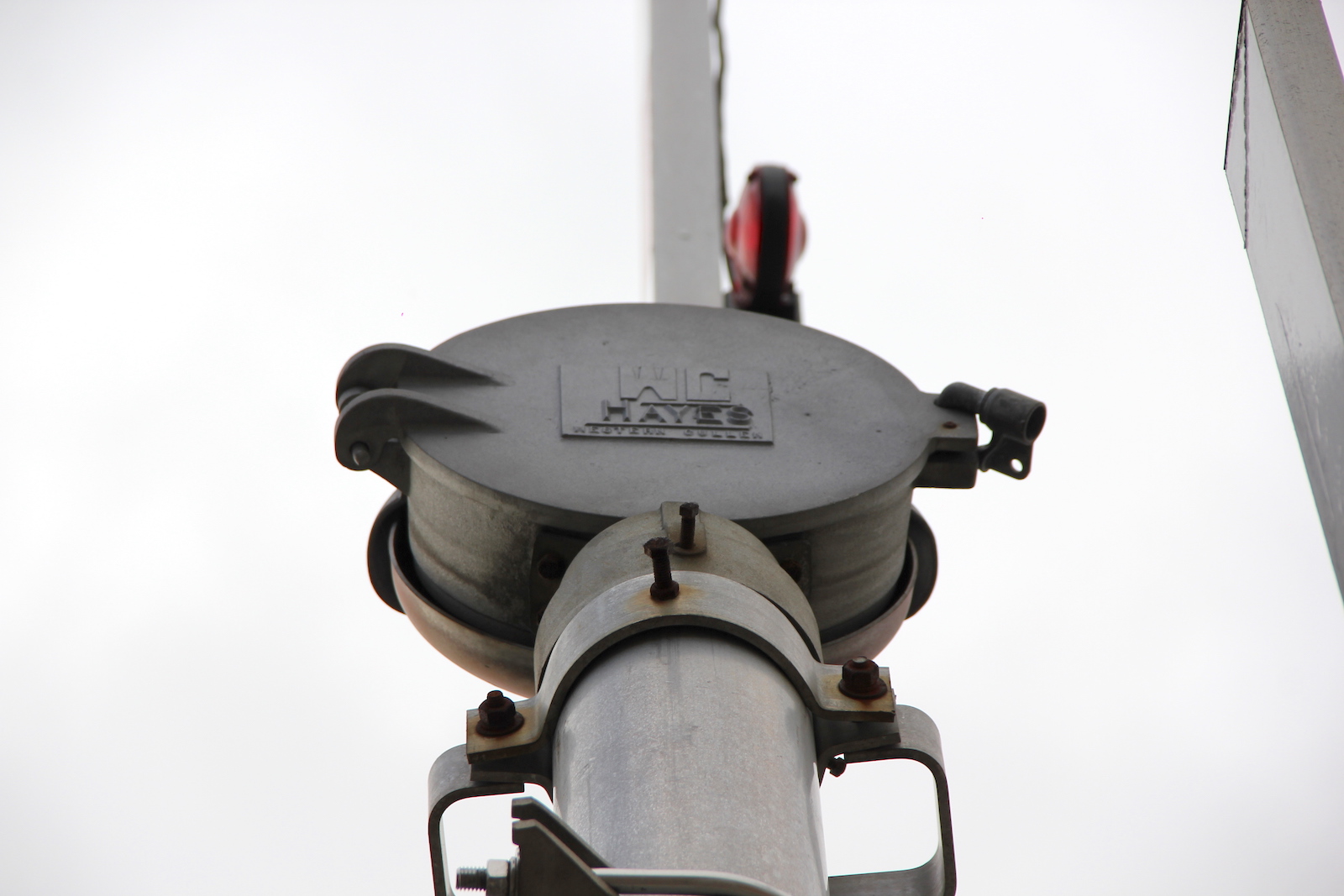

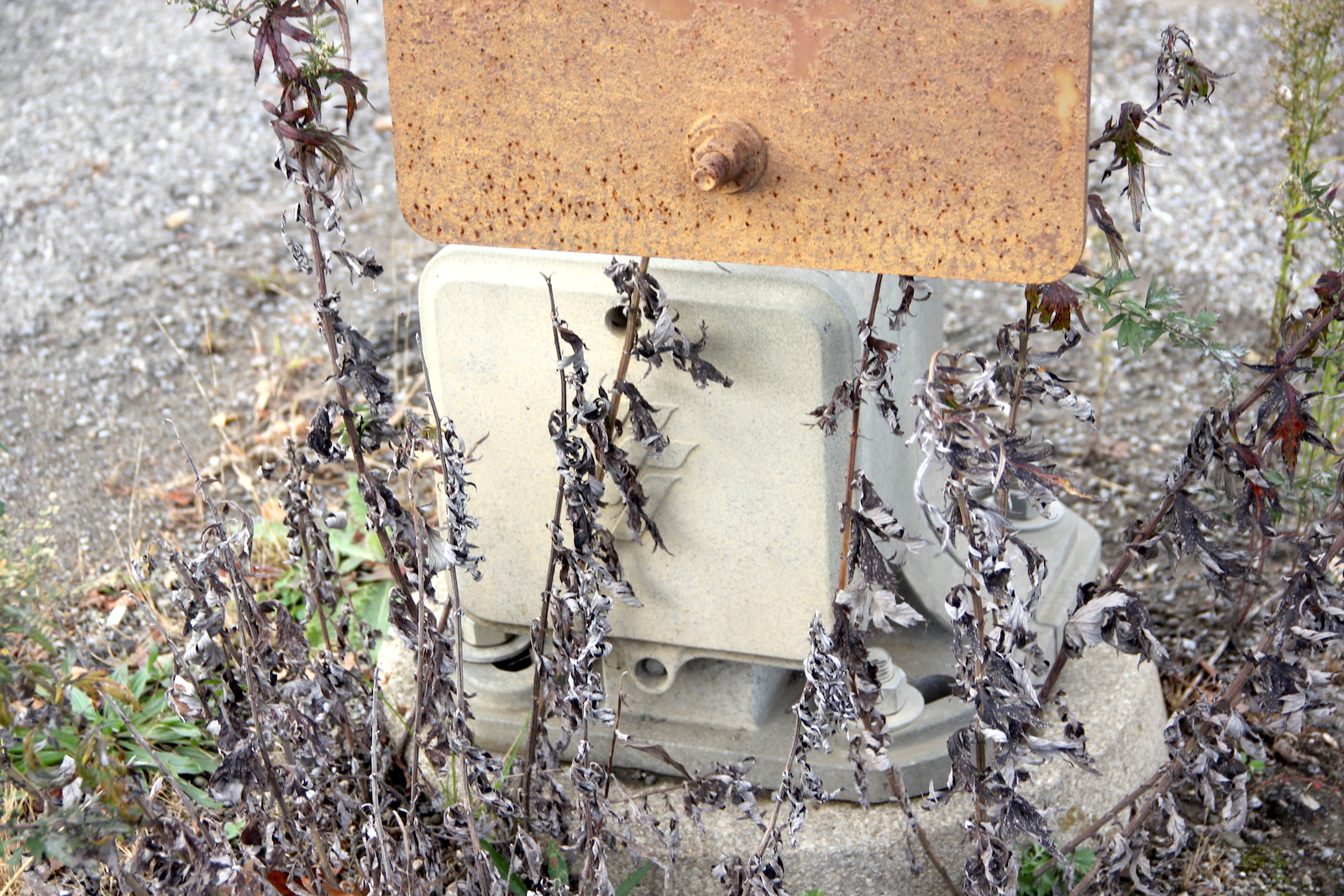

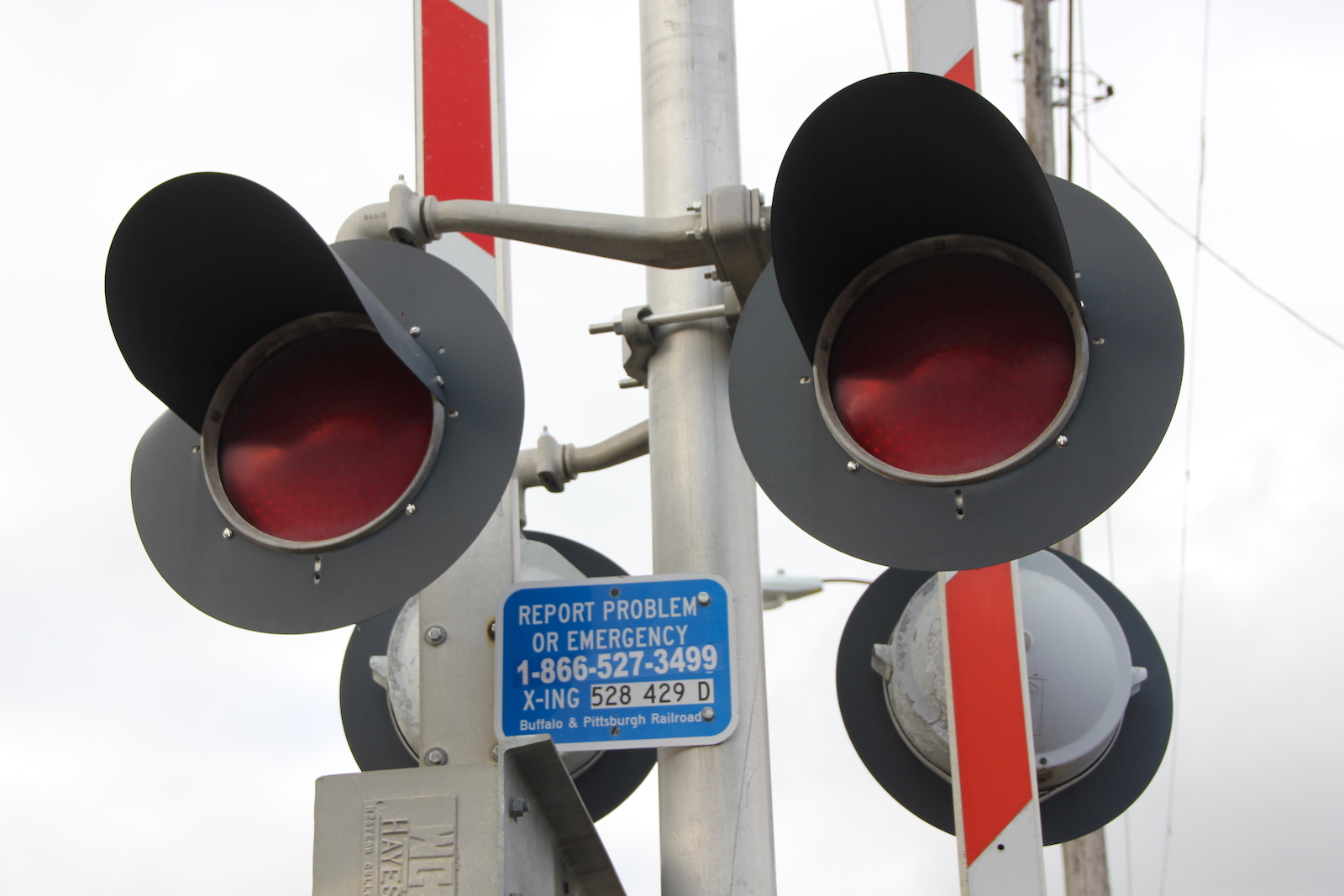

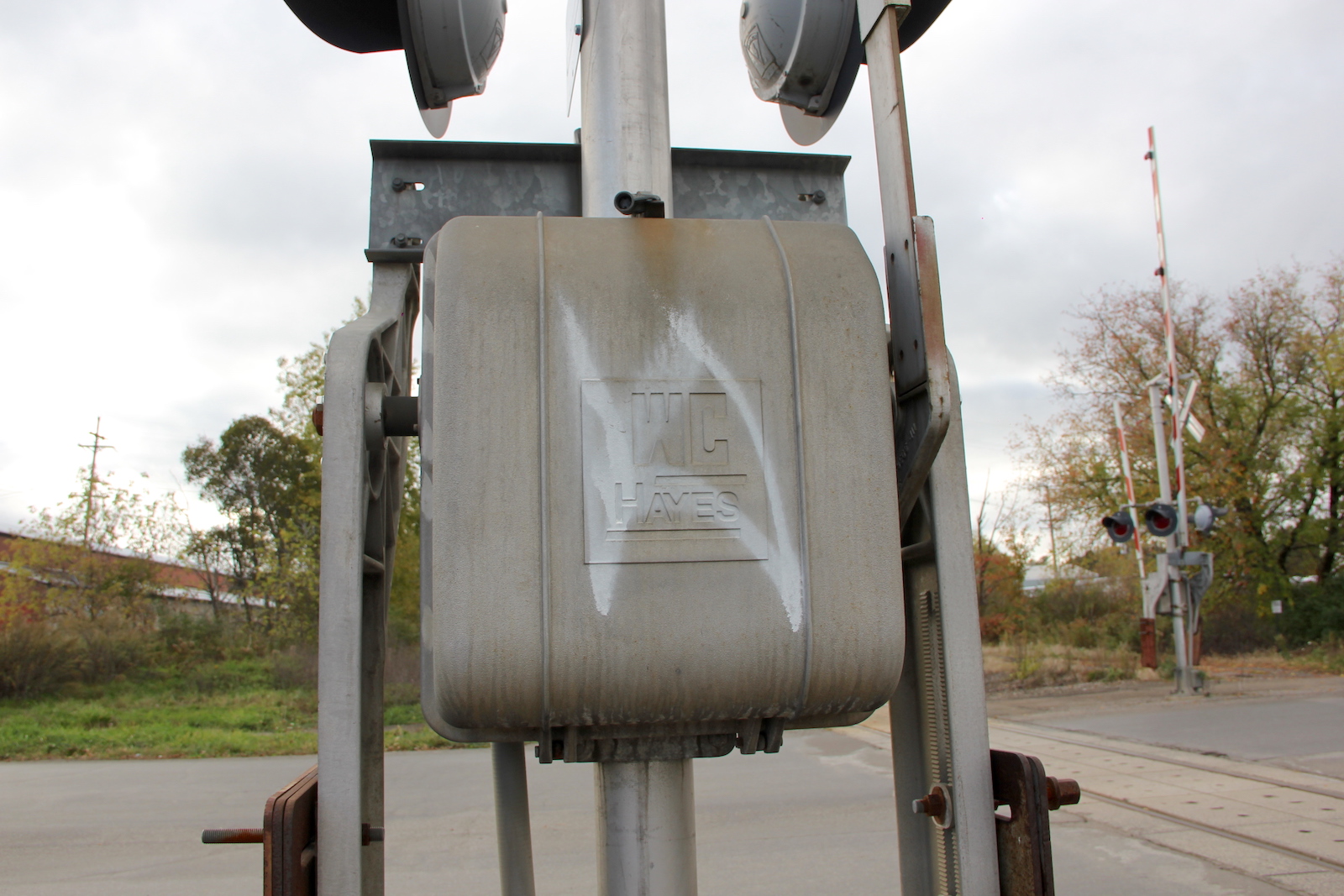

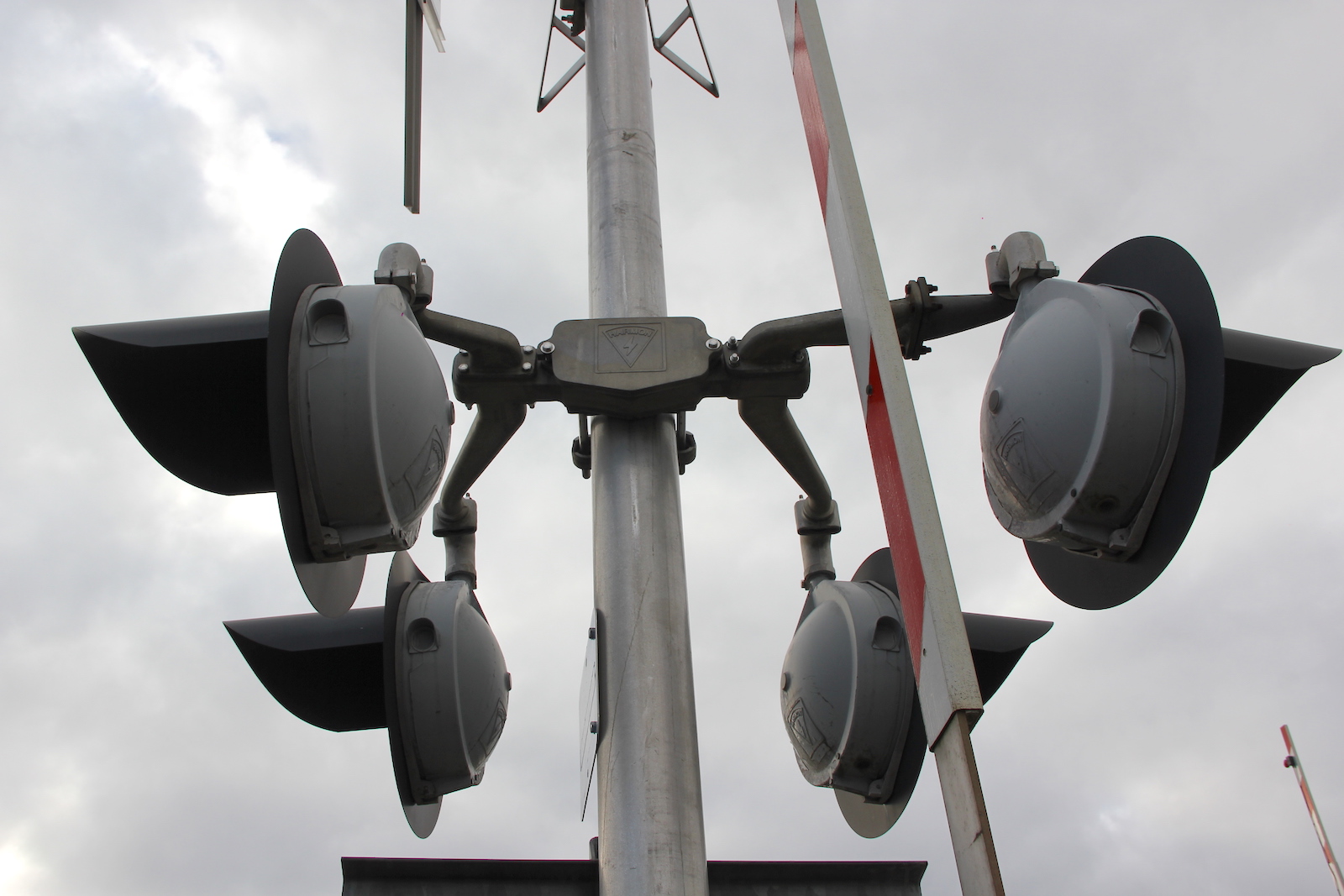

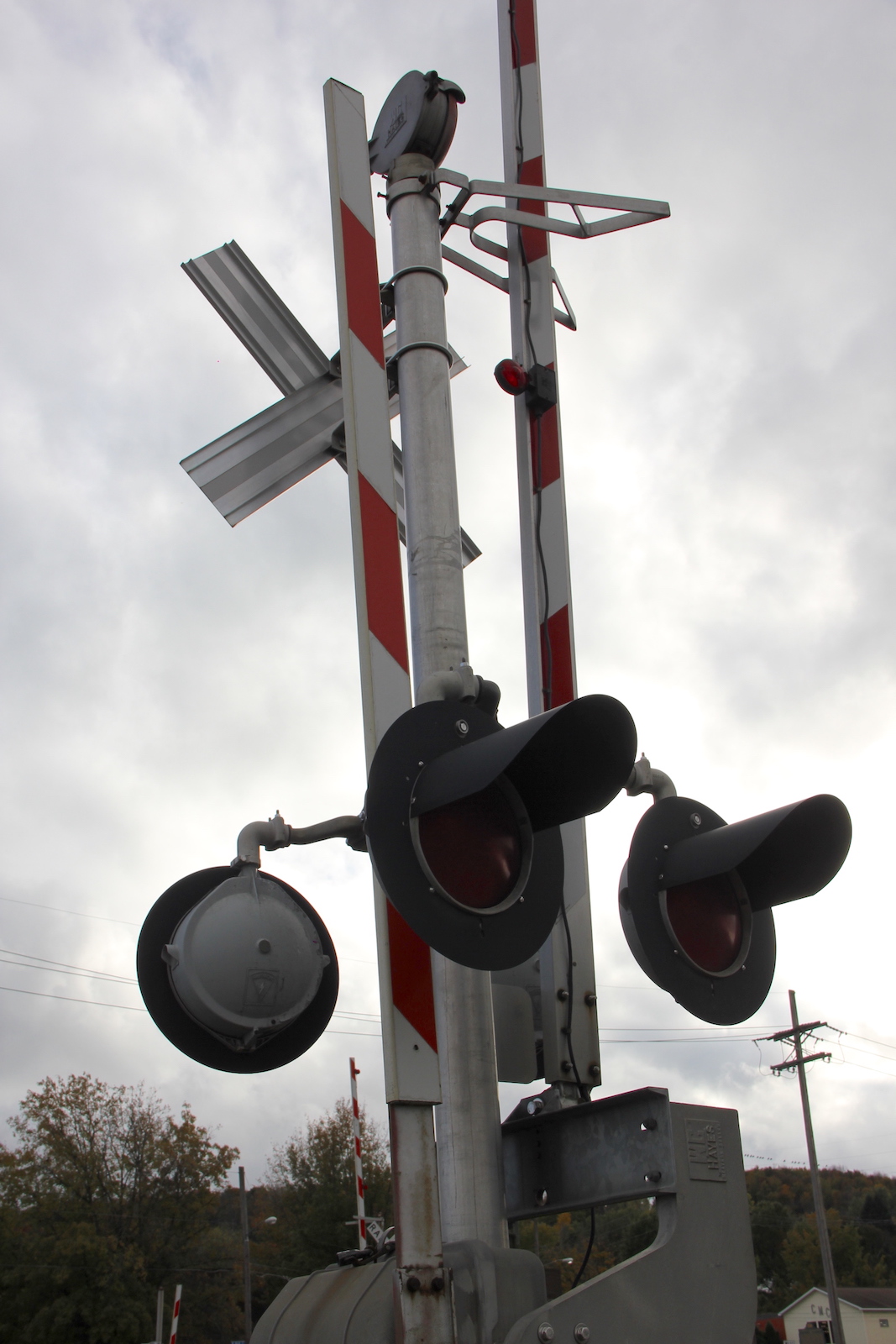

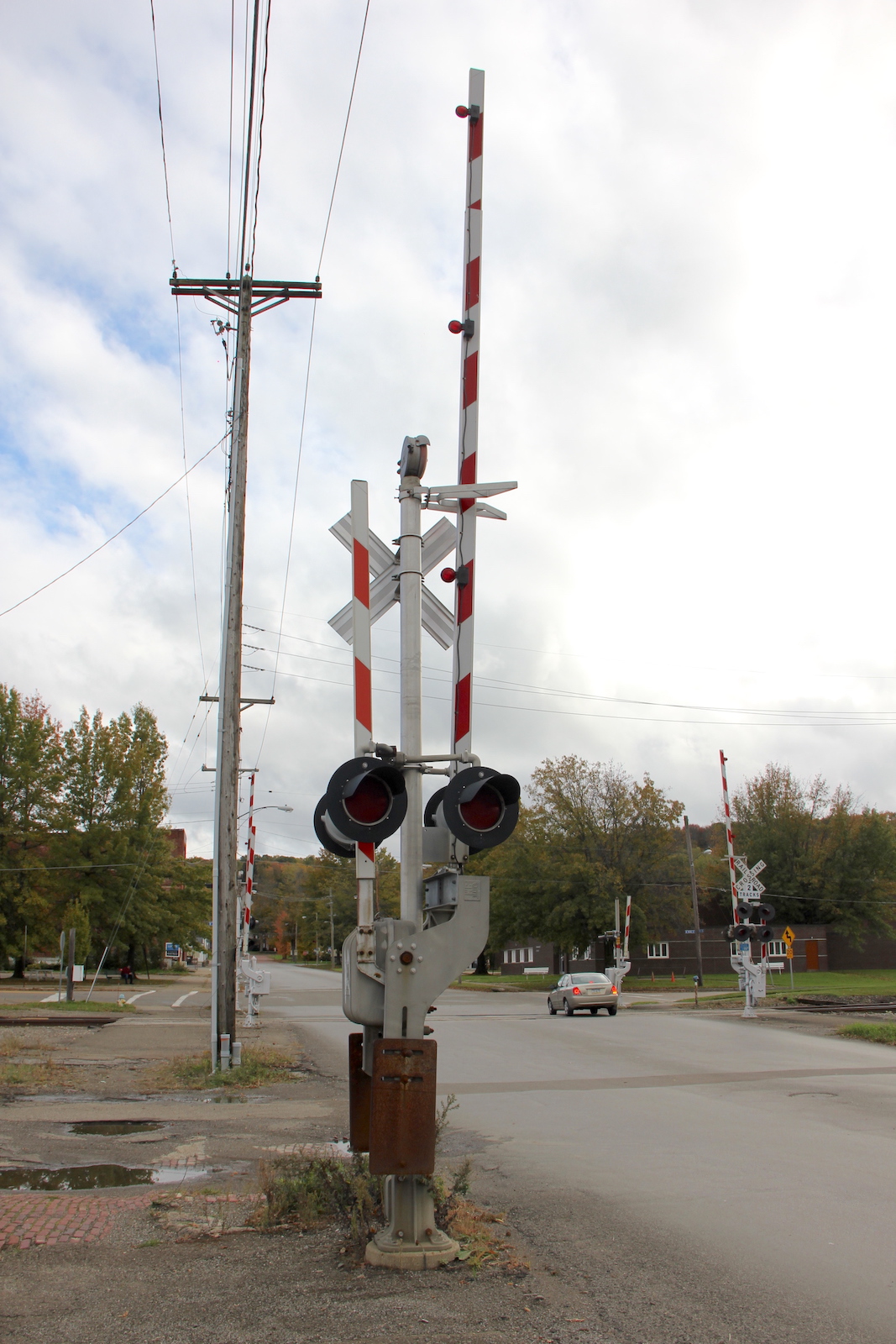

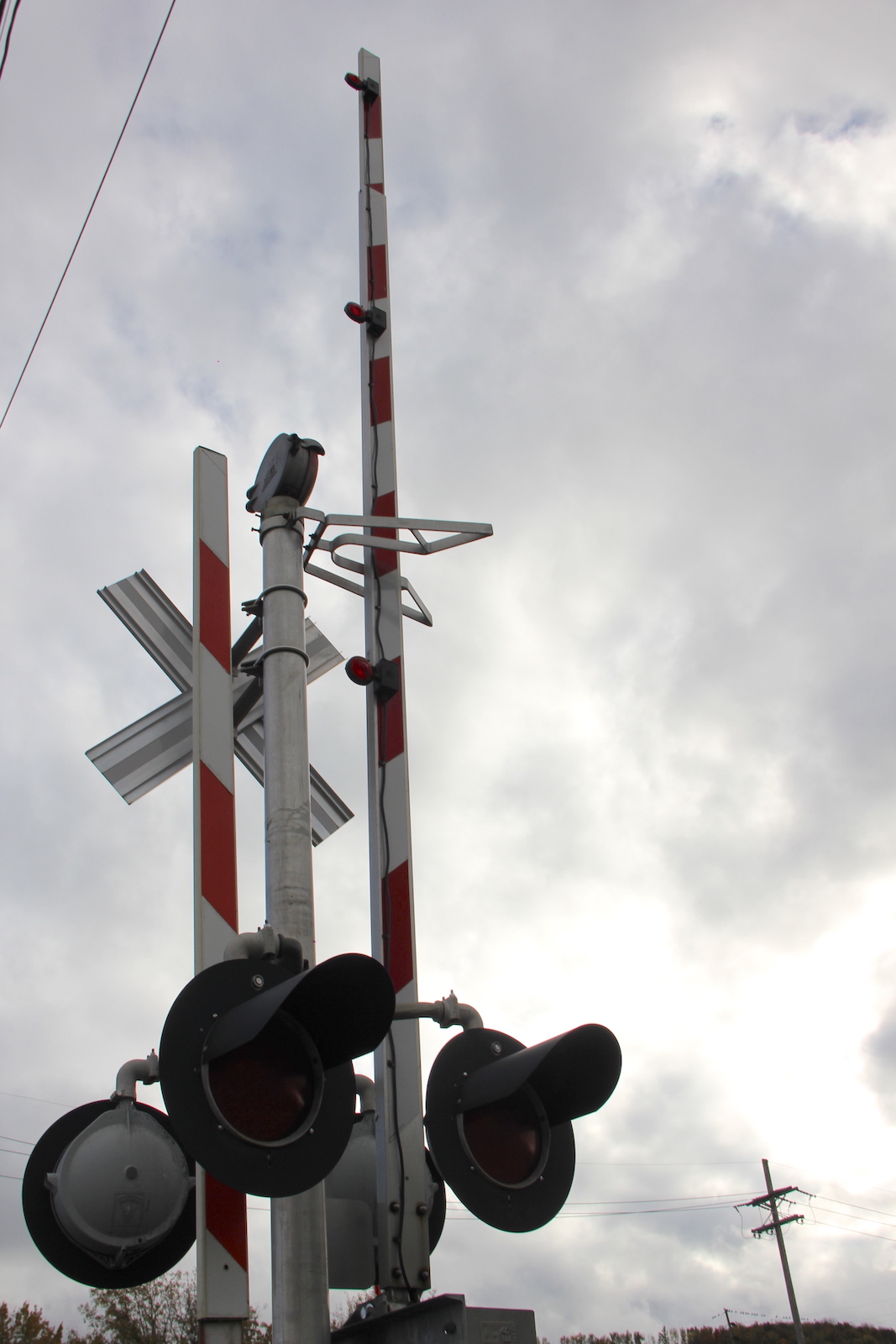

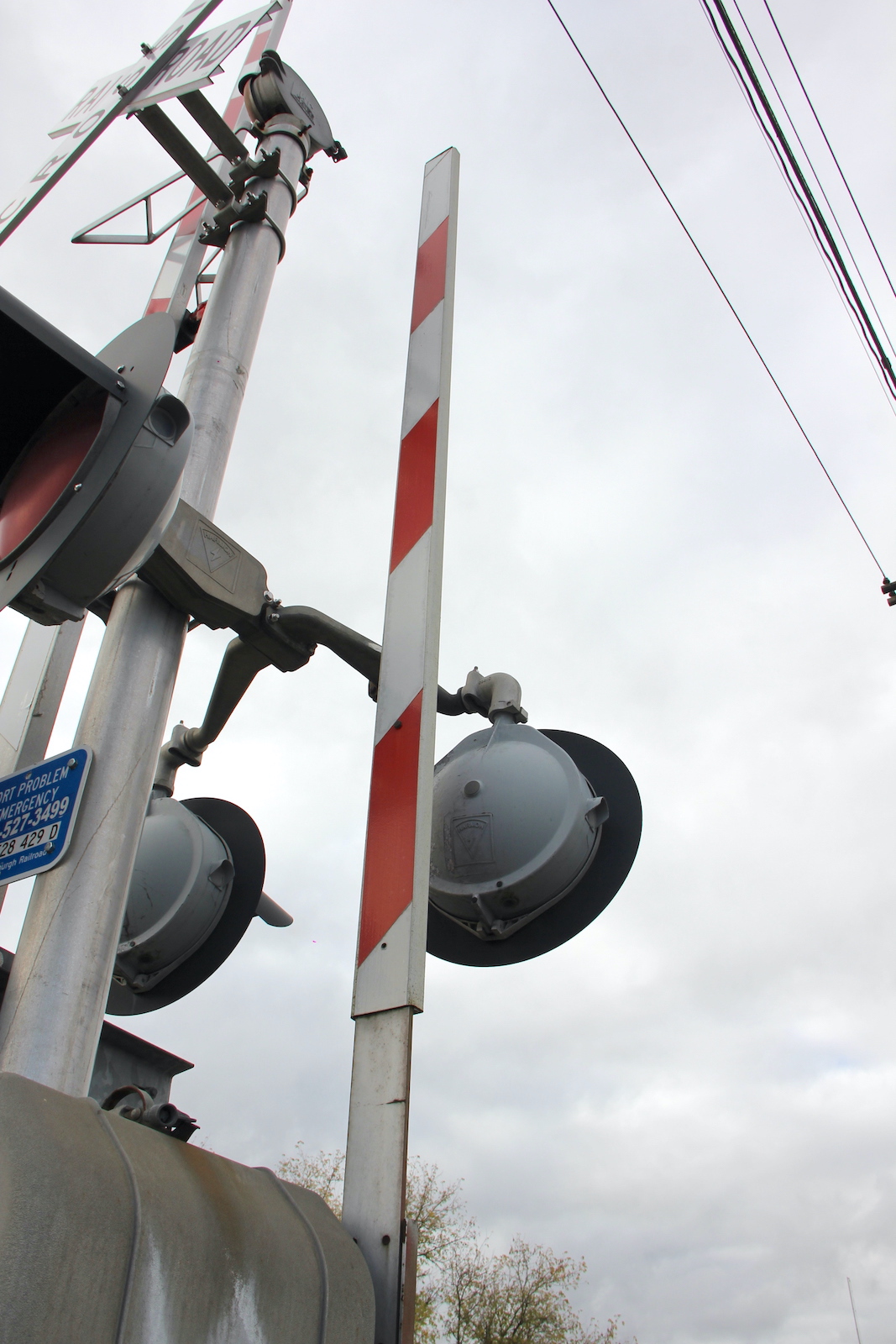

The southern signal
26 27 28 29

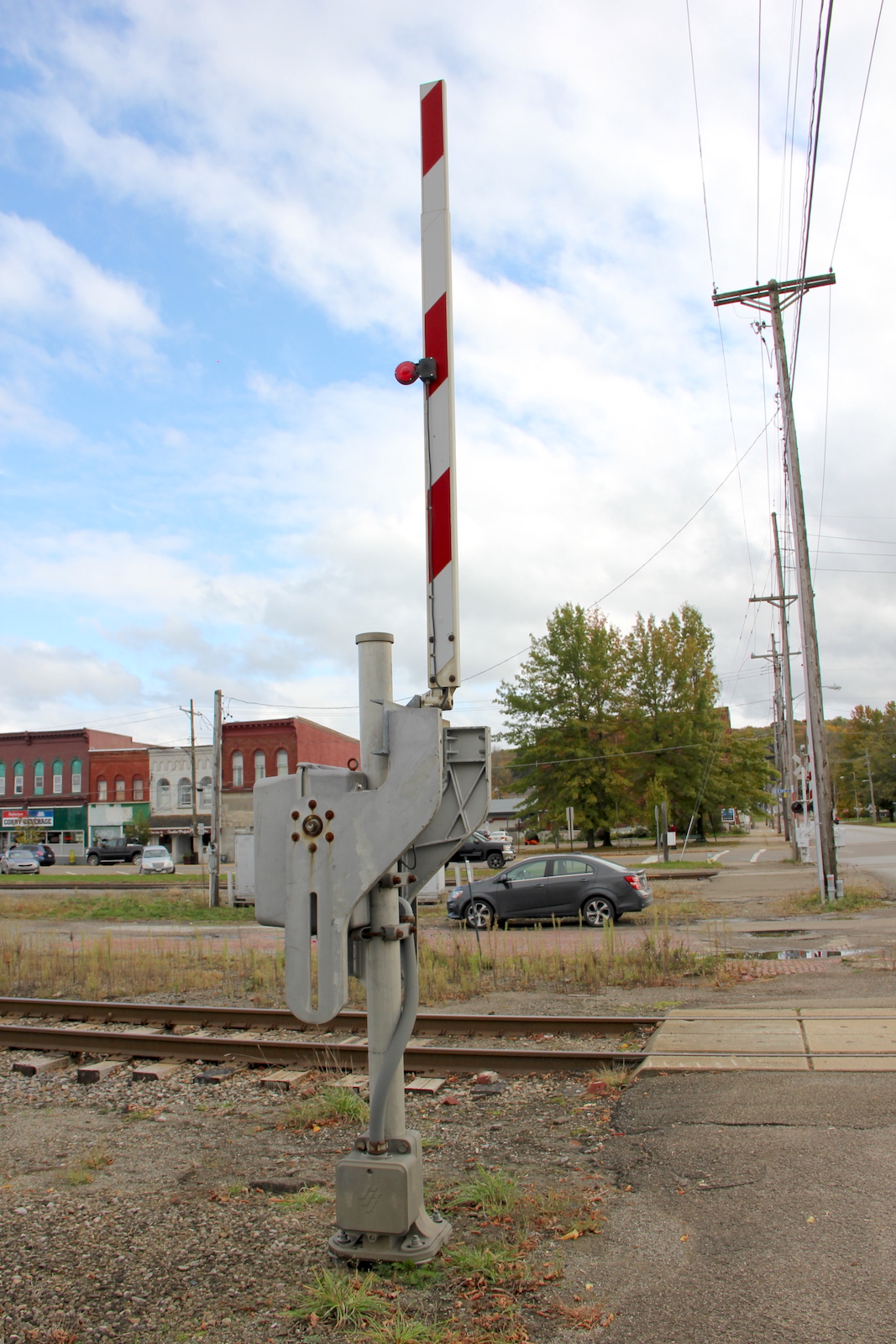

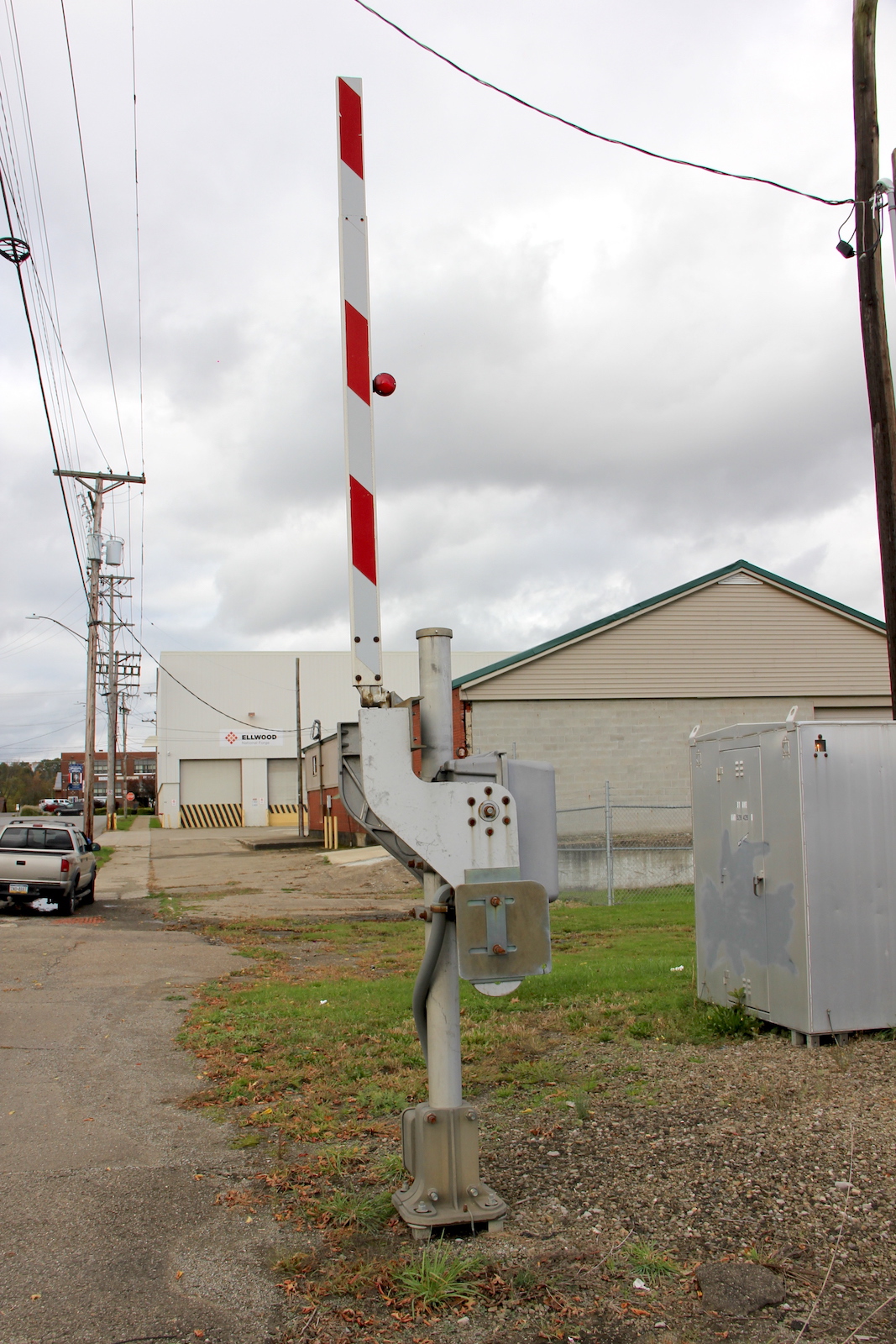

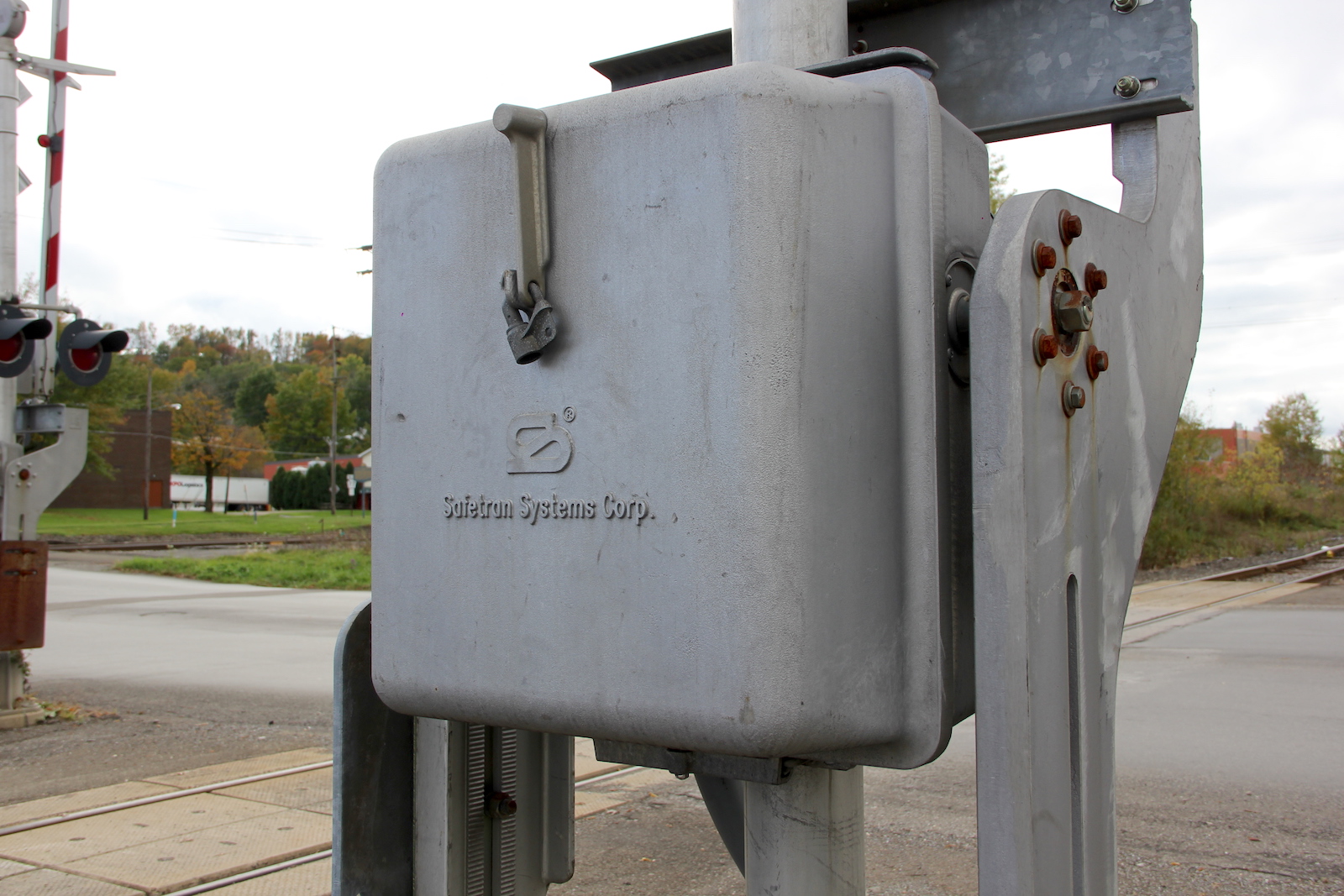

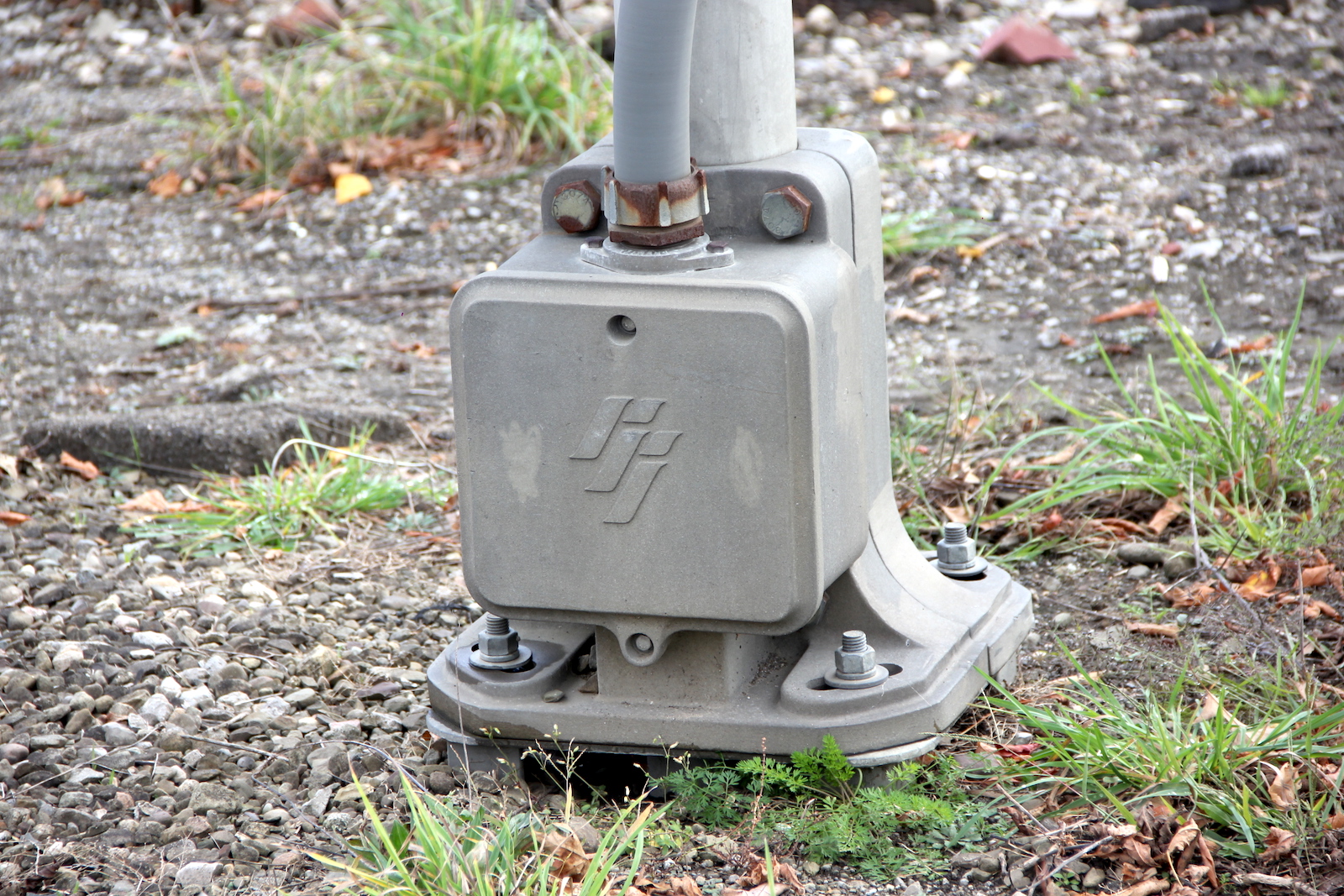

The northern pedestrian gate.
30 31 32 33

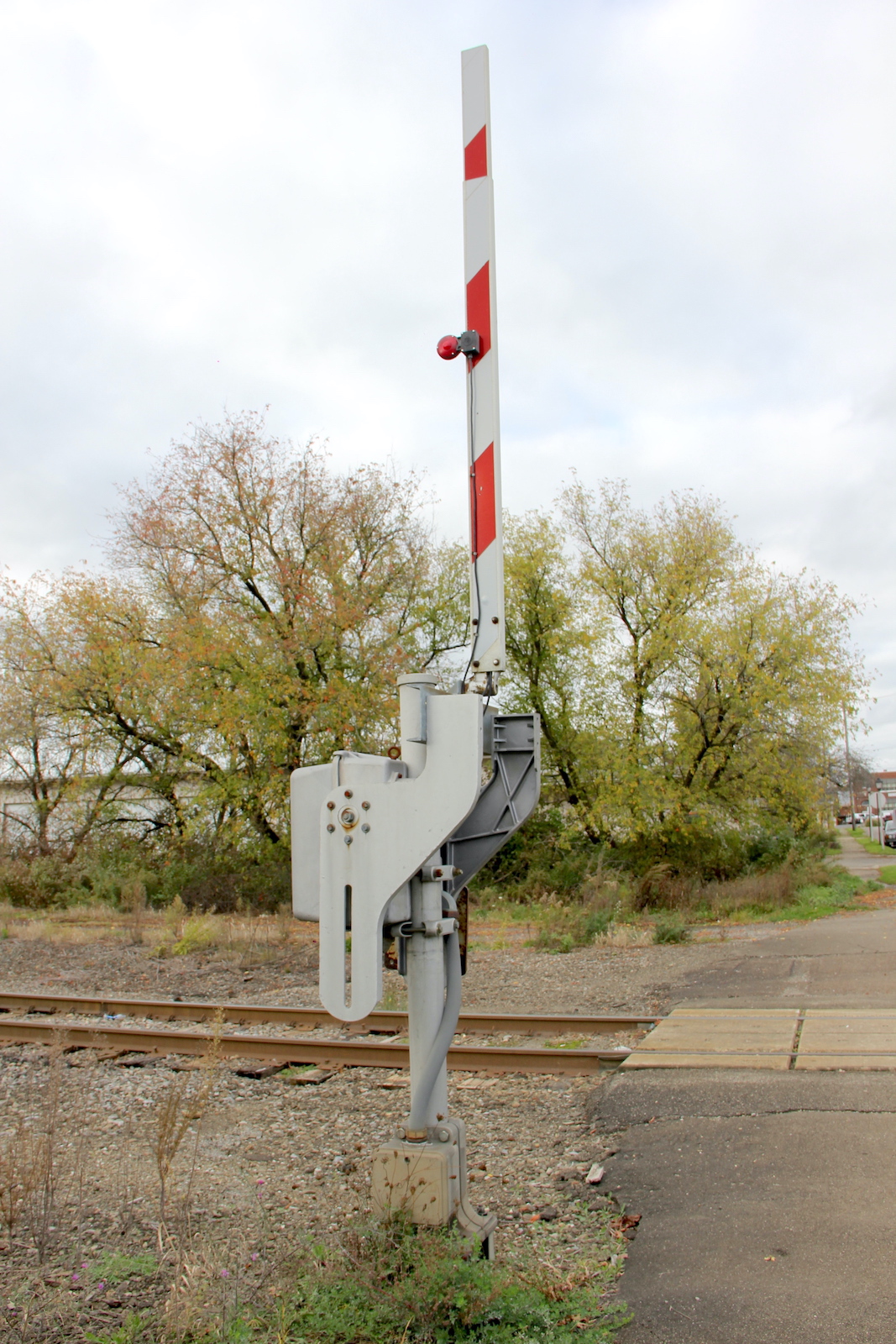

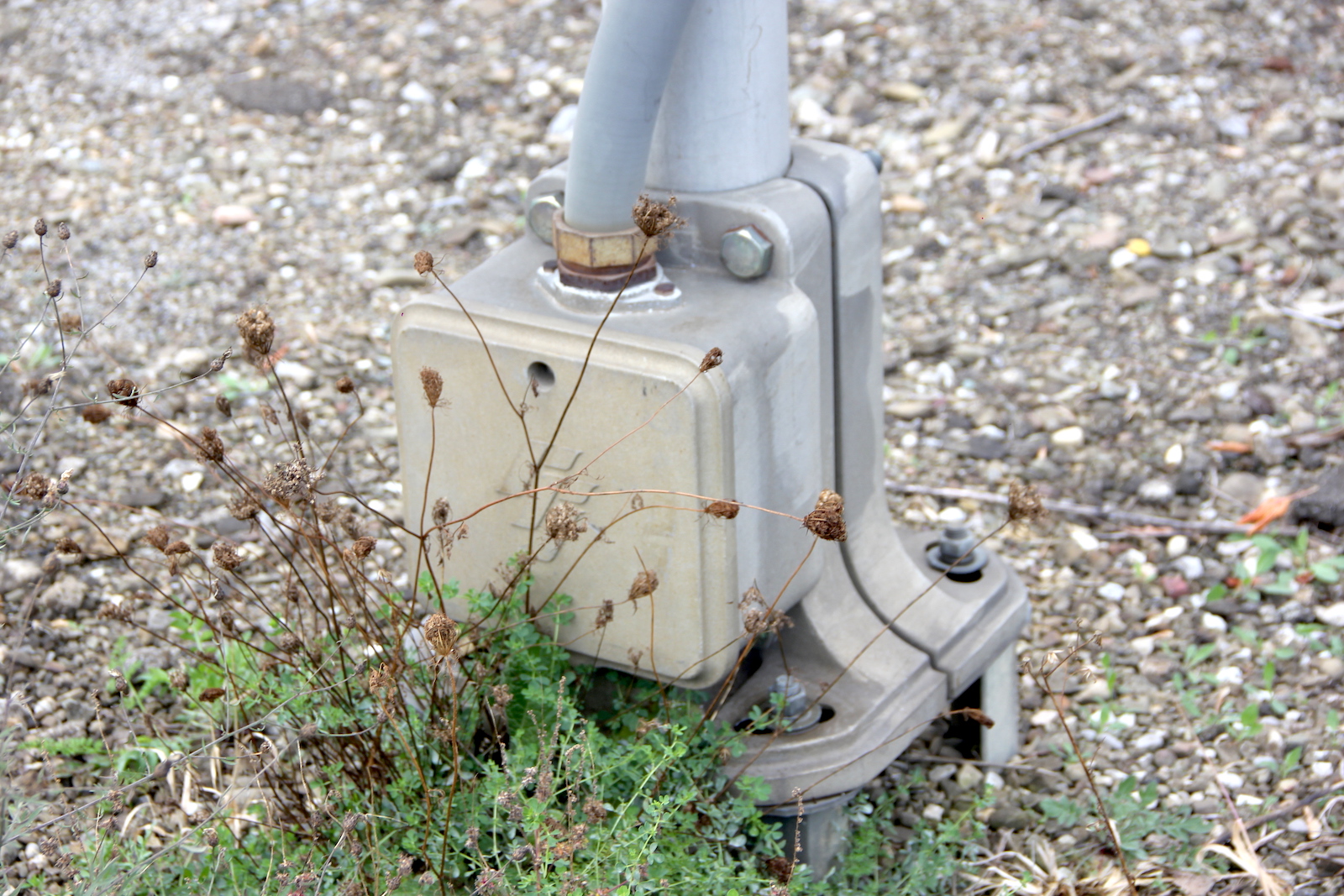

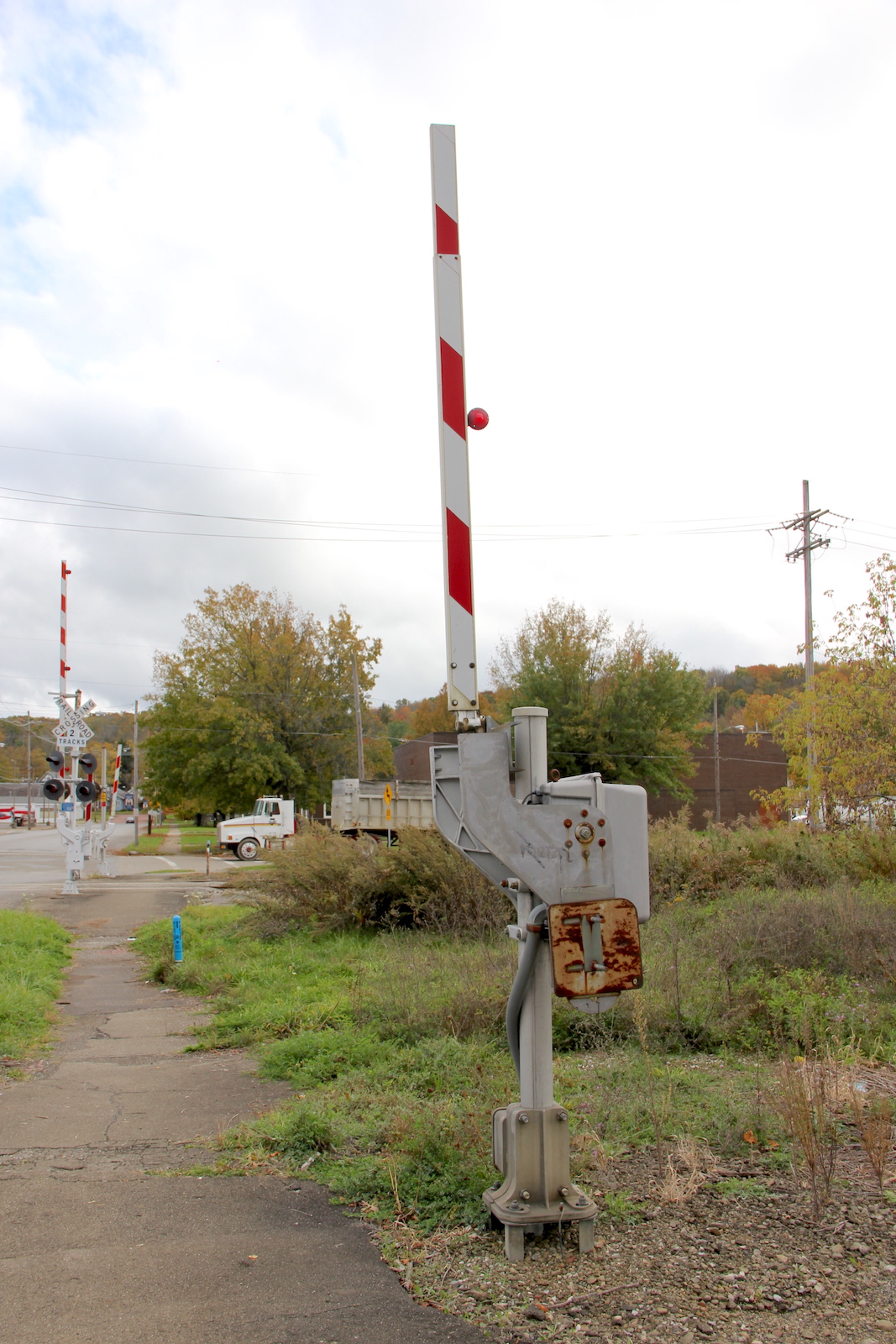

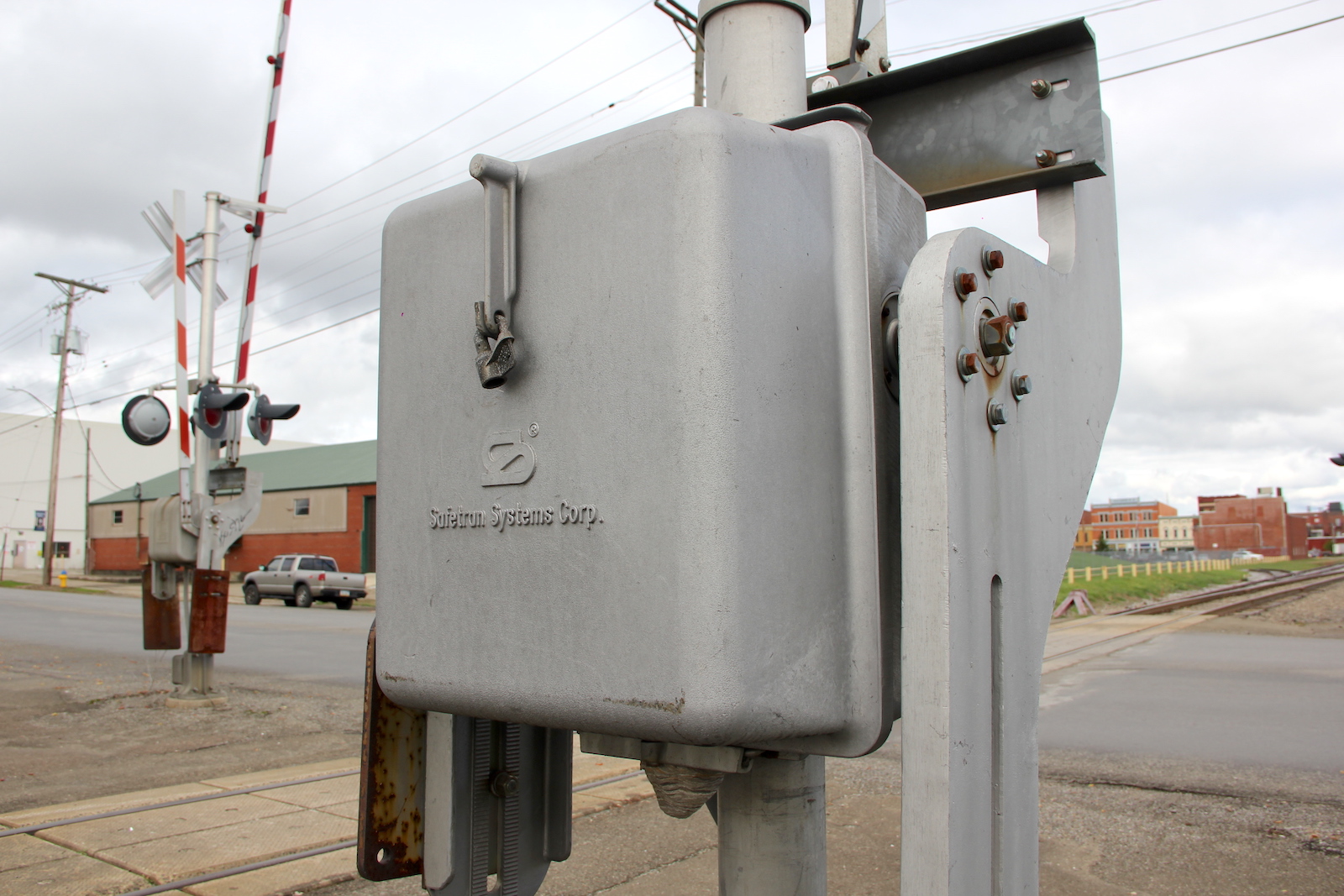

The southern pedestrian gate.
34 35 36 37

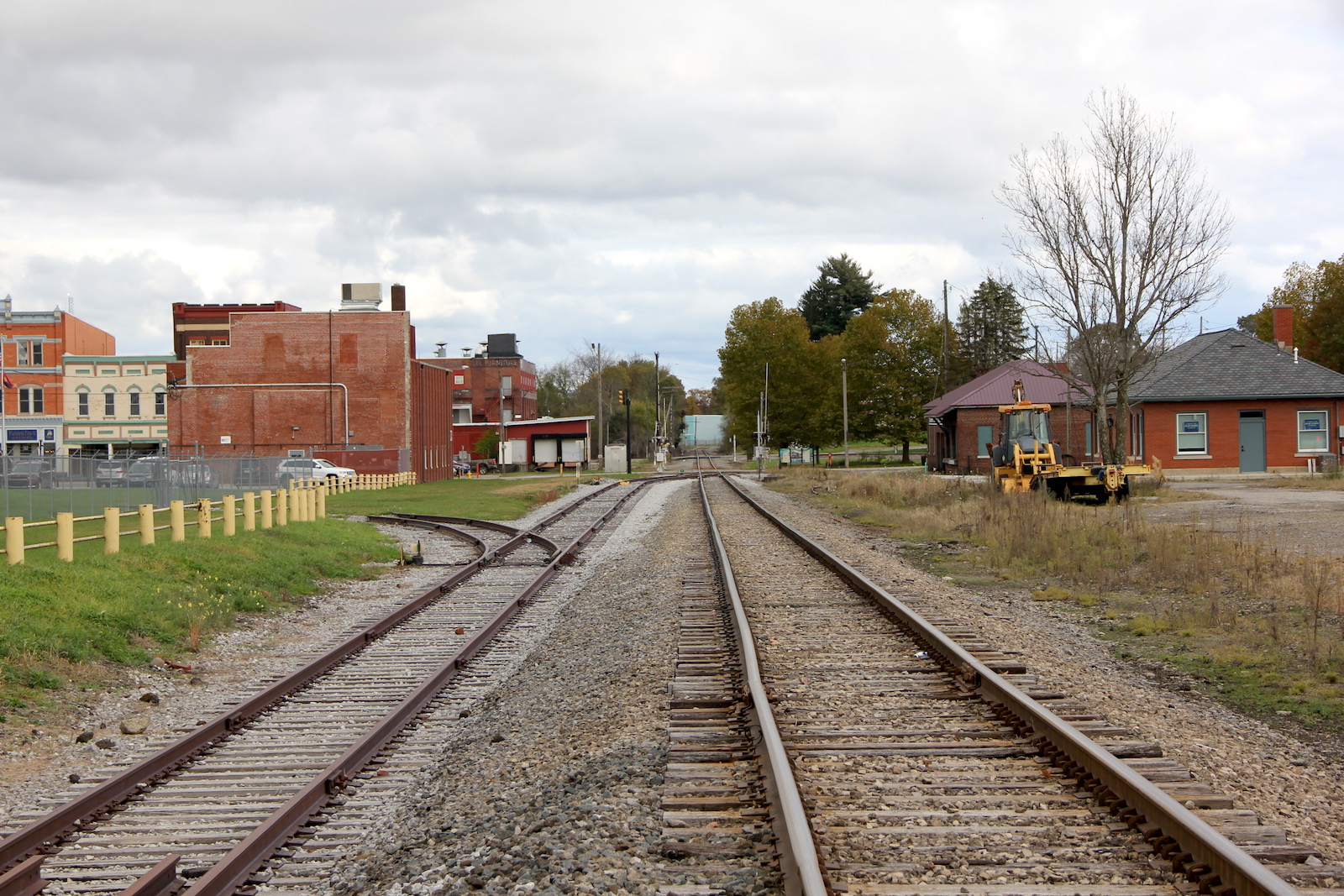

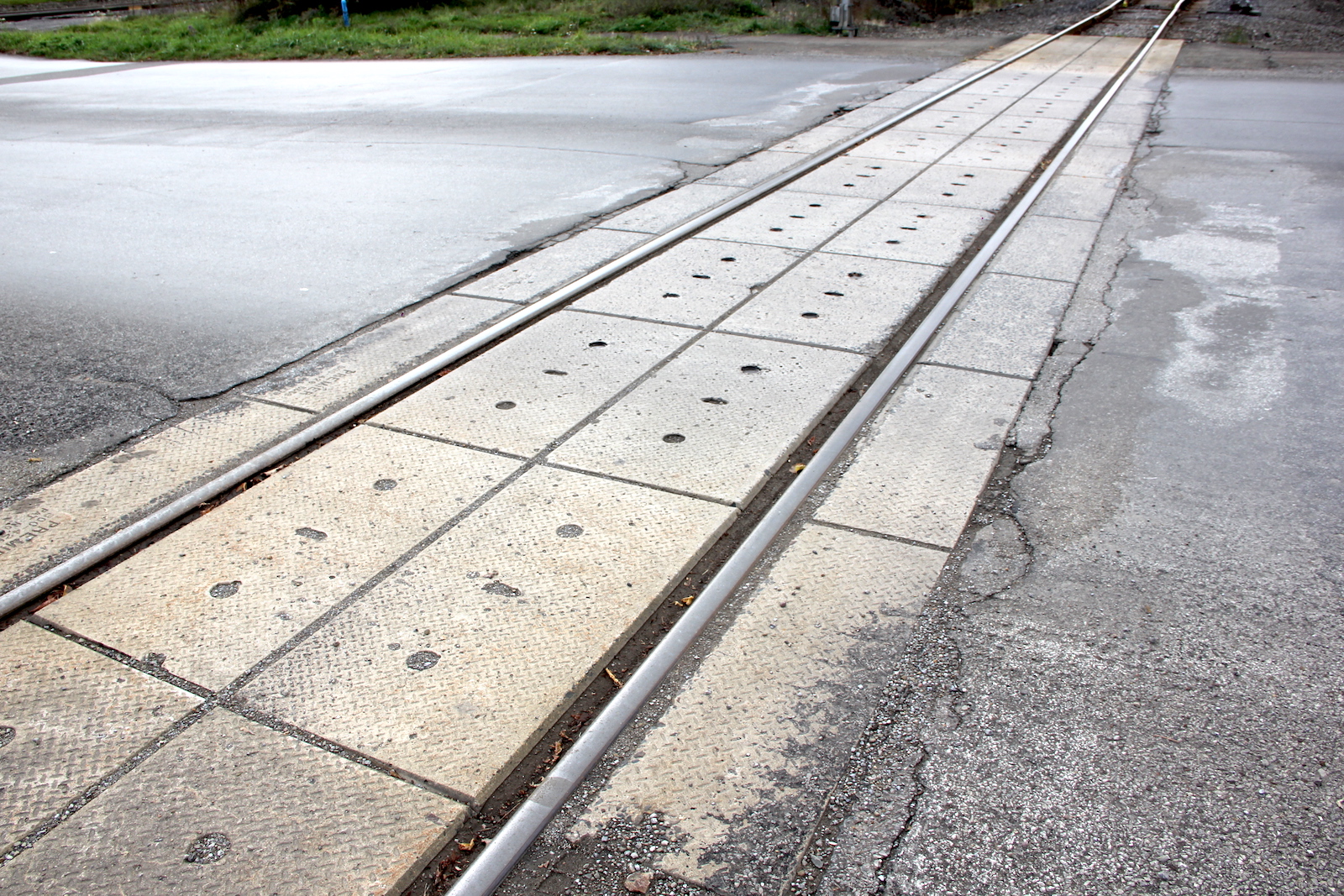

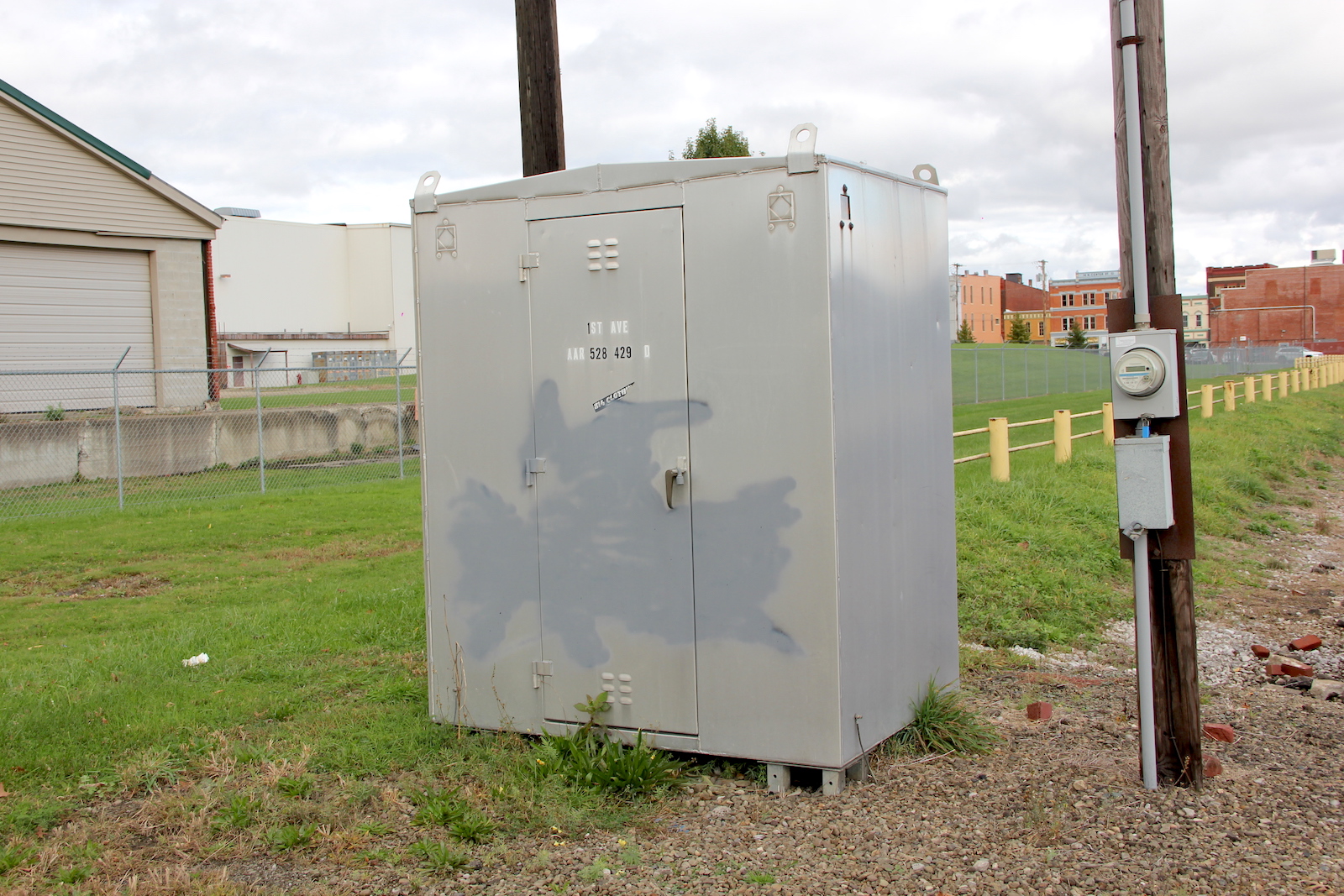

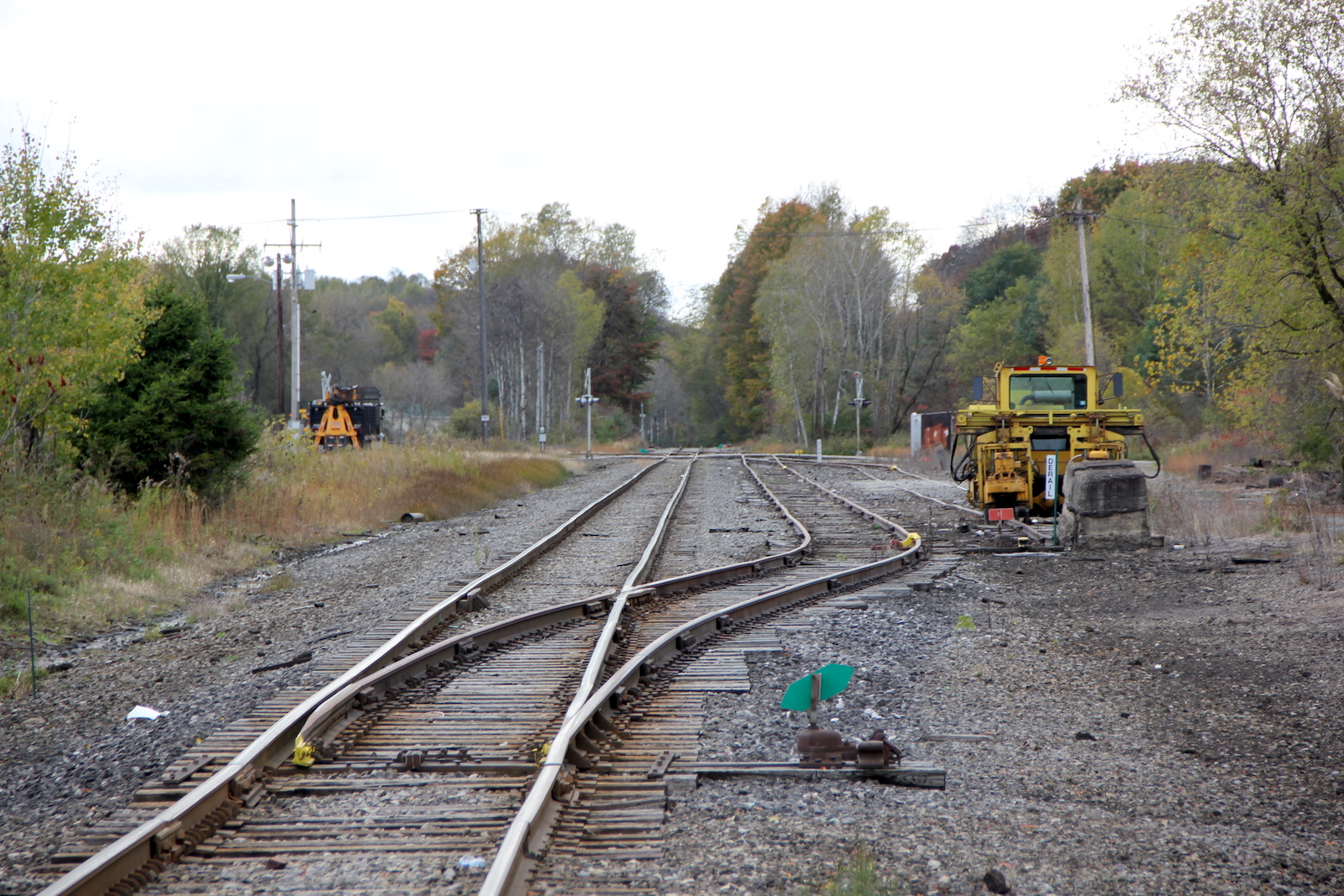

The relay bungalow in the northeast quadrant. The grade is all concrete. Track view facing west towards at 5th Ave. #1. Track view facing east at Center St. #1.

.
