230.60


472325L

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None Safetran Type 3 E Bell

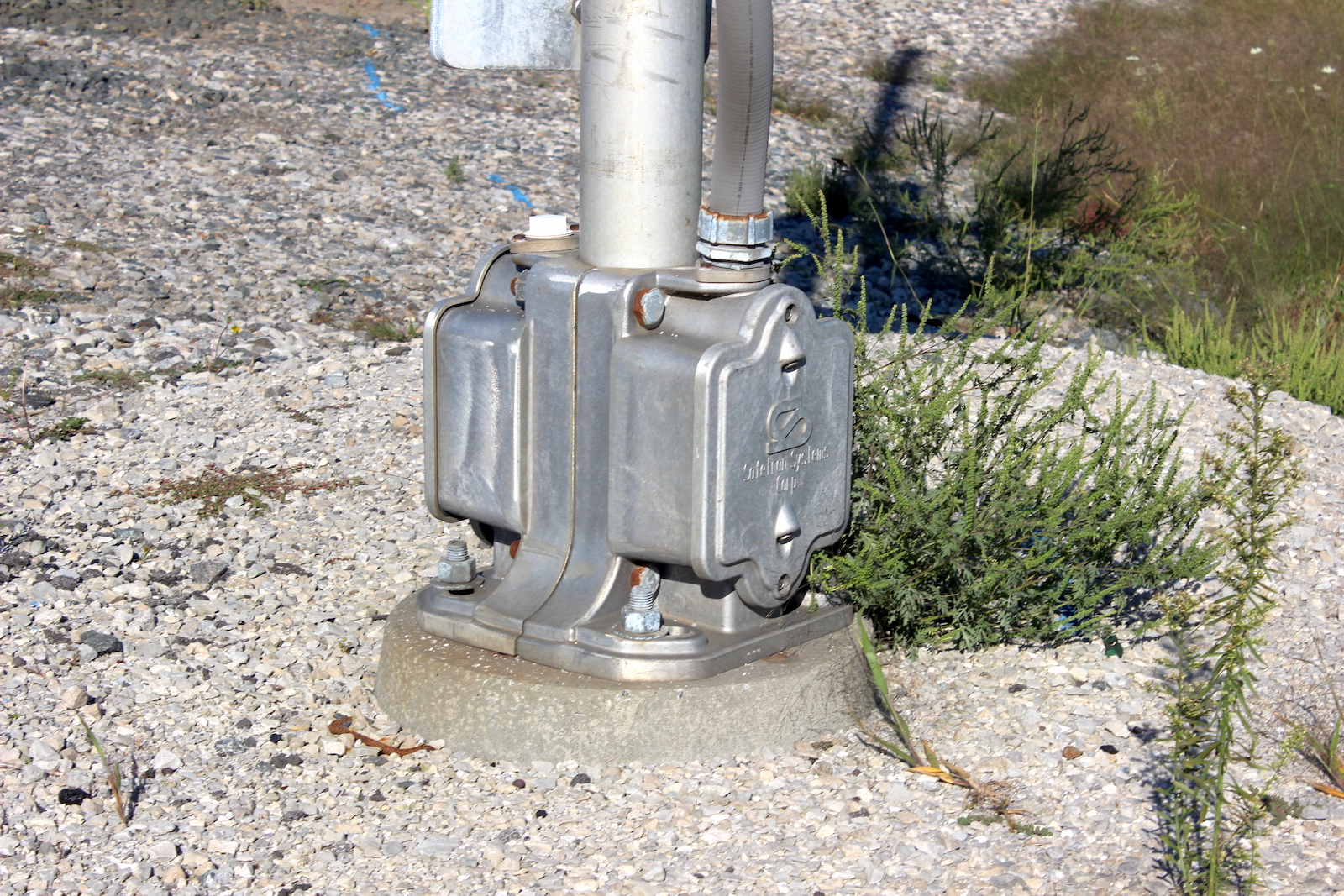

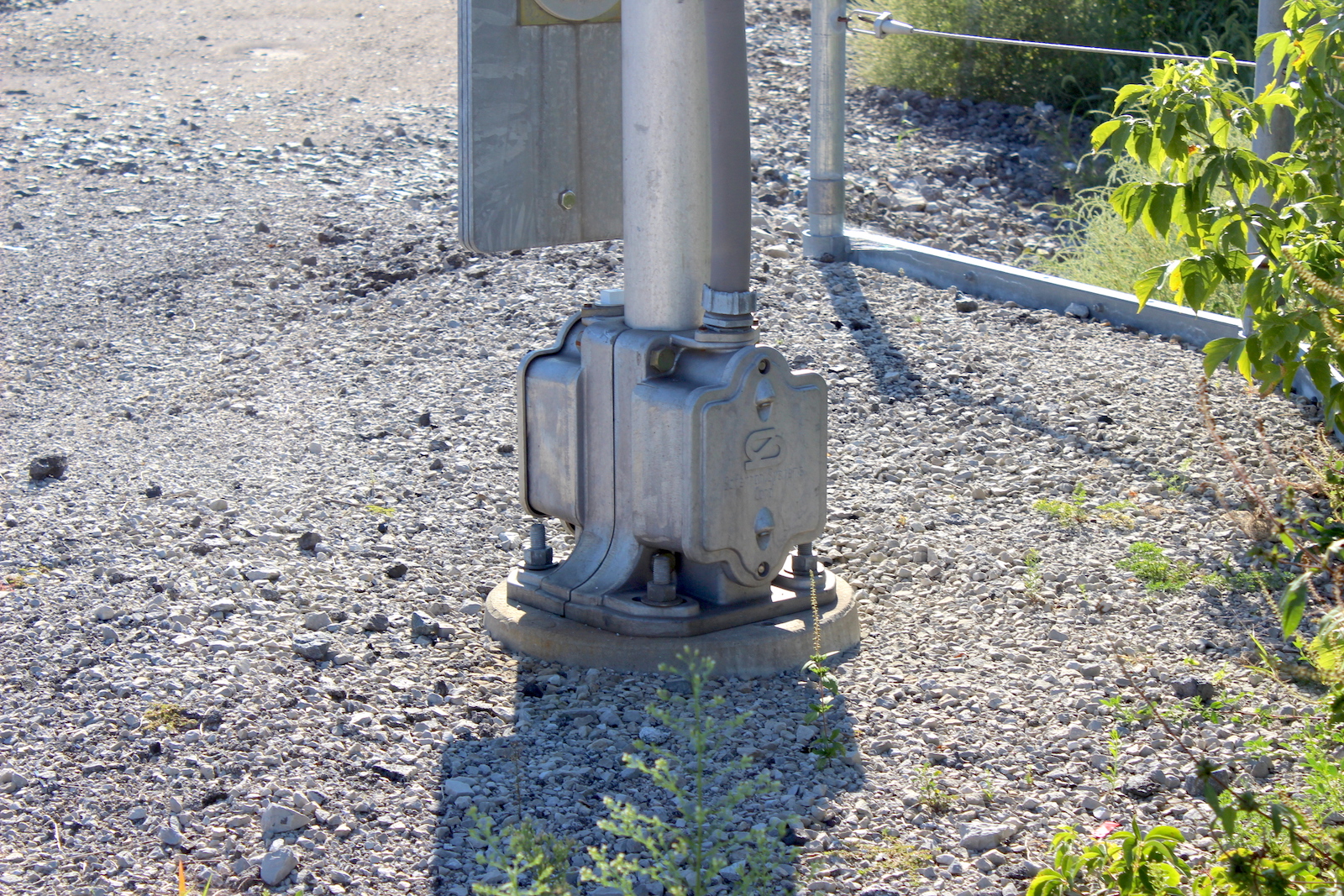

Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^

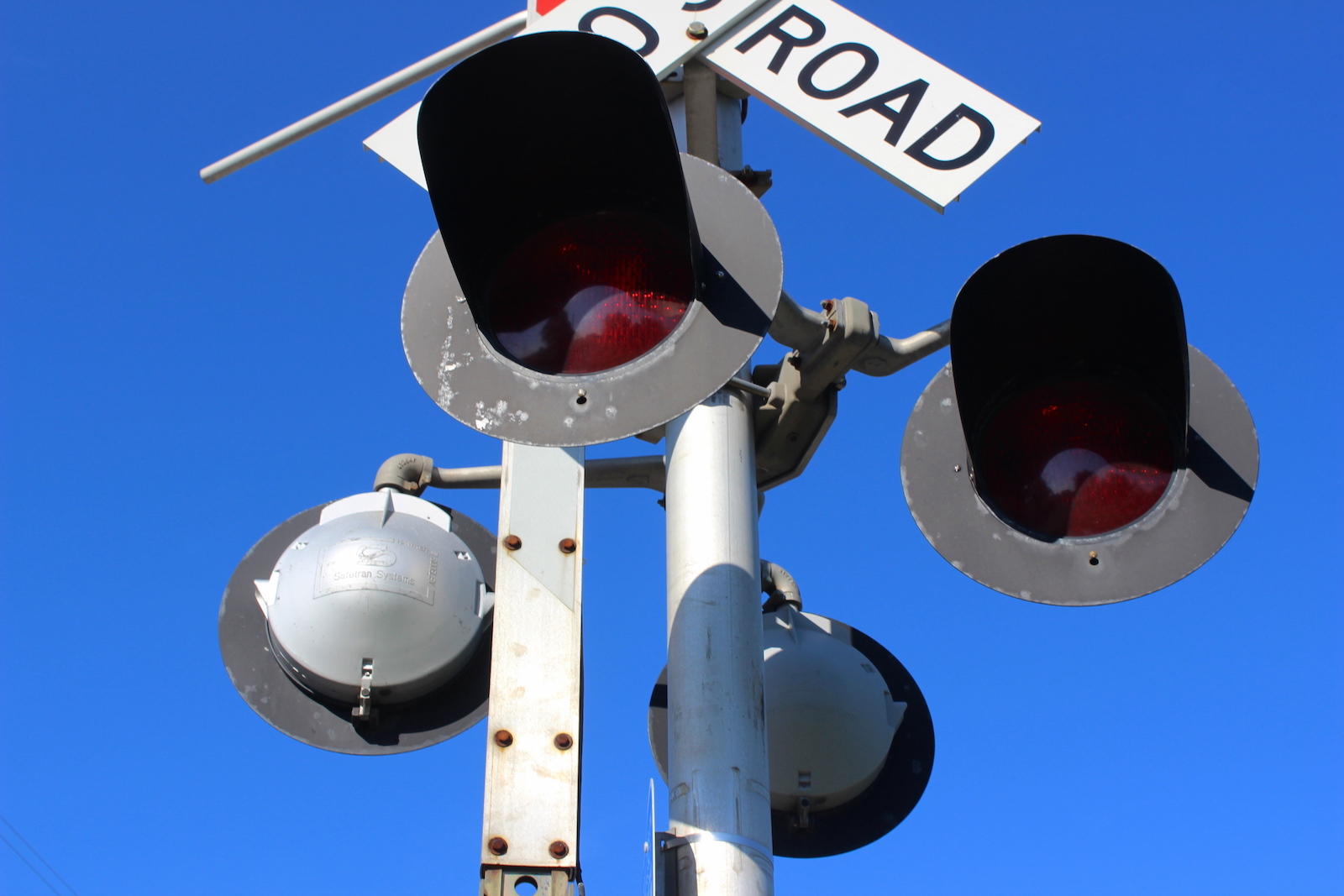

Lights: 4 - 12"x20" Safetran incandescents 4 - 12"x20" Safetran incandescents

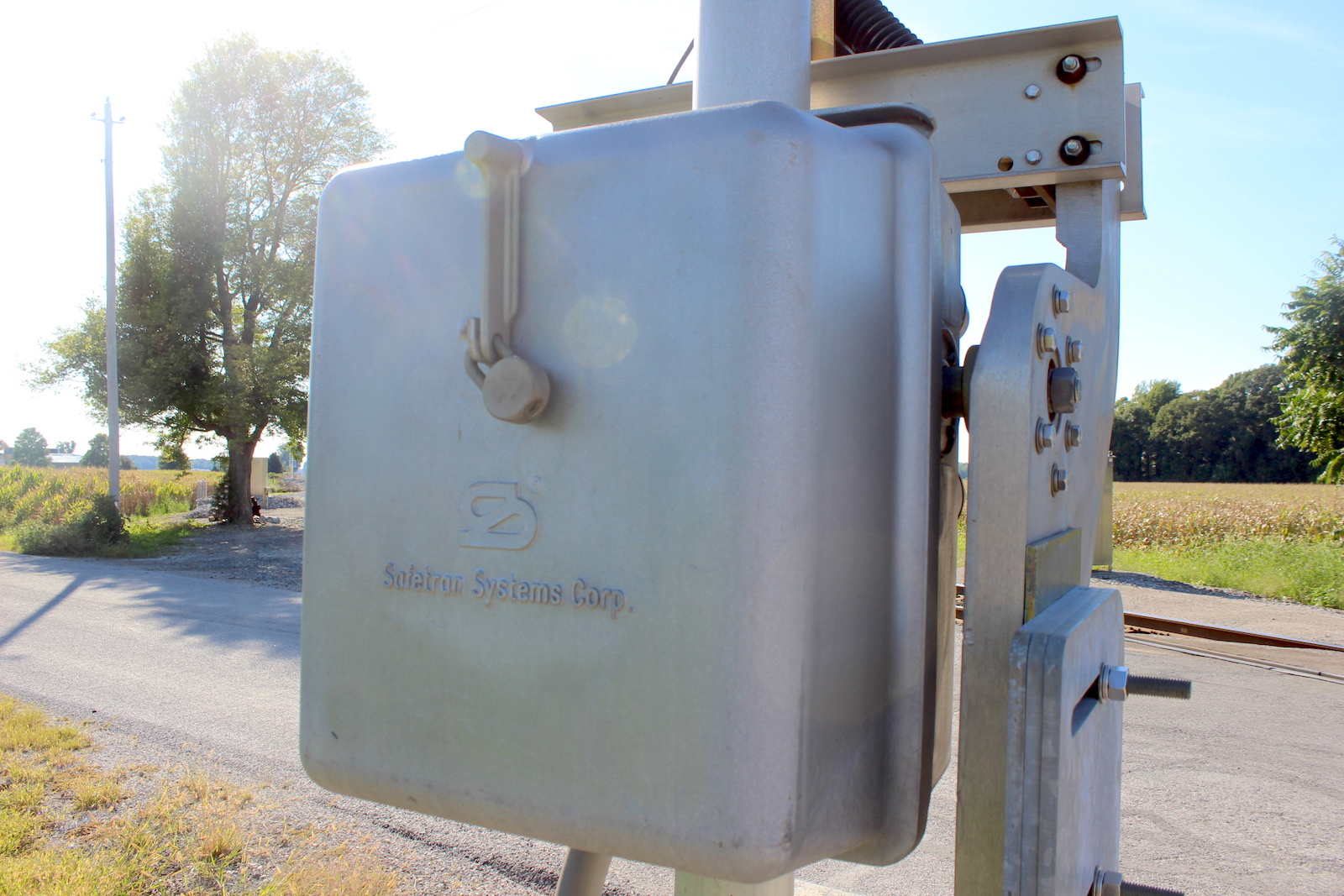

Junction Box: Safetran Safetran
Gate Lights: 4" NEG incandescents 4" NEG incandescents

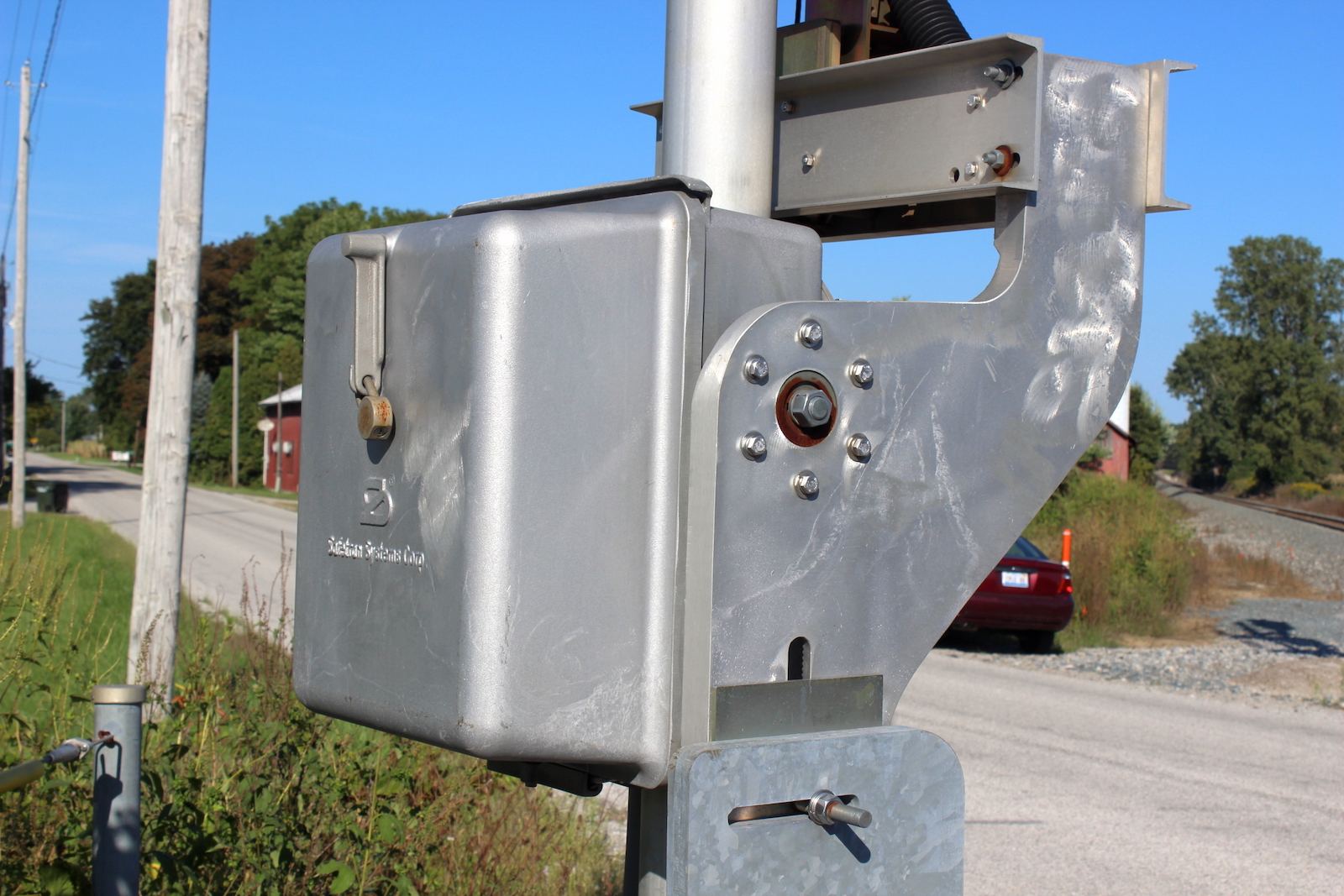

Gate Mechanism: Safetran 2000s w/ NEG 1 Way Saver Safetran 2000s w/ NEG 1 Way Saver
Gate Striping: Diagonal Striping Diagonal Striping

Pictures 1-25 were taken on September 15, 2015.
Pictures 26-29 were taken on May 26, 2016.
The video was taken on September 13, 2016.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the NS Cleveland District.

1
 2

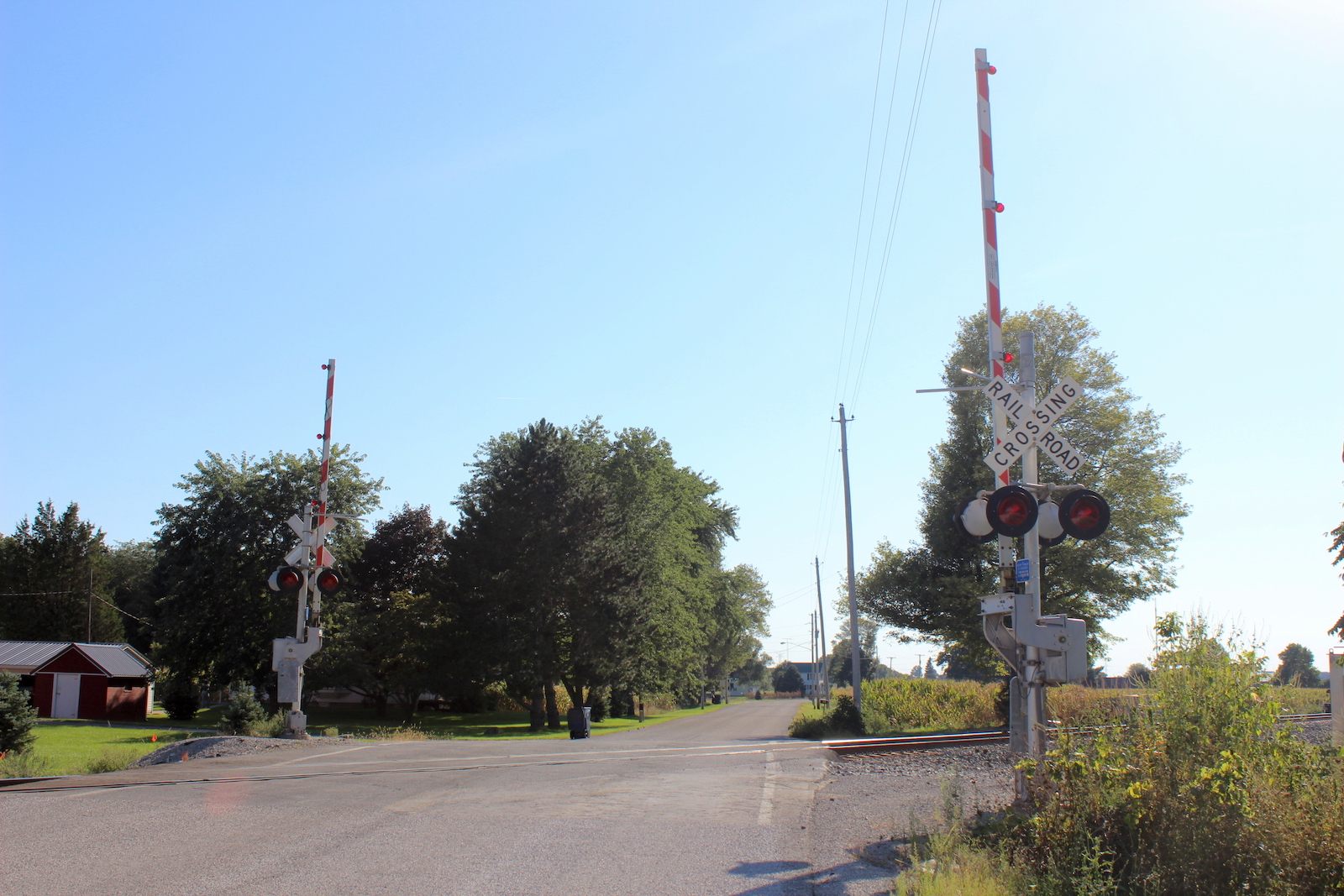

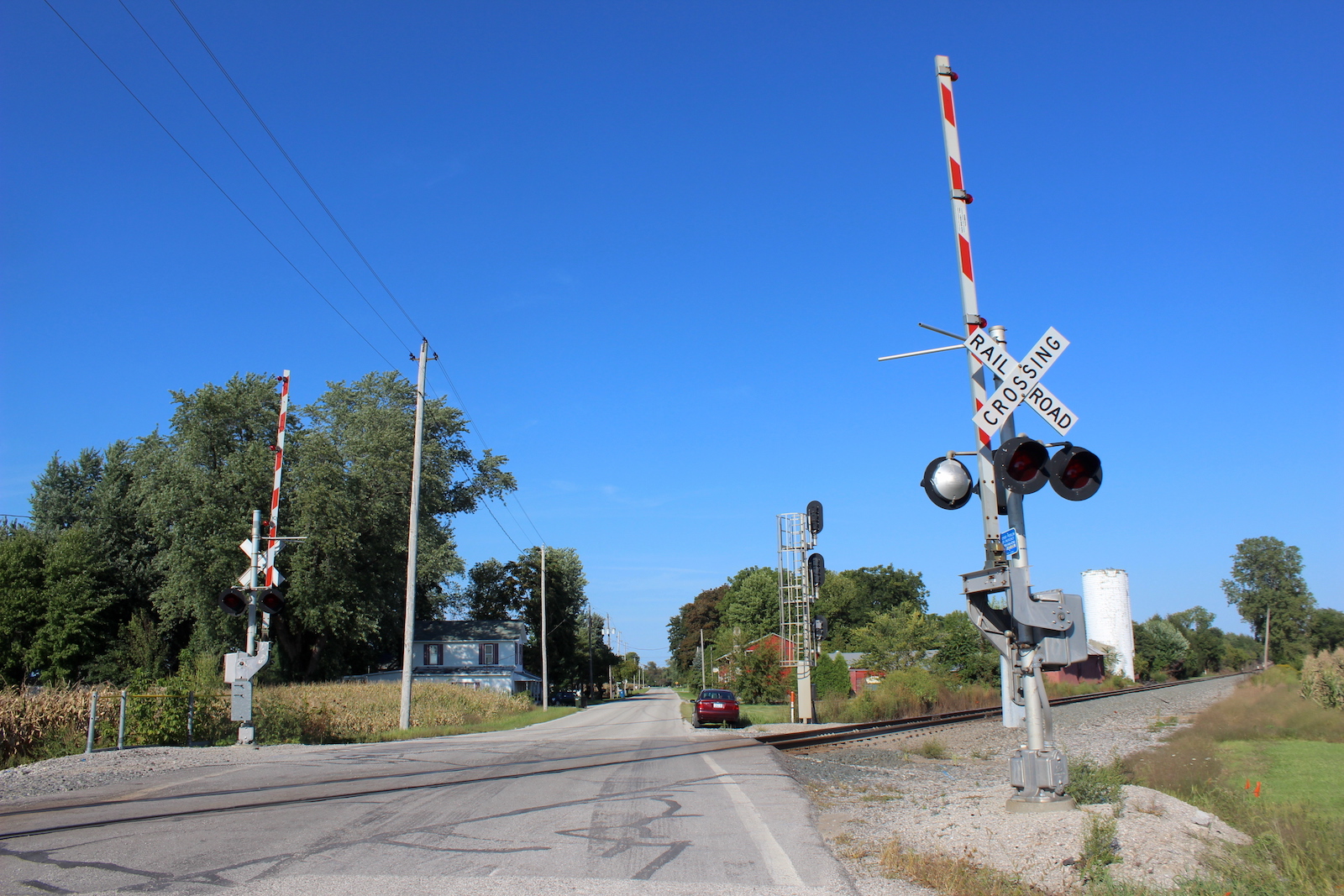

Overview of 2 gated signals facing east.
 Overview facing west.
3 4 5
6 7 8
9 10 11

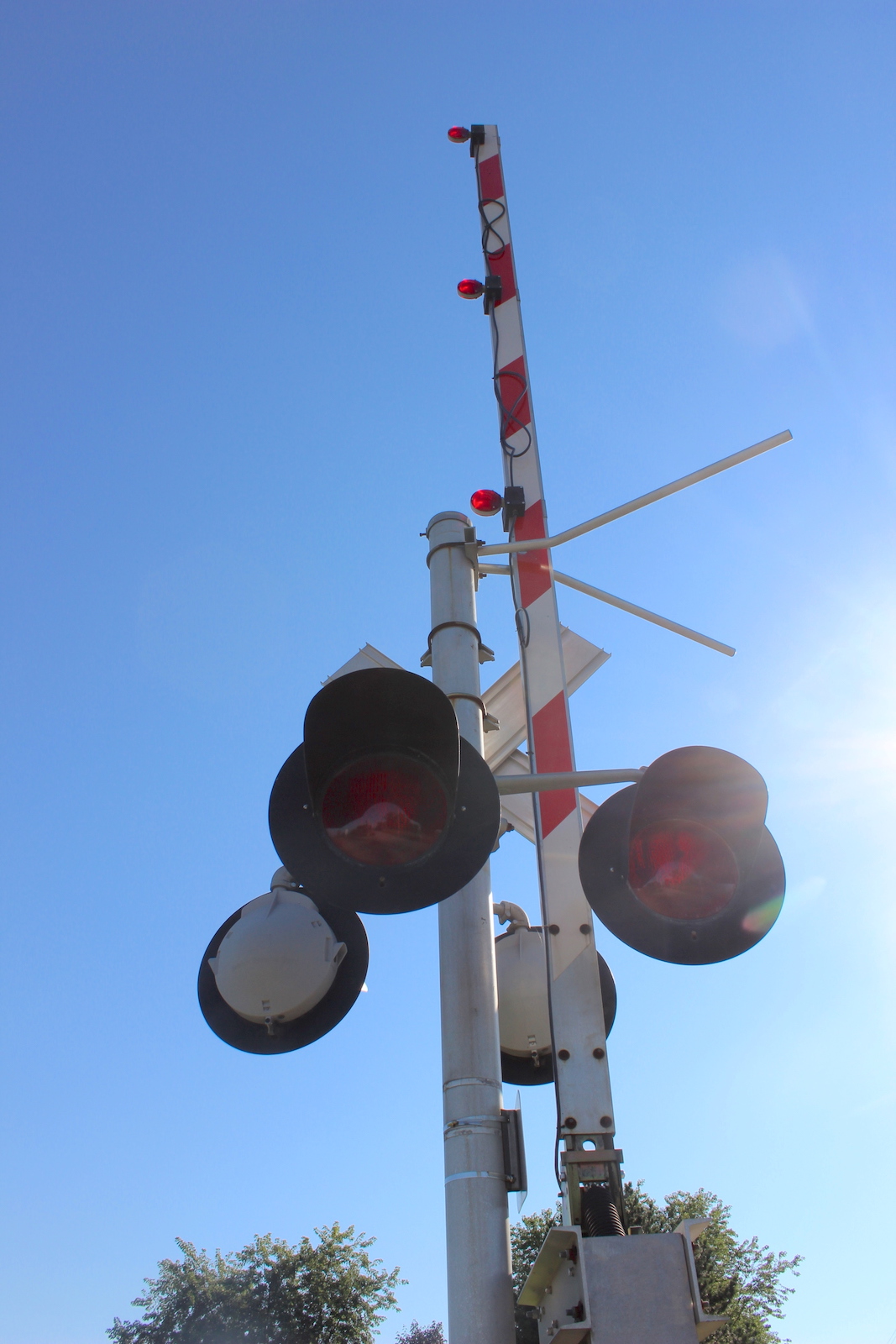

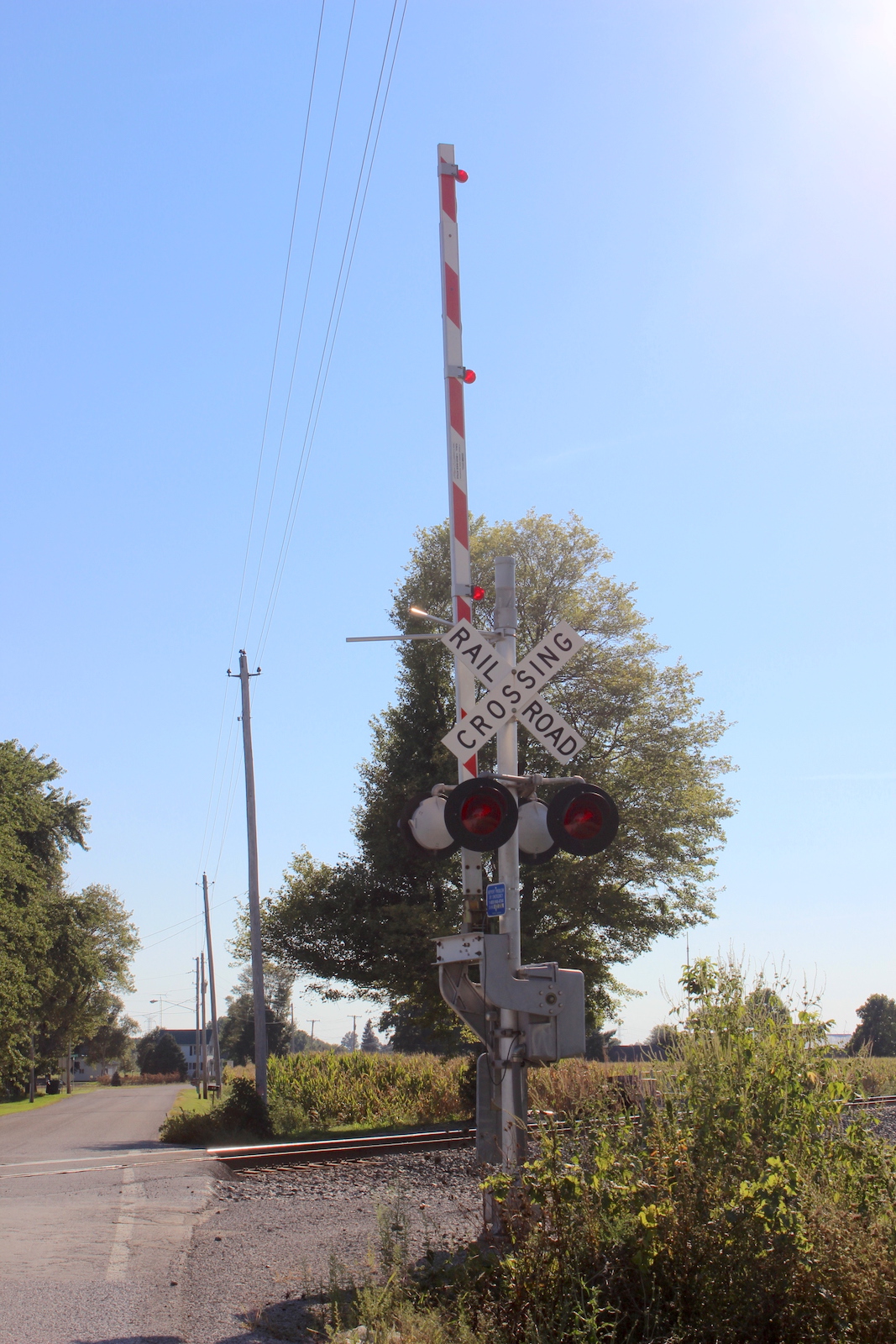

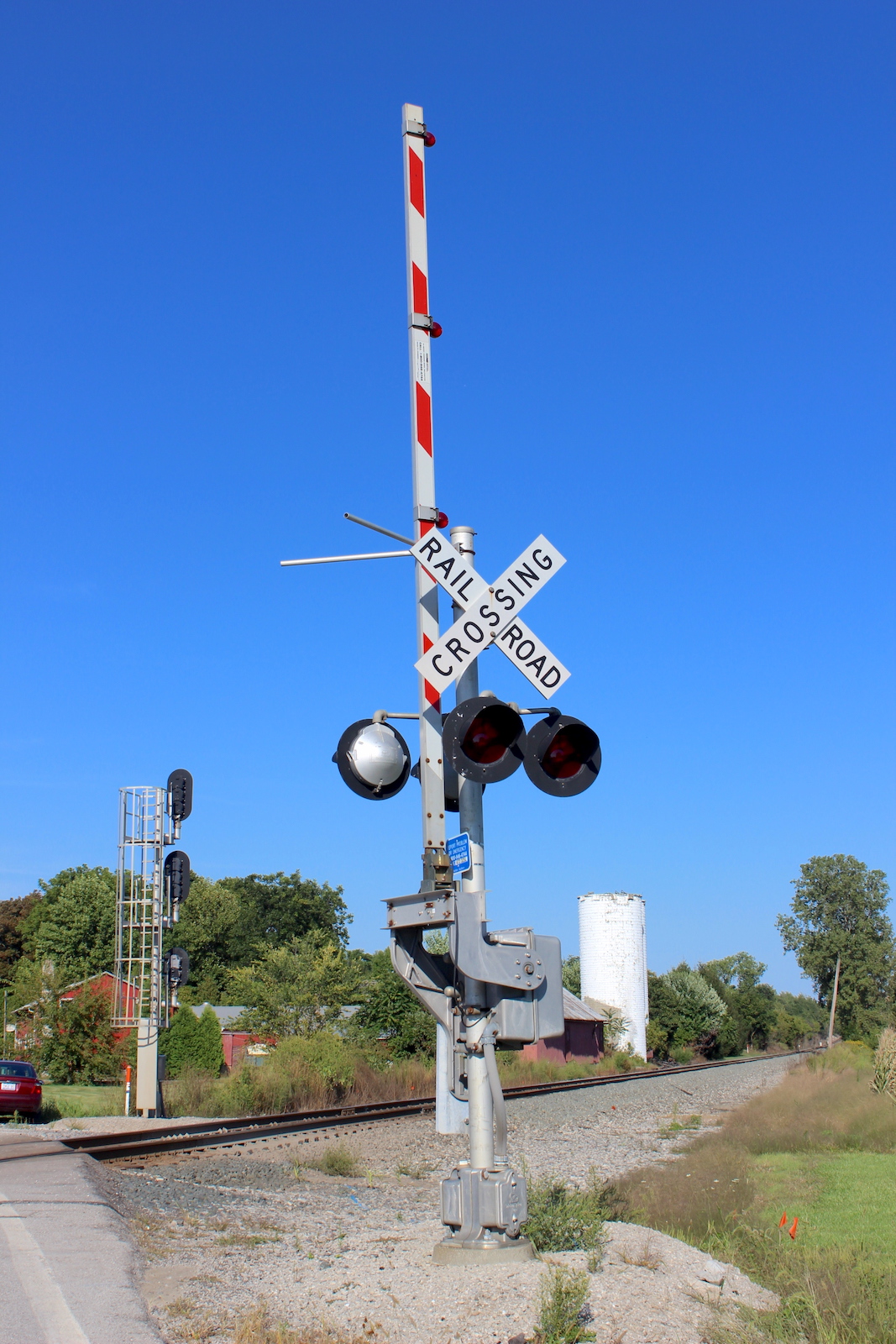

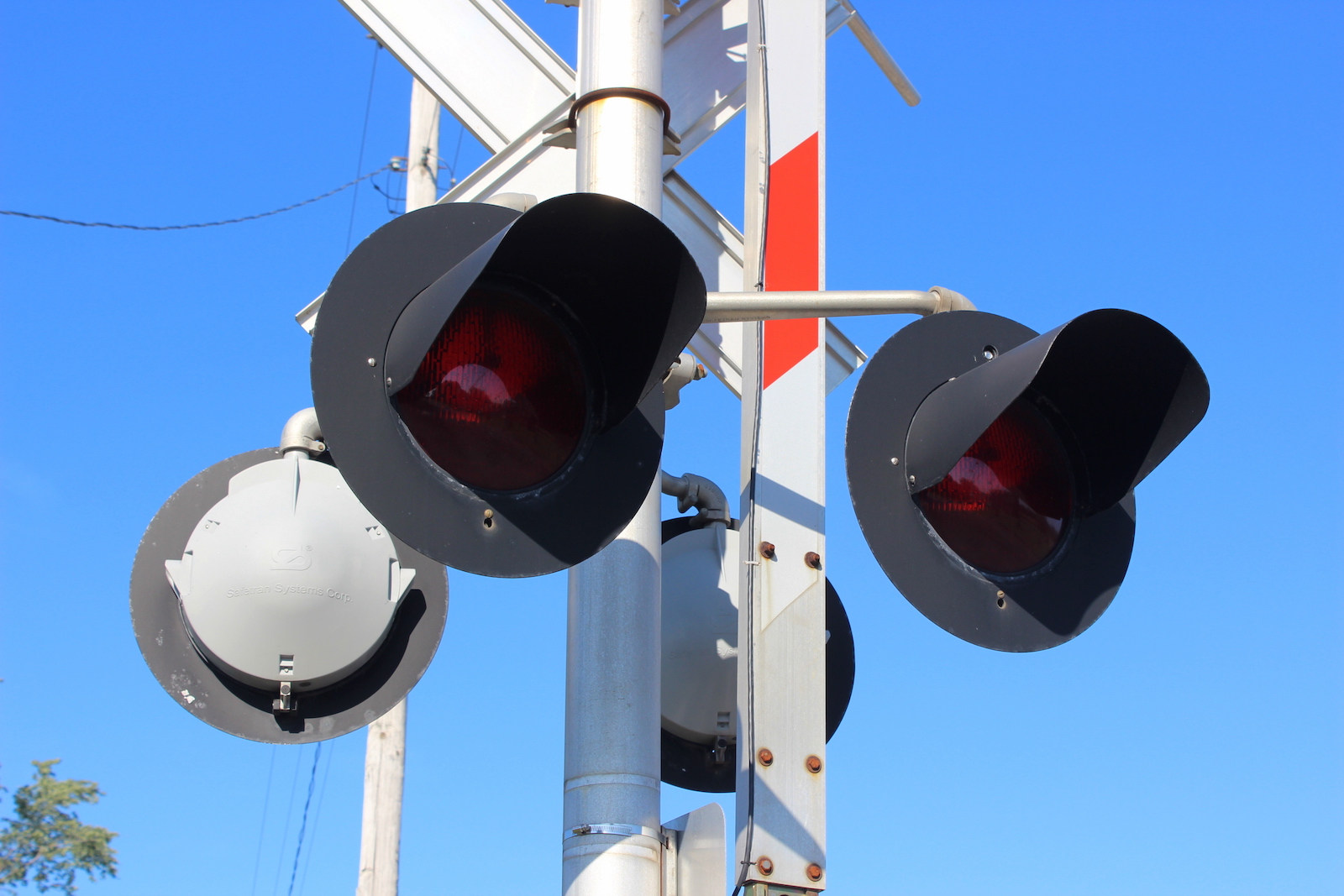

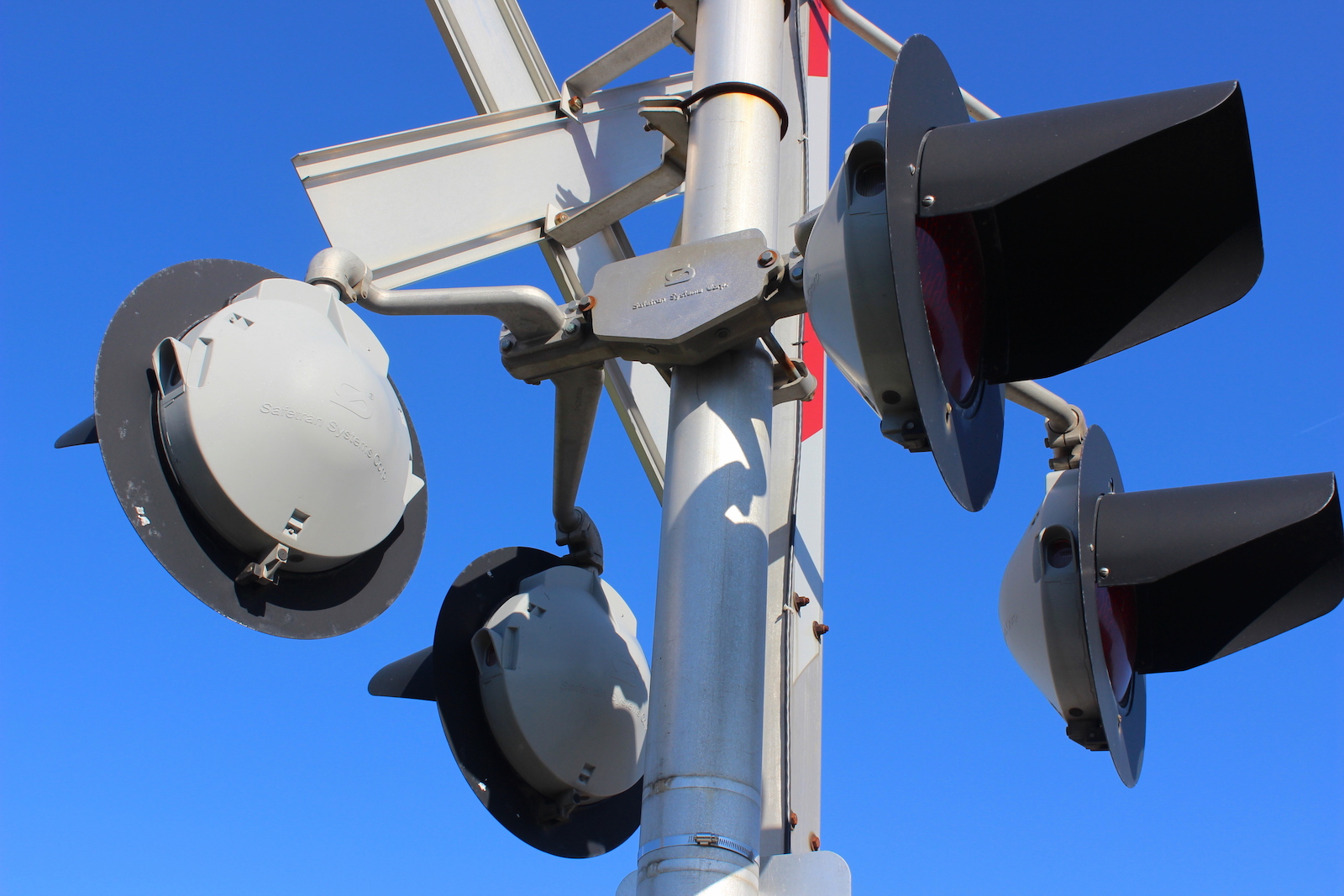

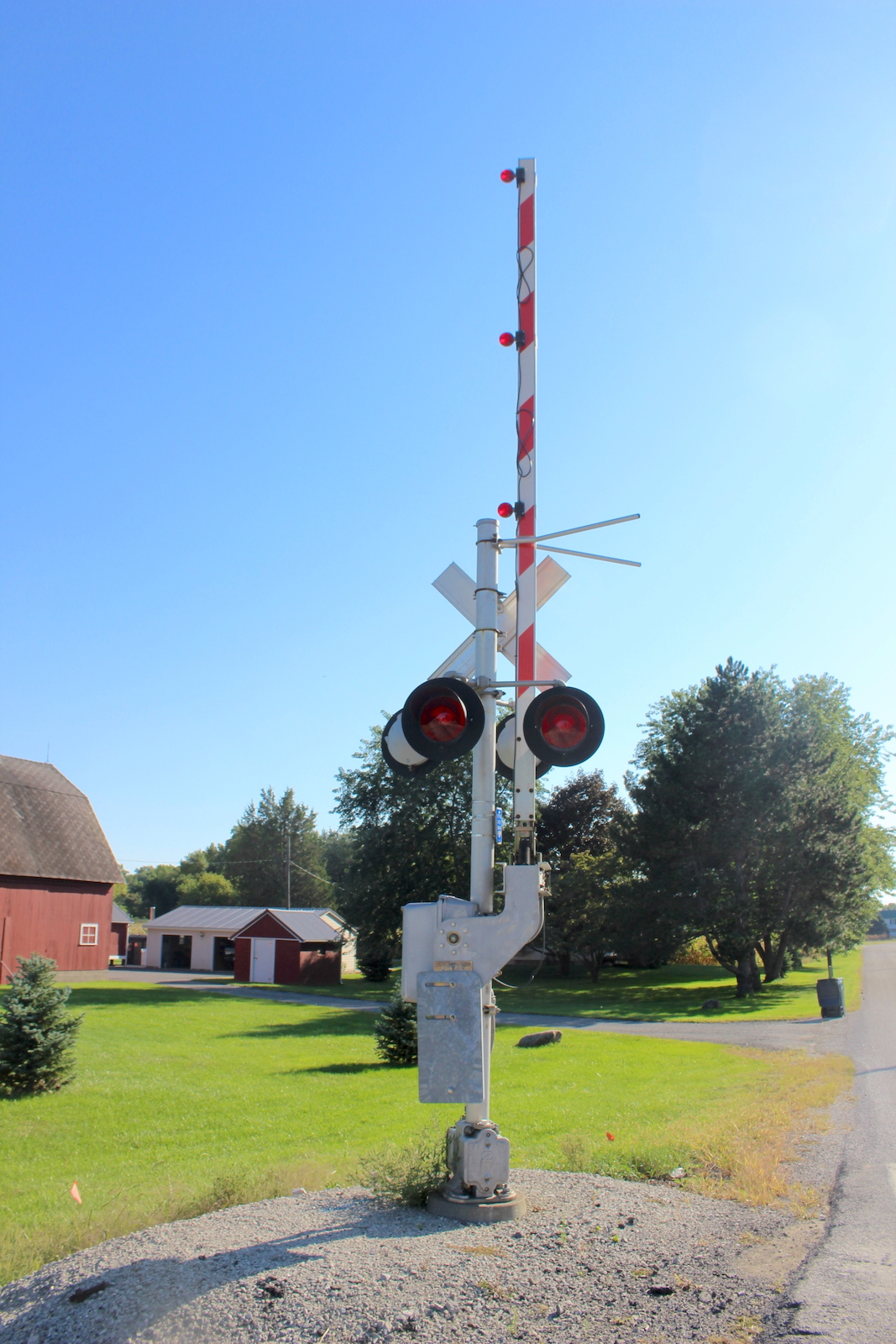

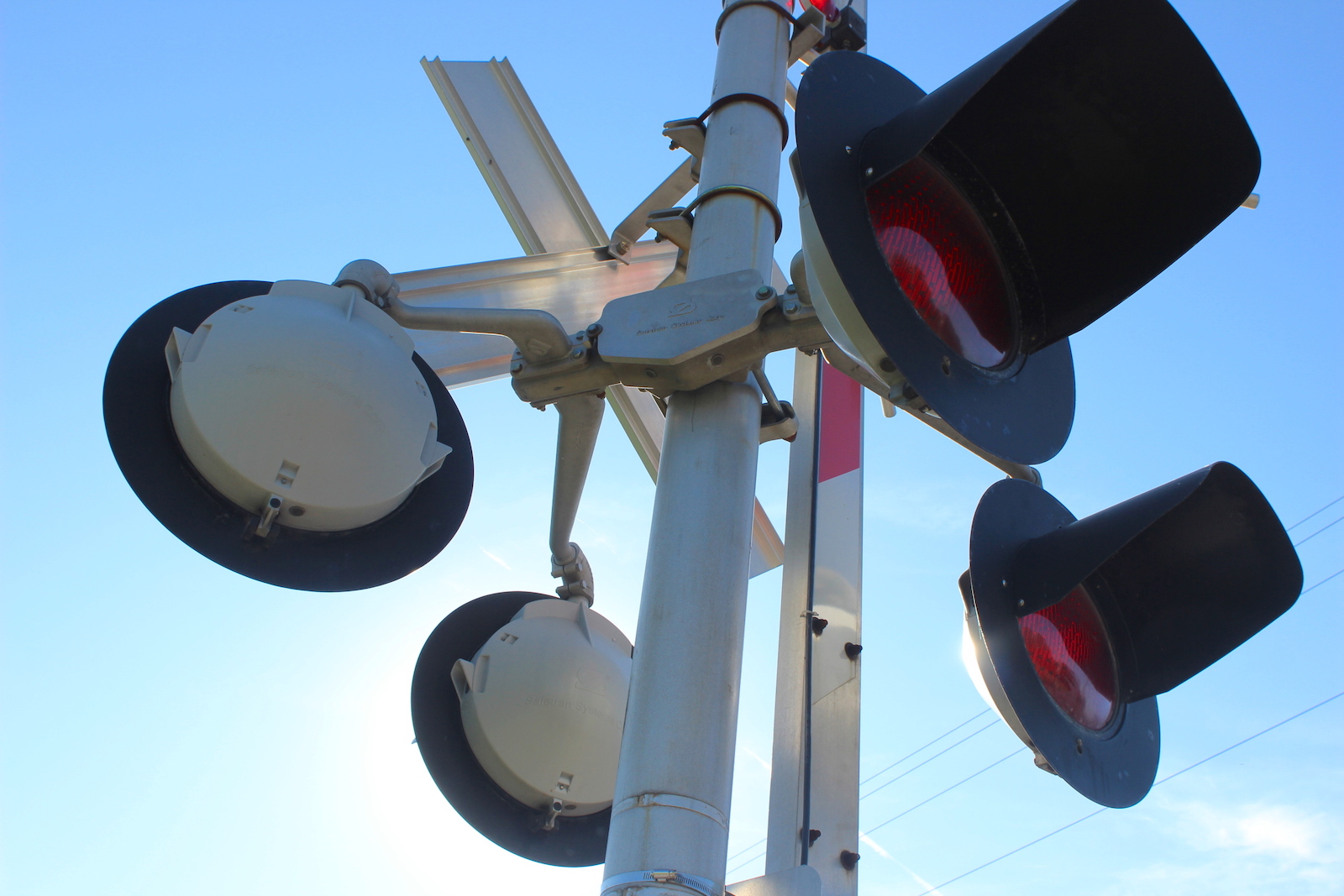

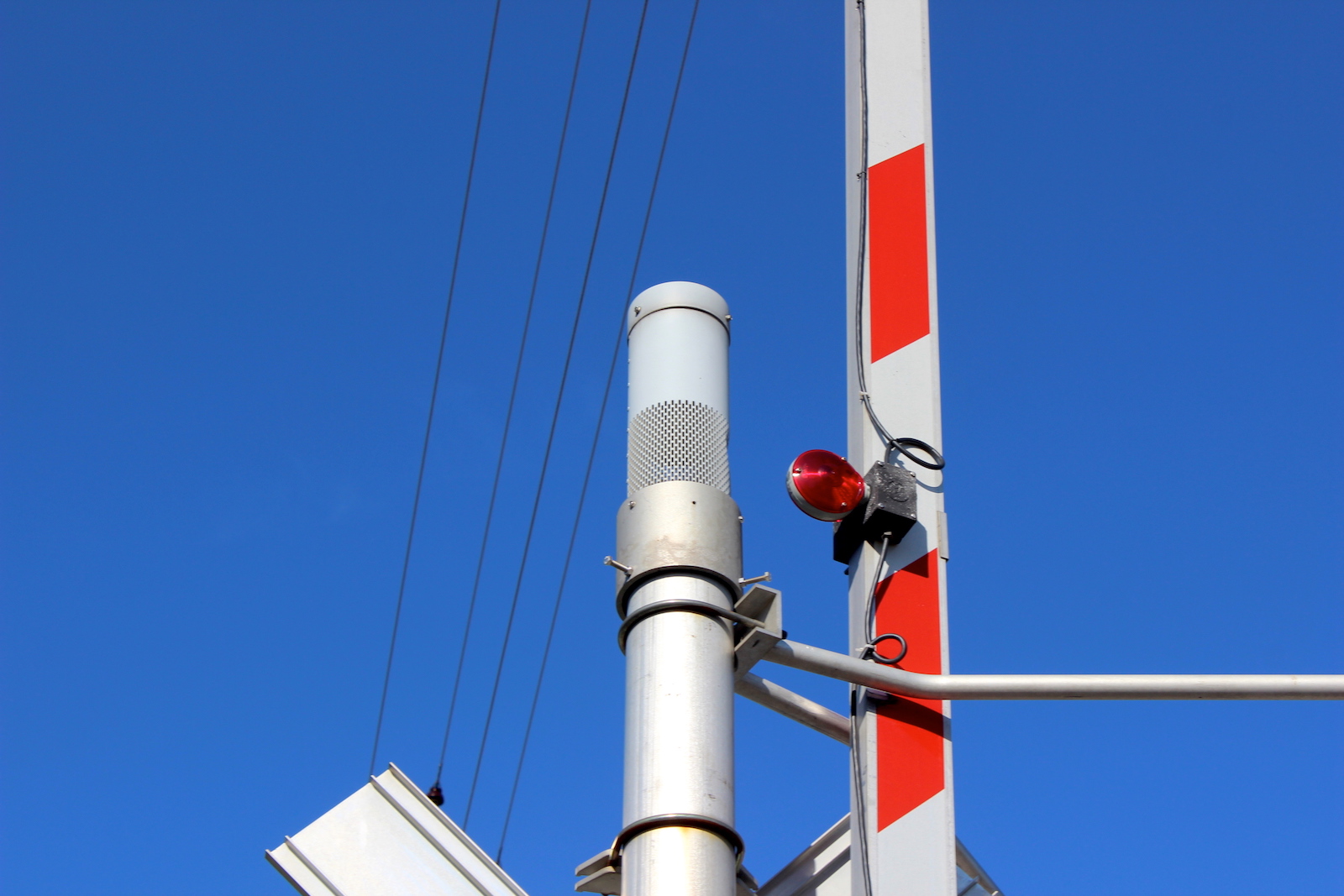

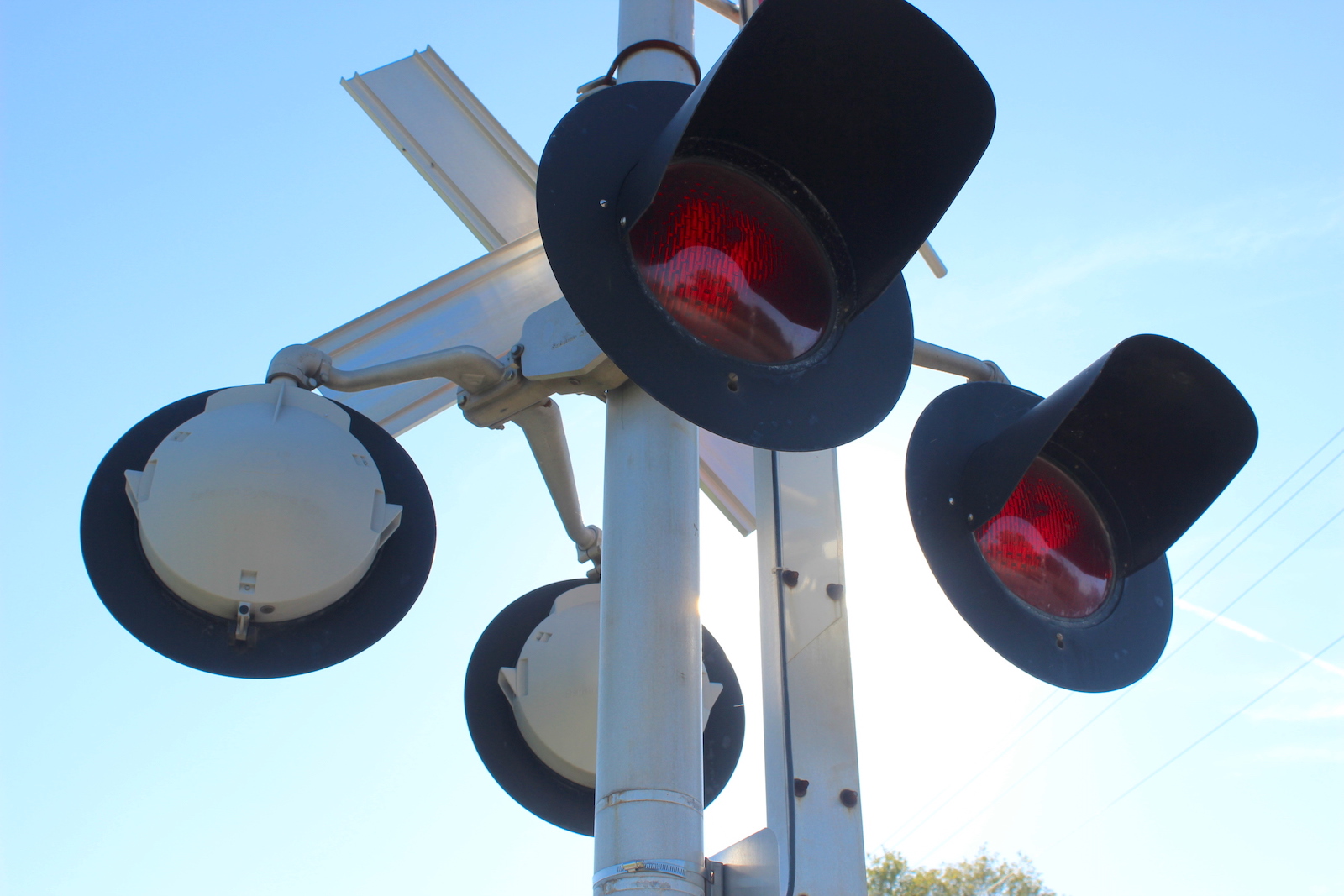

The western signal.

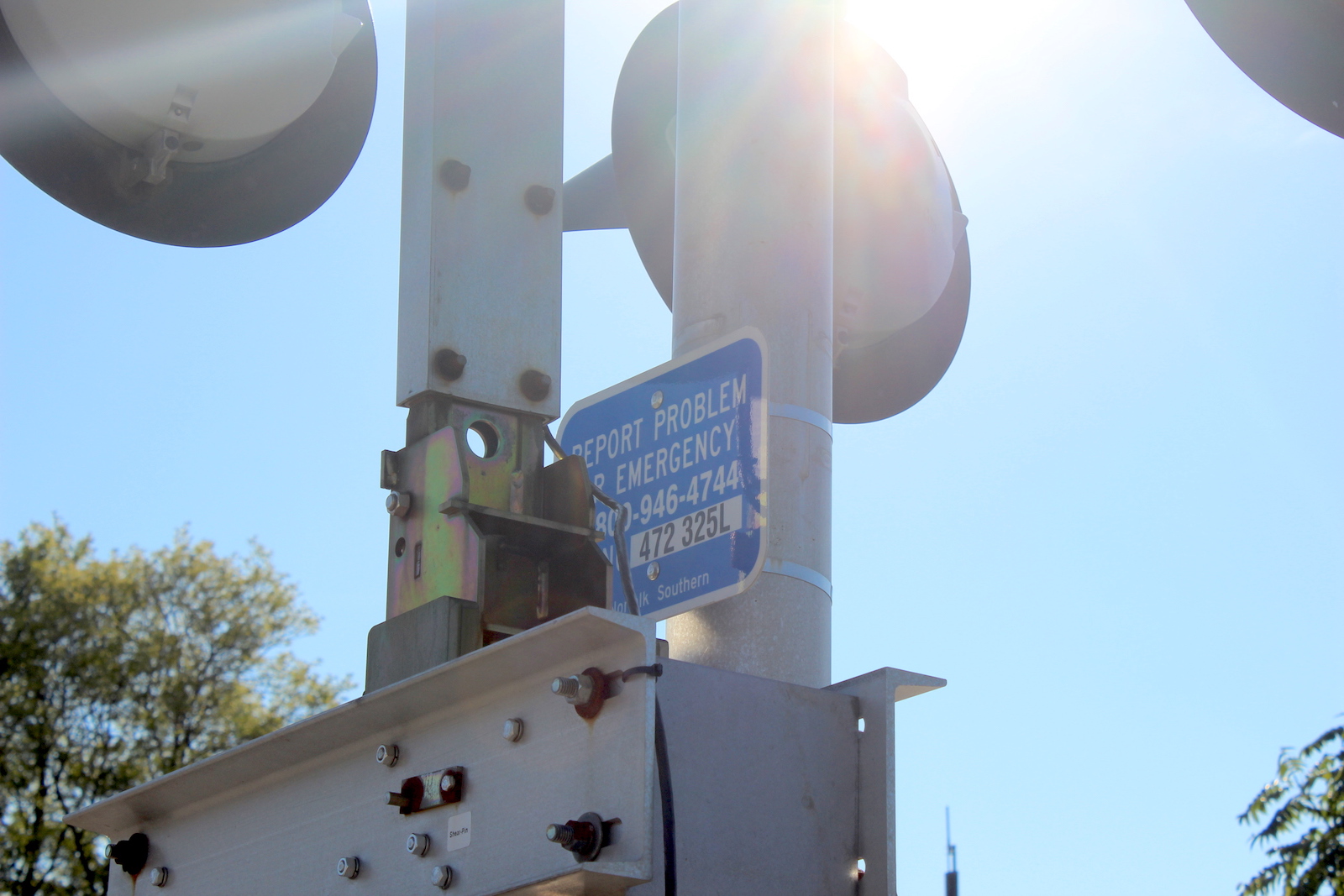

12 13 14

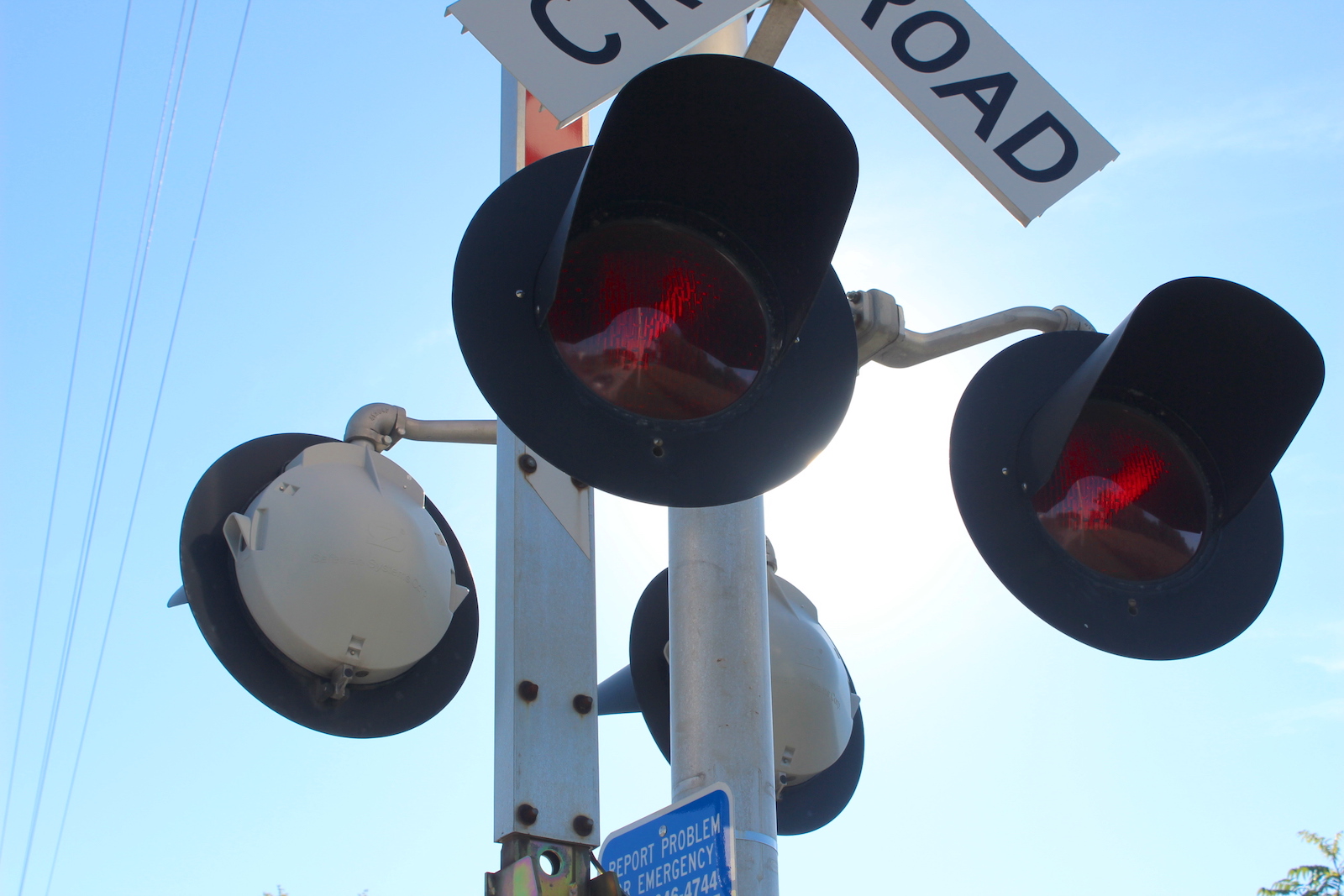

15 16 17
18 19 20
21

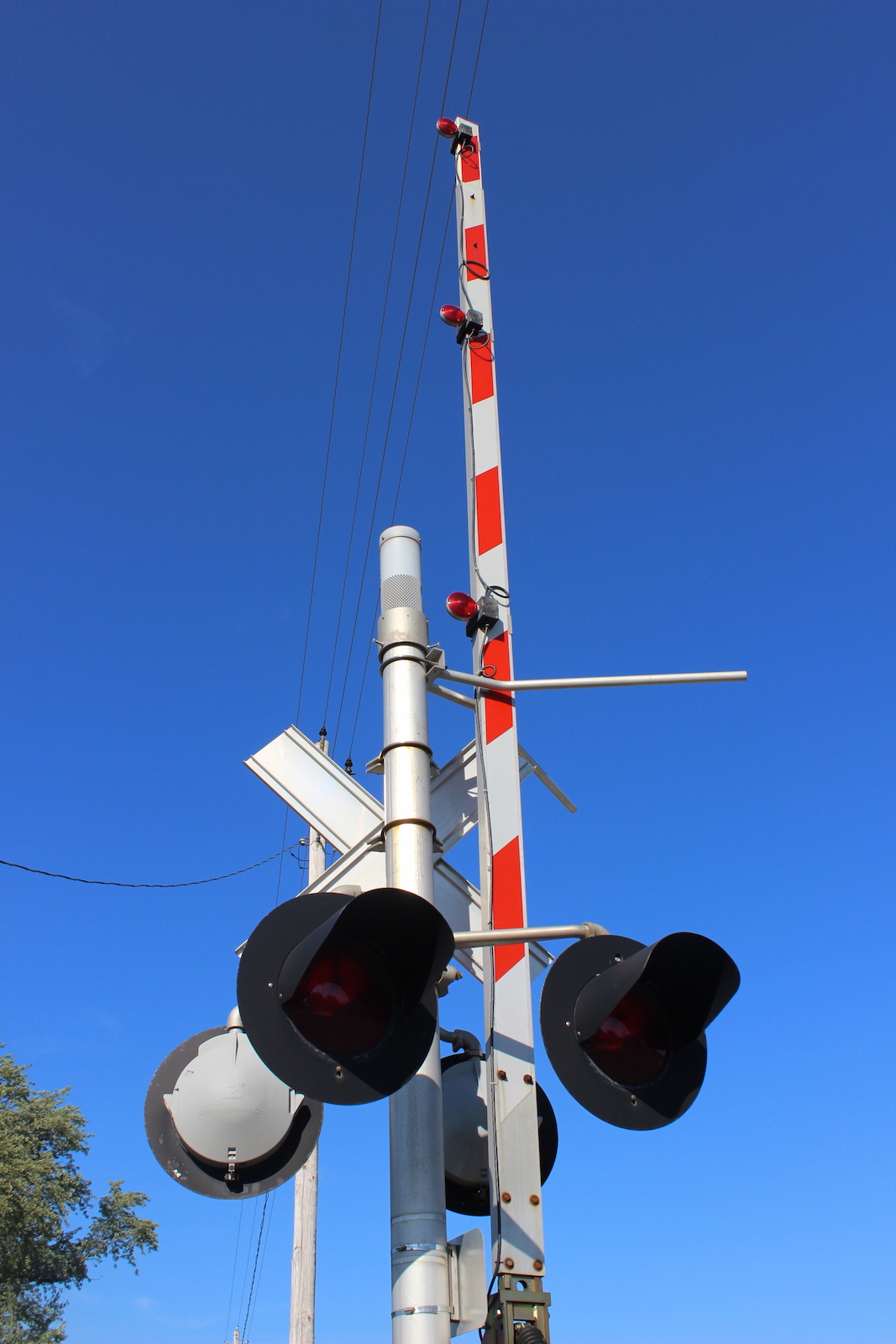

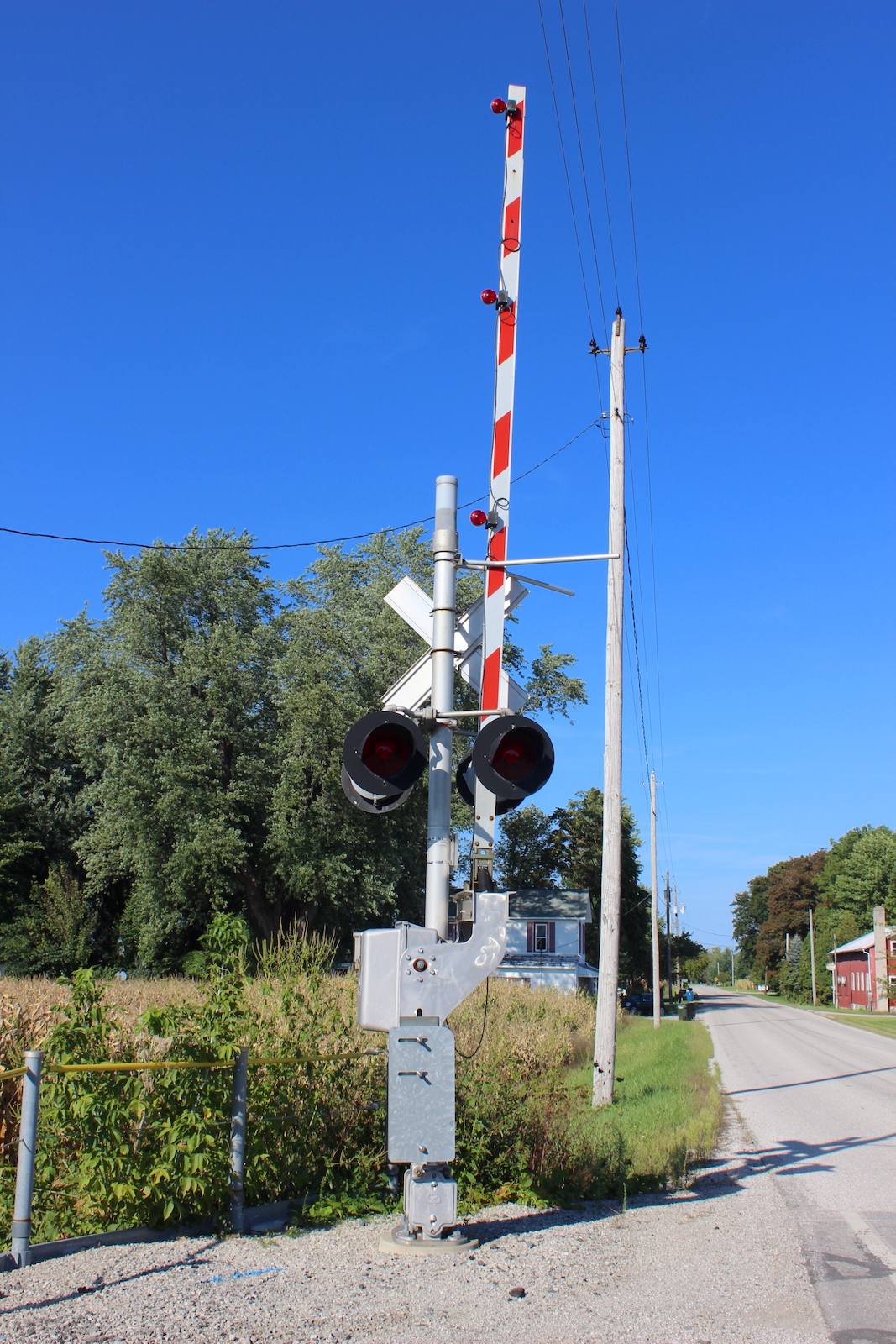

The eastern signal.
22 23 24 25

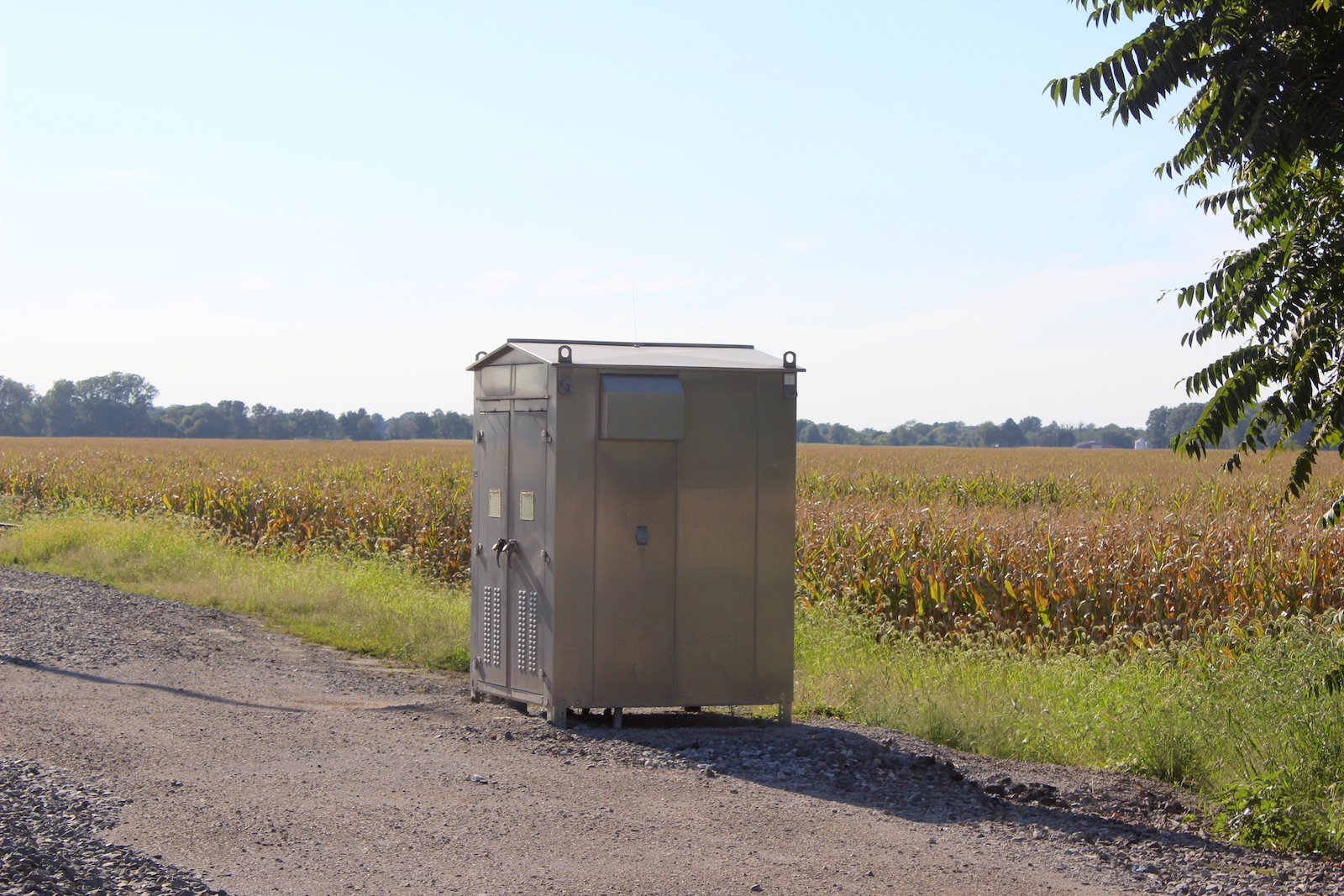

The relay bungalow in the northwest quadrant.

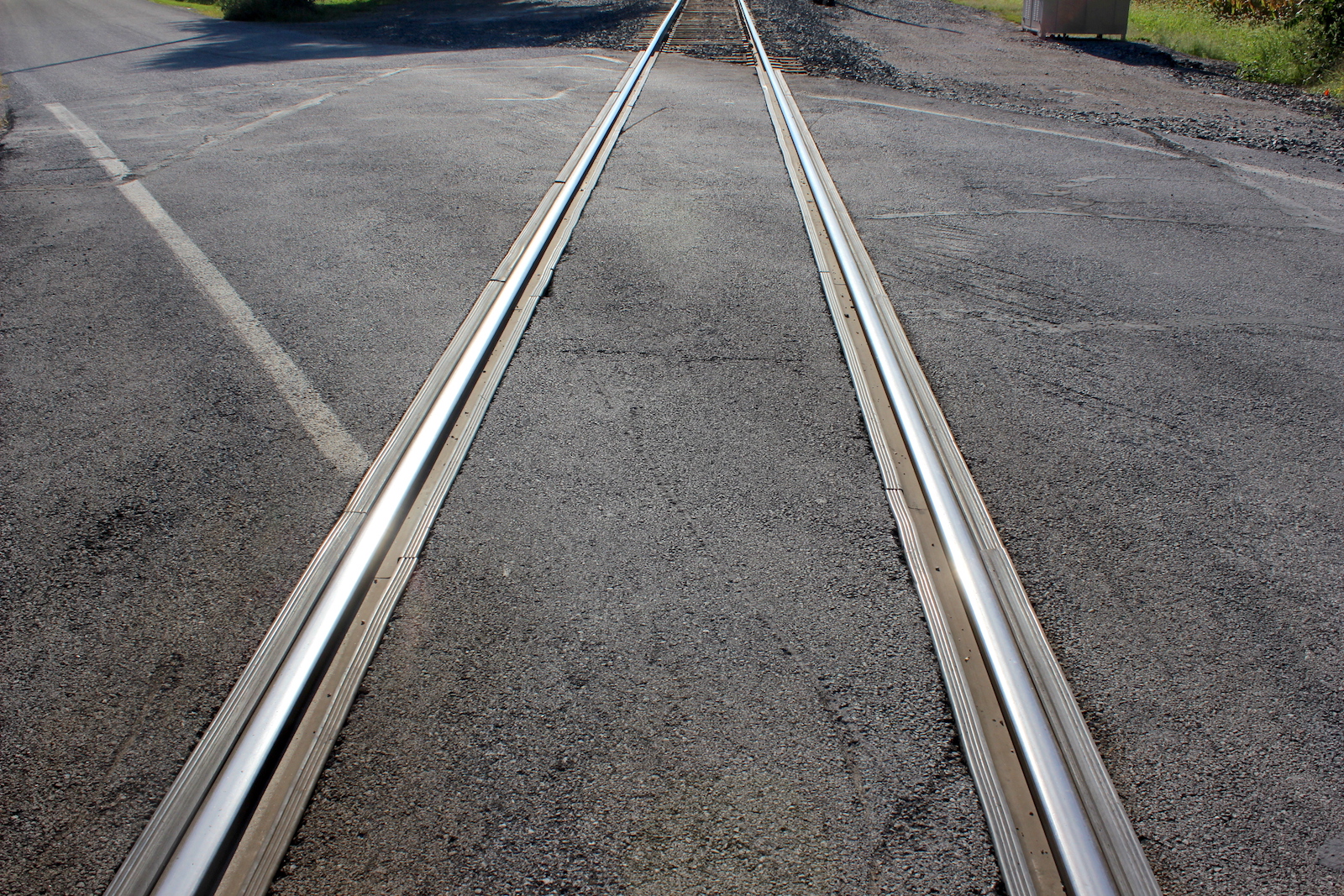

The grade is rubber and asphalt.

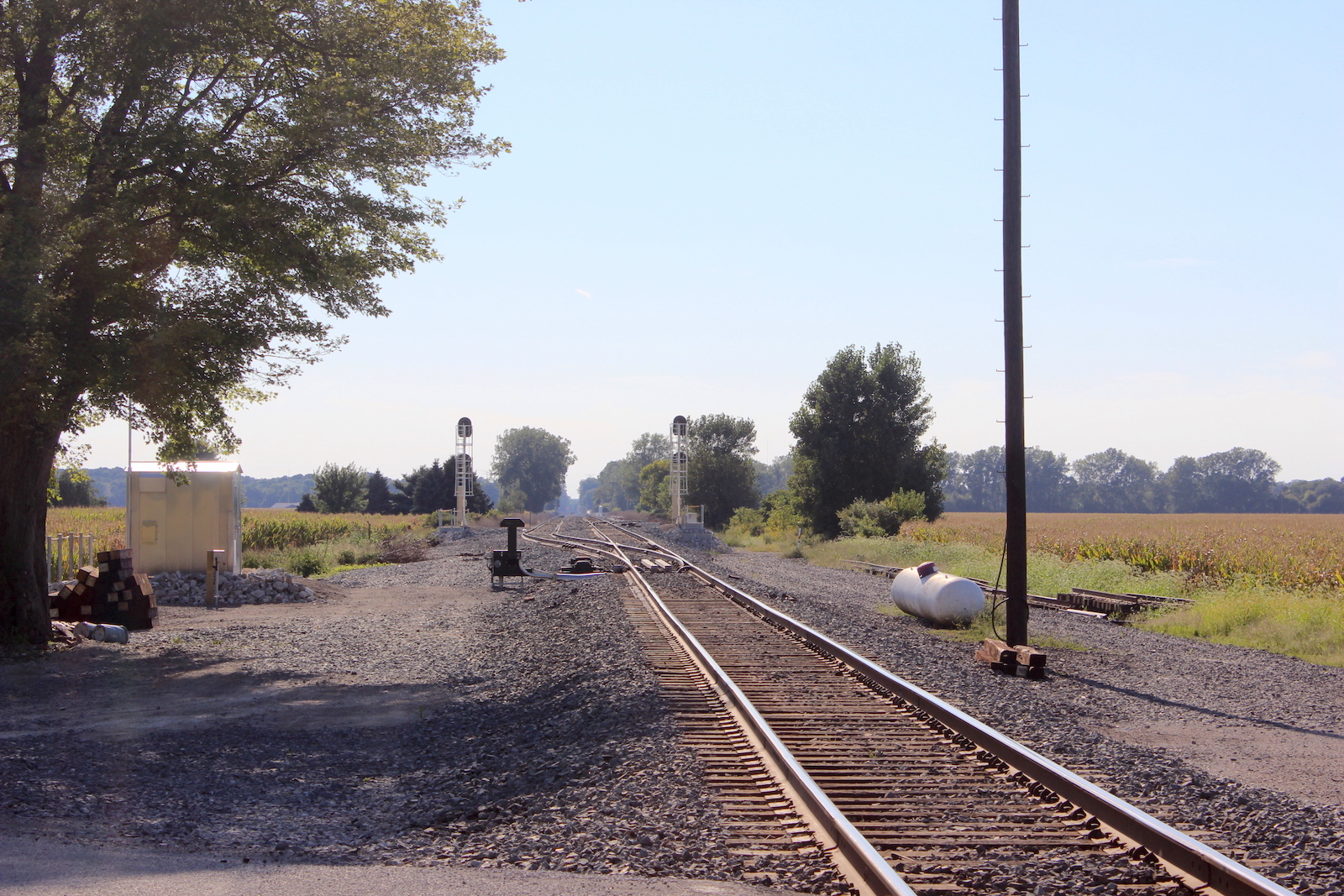

Track view facing west towards Jeffries Rd.
Track view facing east towards Ceylon Rd.
26 27 28 29

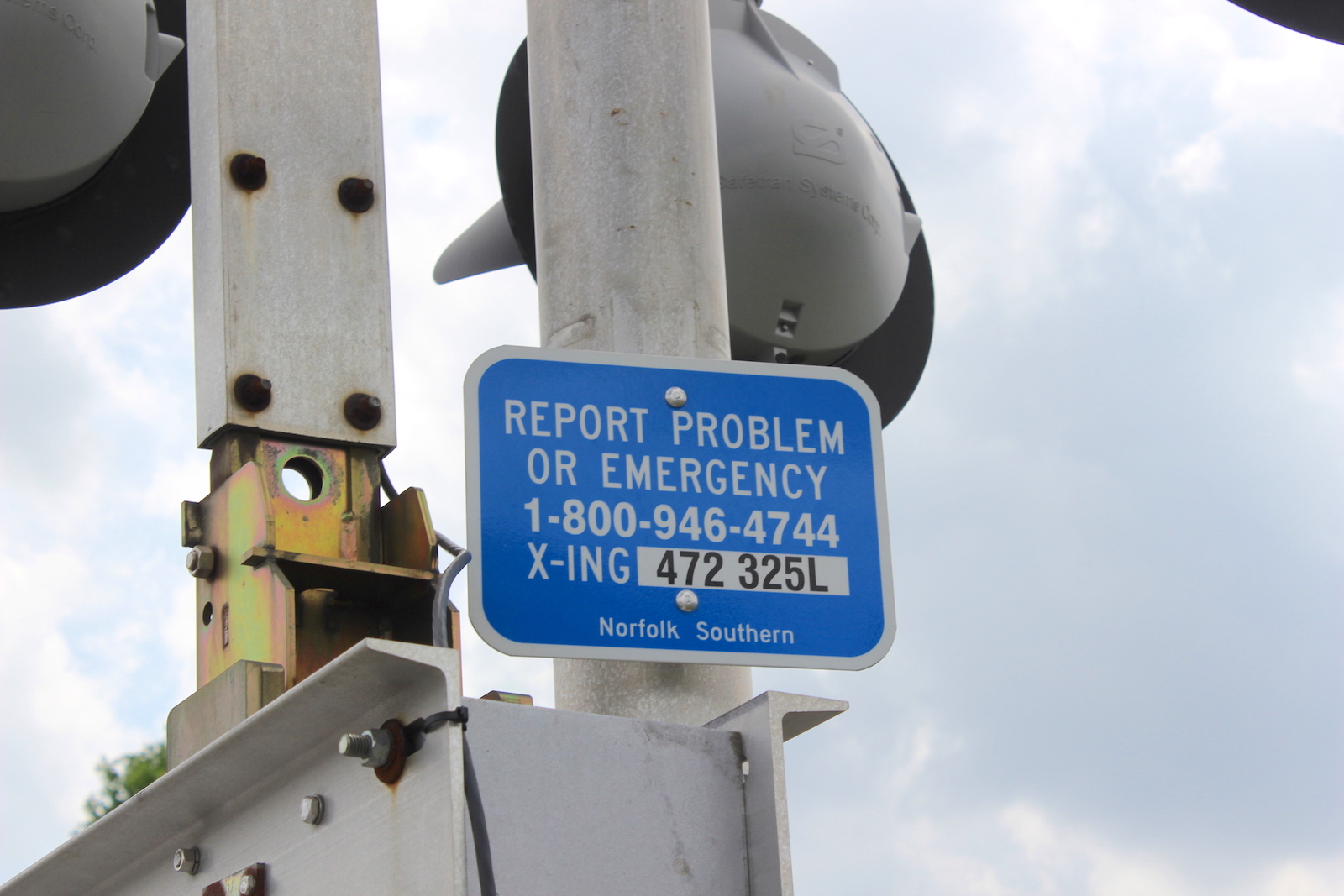

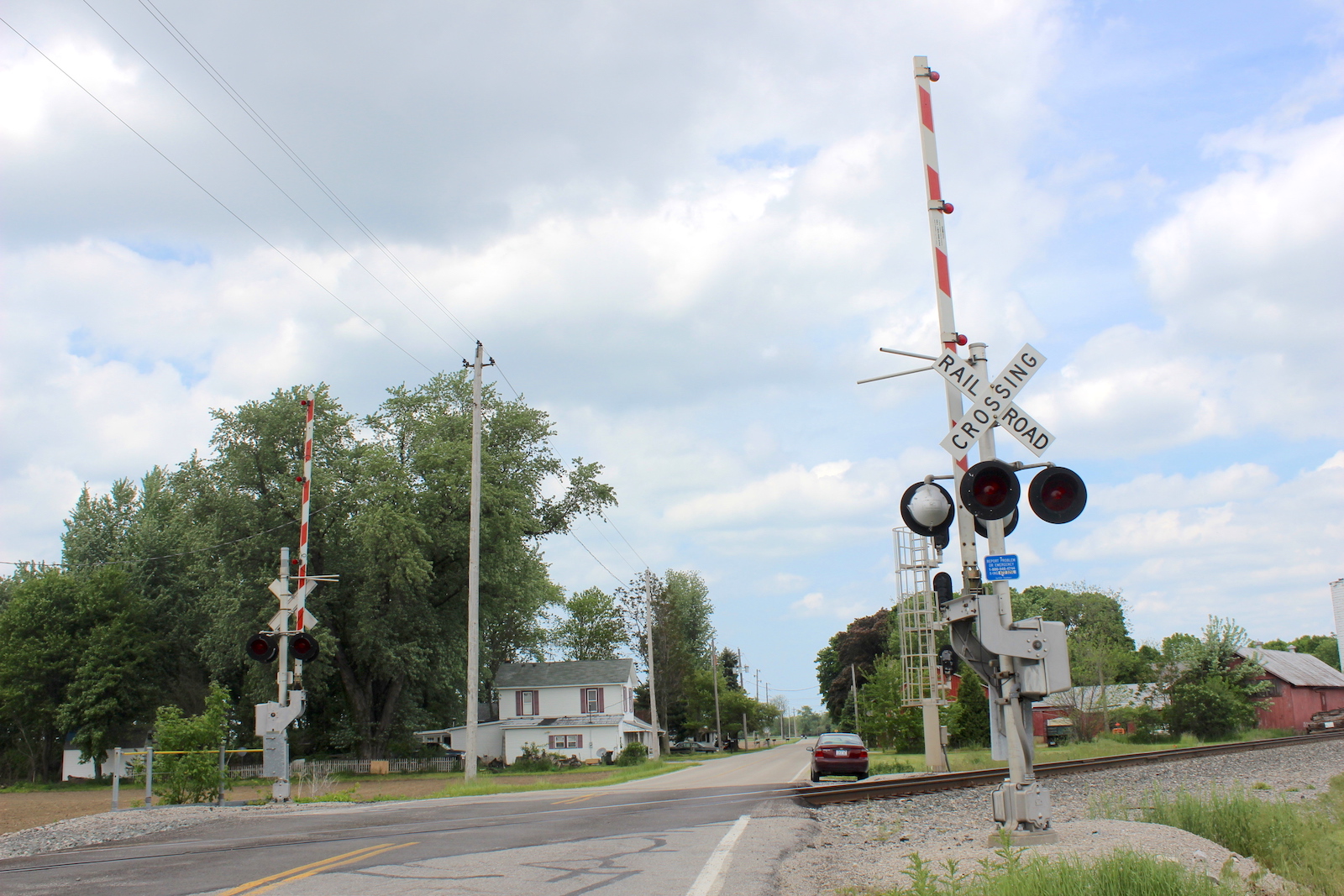

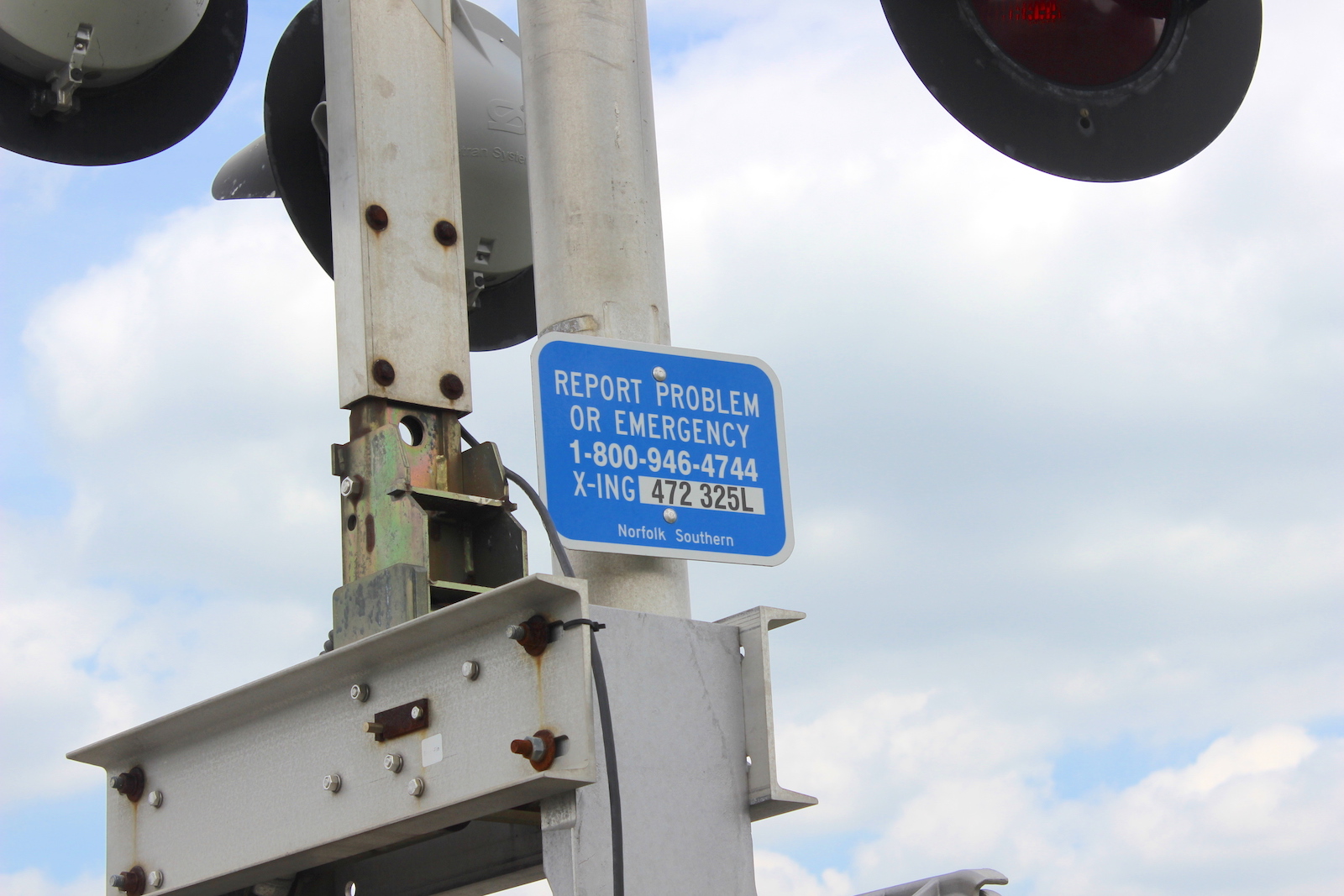

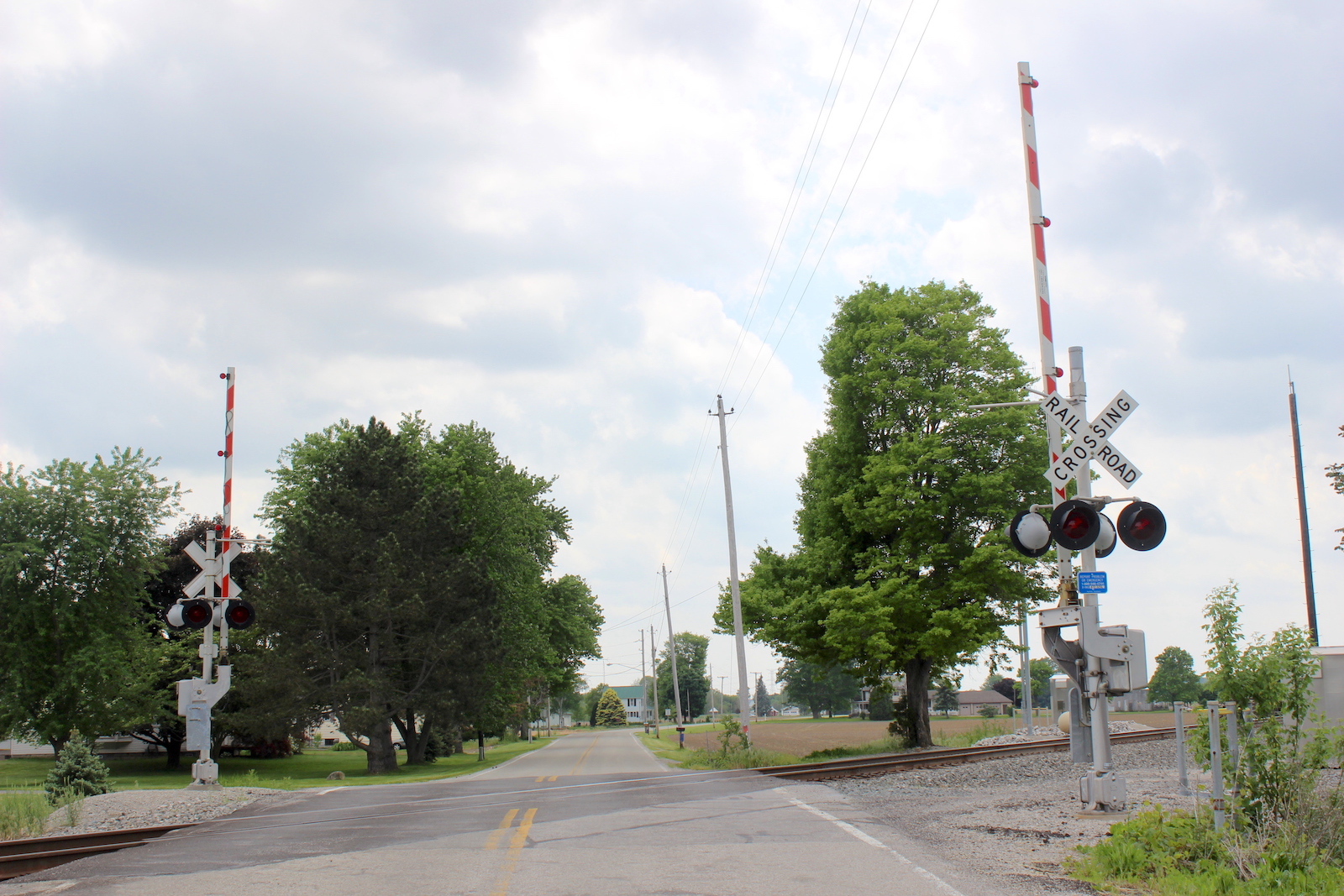

In May 2016, we see the DOT signs were turned to face forward.  No other changes have been made.
