229.10


472323X

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: Safetran Type 3 E Bell None
Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x20" Safetran incandescents 4 - 12"x20" Safetran incandescents
Junction Box: Safetran Safetran
Gate Lights: 4" NEG incandescents 4" NEG incandescents
Gate Mechanism: Safetran 2000s w/ NEG 1 Way Saver Safetran 2000s w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-19 were taken on September 25, 2014.
Pictures 20-24 were taken on May 26, 2016.
The video was taken on March 26, 2017.
All pictures were taken by Tommy McGowan.
This crossing is located on the NS Cleveland District.

1
 2
Overview of 2 gated signals facing north.
 Overview facing south.
3 4 5
6 7 8

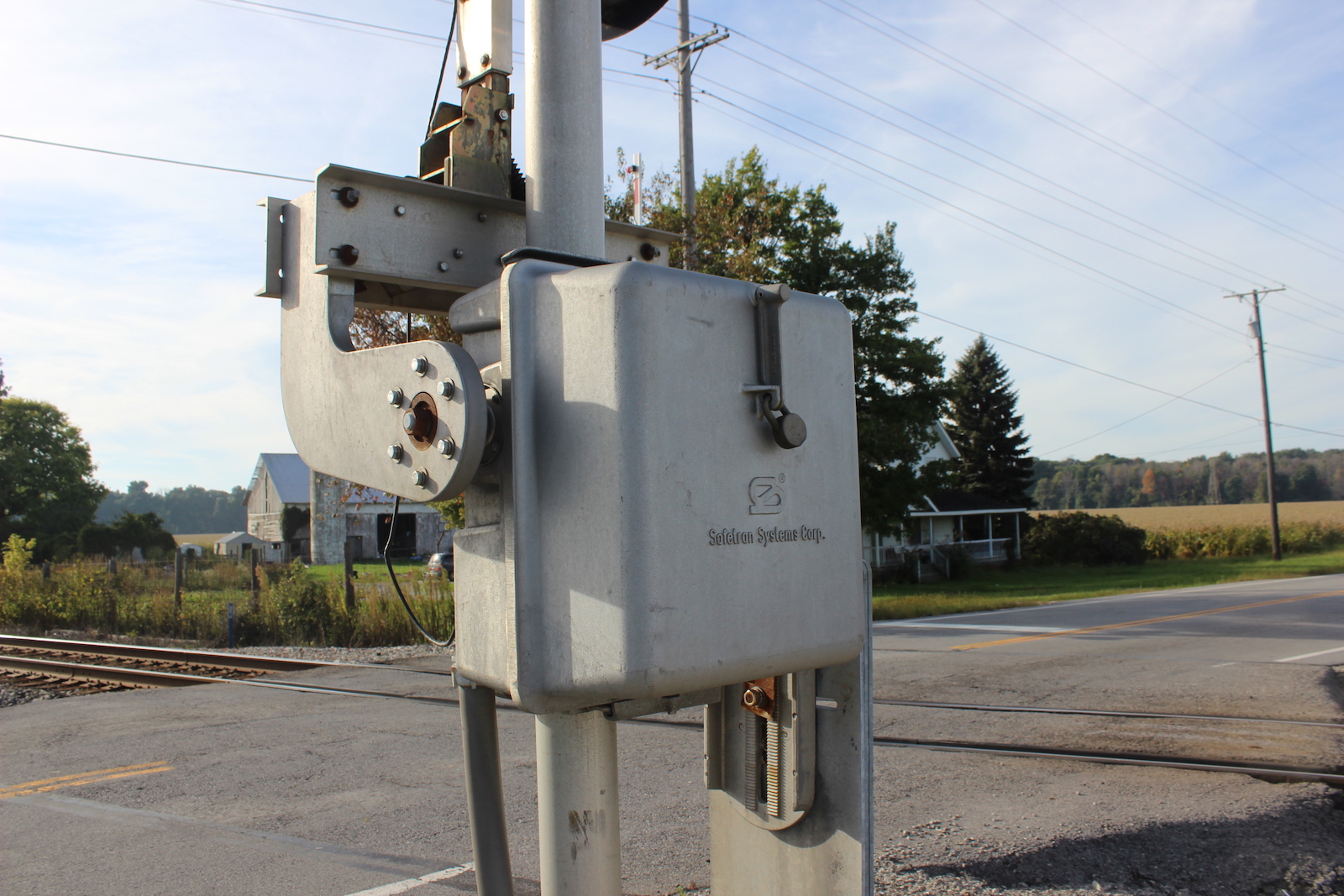

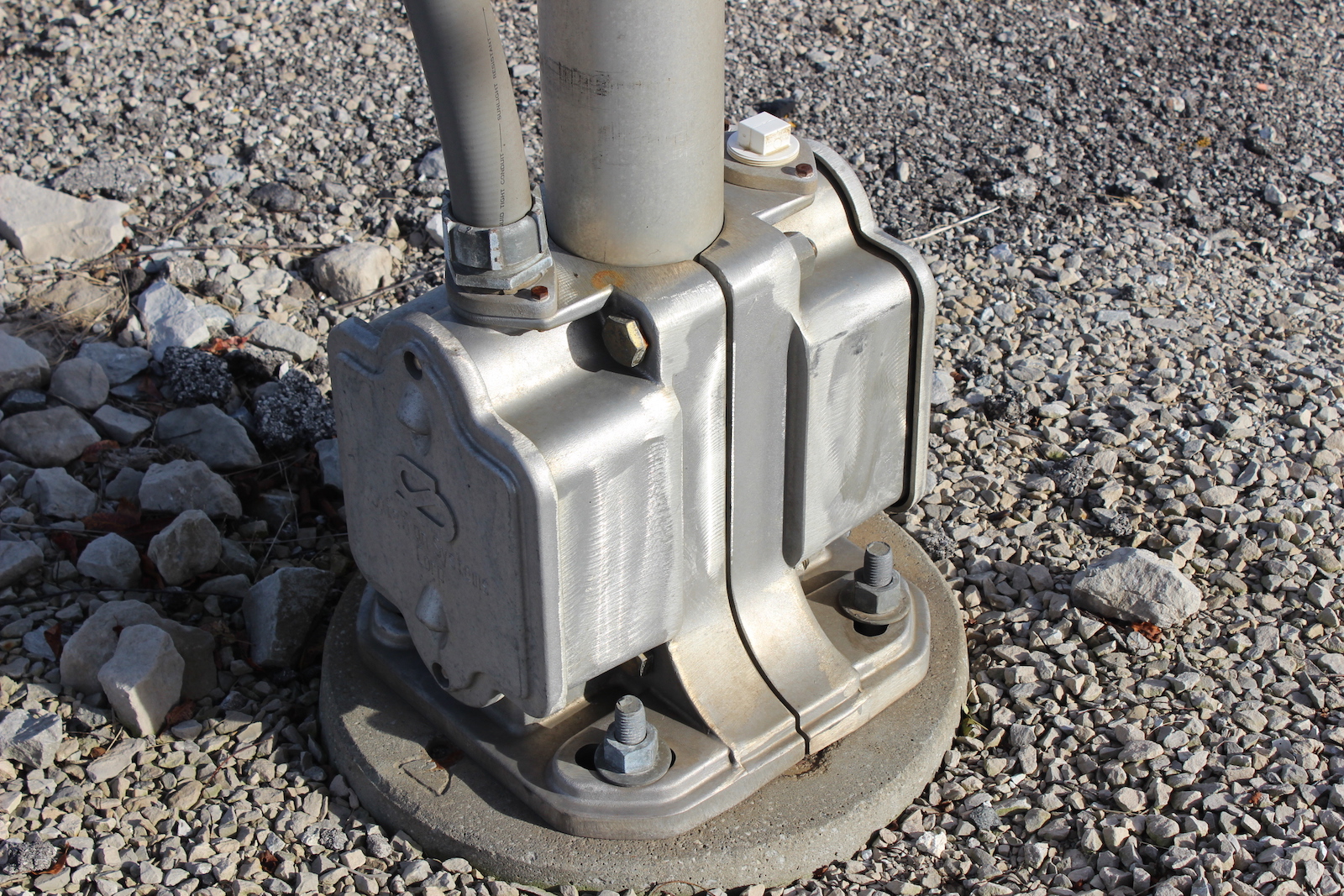

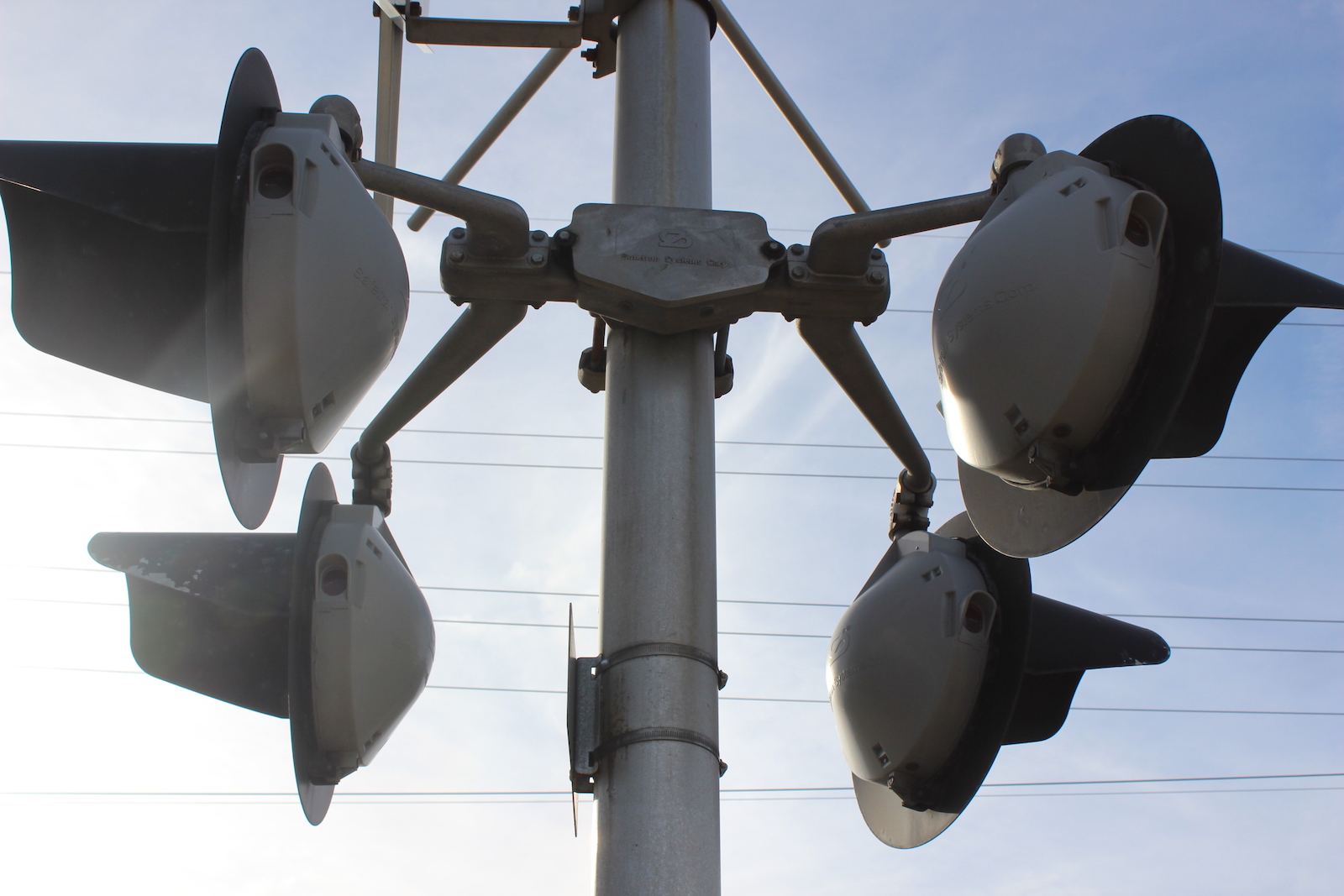

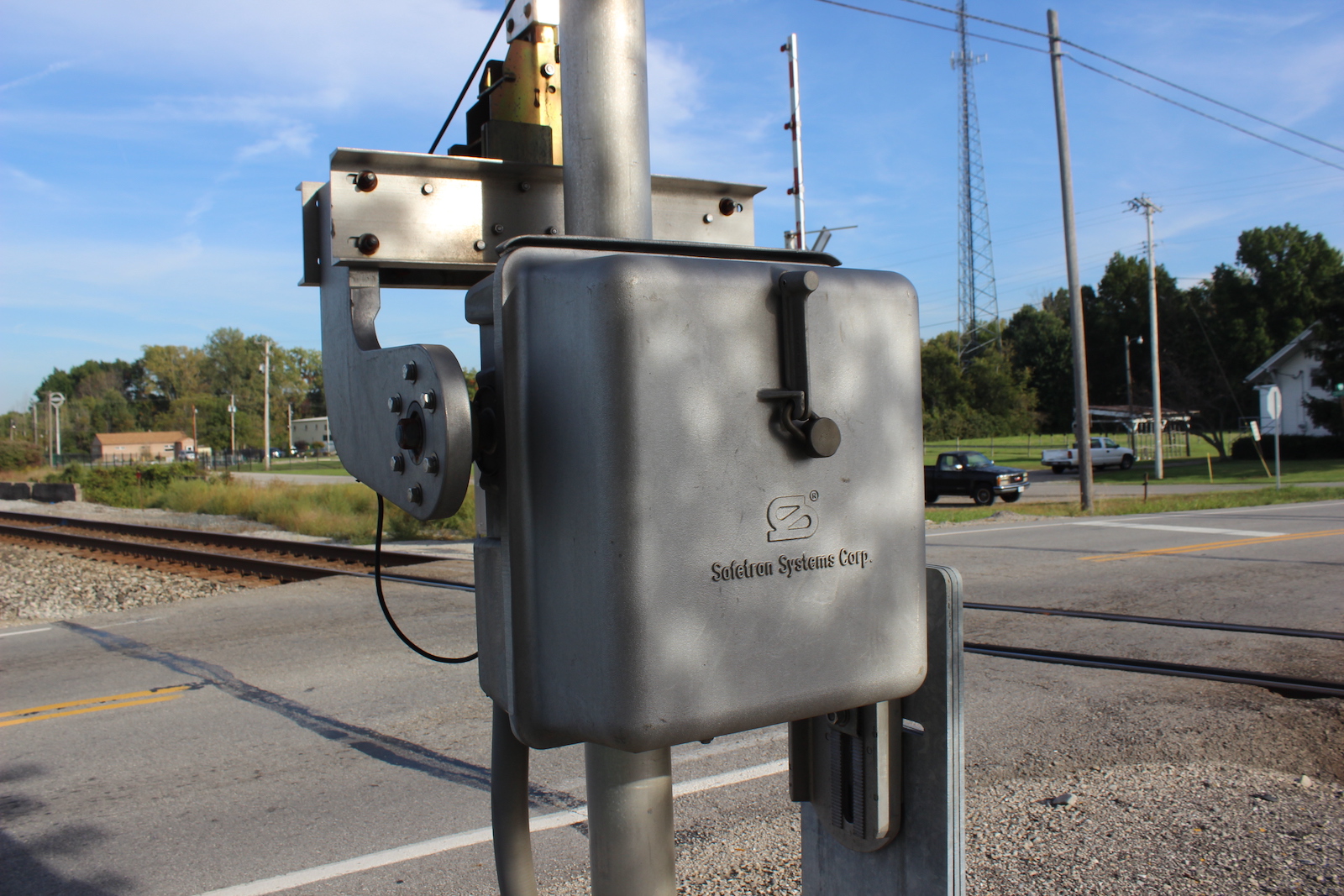

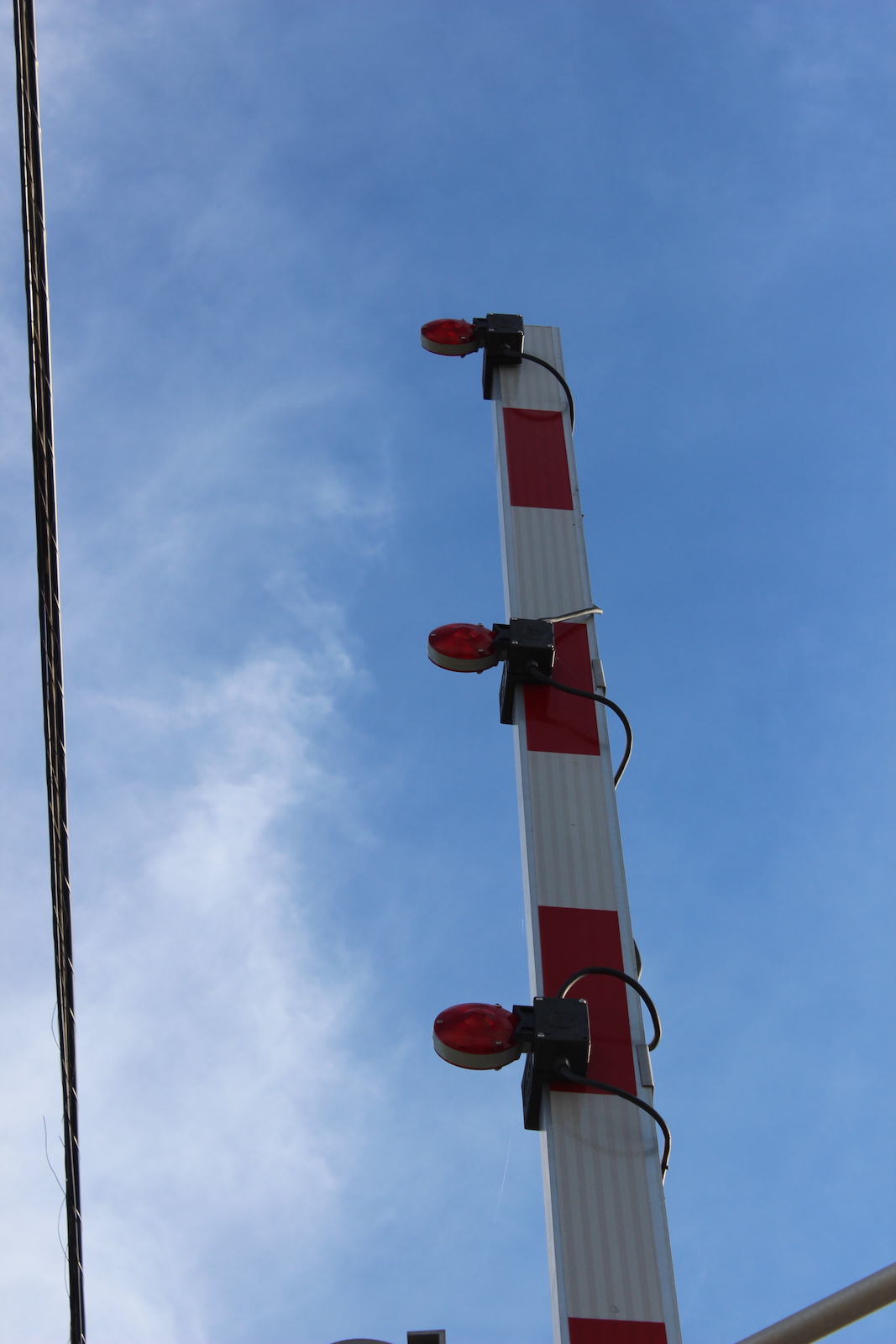

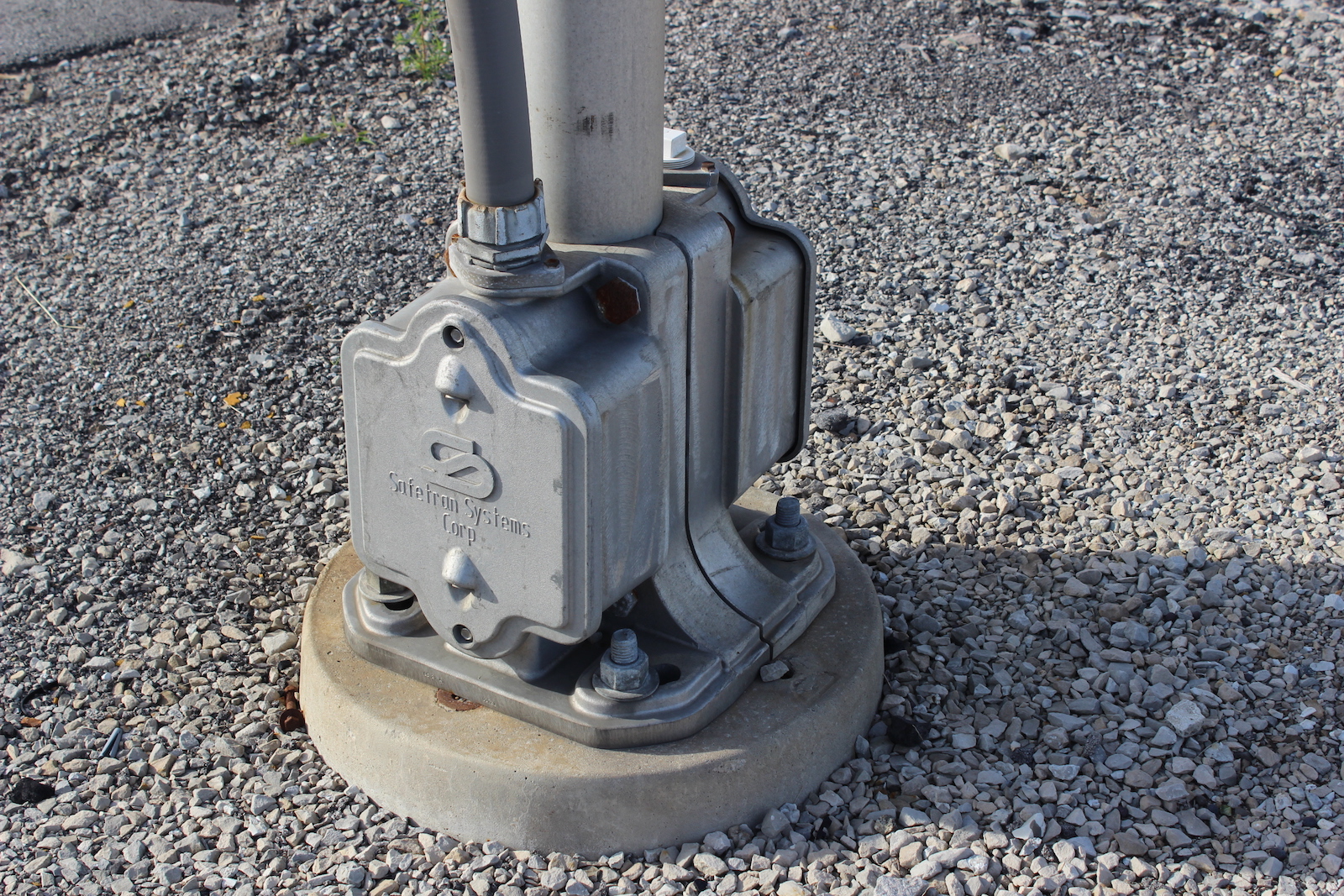

The southern signal.
9 10 11
12 13 14
15

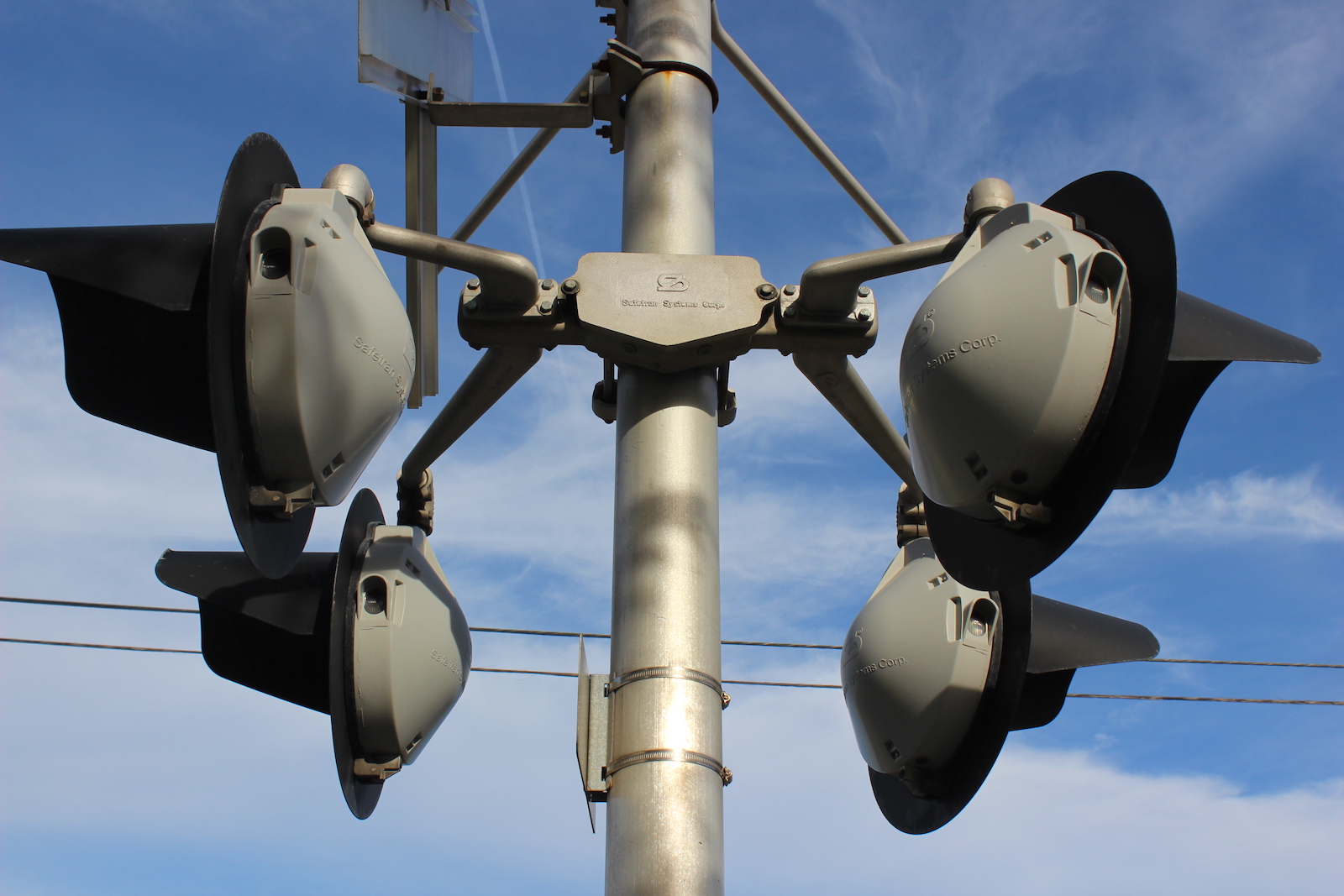

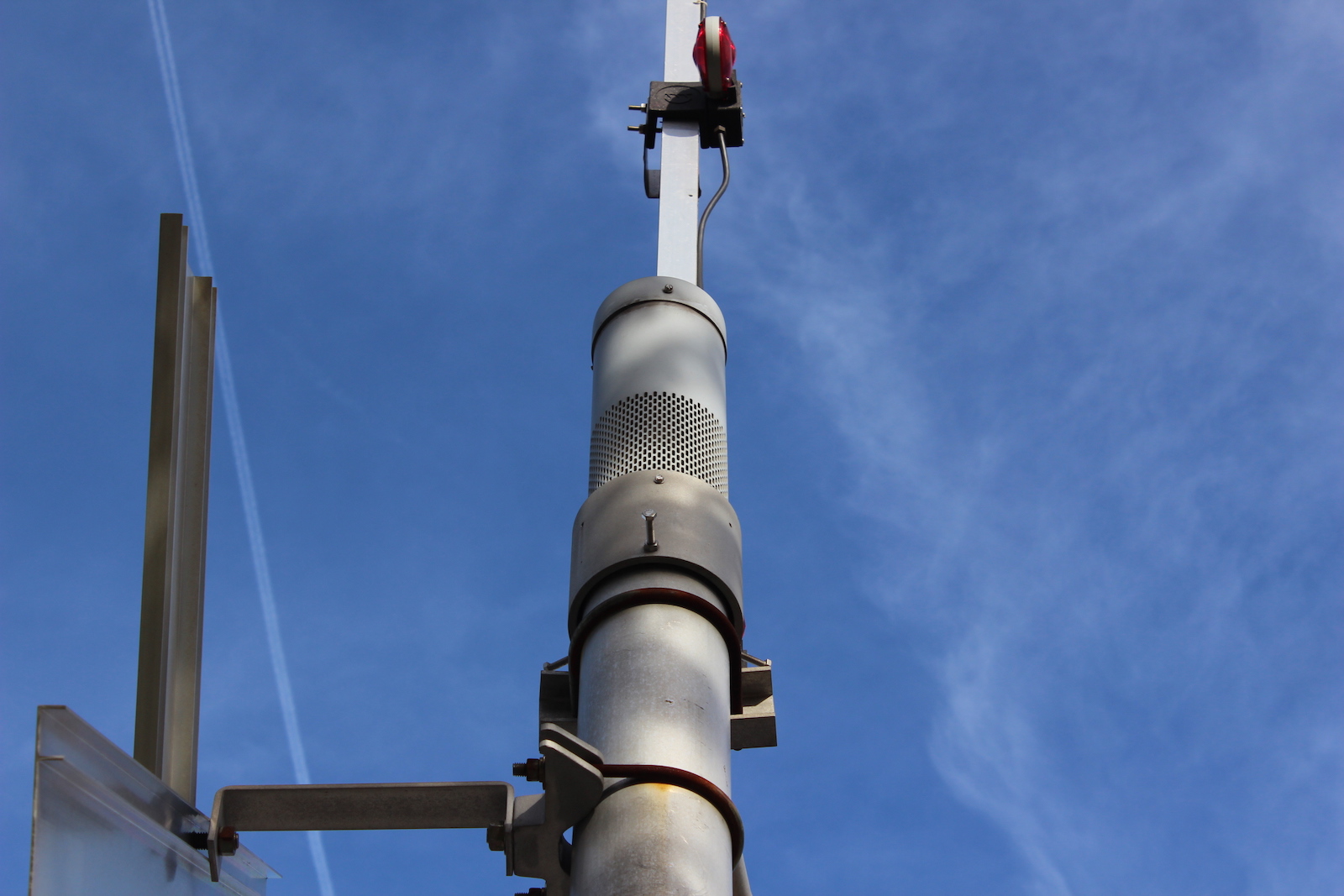

The northern signal.
16 17 18 19

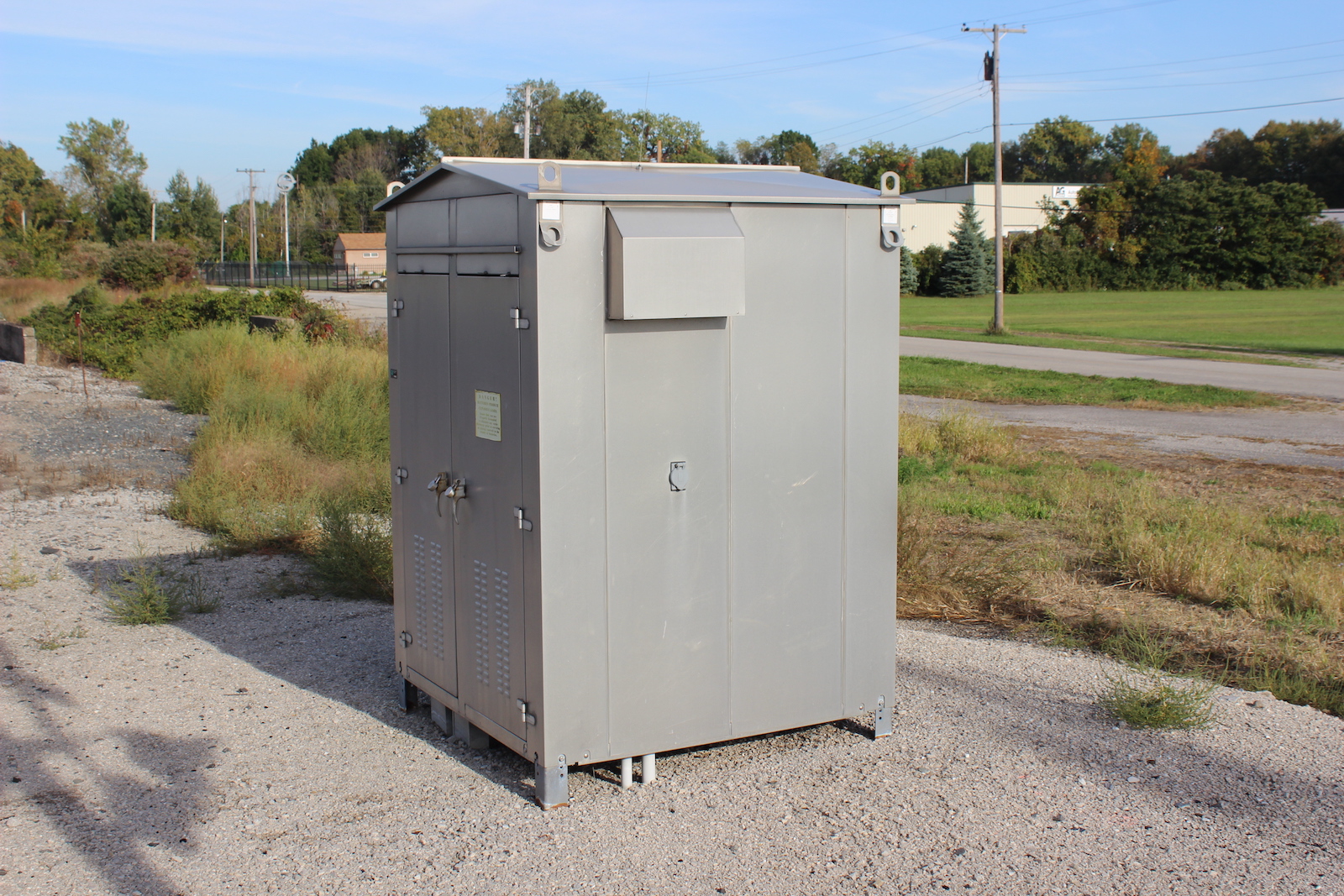

The relay bungalow in the southeast quadrant.
 The grade is rubber and asphalt.
 Track view facing east towards Smokey Rd.

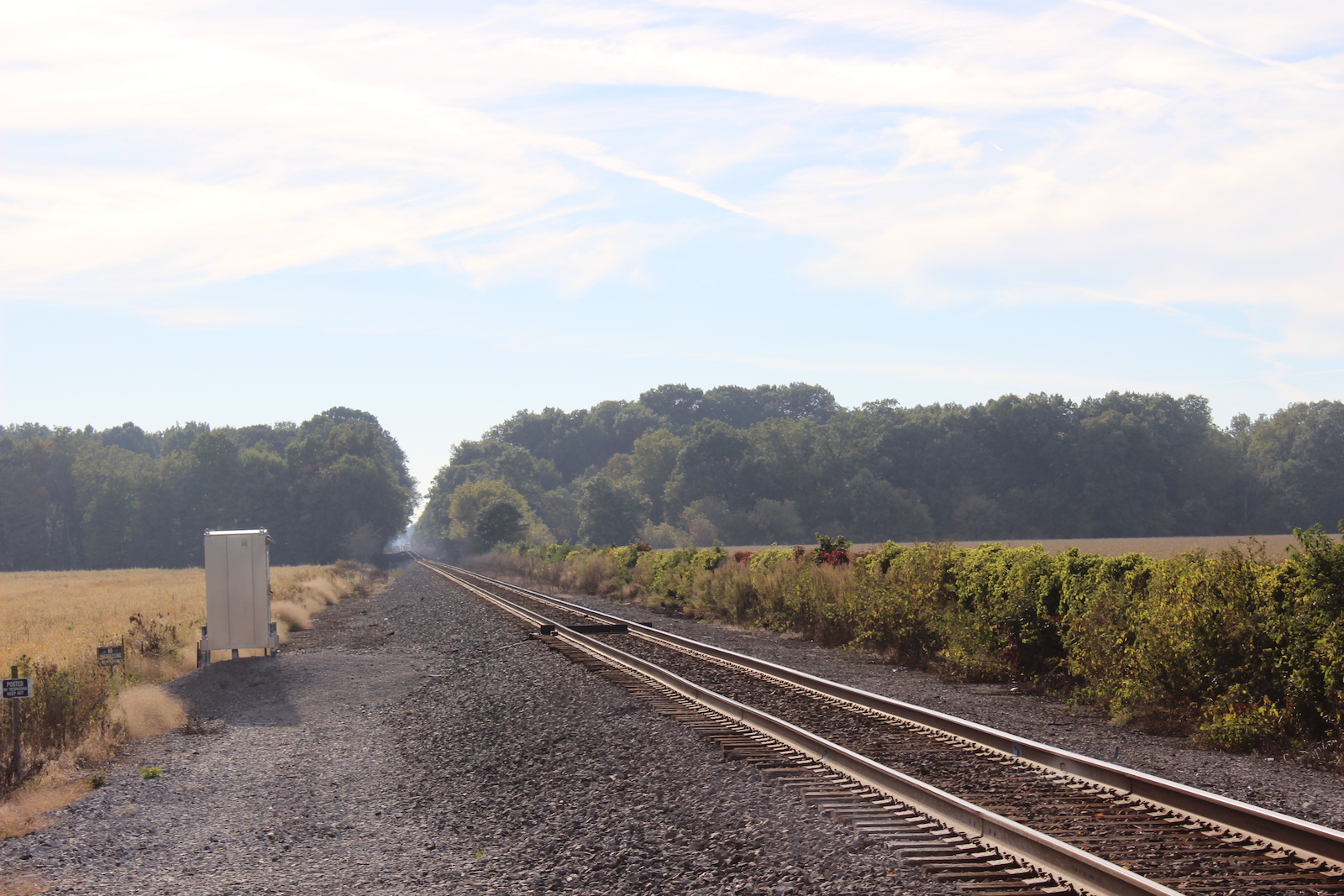

 Track view facing west towards Barrows Rd.
20
21
22 23 24

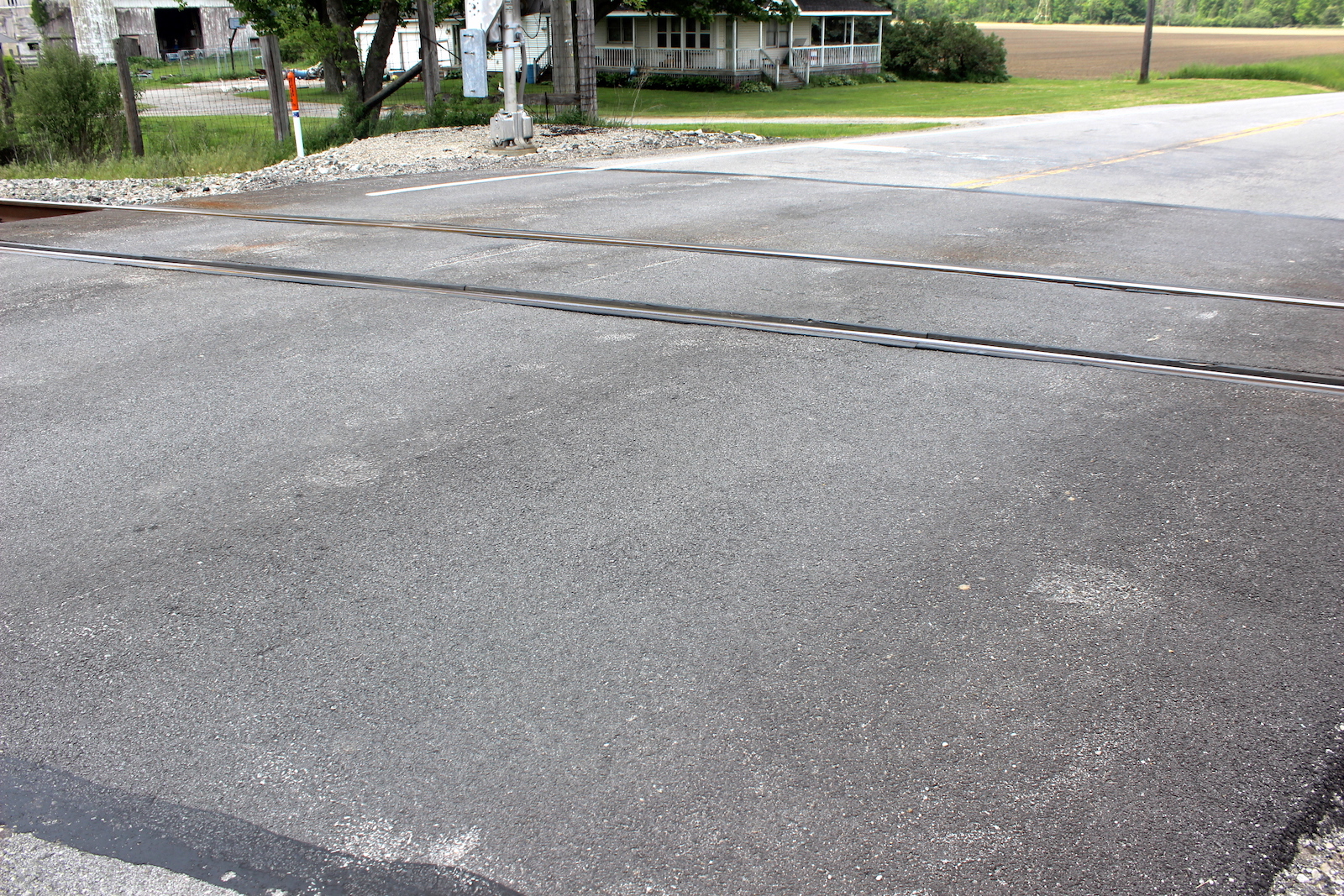

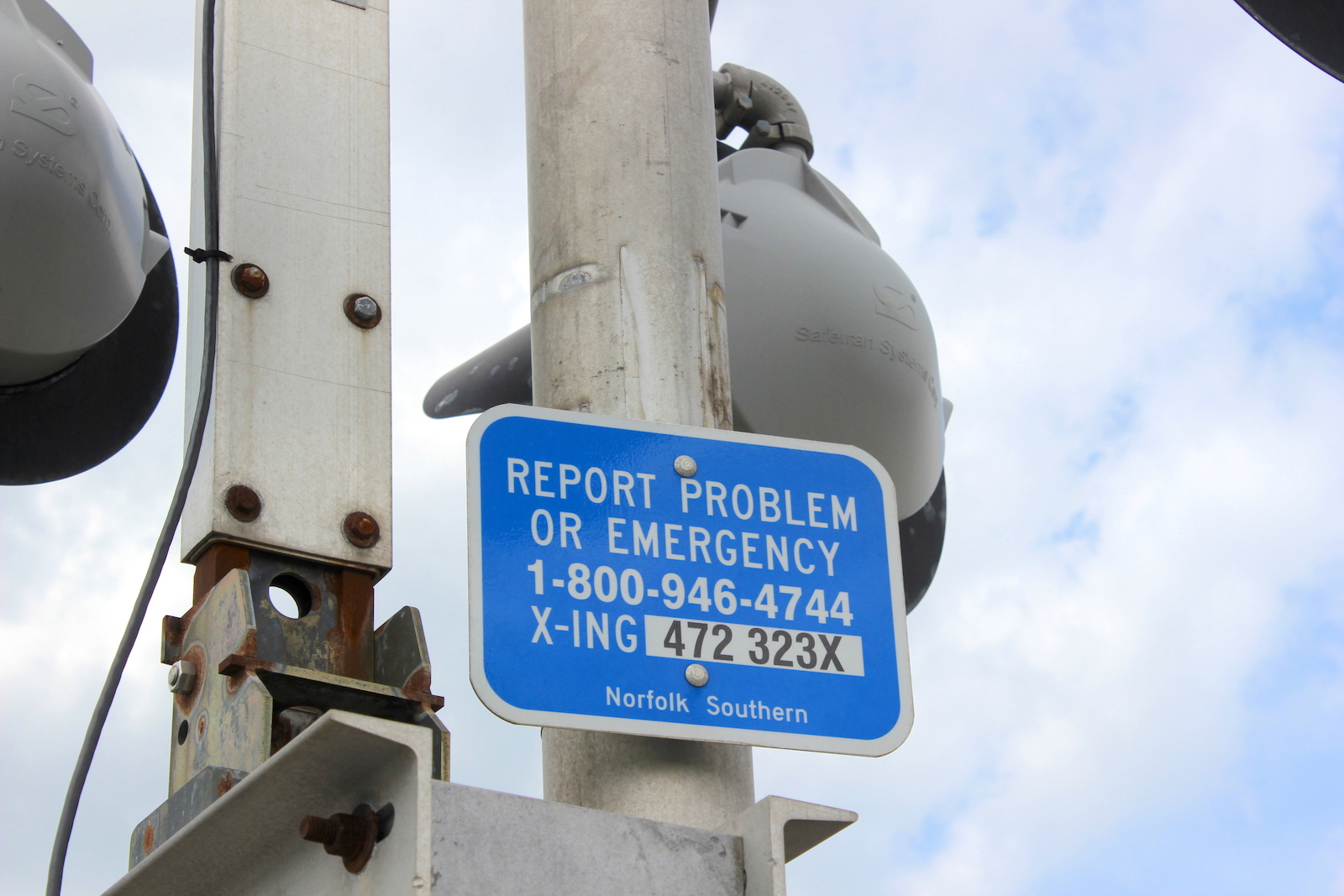

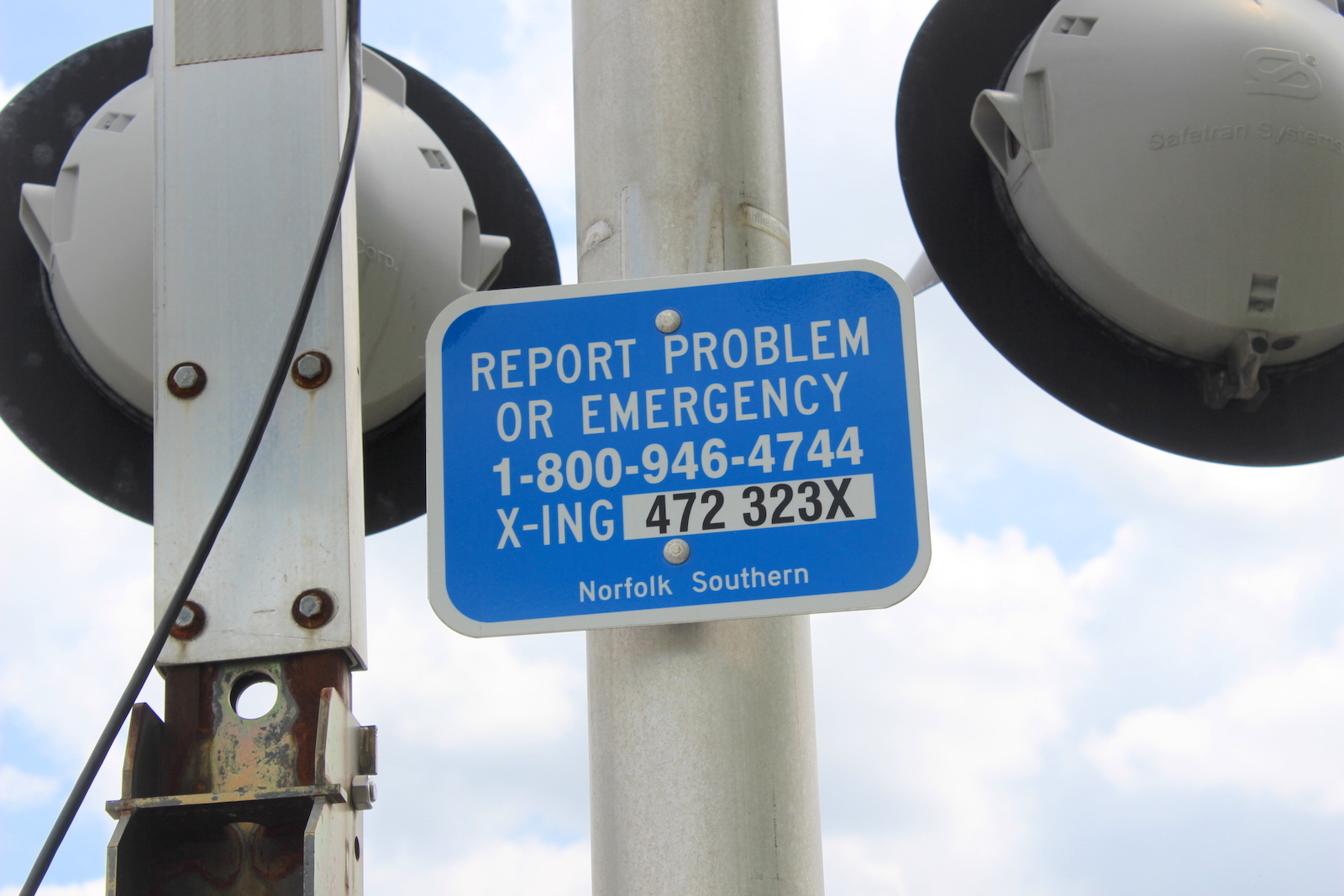

In May 2016, we see the white DOT signs were replaced with blue ones.  They were replaced in 2015, but I forgot to take pictures of them last year.  They were originally facing sideways.  Also, the grade was resurfaced.
