228.41


472322R

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: GS Type 2 E Bell None
Base: Safetran 5" Single Sided ^ Safetran 5" Single Sided ^
Lights: 4 - 12"x20" Hawker Safetran incandescents 6 - 12"x20" Hawker Safetran incandescents
Junction Boxes: Safetran Safetran
Gate Lights: 4" NEG incandescents 4" NEG incandescents
Gate Mechanism: Safetran 1990s w/ Standard Mount Safetran 1990s w/ Standard Mount
Gate Striping: Diagonal Striping Diagonal Striping

Pictures 1-24 were taken on September 26, 2014.
Pictures 25-28 were taken on May 26, 2016.
The video was taken on March 26, 2017.
All pictures and the video were taken by Tommy McGowan.
This crossing is located on the NS Cleveland District.

1
 2

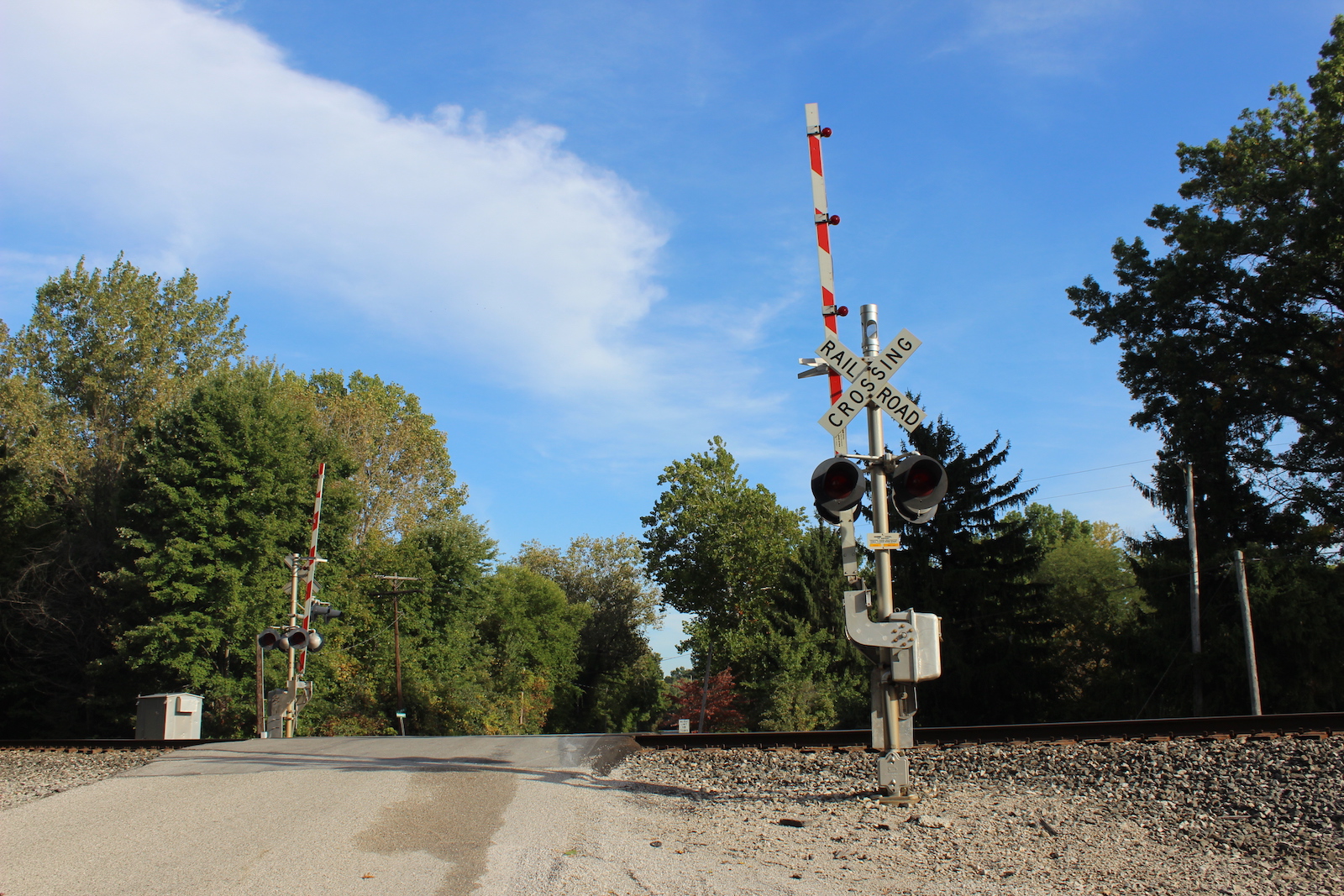

Overview of 2 gated signals facing east.

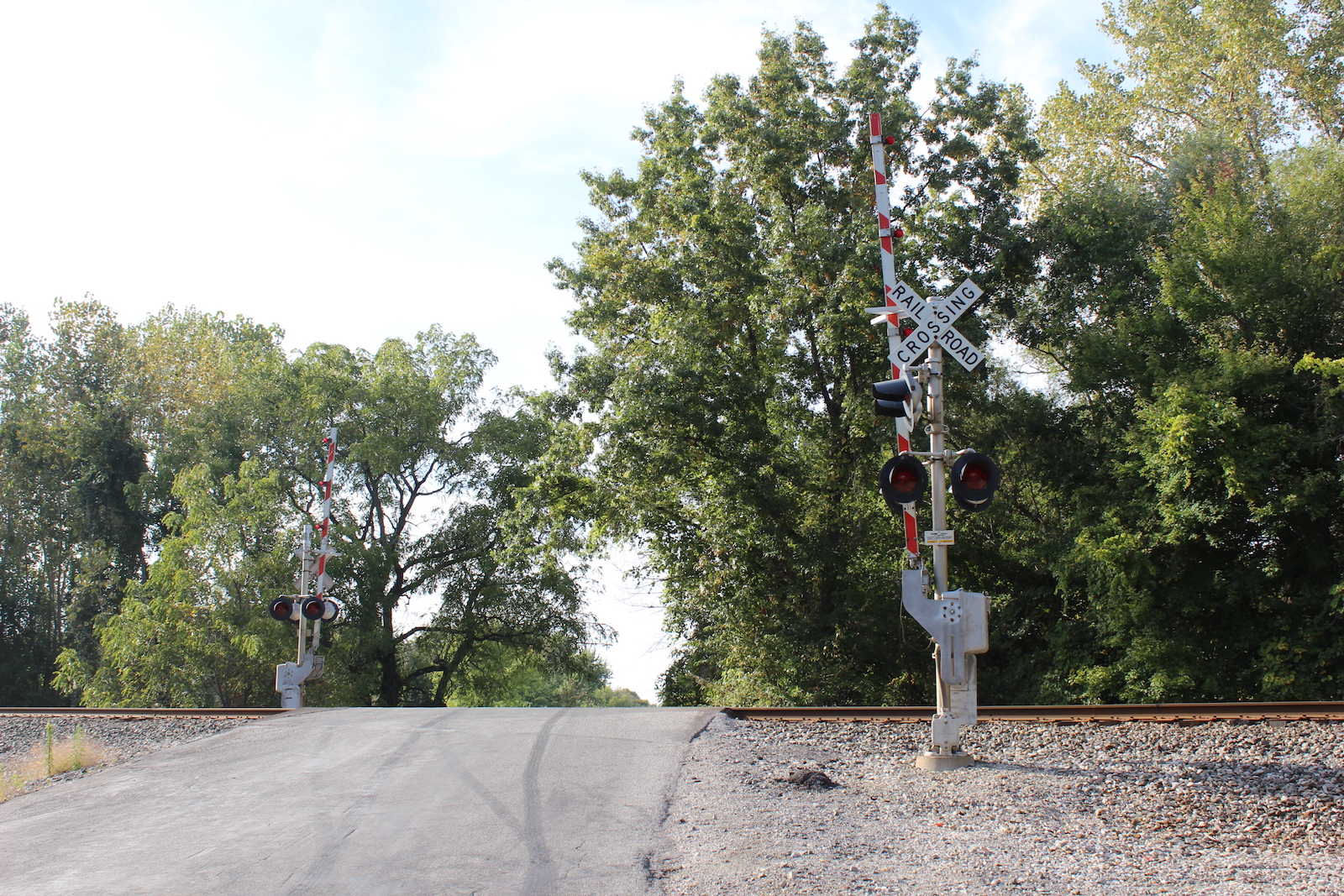

 Overview facing west.
3 4 5
6 7 8 9

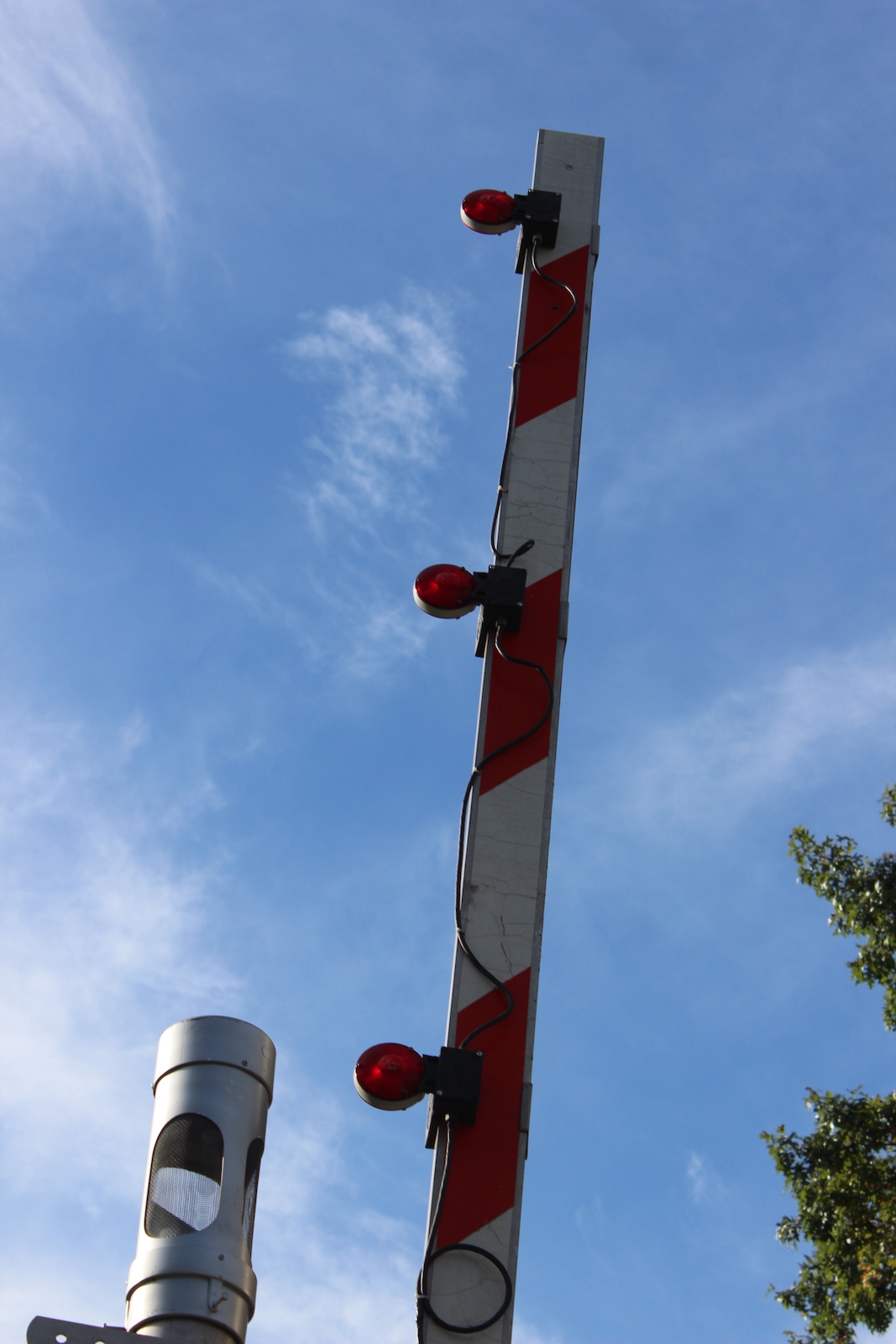

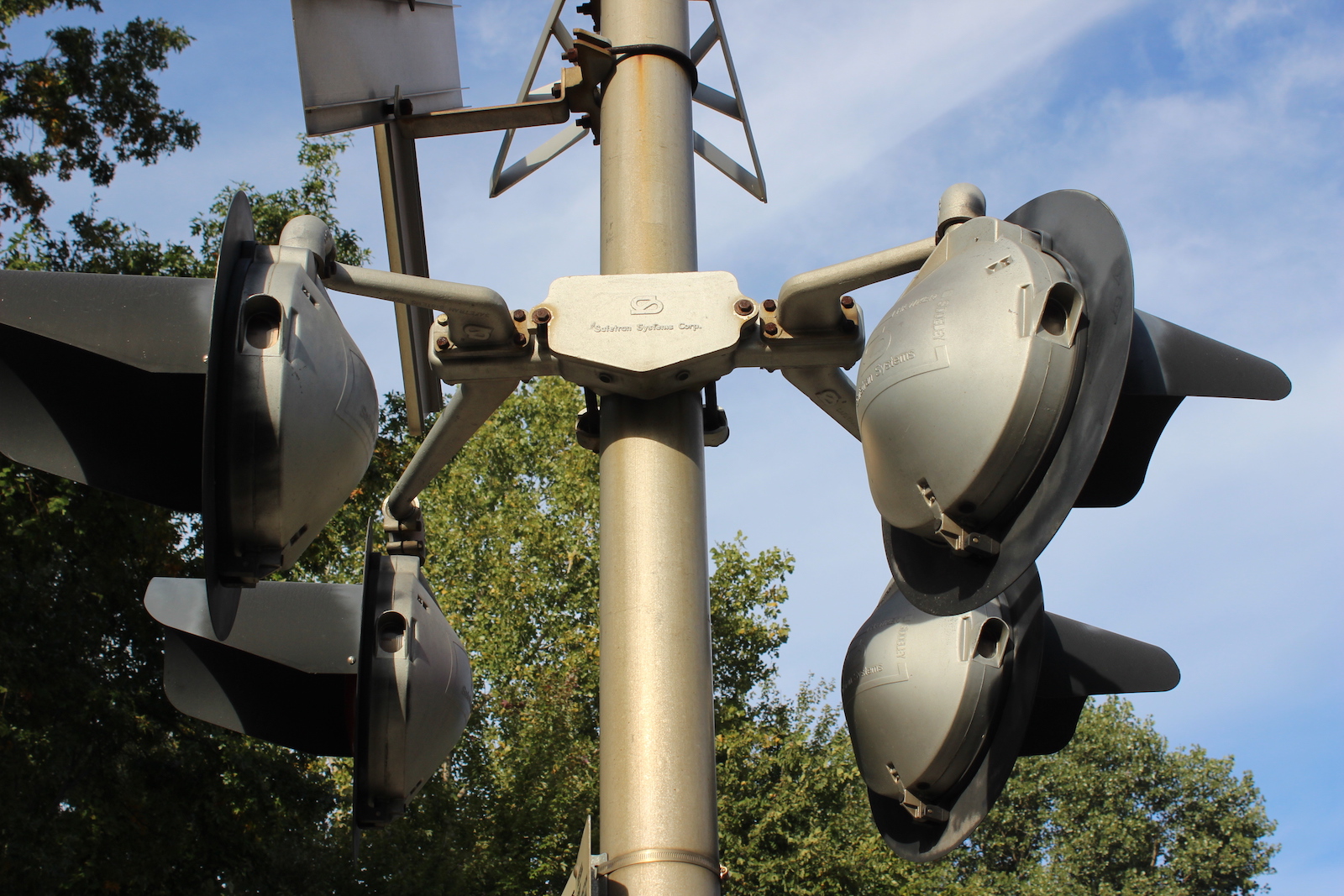

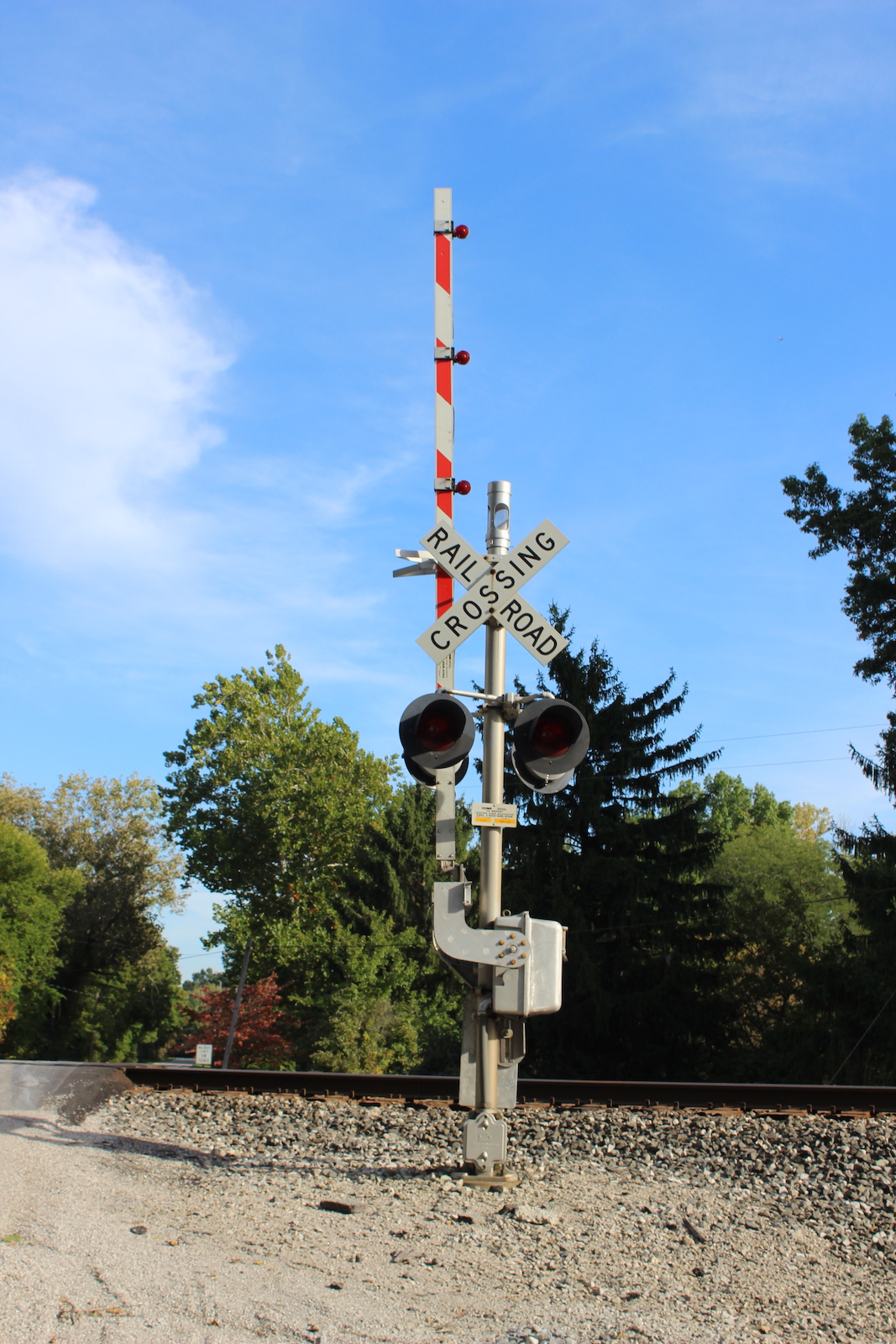

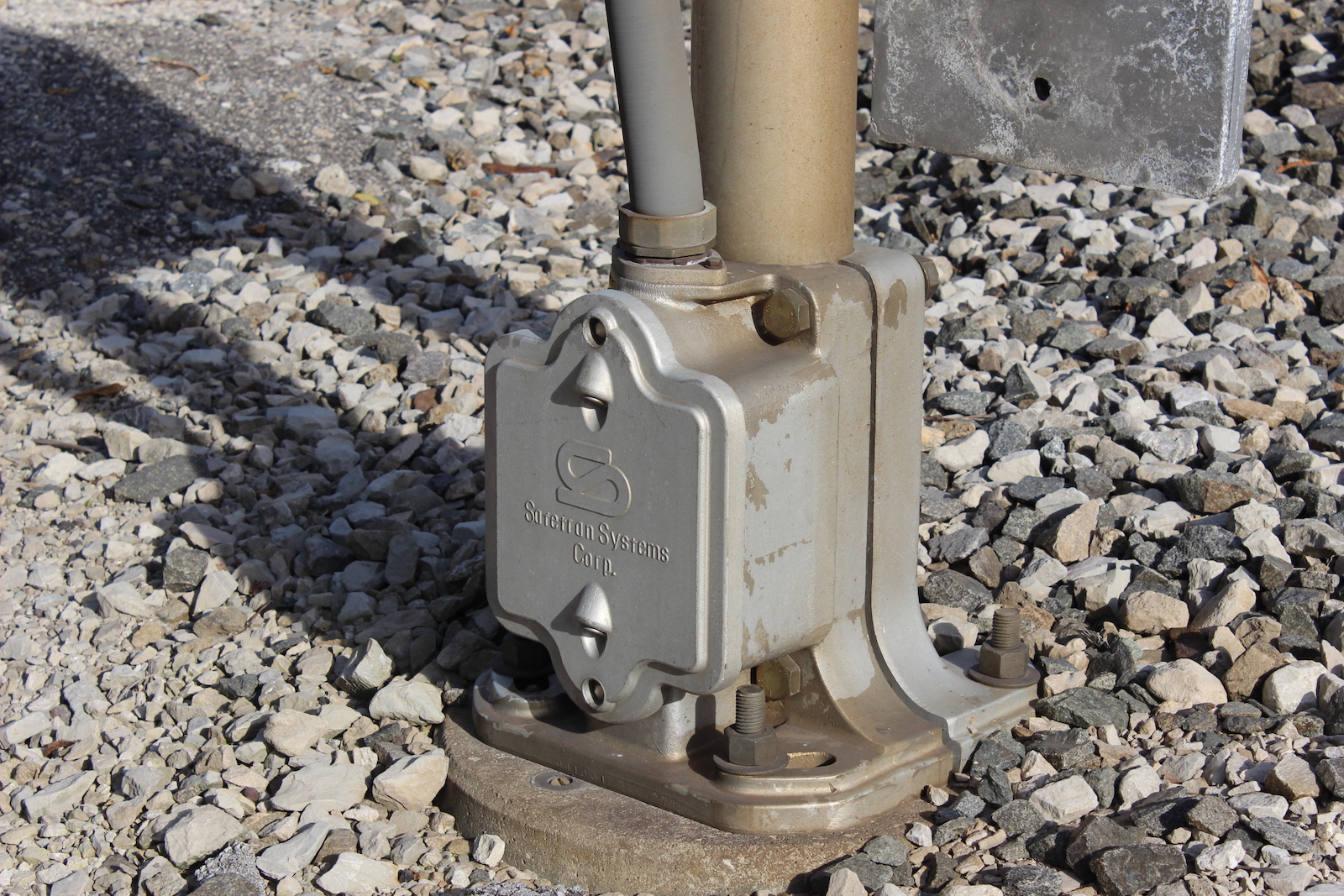

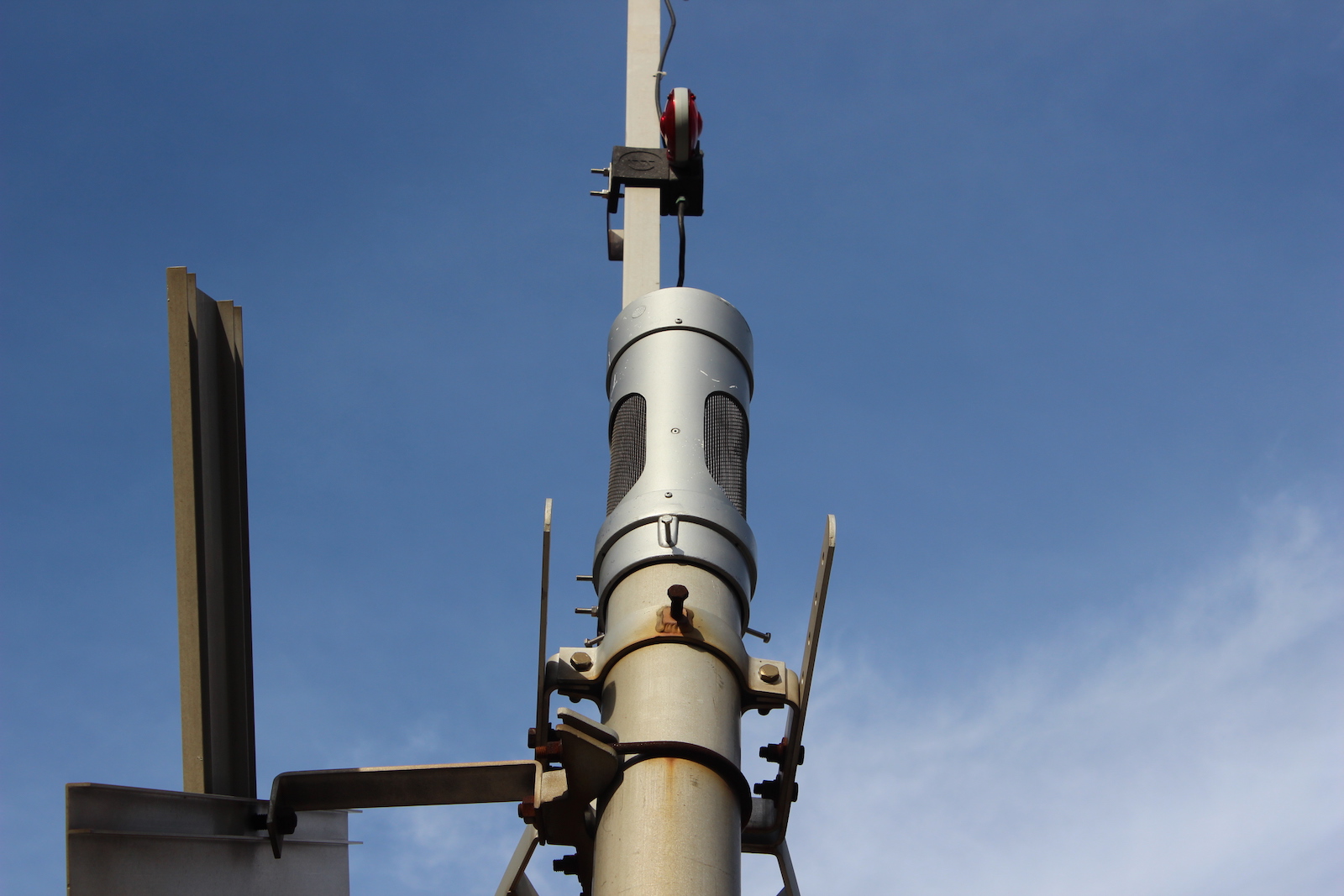

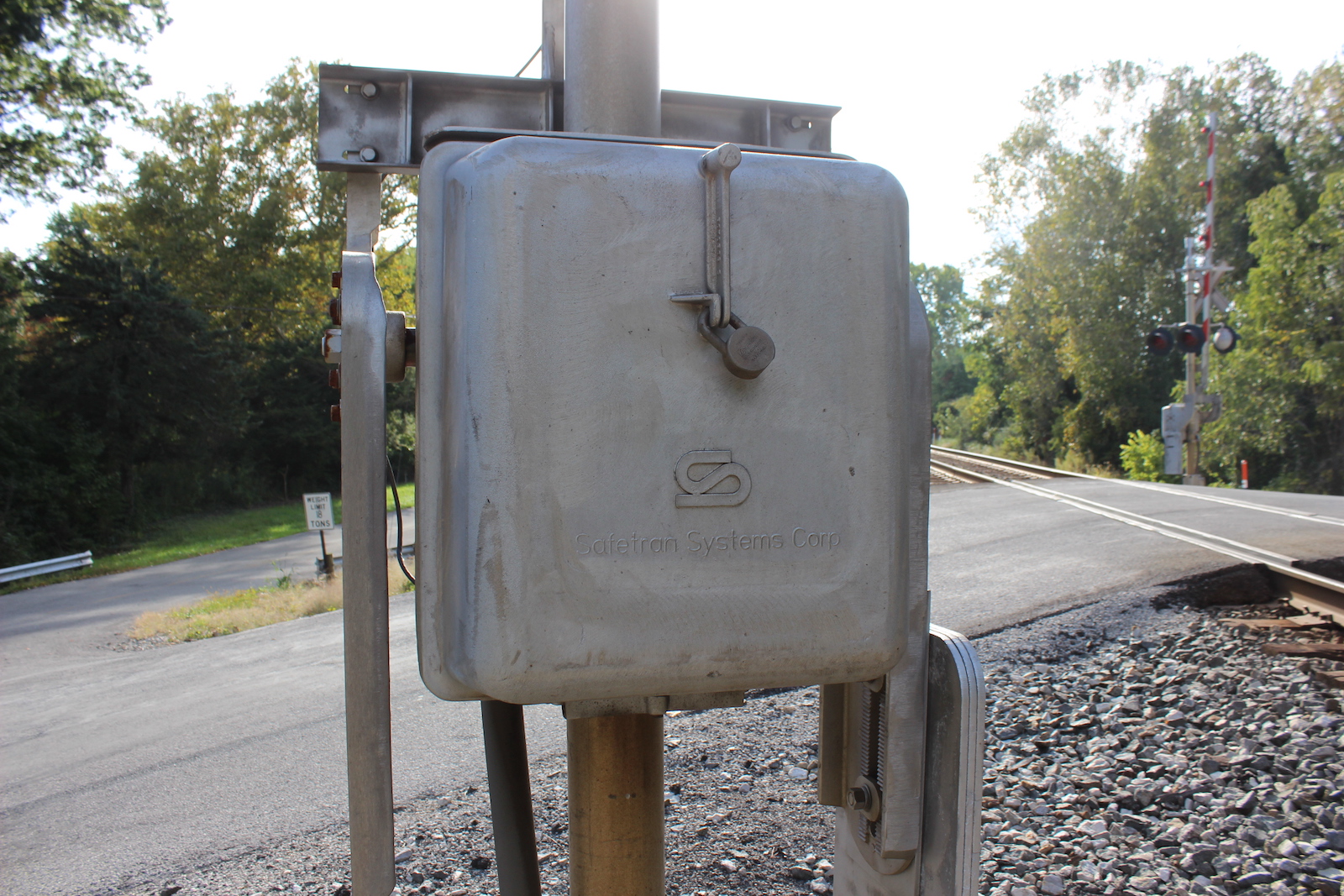

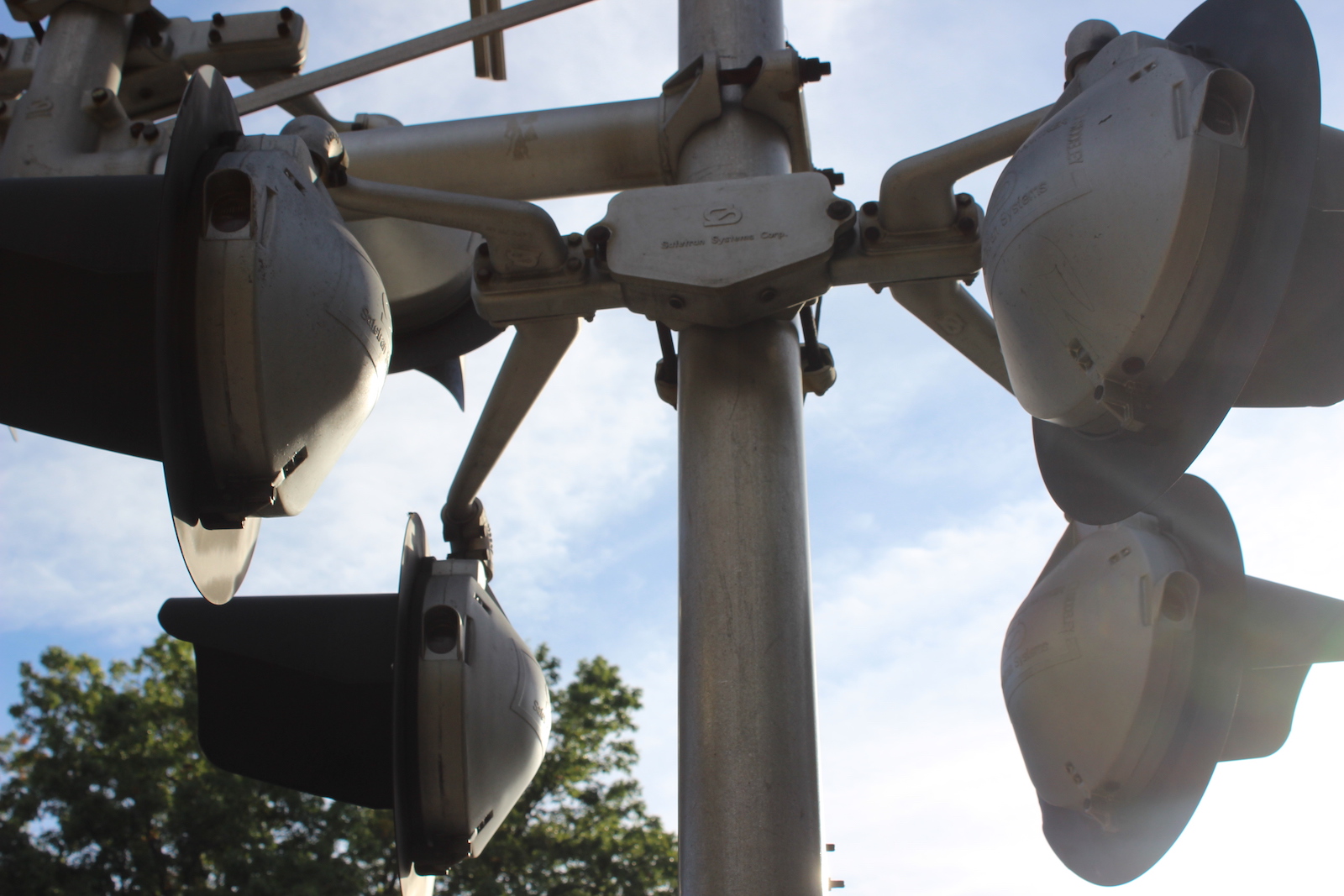

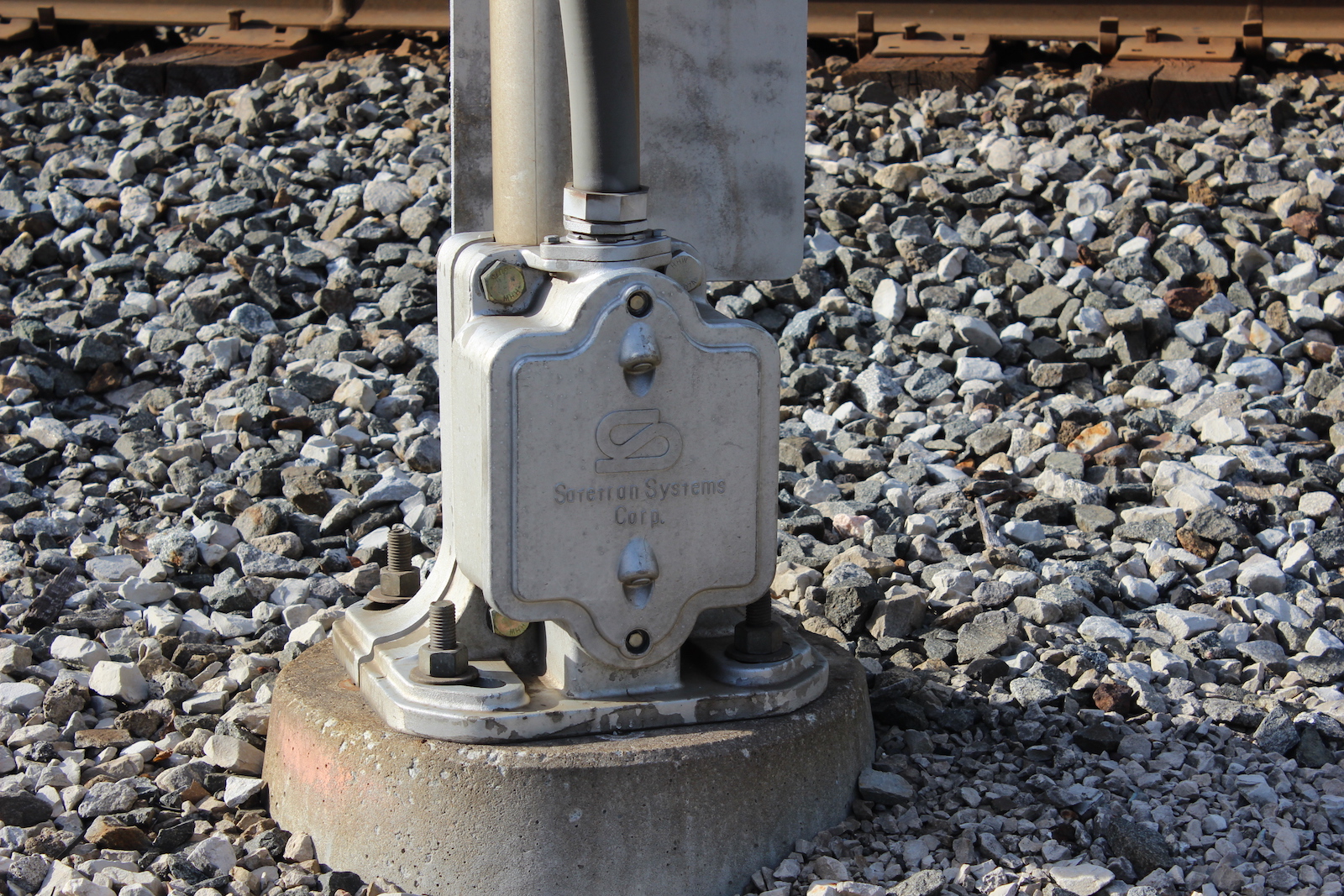

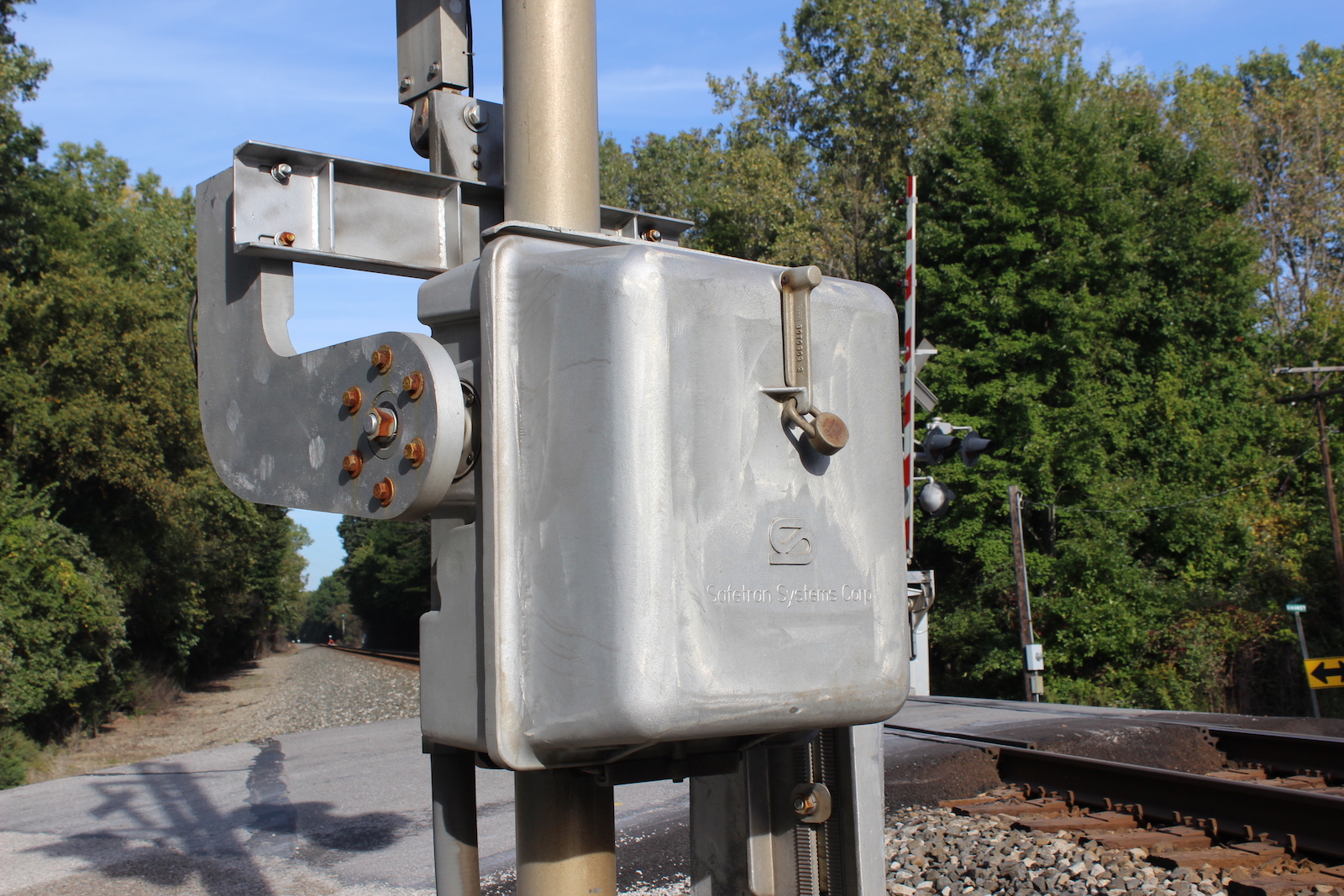

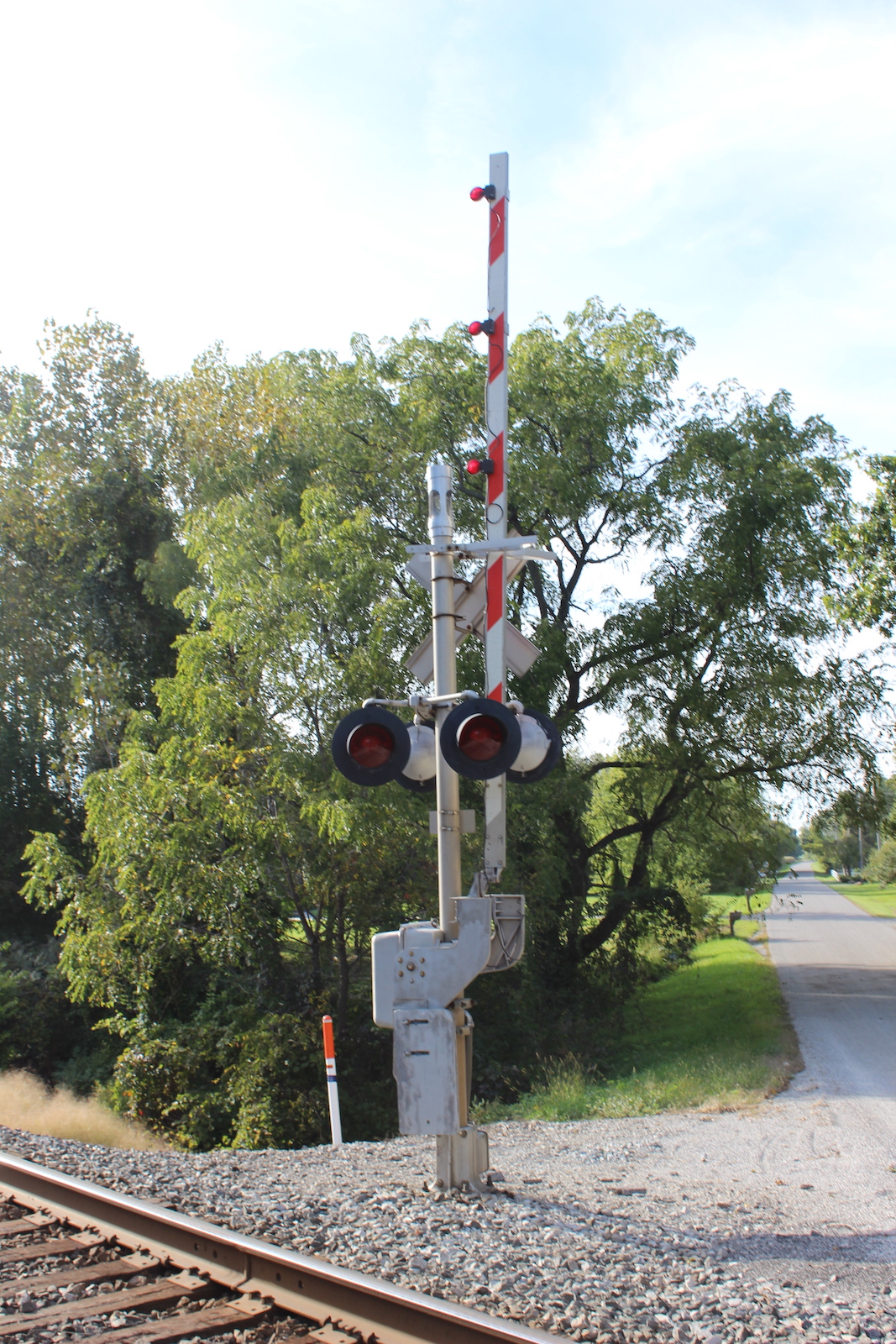

The western signal.
10 11 12
13 14 15
16

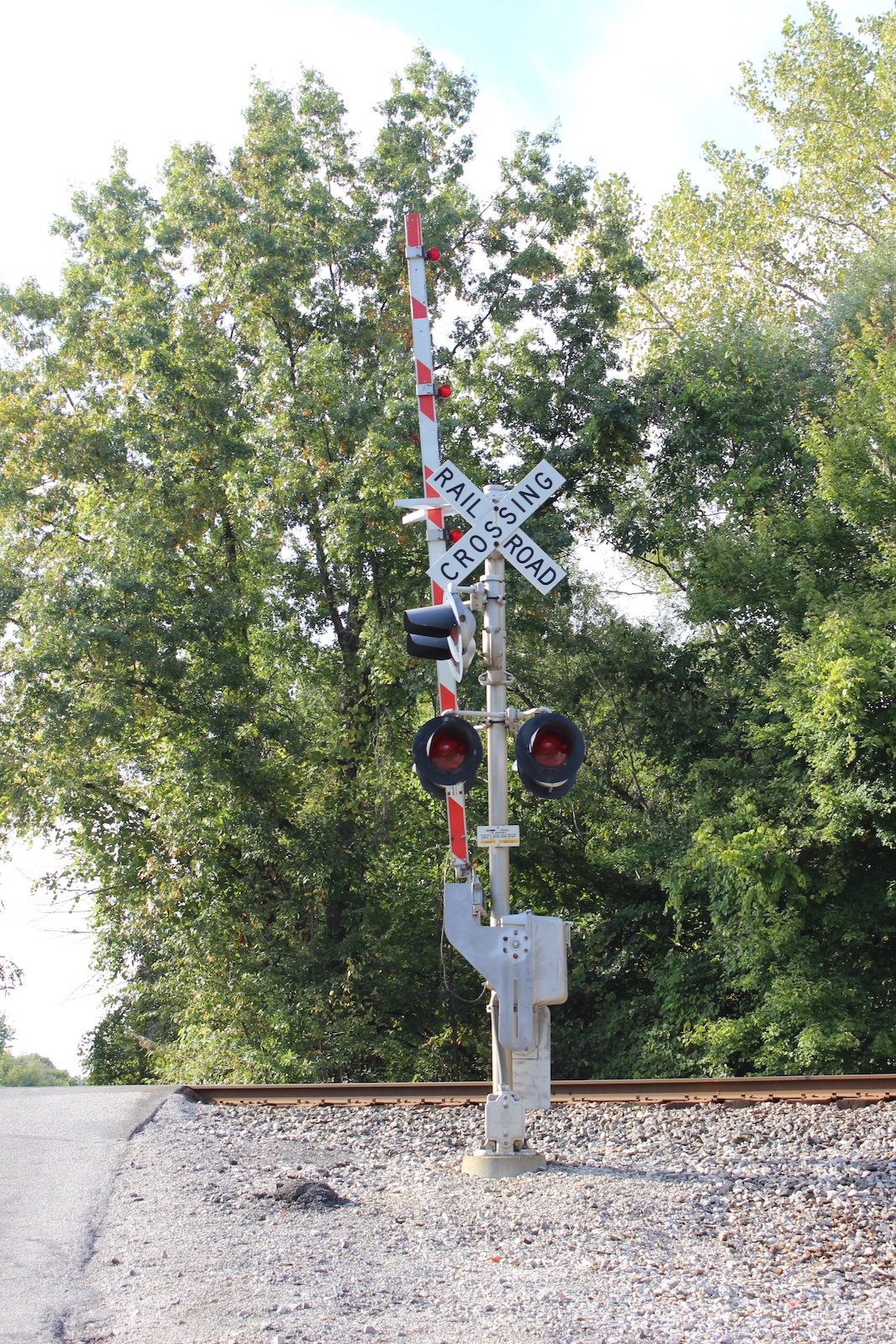

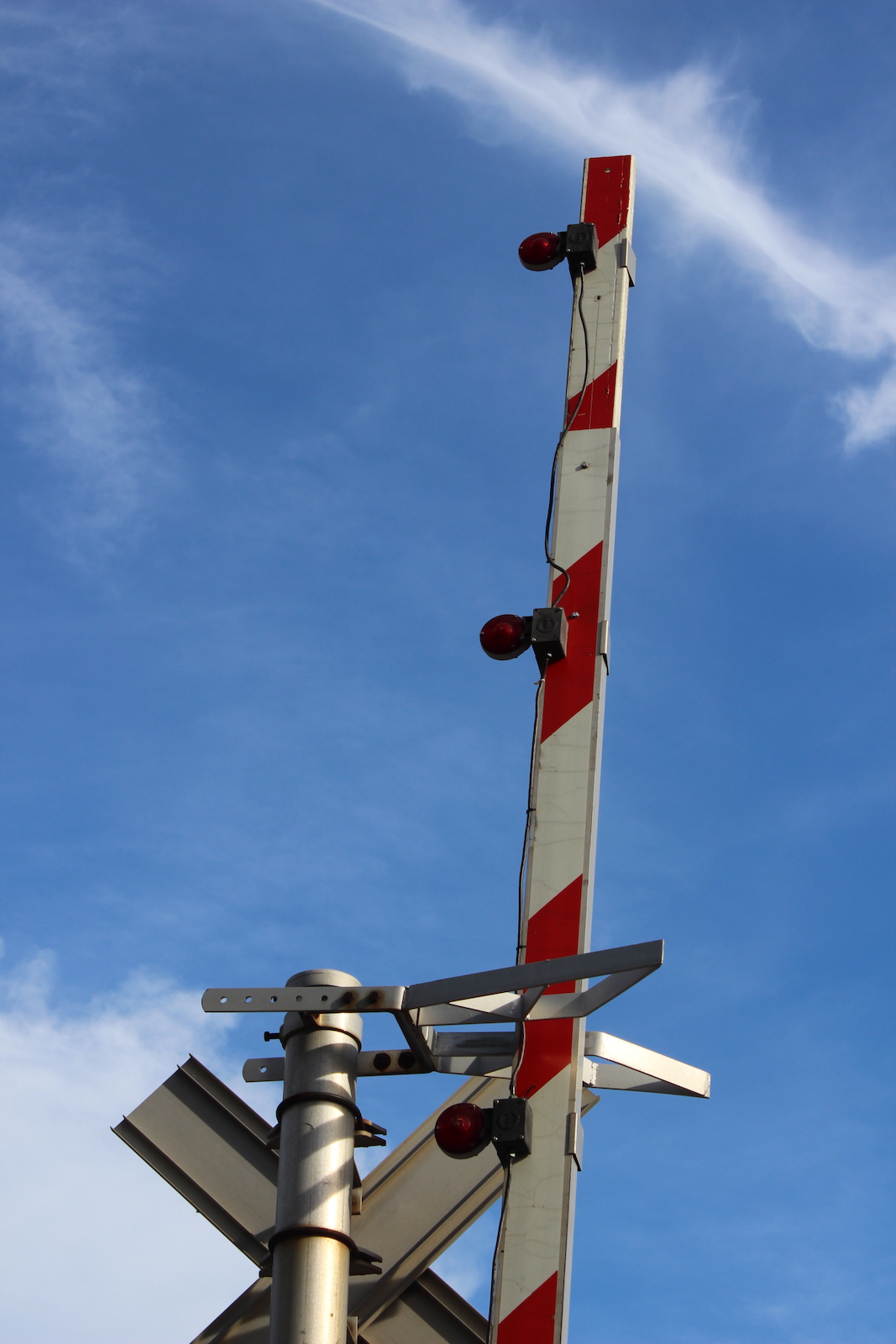

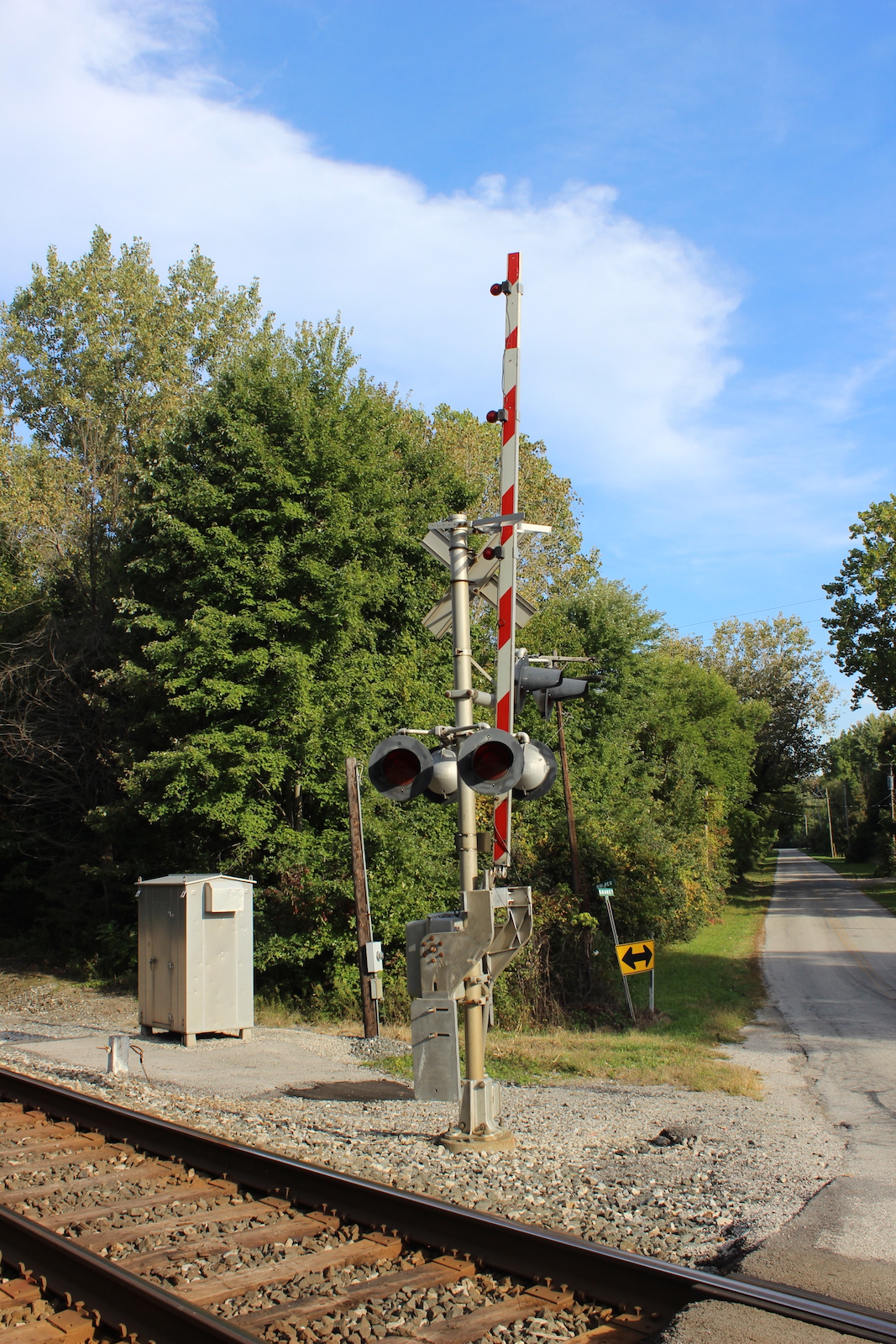

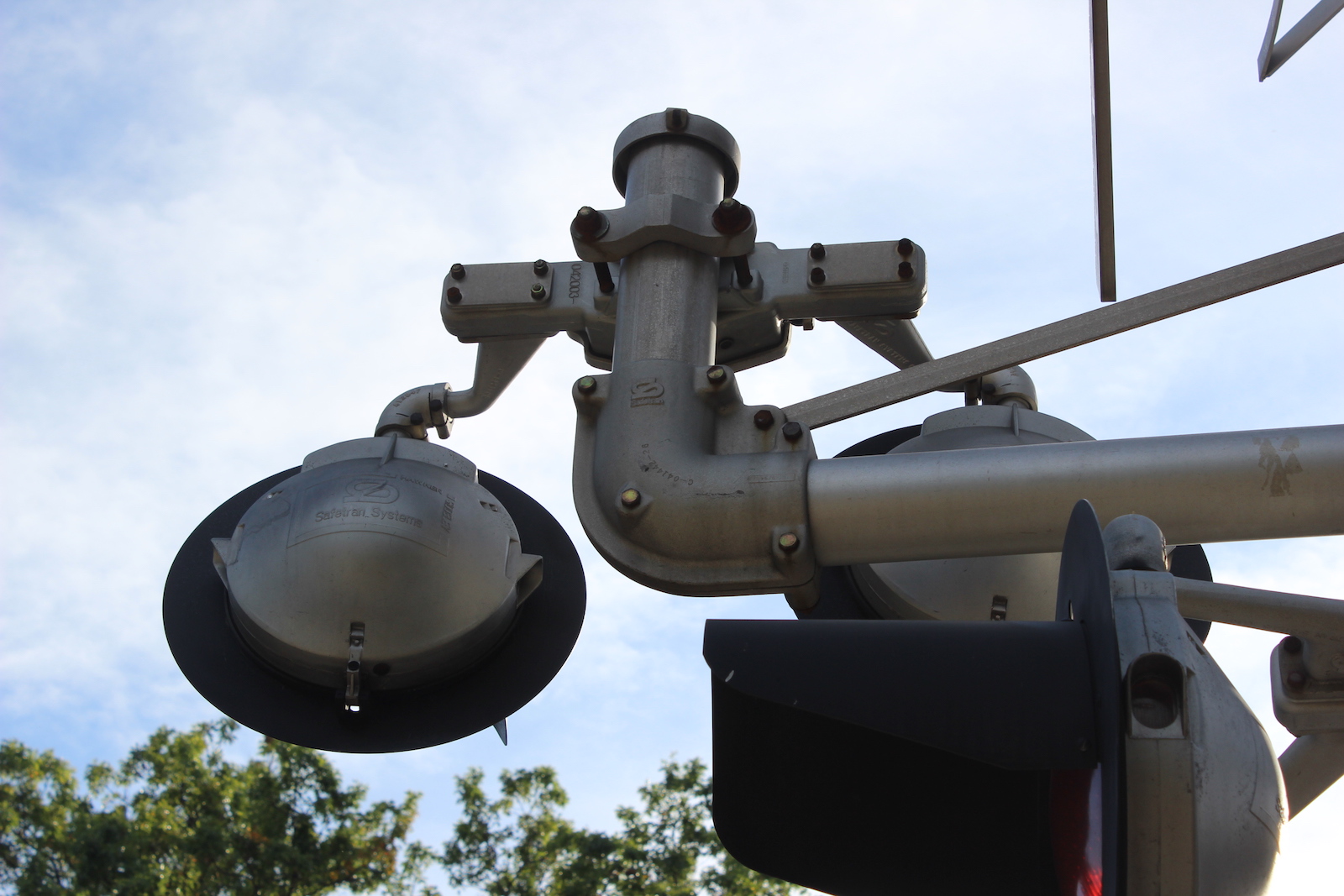

The eastern signal.
17 18 19 20

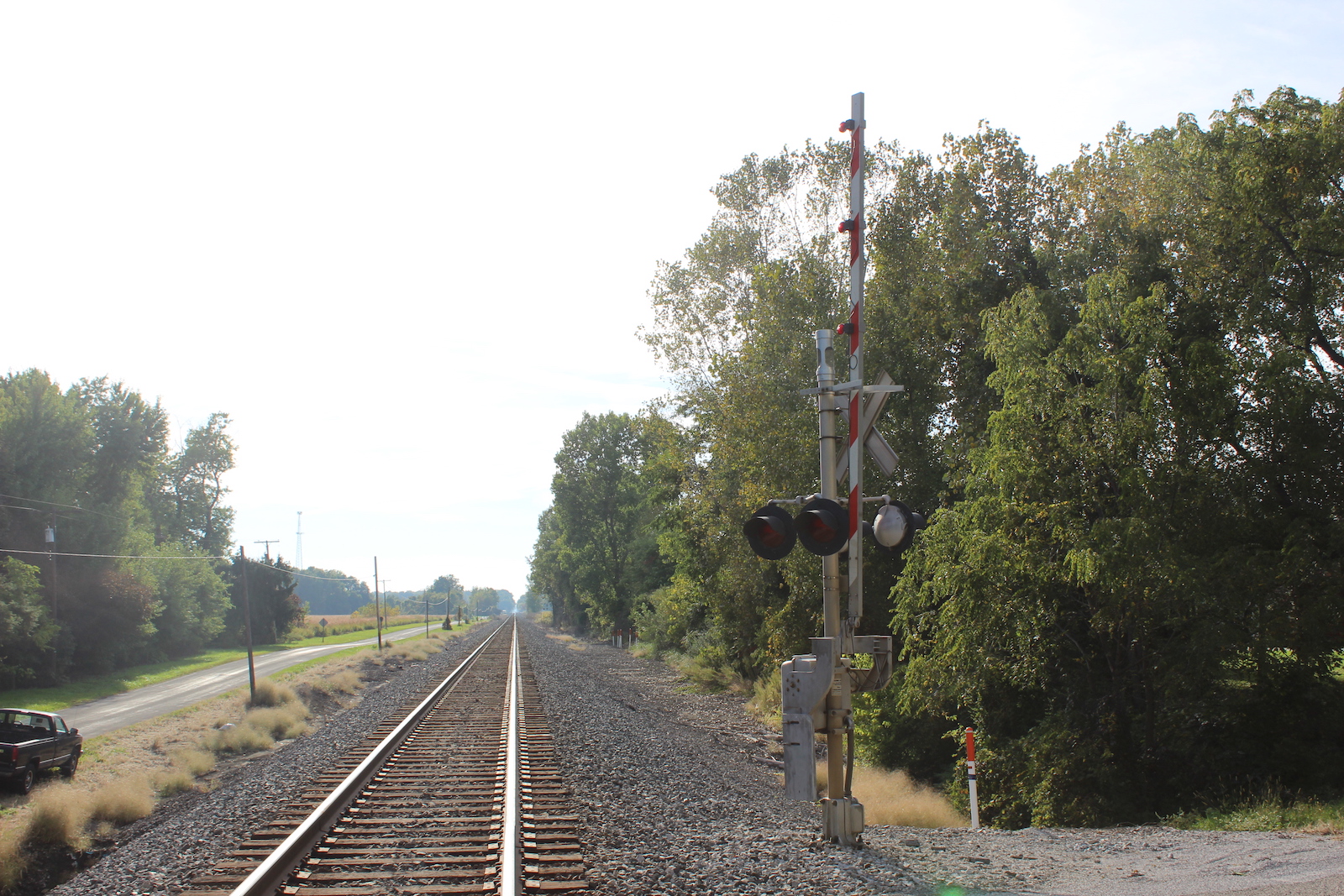

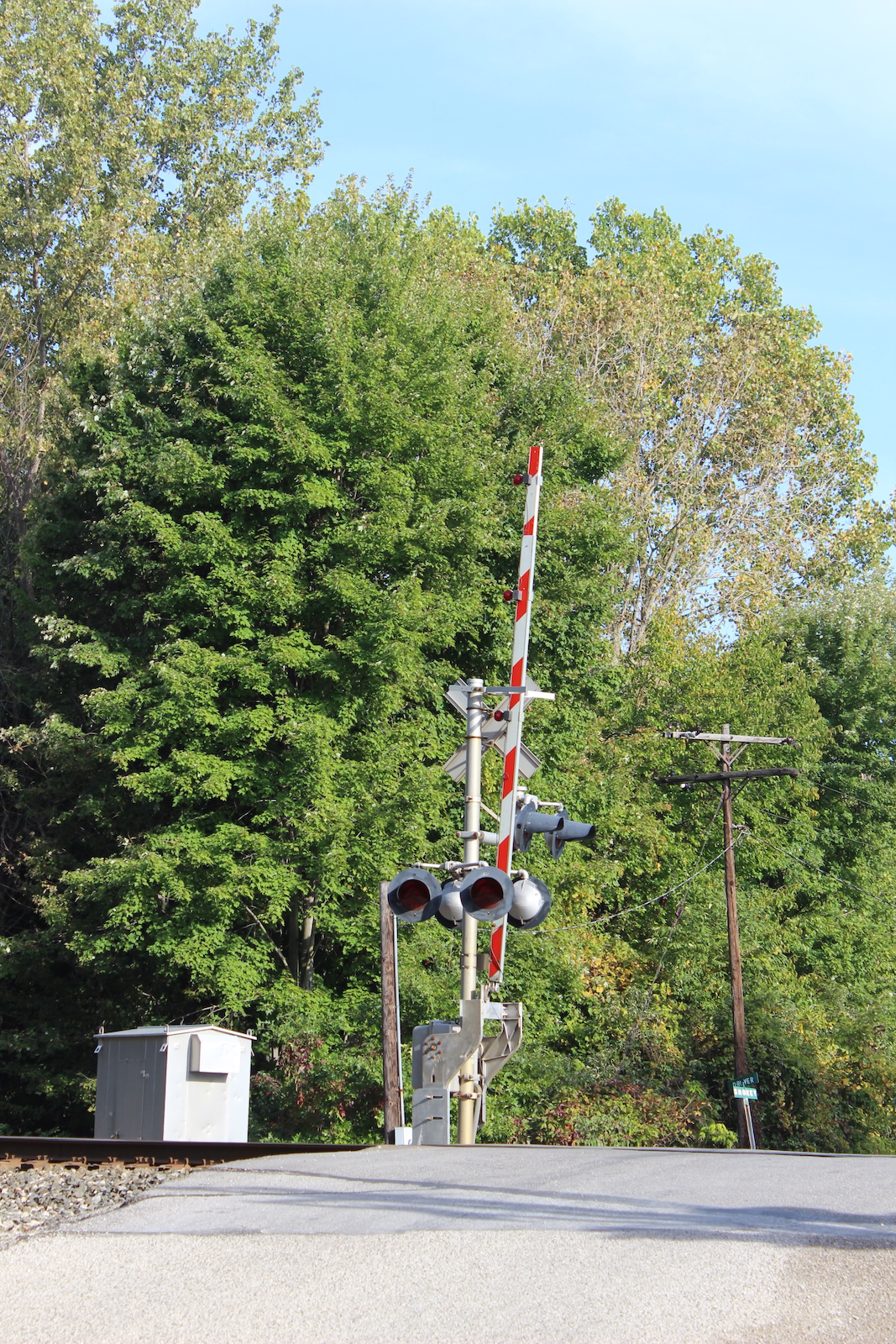

Additional side and rear views of both signals.
21 22 23 24

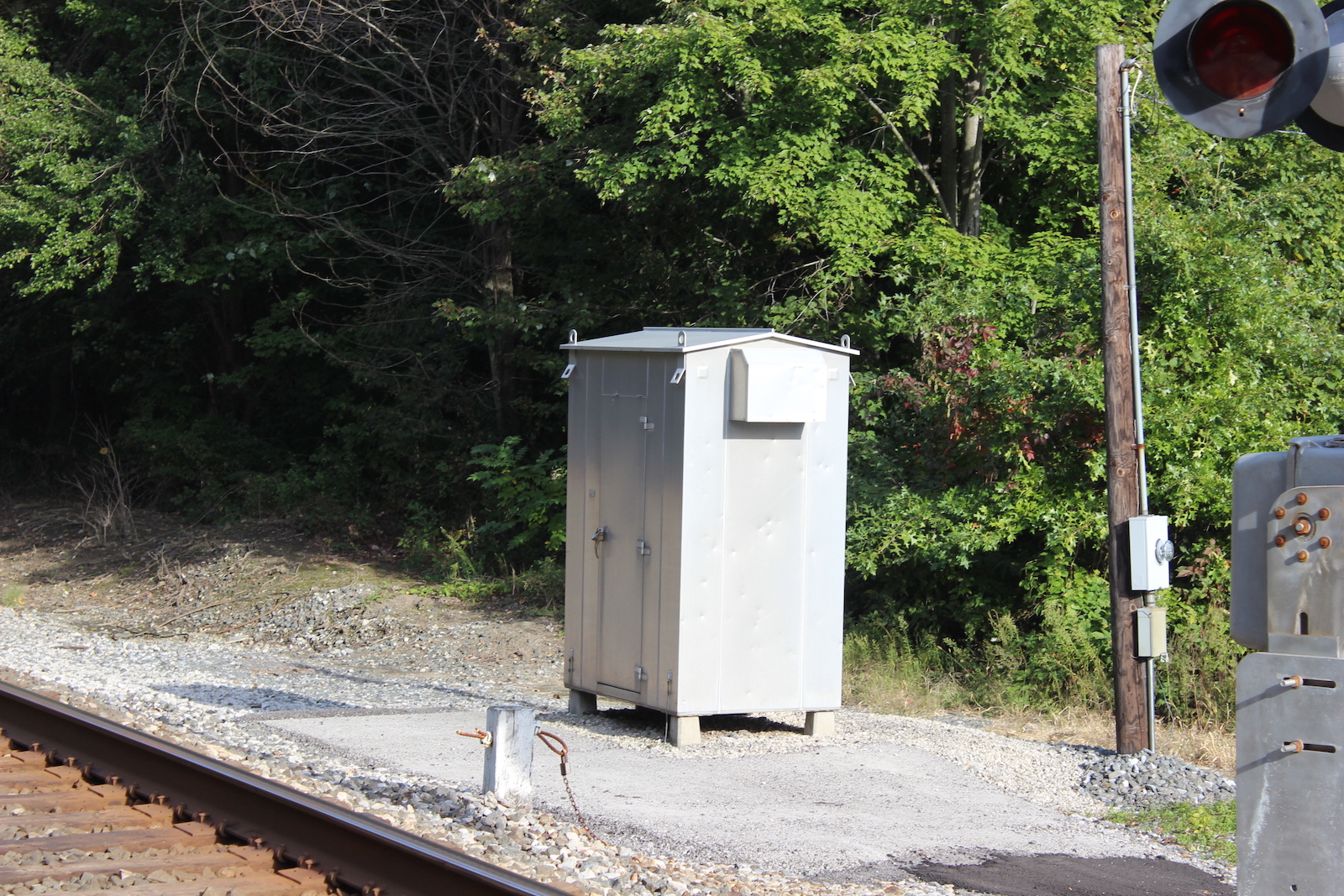

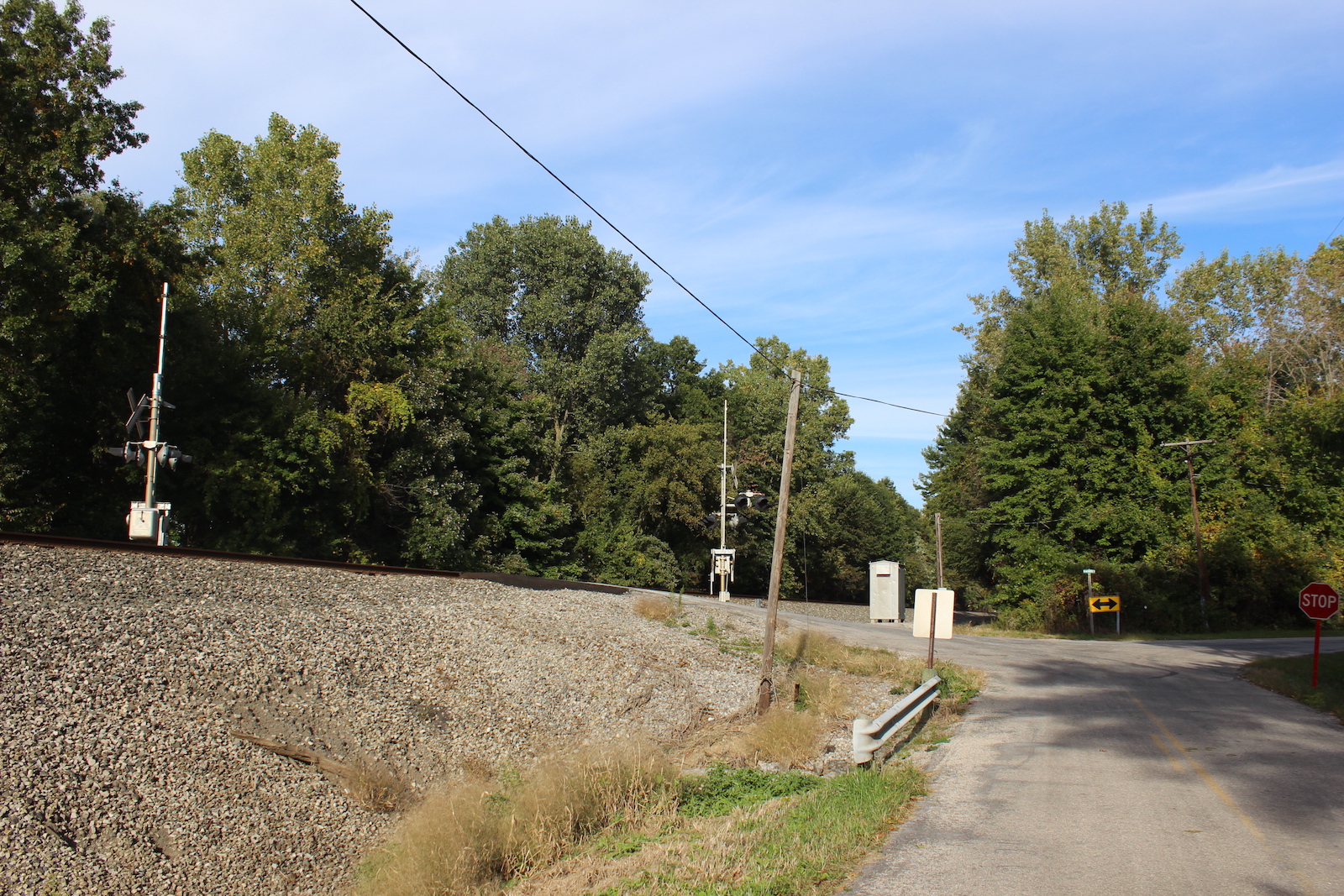

The relay bungalow in the southeast quadrant.

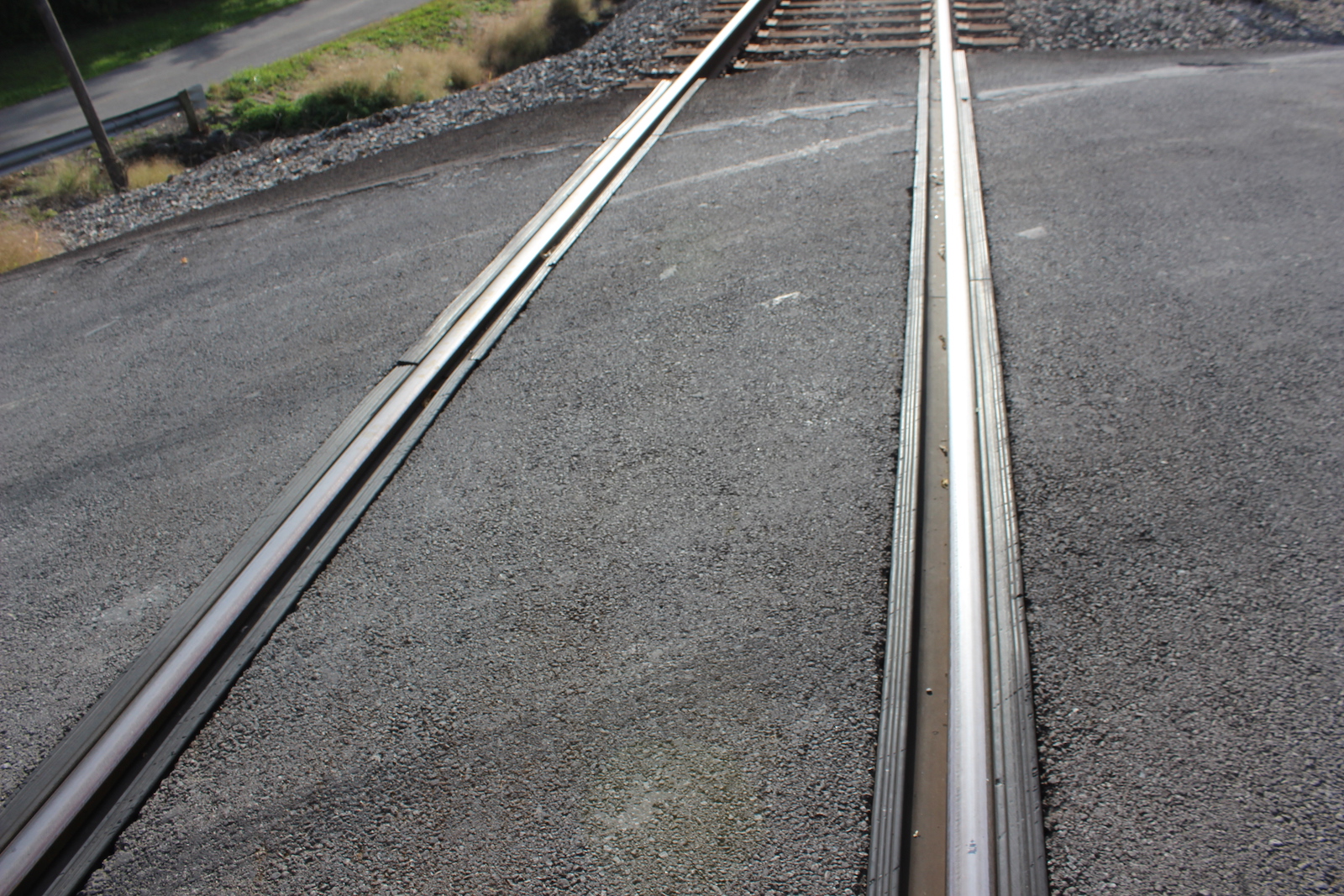

The grade is rubber and asphalt.

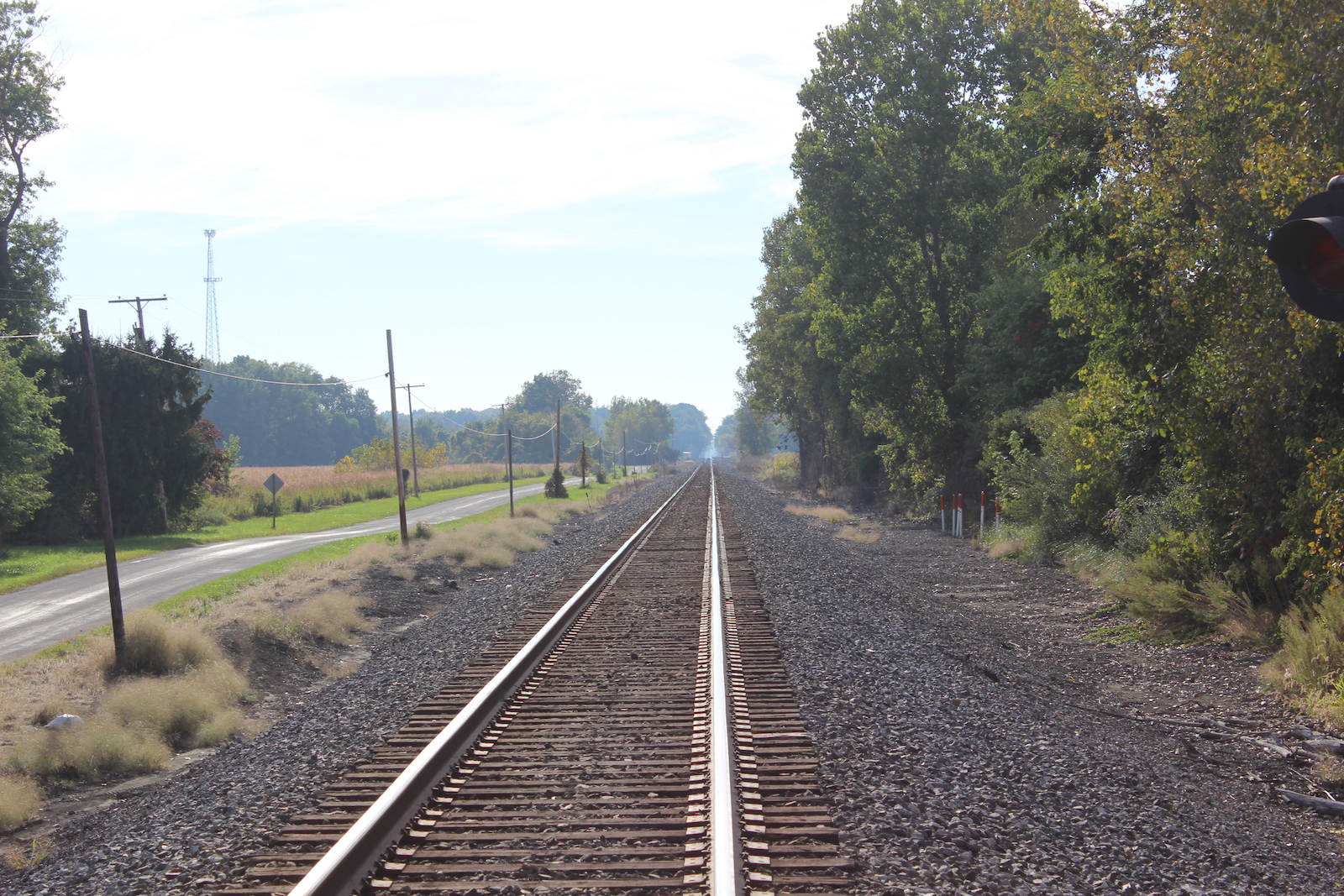

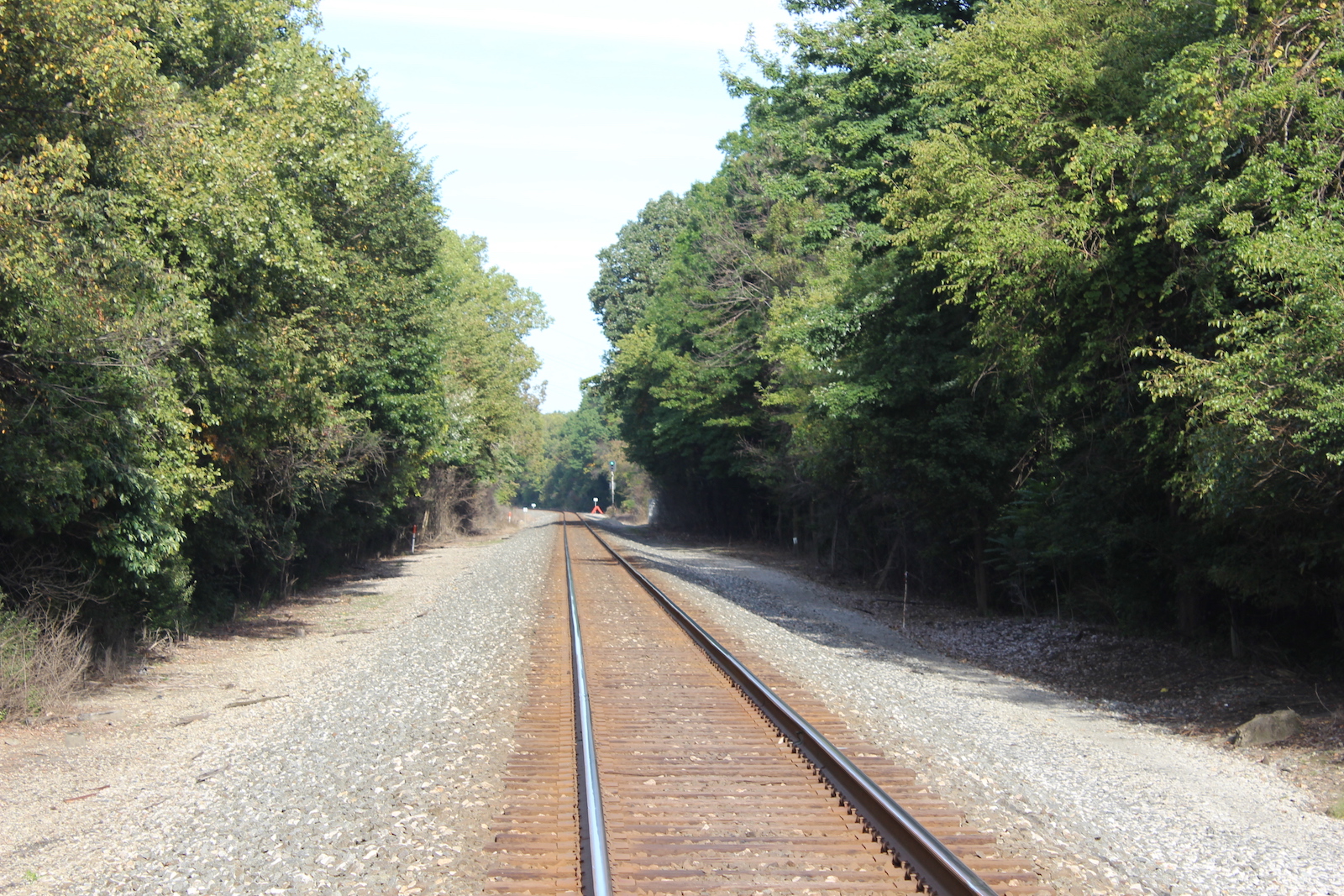

Track view facing east towards Darrow Rd. in Vermilion.
Track view facing west towards Ceylon Rd.
25 26 27 28

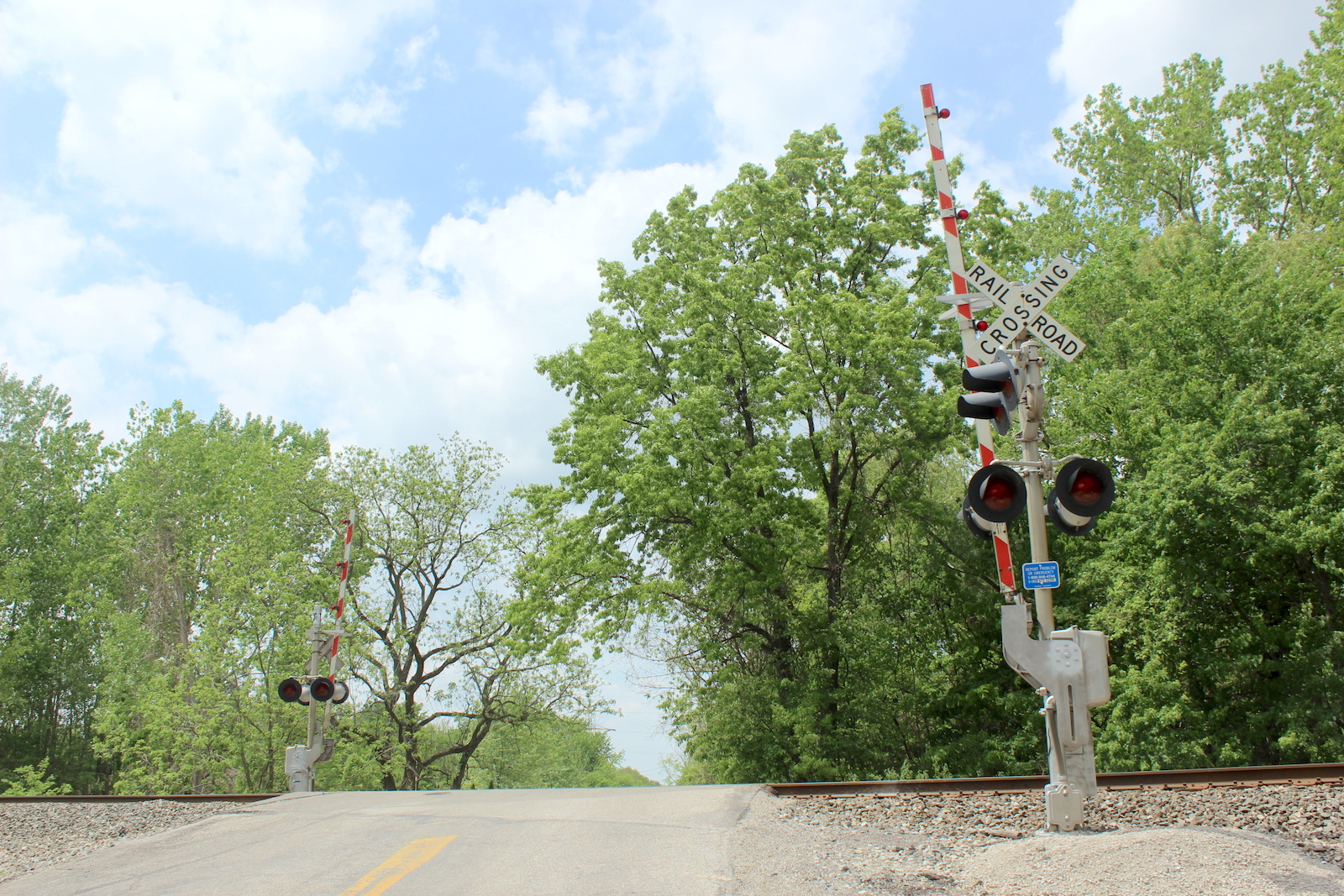

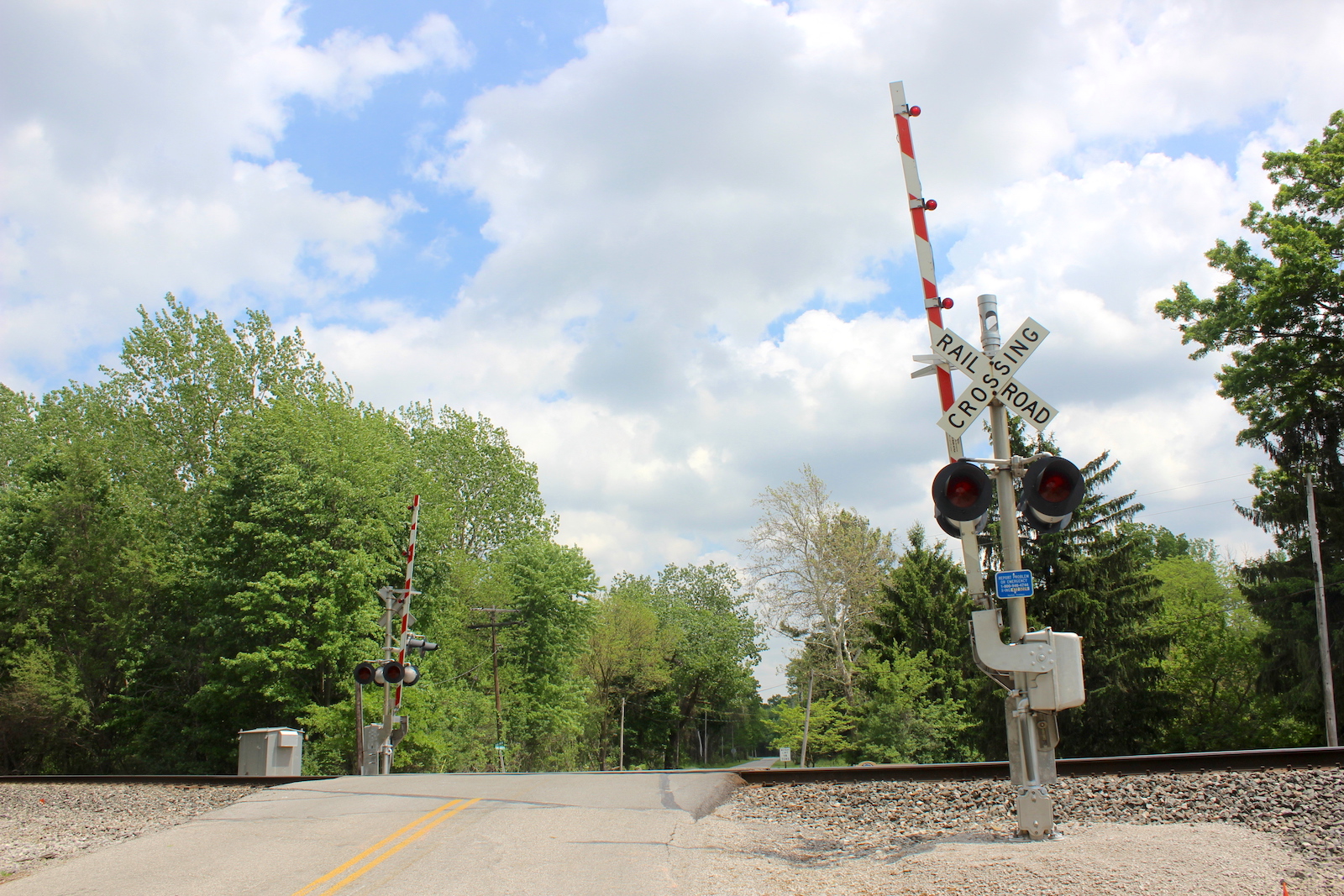

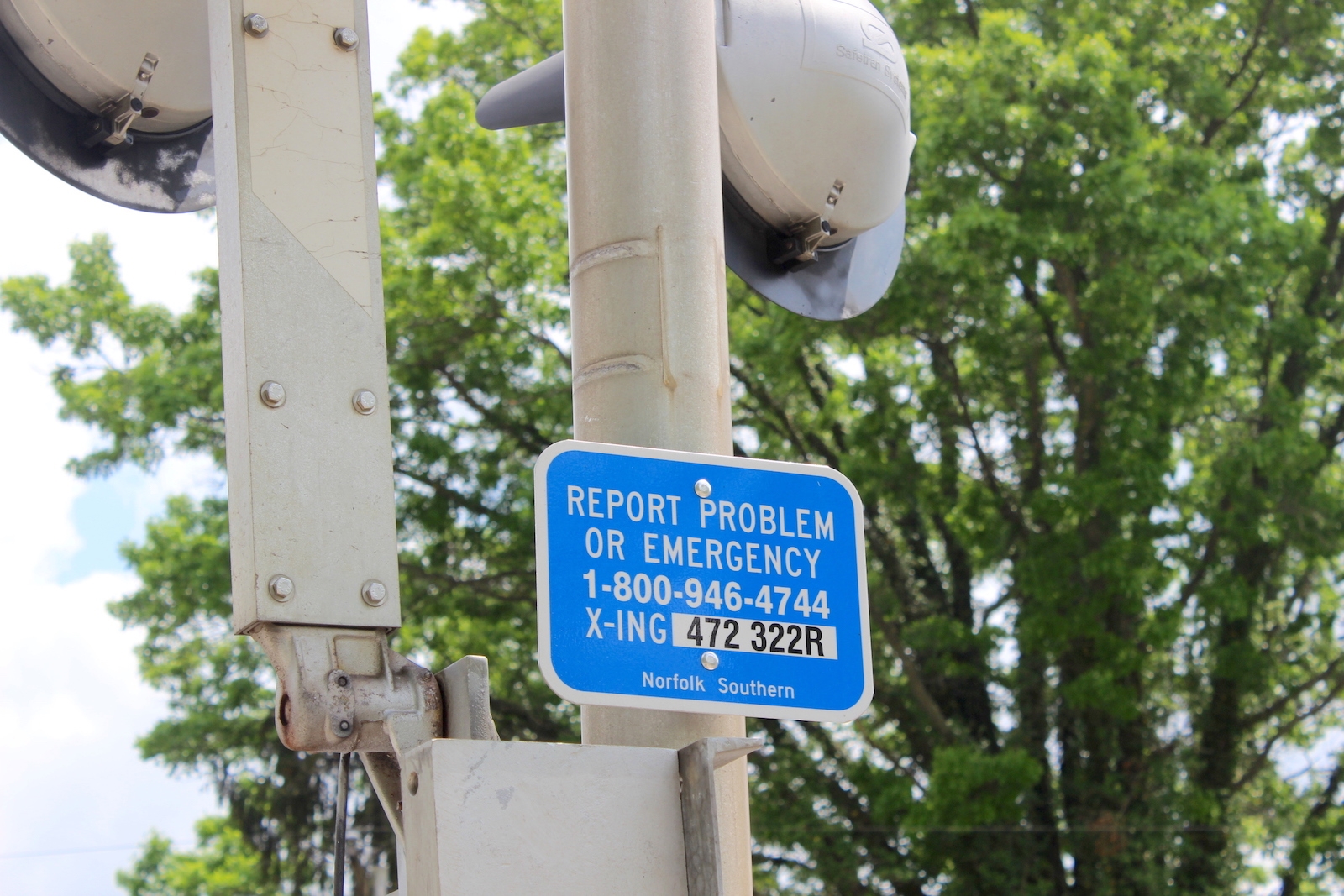

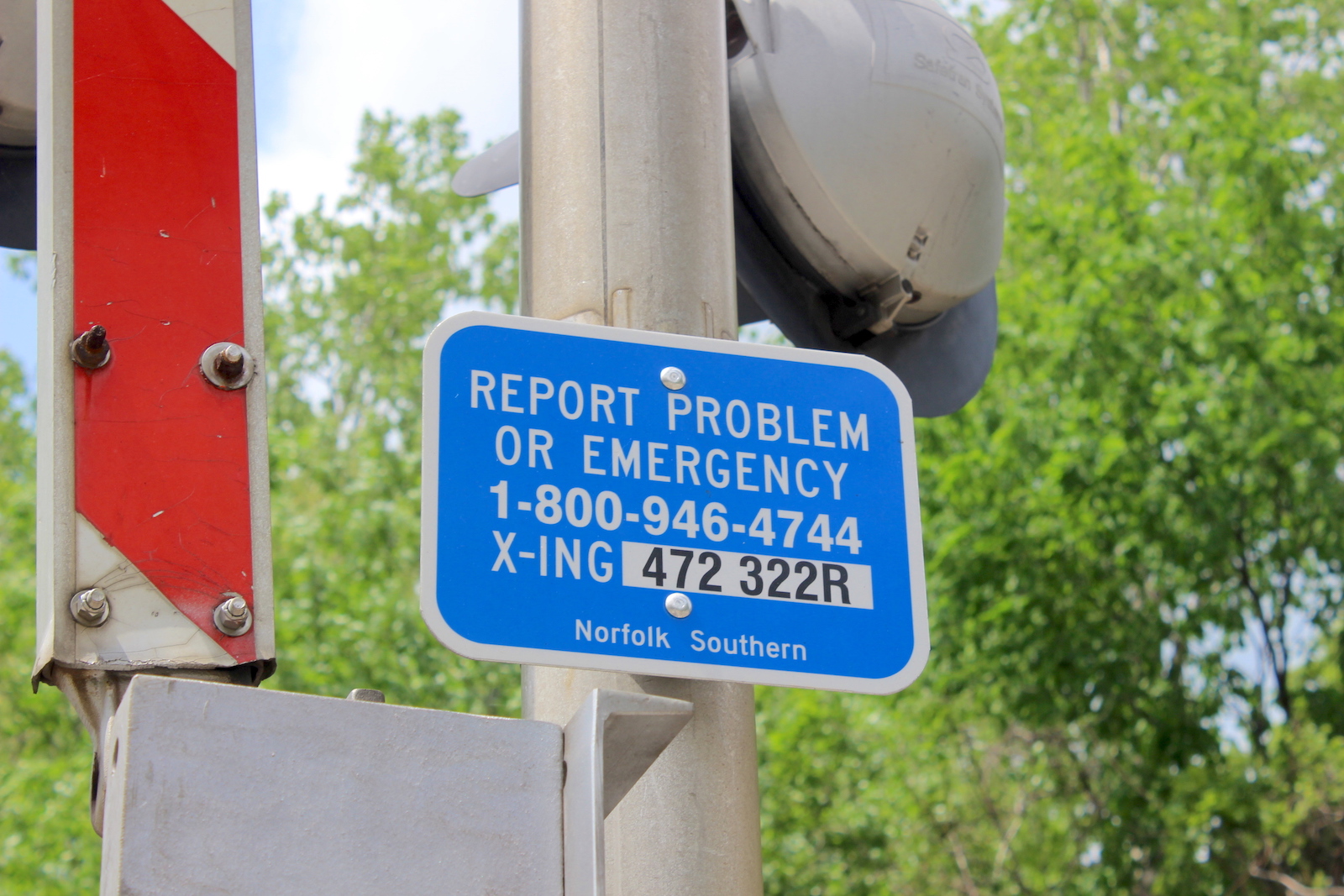

In May 2016, we see the white DOT signs were replaced with blue ones.  They were replaced in 2015, but I forgot to take pictures of them last year.  They were originally facing sideways.
