2 - 12"x24" Harmon w/ Harmon Fading LEDs
1 - 12"x24" Safetran w/ GE Uniform Look LED
1 - 12"x20" Safetran w/ GE Uniform Look LED
4 - 12"x24" Harmon w/ Harmon Fading LEDs
Junction Box:
GE
GE
Gate Lights:
4" RECO LEDs
4" RECO LEDs
Gate Mechanism:

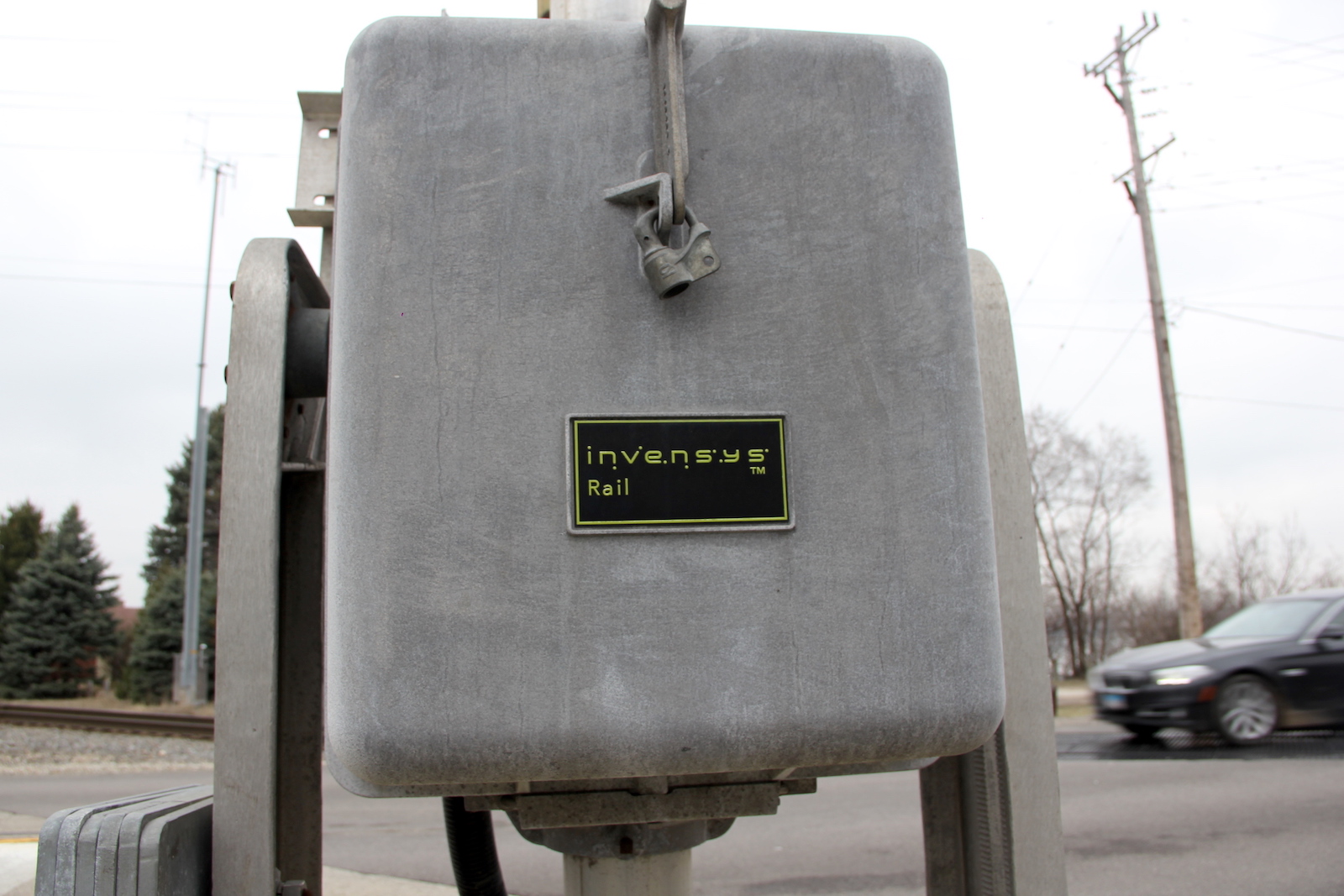

Invensys Rail w/ WCH Gate Saver
US&S Model 95 Style 2 w/ Standard Mount
Gate Striping:
Vertical Striping
Diagonal Striping
Pictures 1-36 and the 1st video were taken on January 19, 2015.
Pictures 37-52 and the 2nd video were taken on April 5, 2019.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the CN Leithton Sub, formerly the EJ&E
Western Sub. UP and BNSF have trackage rights on this line as
well.
The western signal appears to be a
newer signal, but reusing a lot of parts (lights, bell, and most likely
gate) from the previous signal, which was a lot like the eastern
signal. They both had US&S E-Bells when installed, but CN
replaced one and silenced the other.
These signals replaced a pair of gateless signals in 2006 or 2007.
1
2

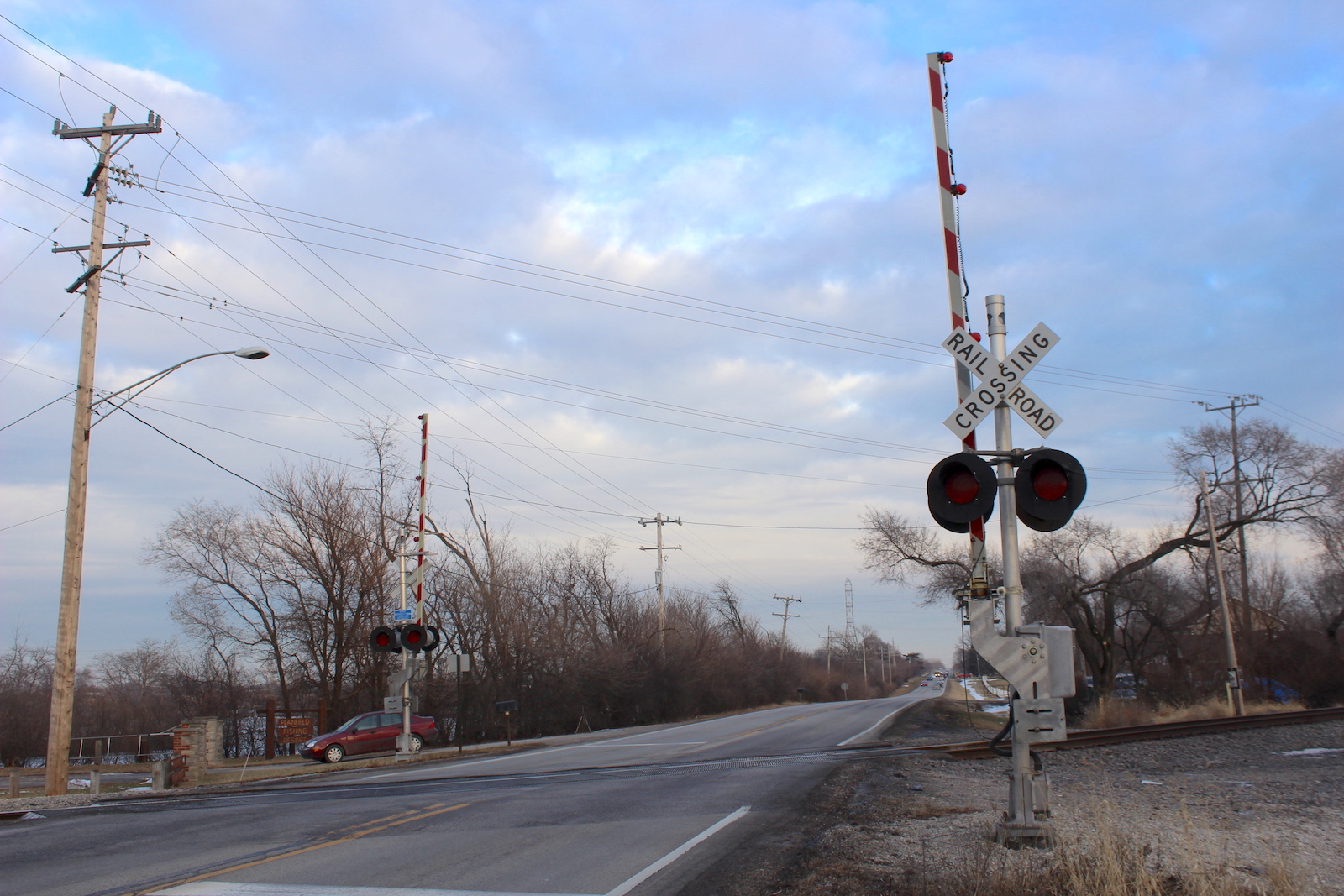

Overview of 2 gated signals facing west.
Overview facing east.
3
4
5
6
7
8
9
10
11

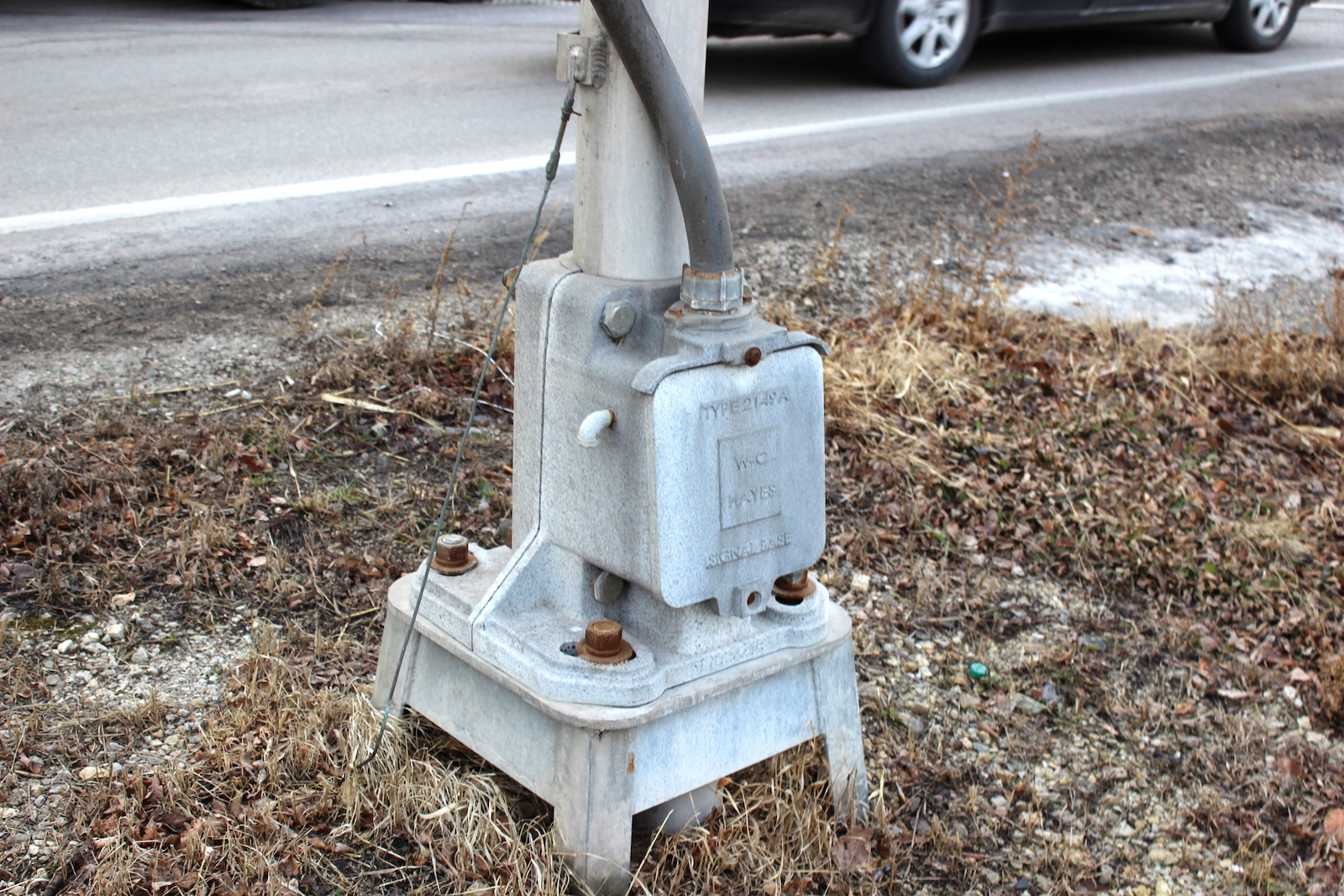

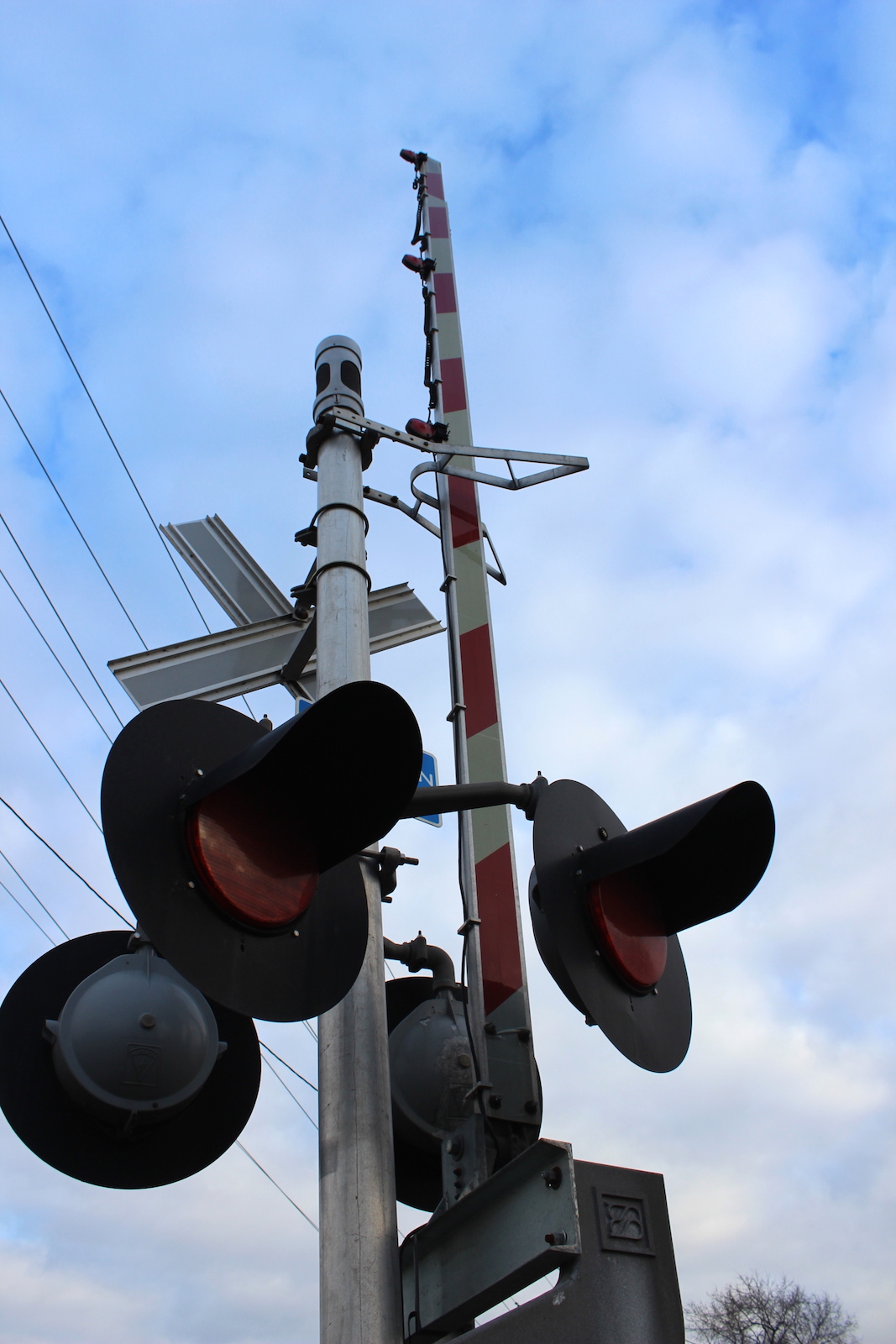

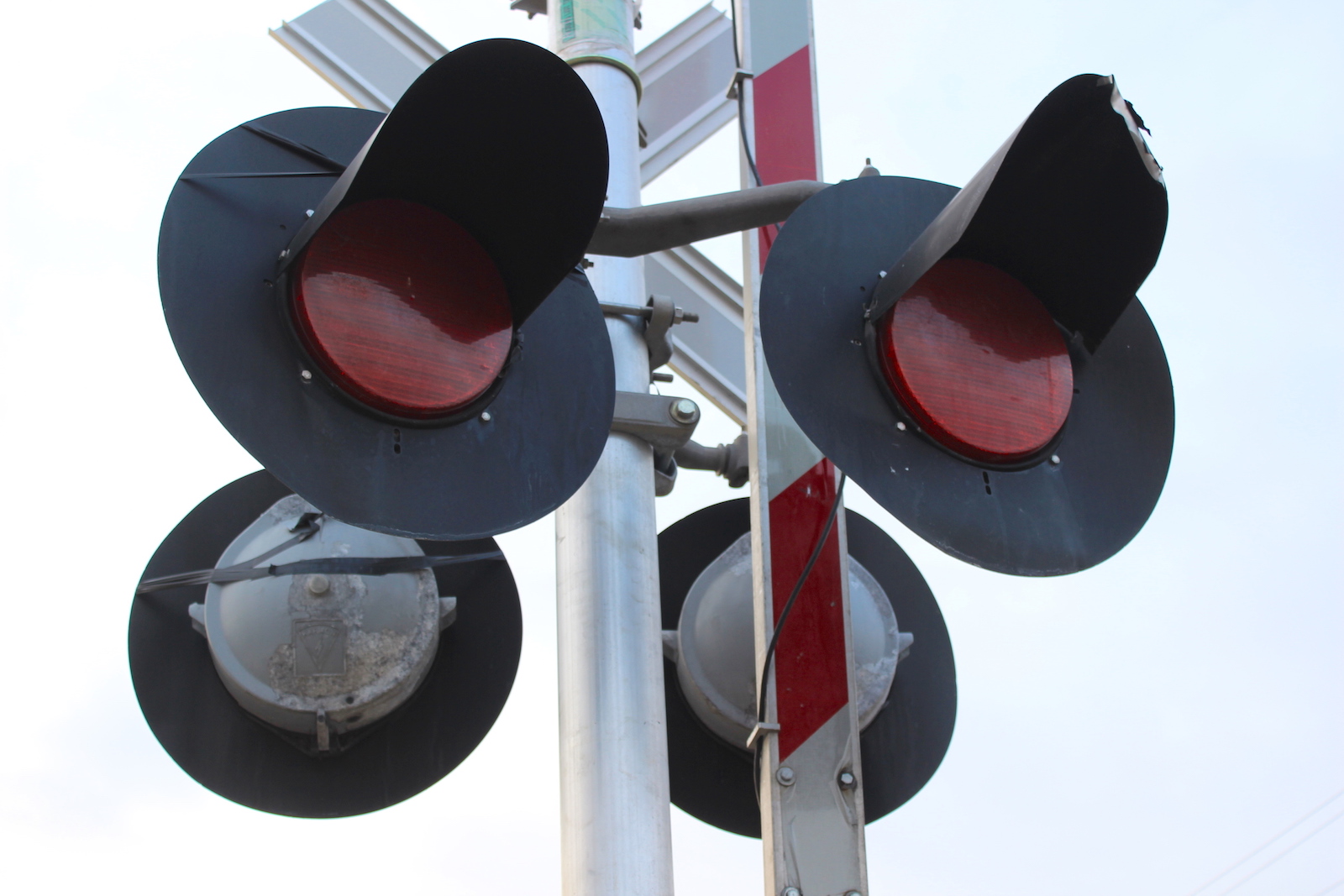

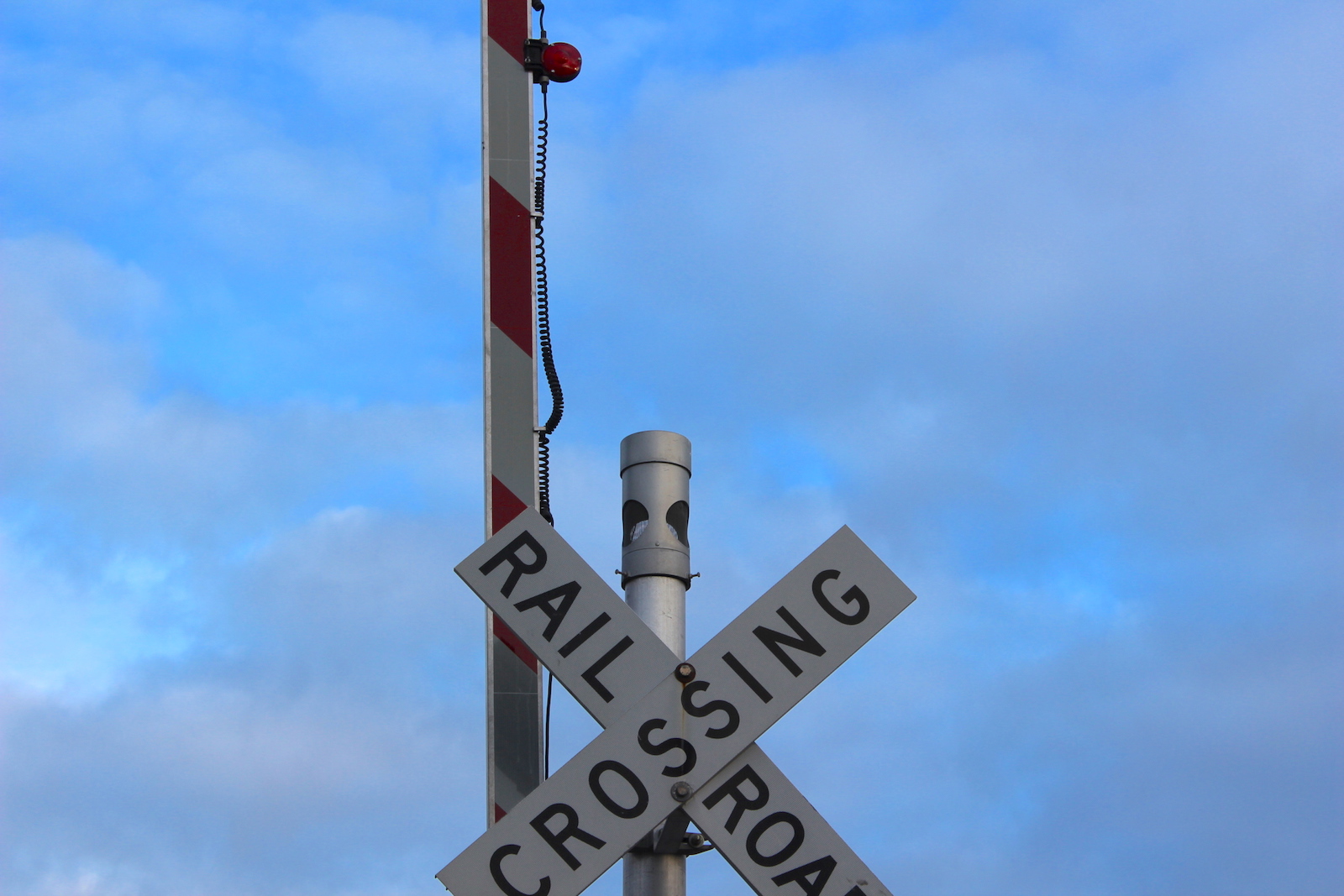

The eastern signal.
12
13
14
15
16
17
18
19
20

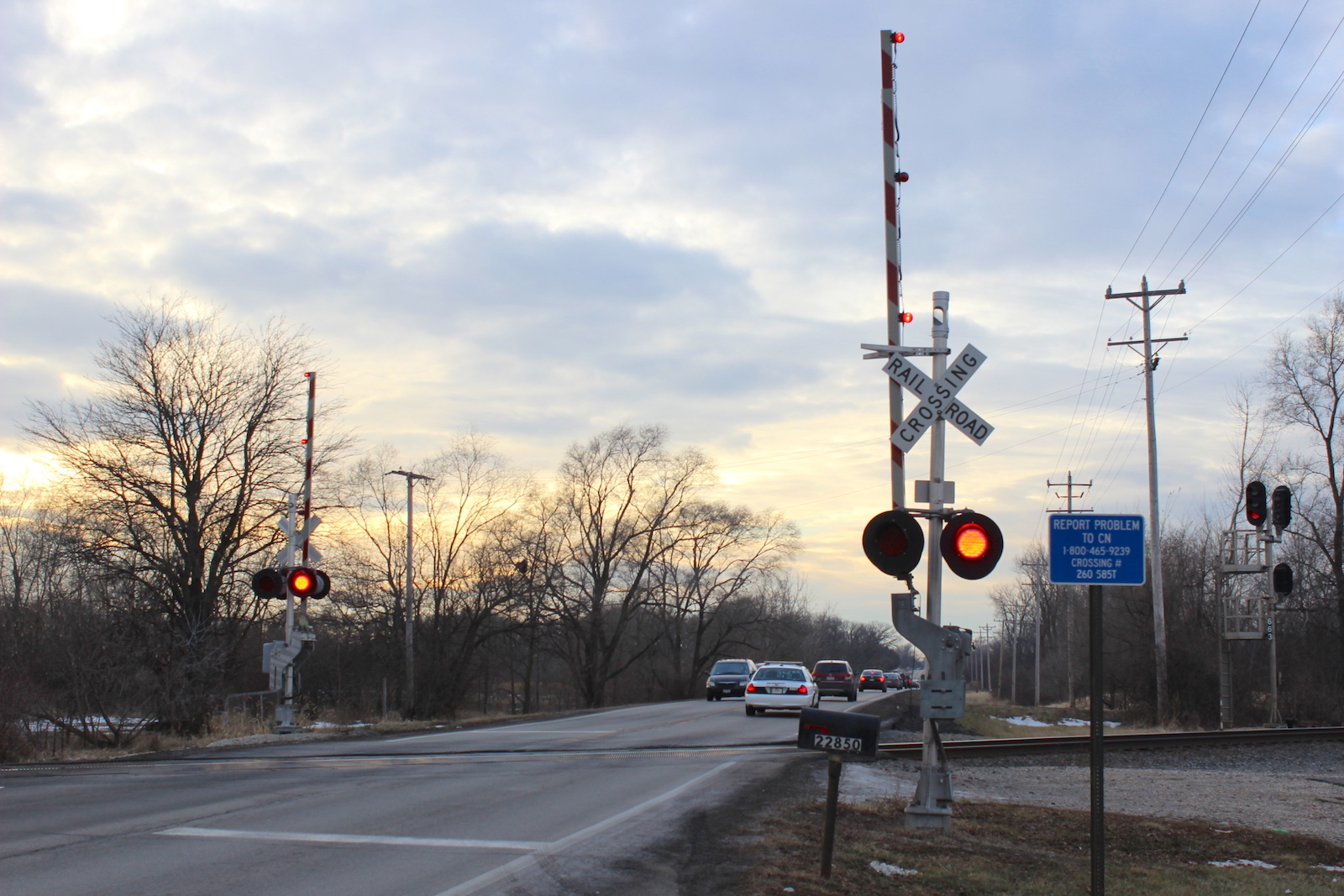

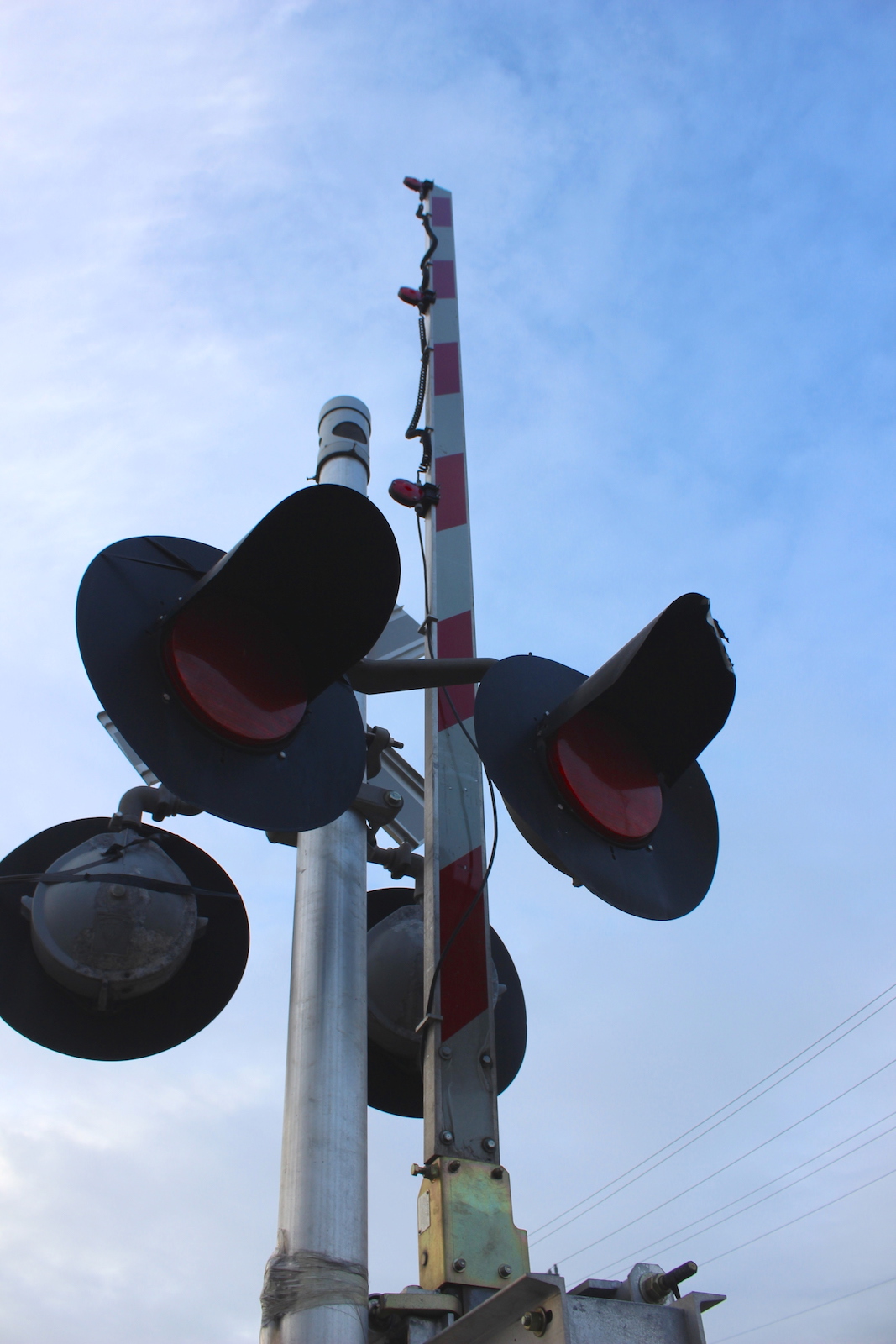

The western signal.
21
22
23
24

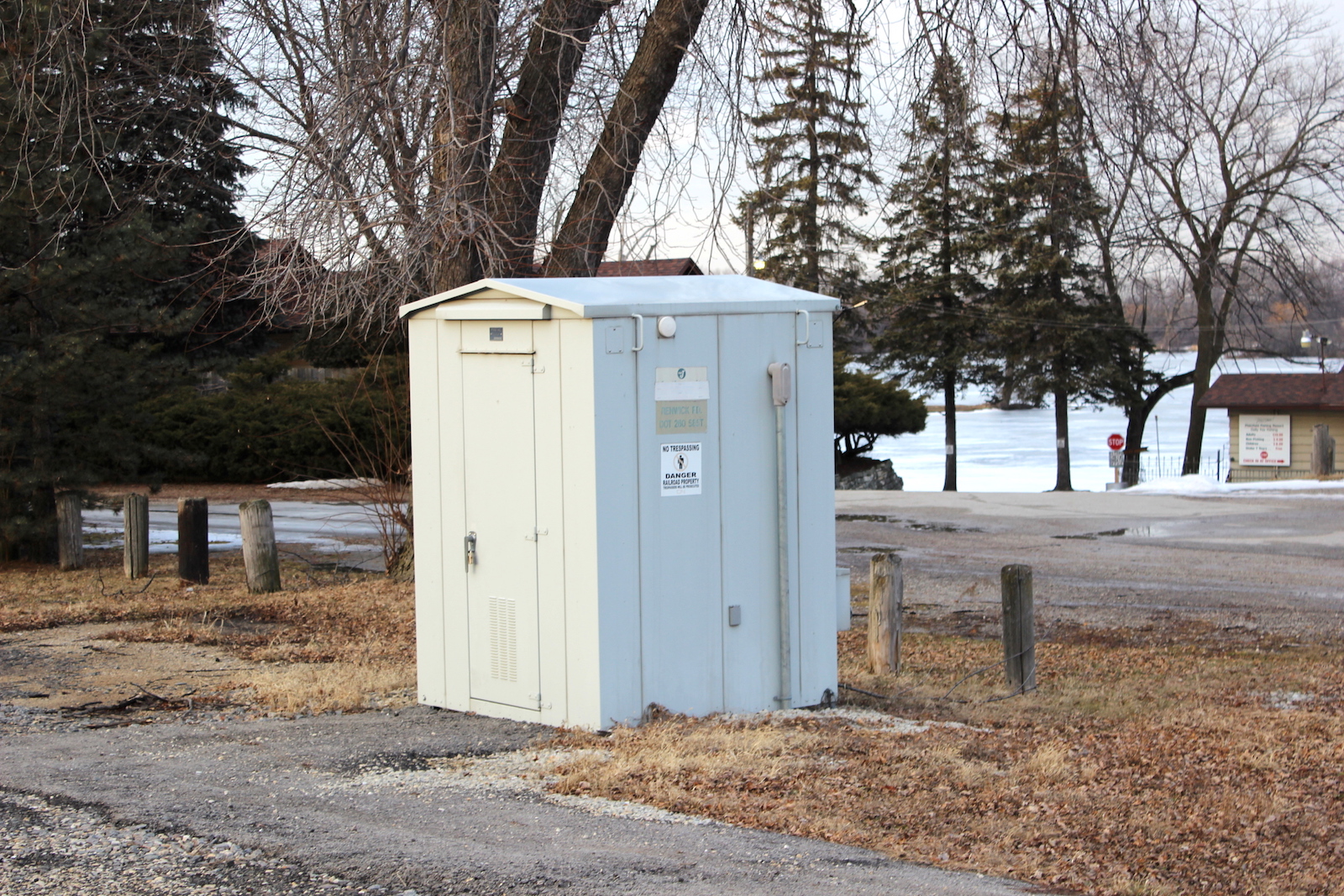

The relay bungalow in the northeast quadrant.
The grade is all rubber.
Track view facing east towards Essington Rd. in Crest Hill.

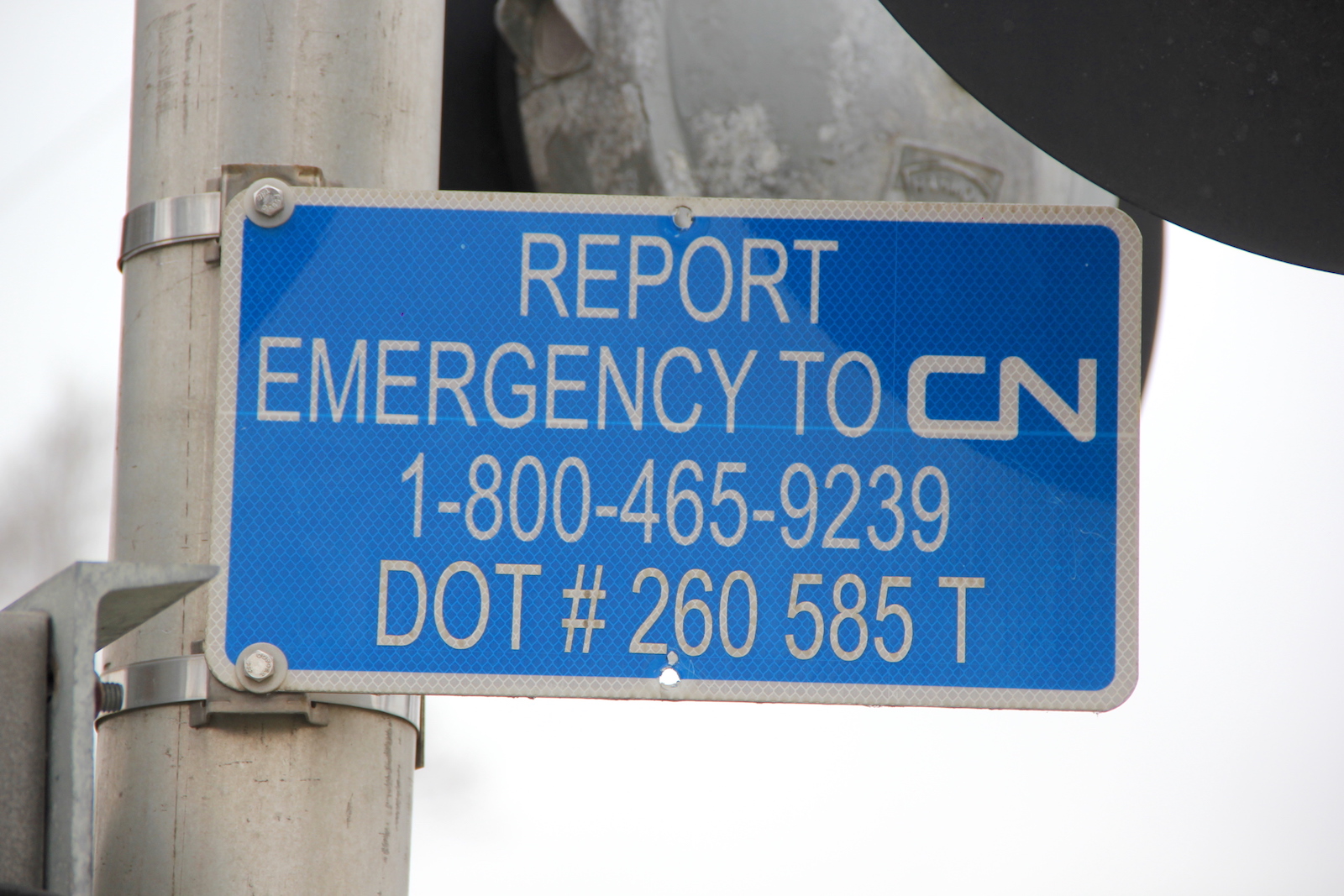

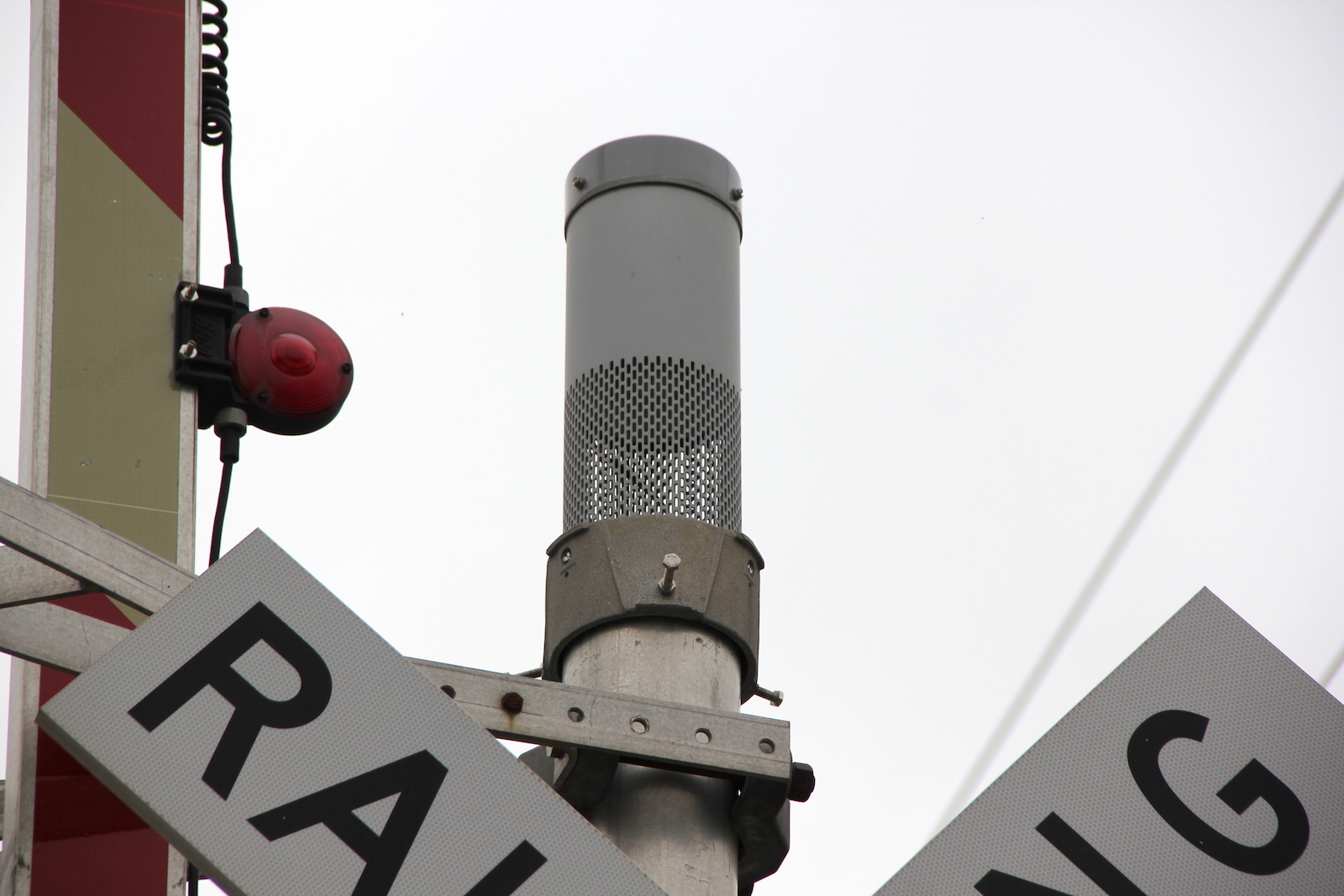

By Apri 2019, both the GS and US&S
bells were replaced by Siemens E-Bells, two of the lights on the
western signal were replaced, and the western signal's gate was
restriped. Also, the eastern signal's DOT tag was turned to face
forward, and the western signal had a DOT tag added, even though no
number is listed.
37
38

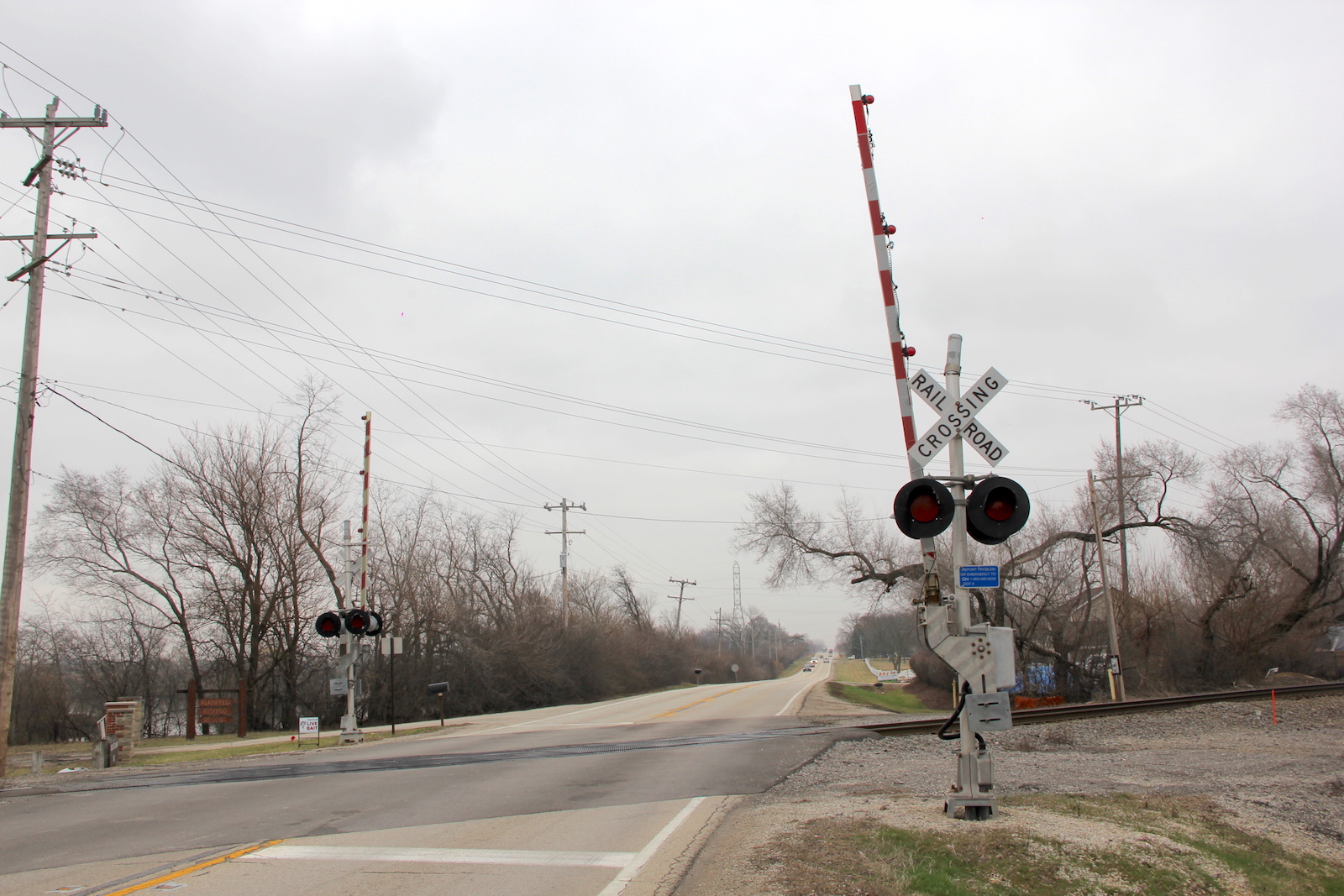

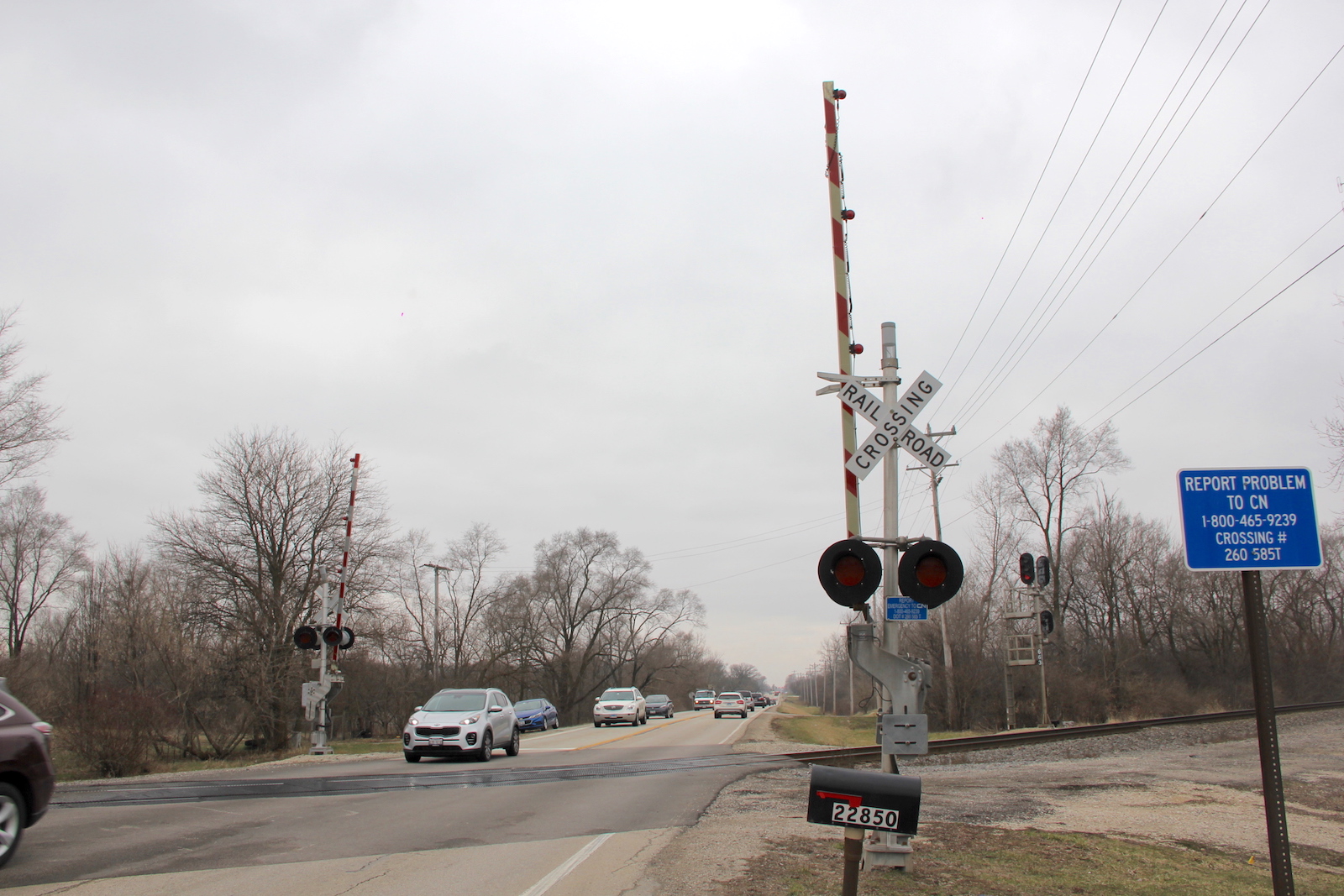

Overview facing west.
Overview looking east.
39
40
41
Quick updates to the eastern signal.
42
43
44
45
46
47
48
49
50
51
52

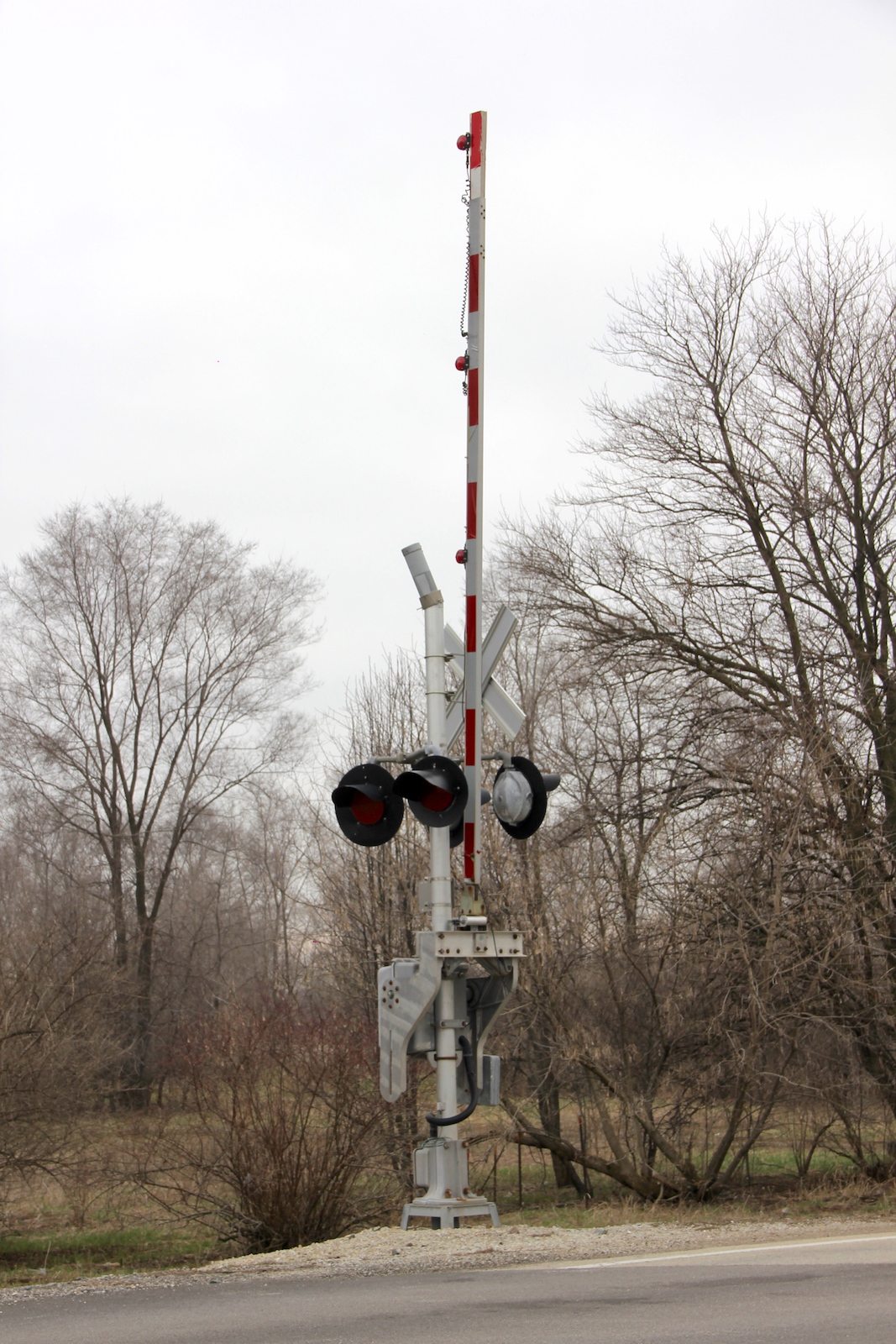

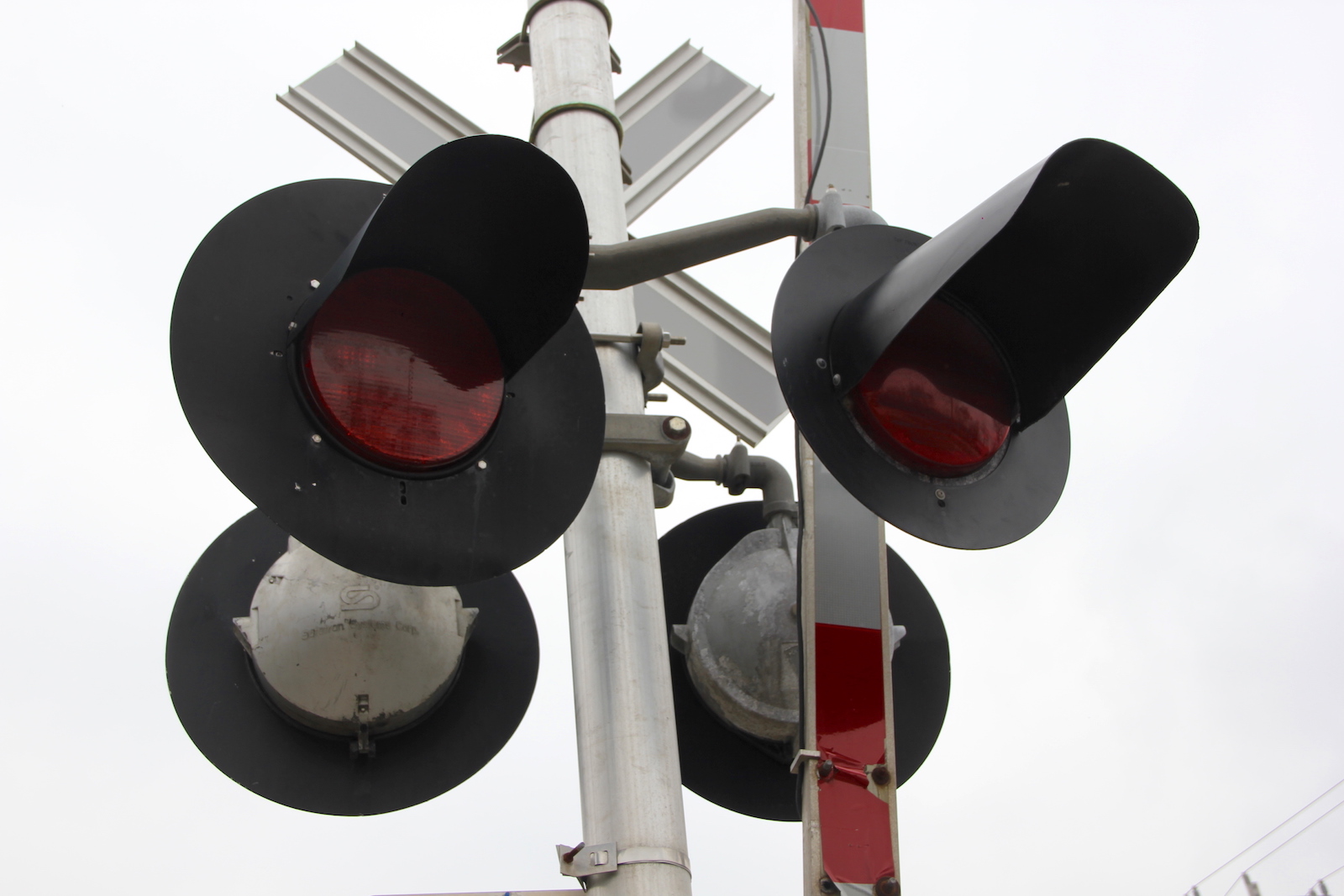

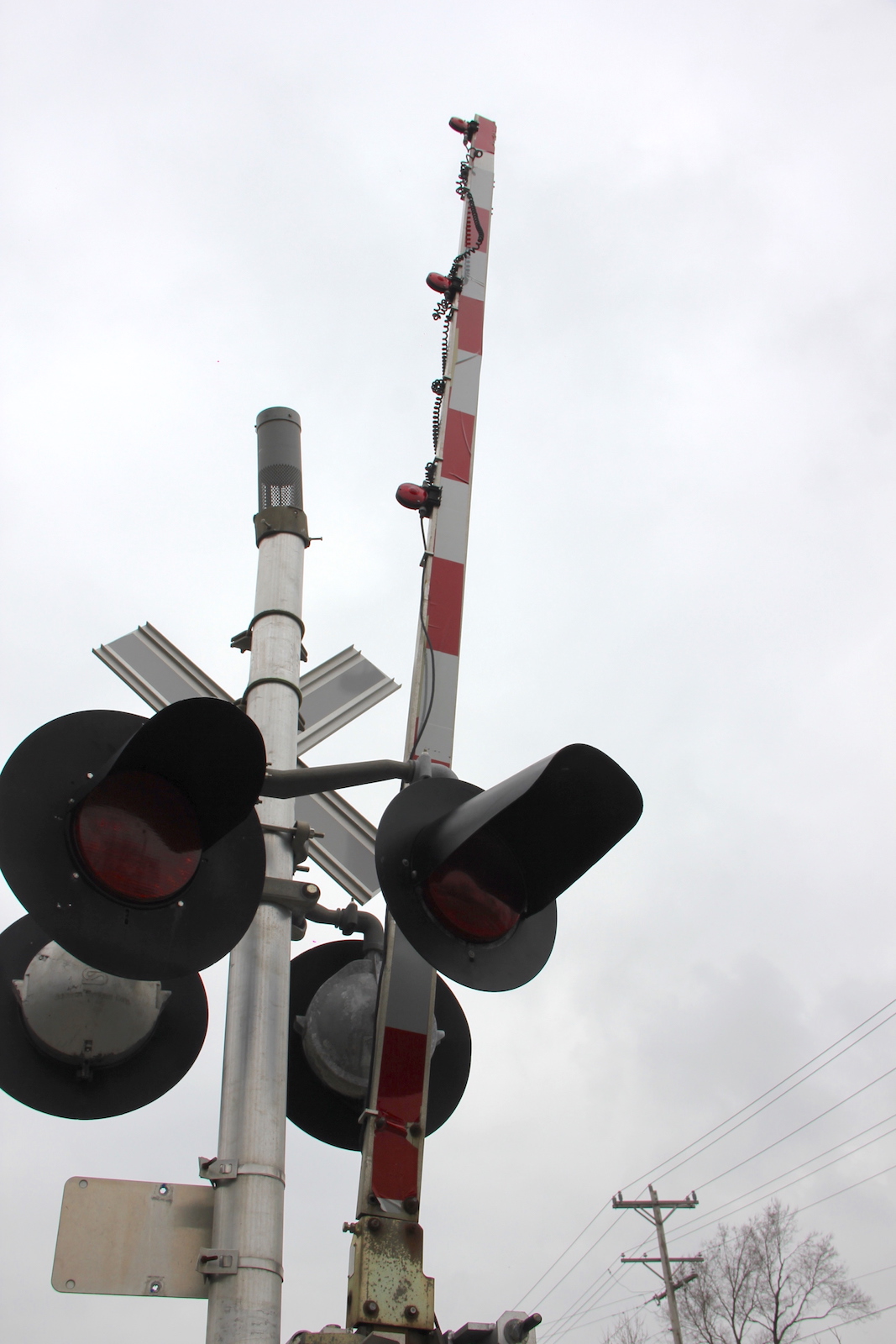

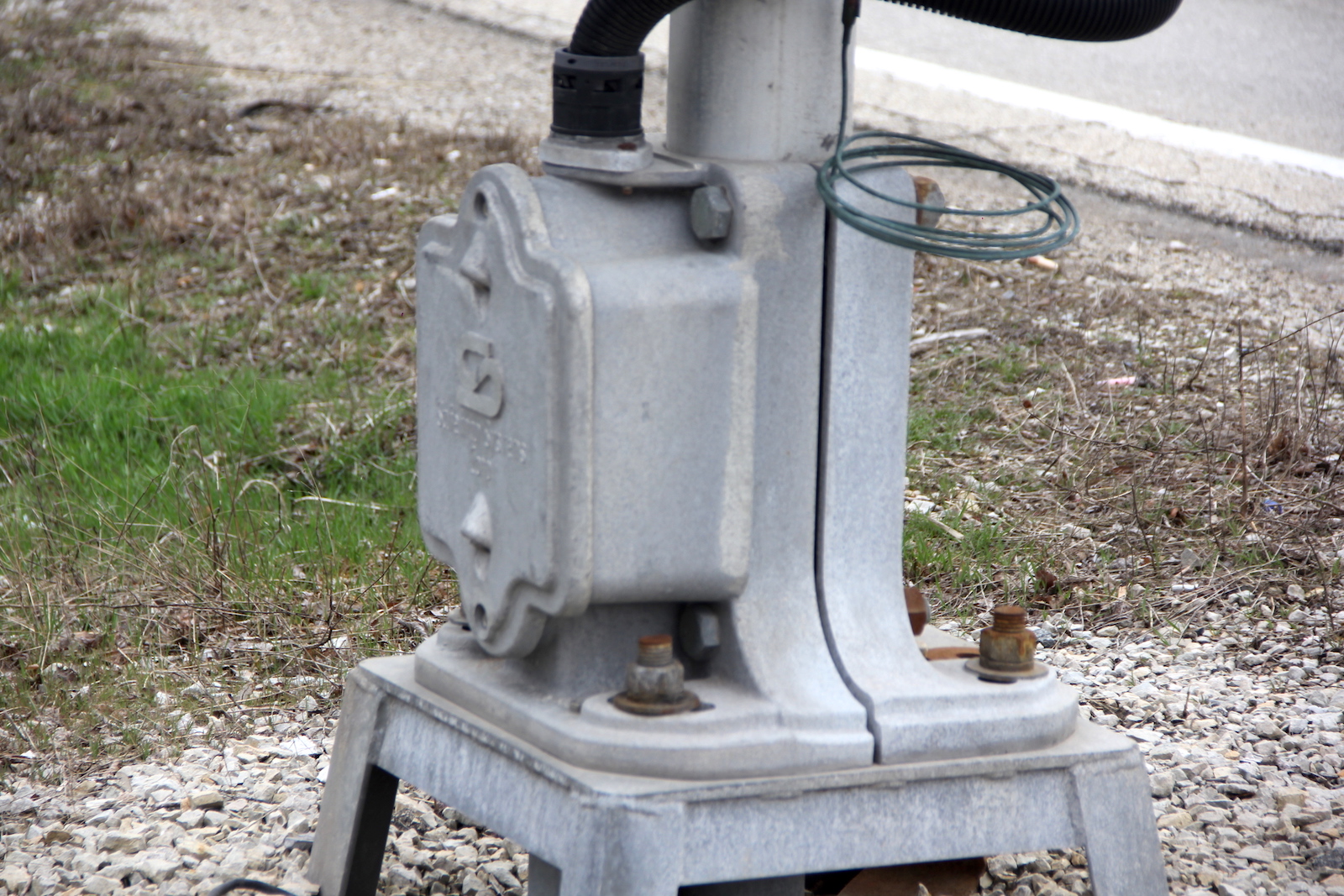

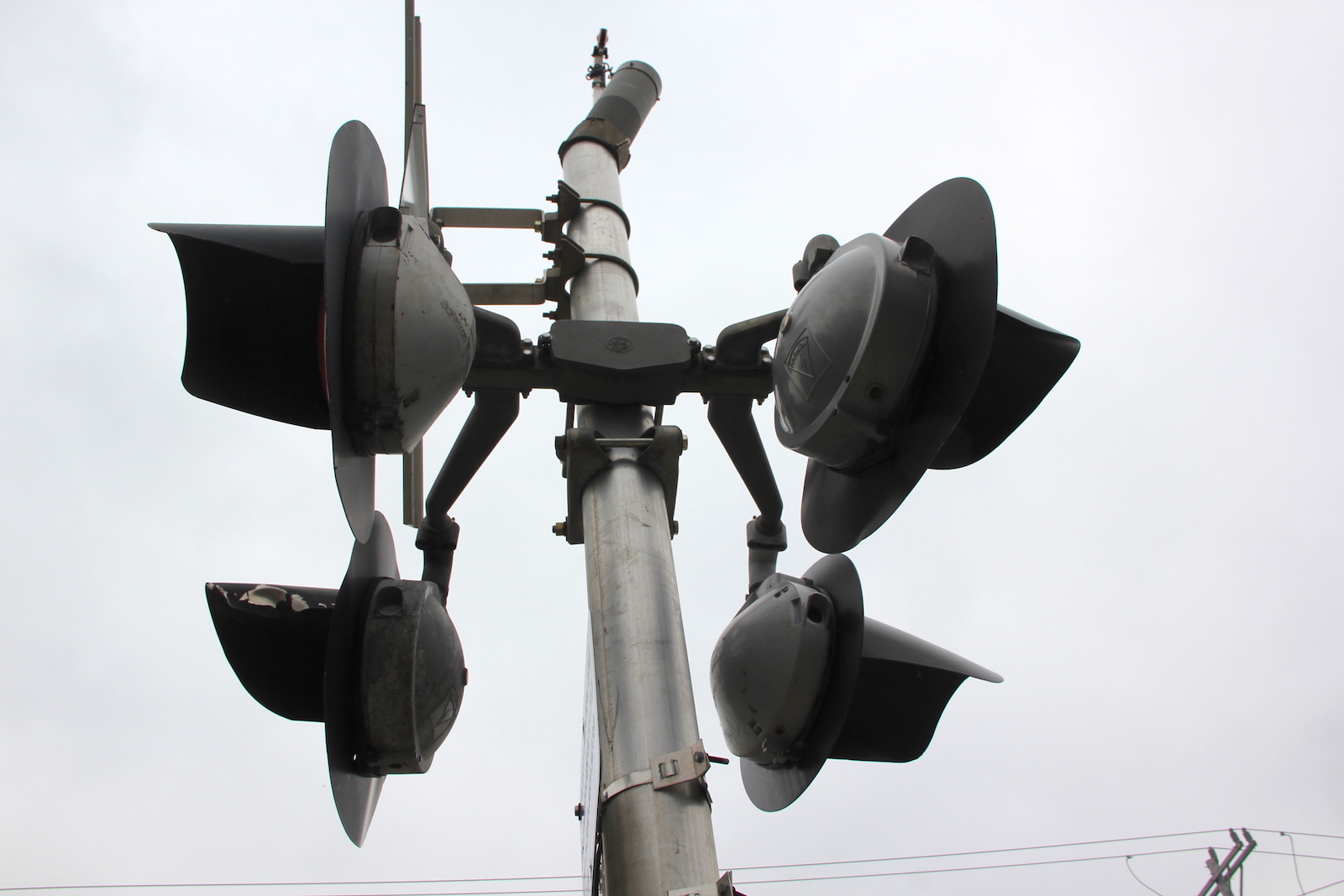

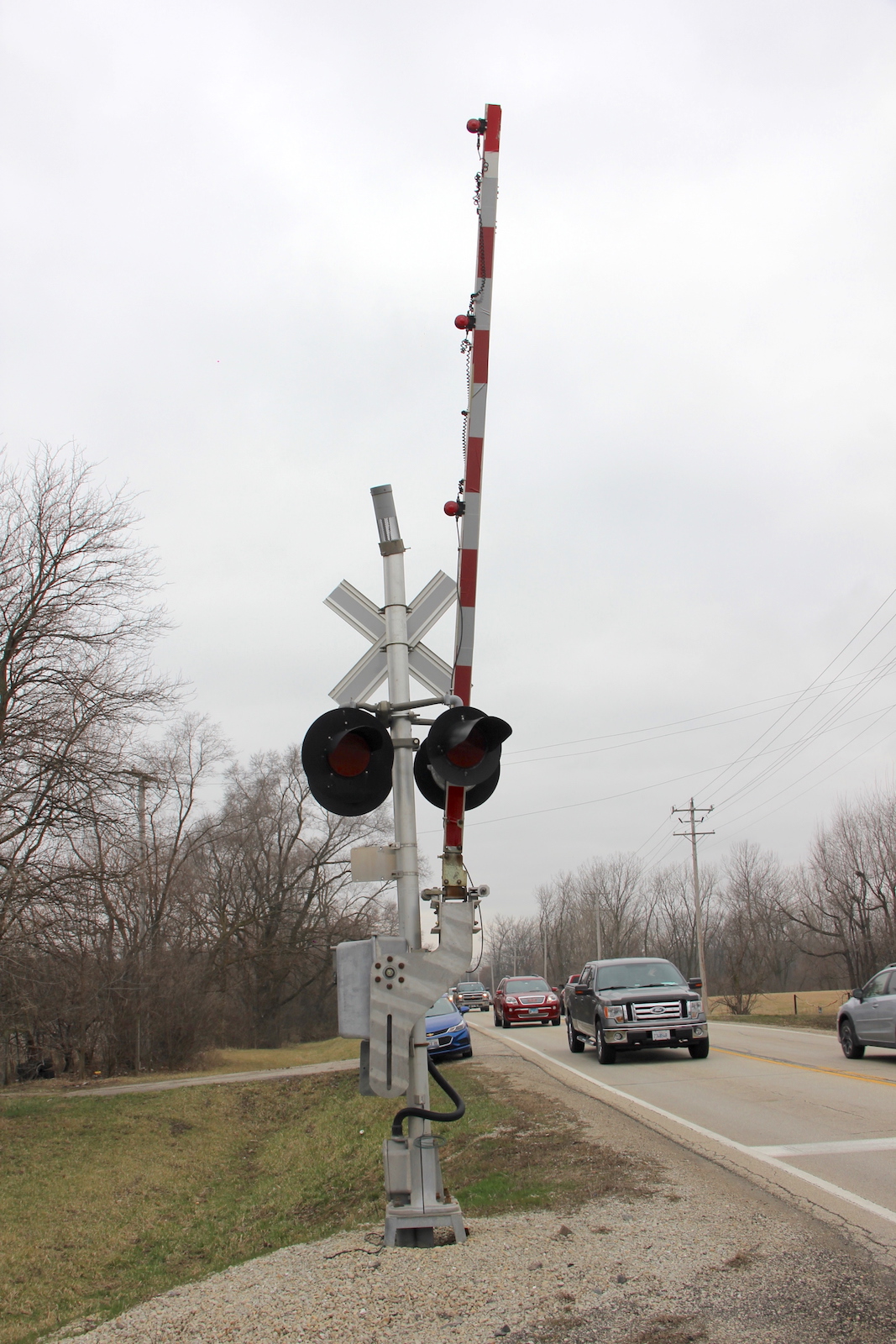

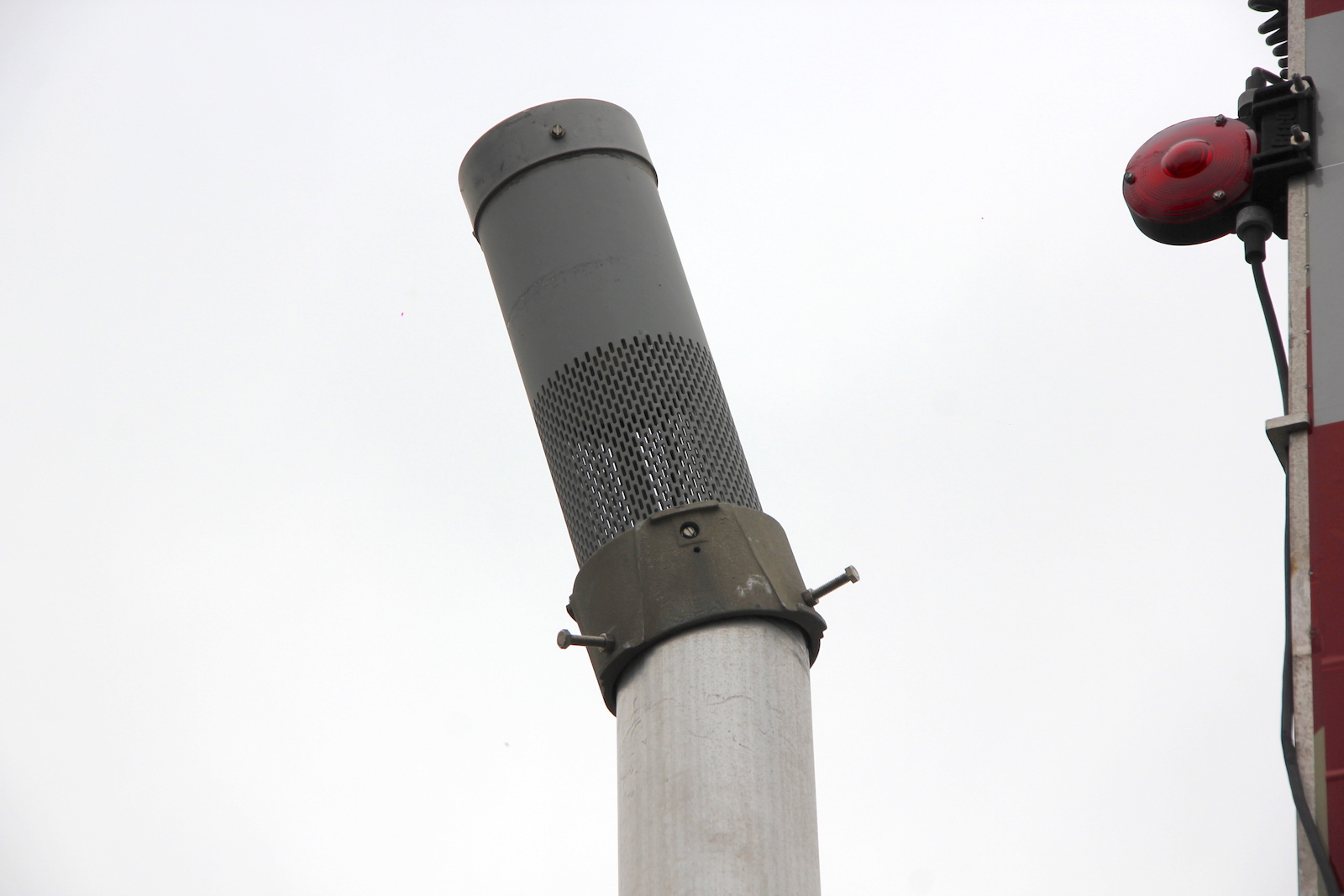

Bigger updates to the western signal. For some reason, the new Siemens E-Bell is drooping off to one side.
