MP:  CJ144.070



Updated June 2025



Total Accidents:   11

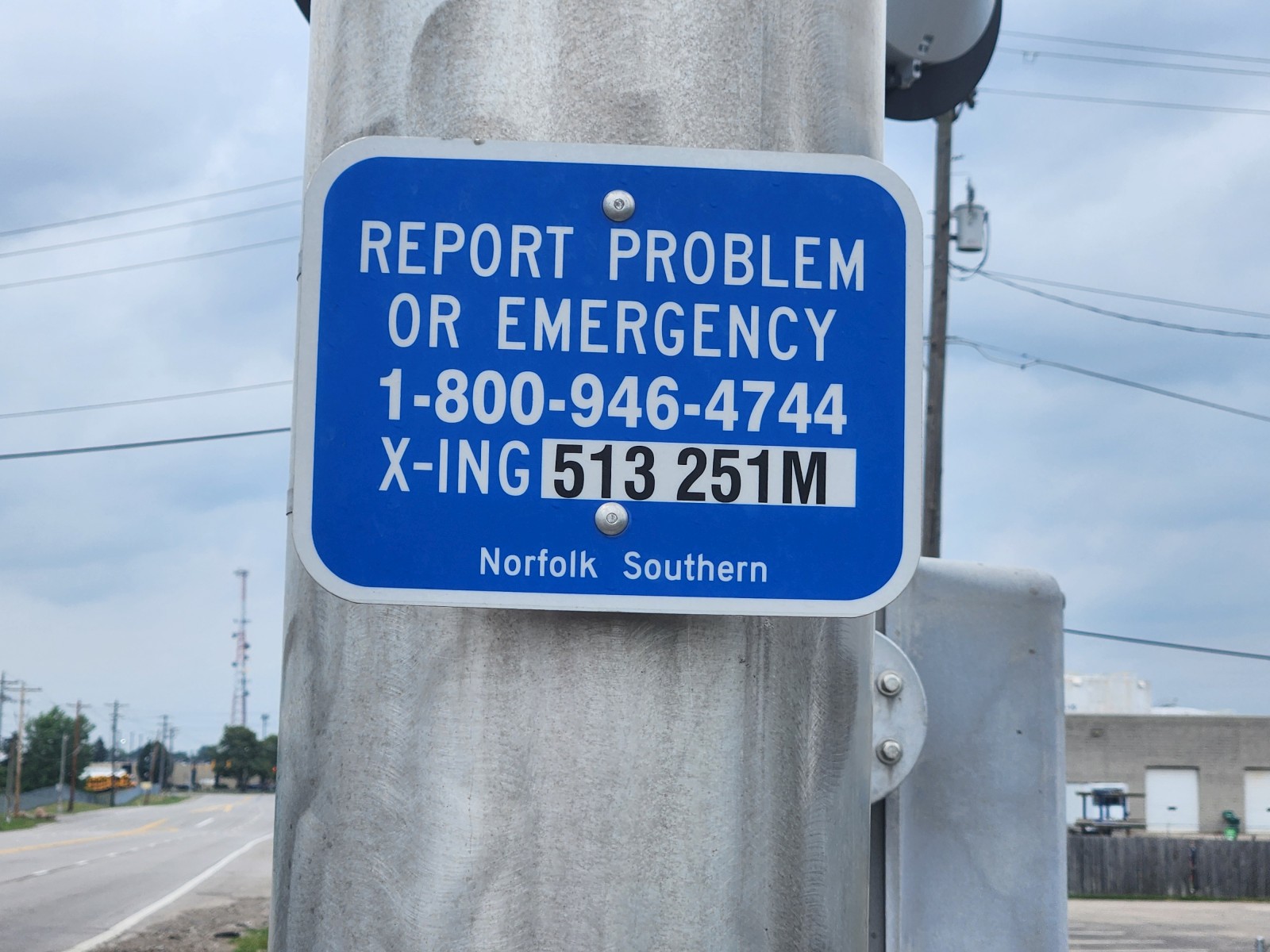

Crossing DOT #:  513251M
TOTAL DAILY TRAINS:   9   (AS OF 2024)



>>>>>>>>>>>>> Northern Signal
 Southern Signal

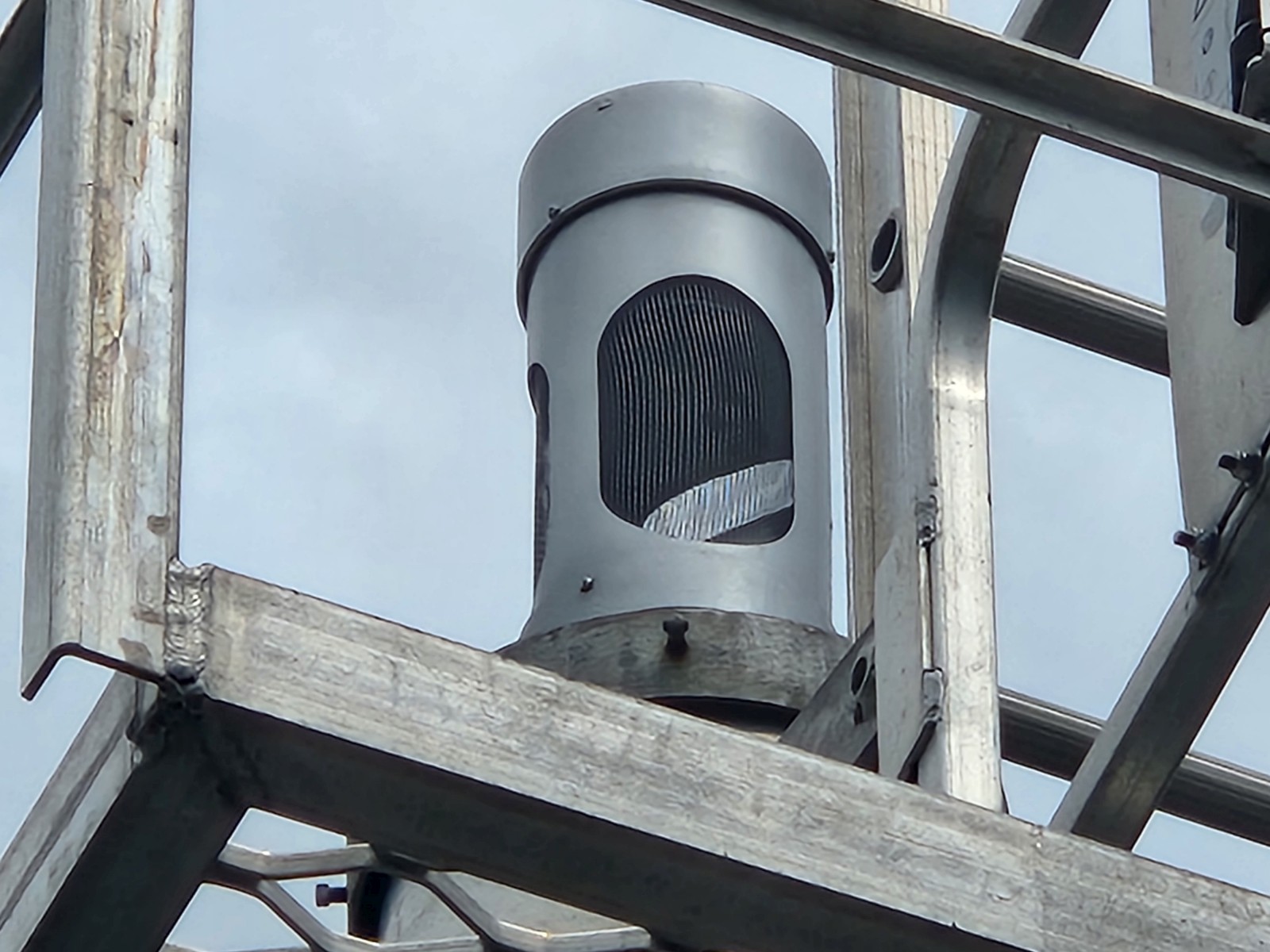

Bell: GS Type 3 E-Bell N/A

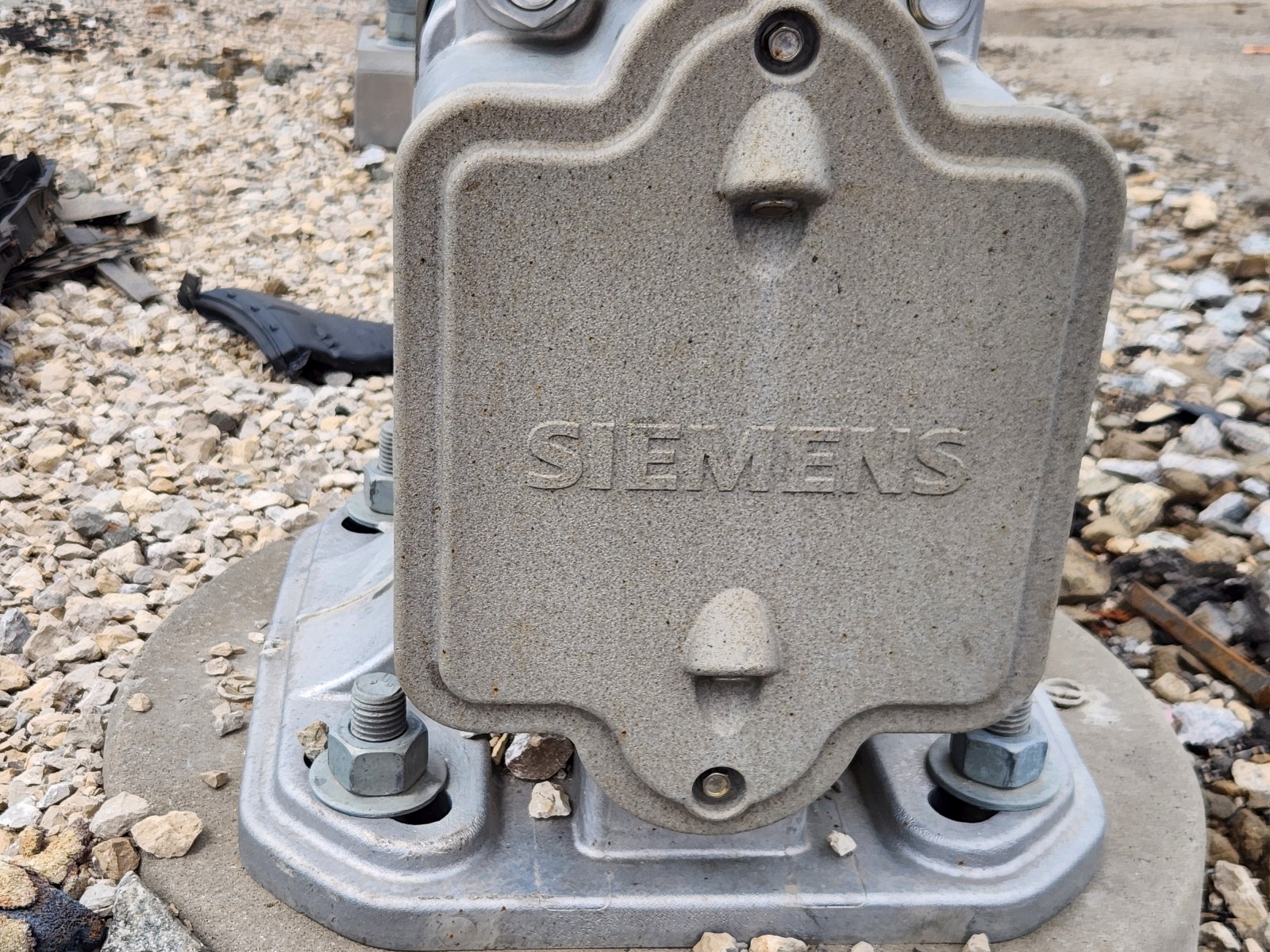

Base: Siemens 5" Double Sided Siemens 5" Double Sided
Cantilever: Siemens w/ RACO Splice Box
 Siemens w/ RACO Splice Box

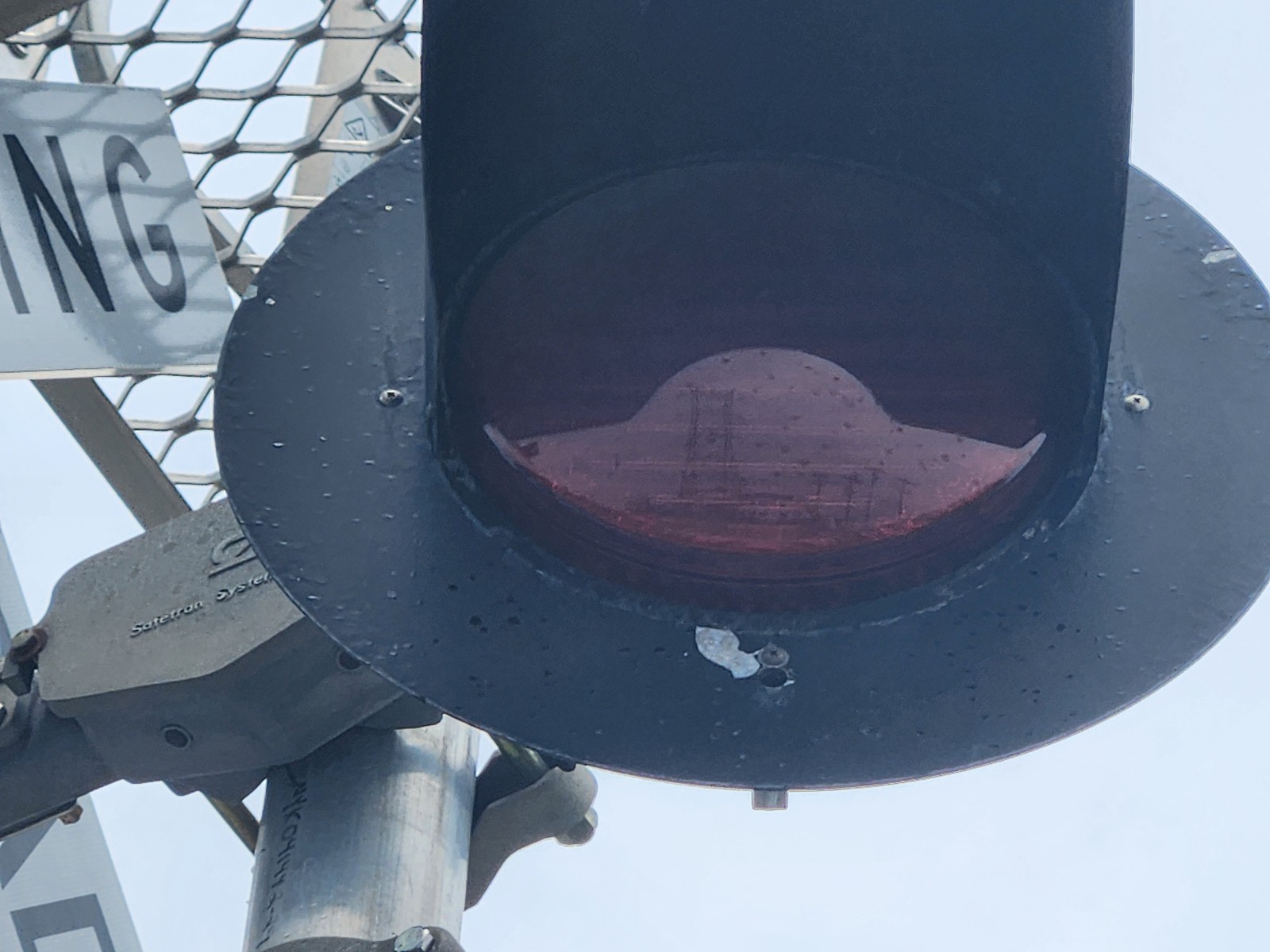

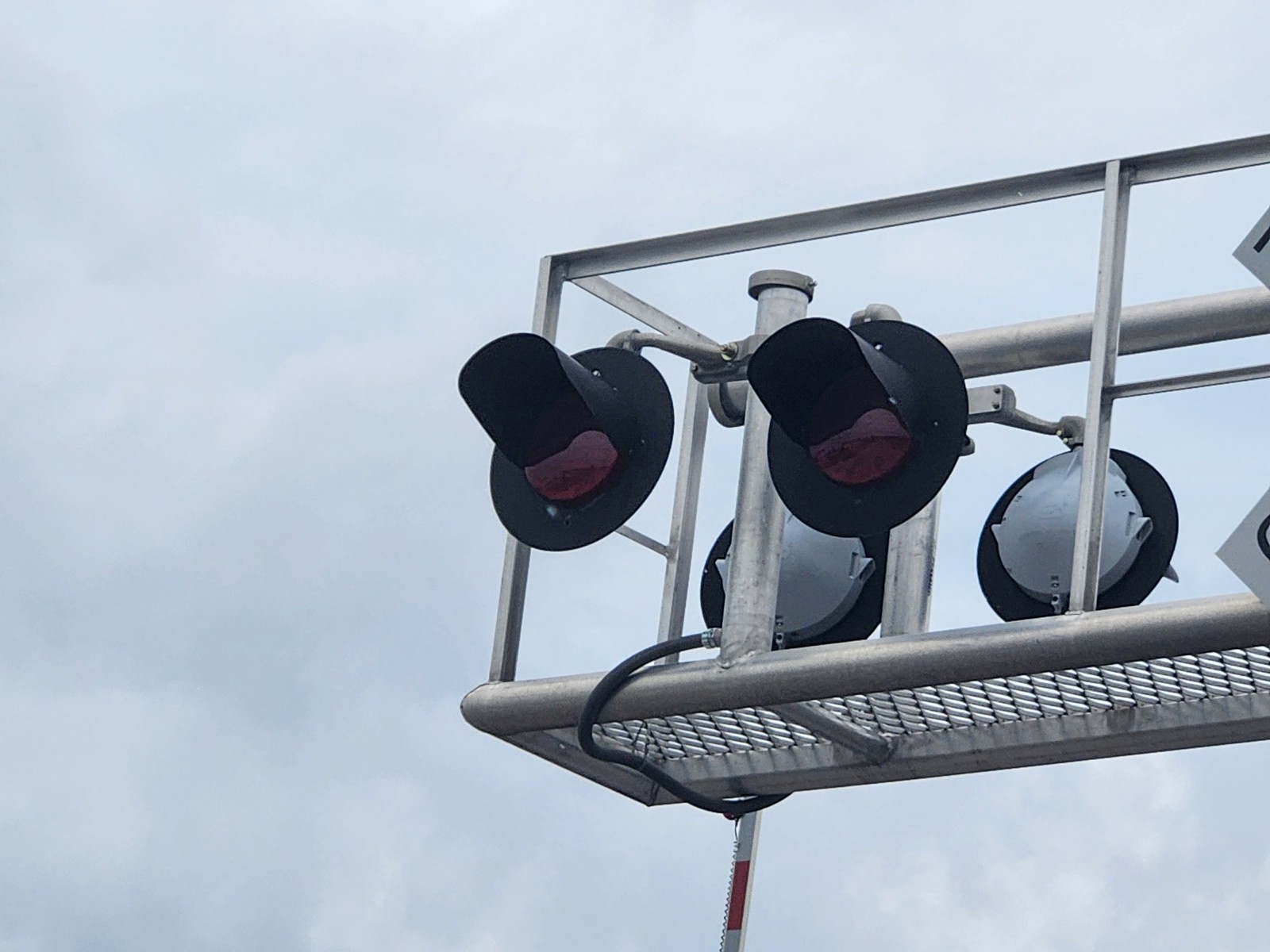

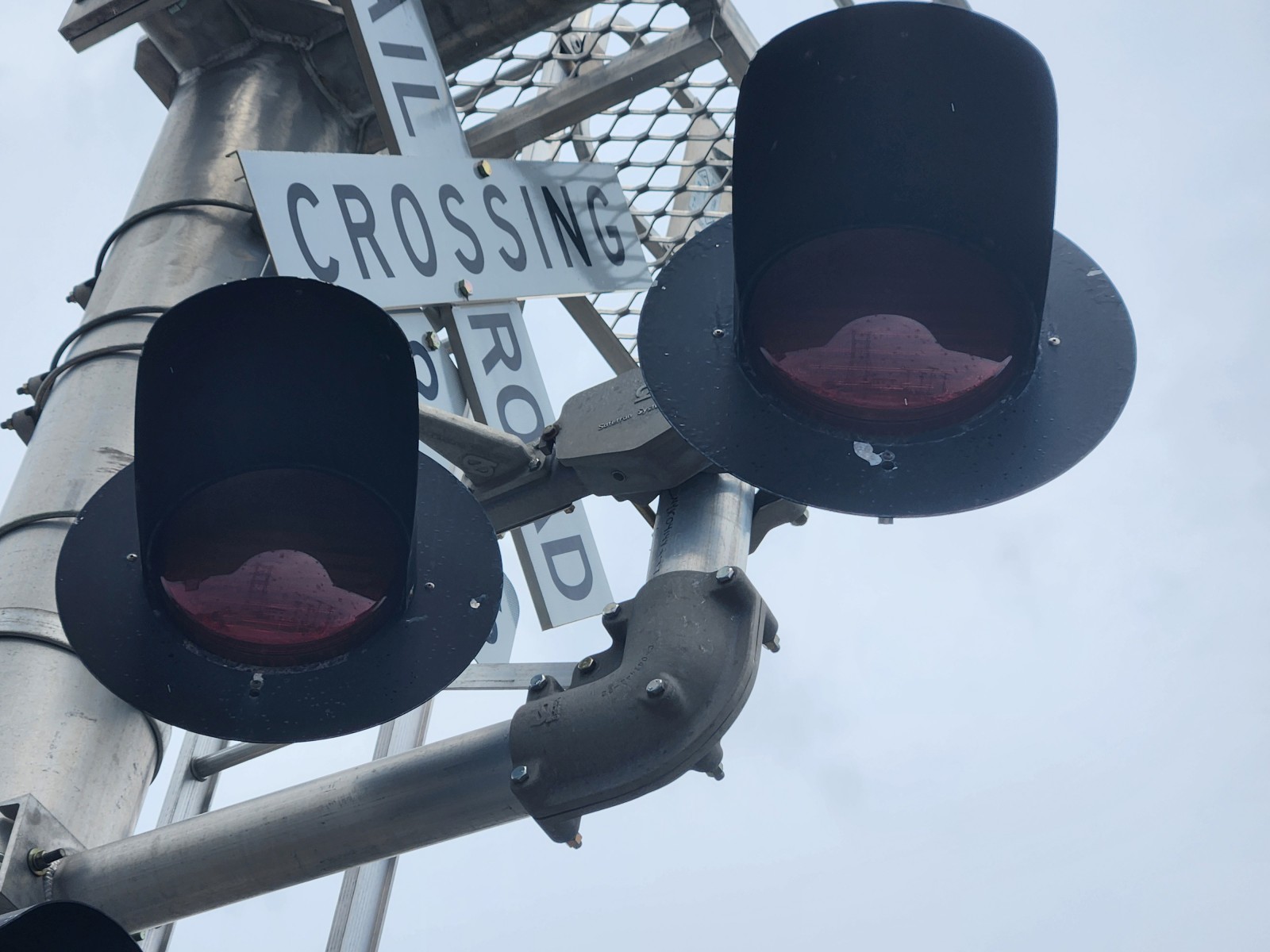

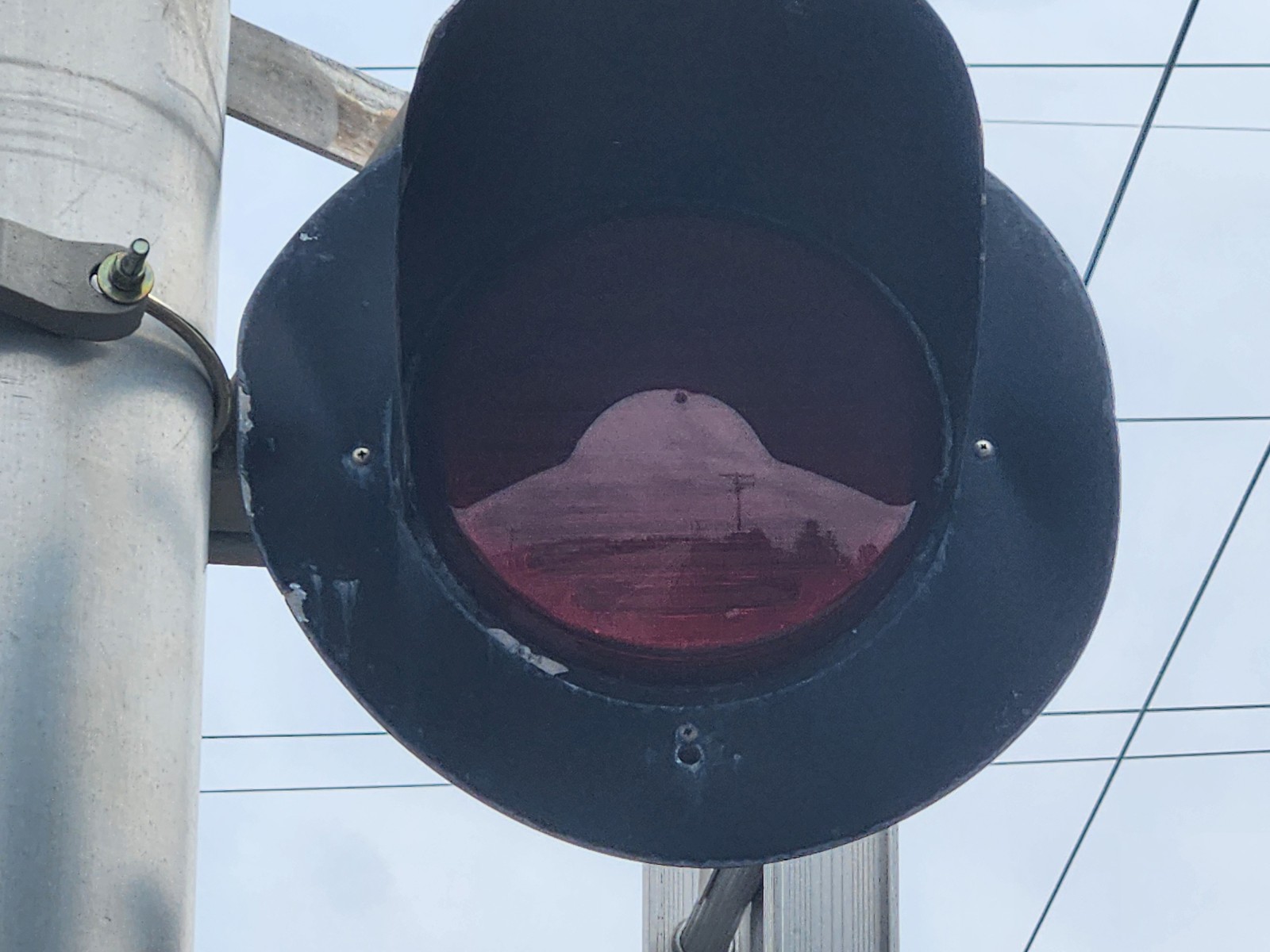

Light Frames: 10 - 12"x20" Safetran w/ GE Uniform Look LEDs
 12 - 12"x20" Safetran w/ GE Uniform Look LEDs
Light Brackets:
 5 - Safetran
 4 - Safetran

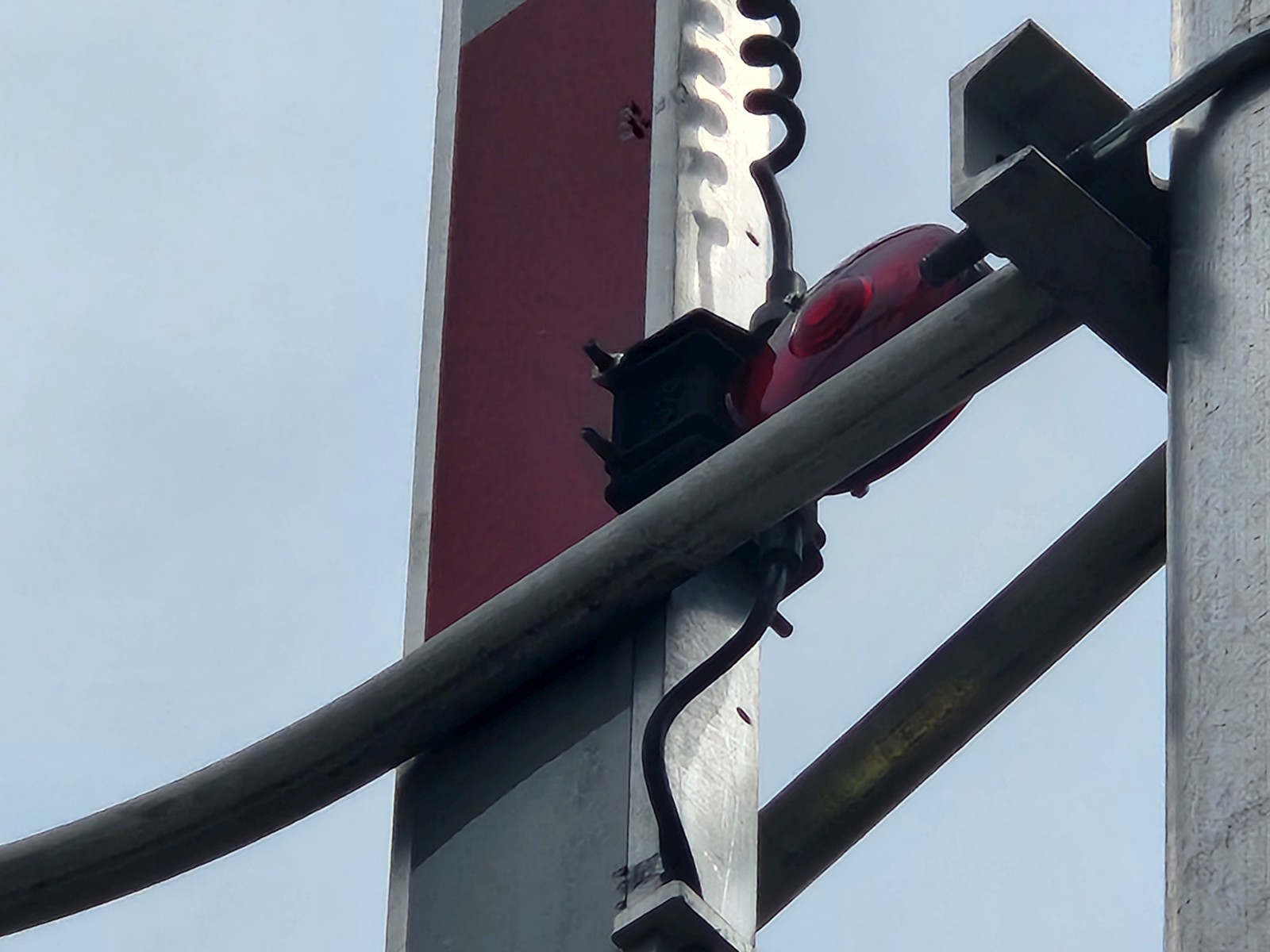

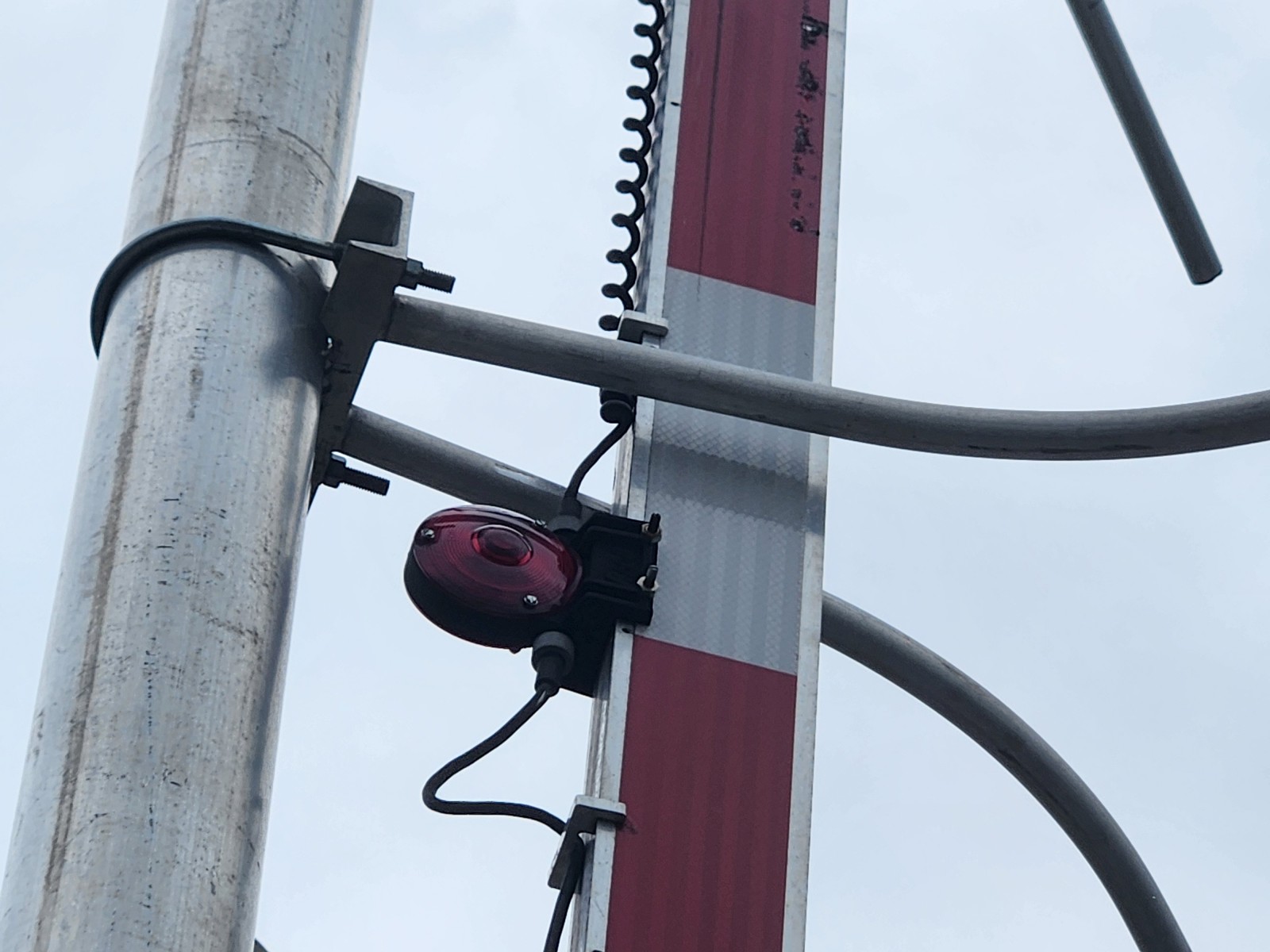

Gate Lights: 3 - RECO 4" LEDs
 3 - RECO 4" LEDs

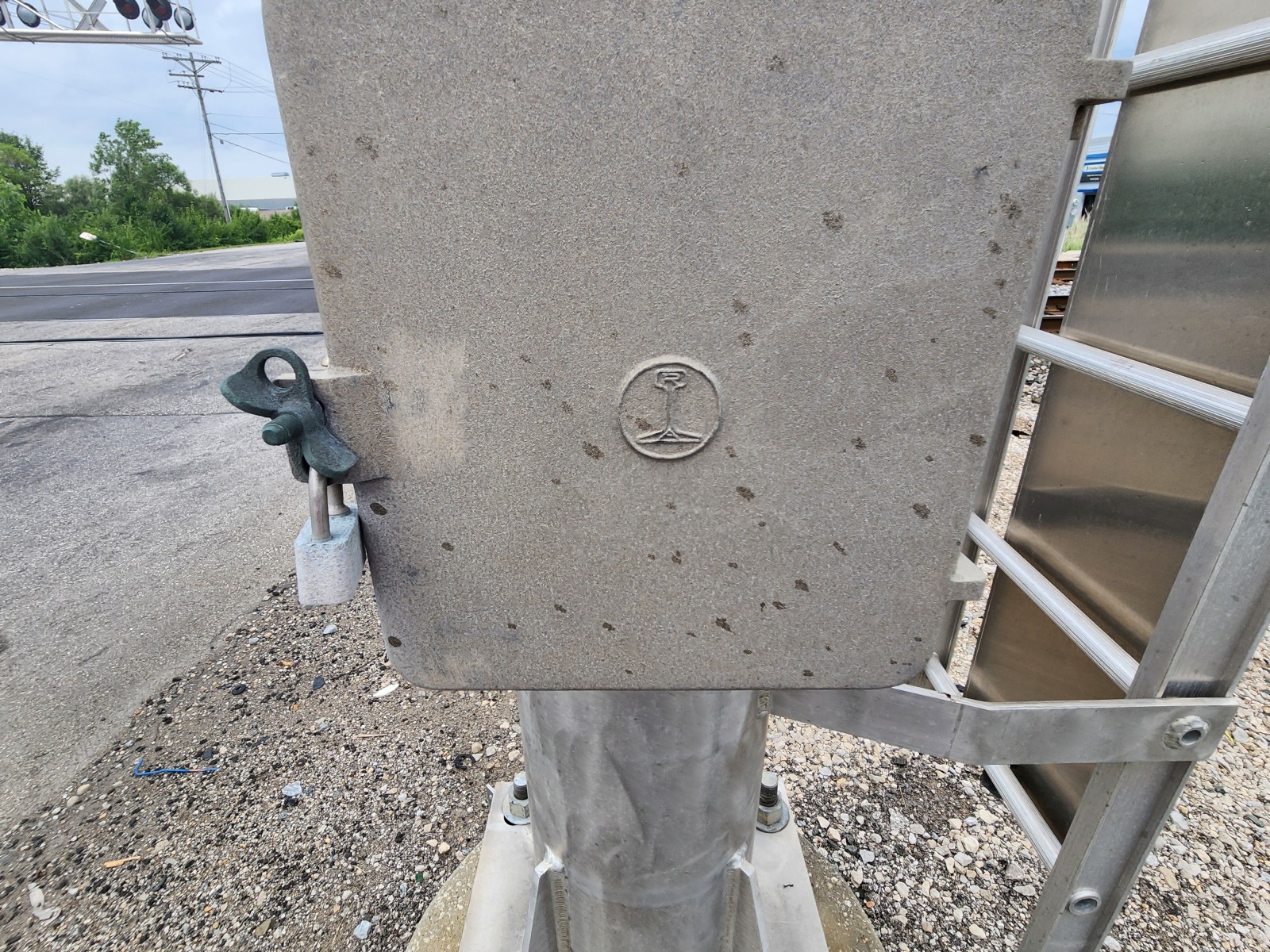

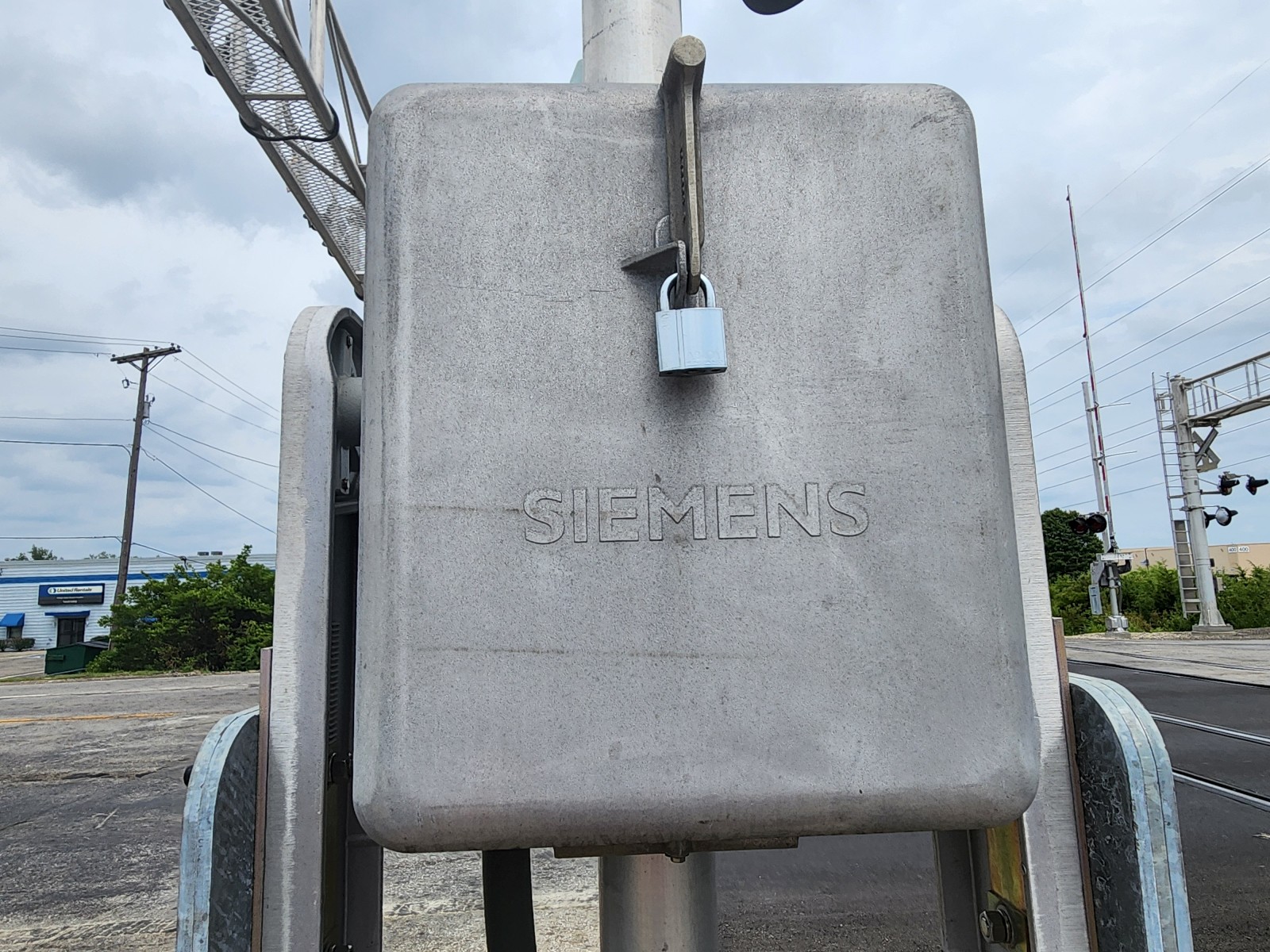

Gate Mechanism: Siemens Imprinted w/ NEG 1 Way Saver
 Siemens Imprinted w/ NEG 1 Way Saver
Gate Striping: Vertical Striping
 Vertical Striping

Page created by: Sir Fluent

Pictures 1-40 were taken on June 29, 2024, by Sir Fluent.

This crossing is located on the NS Dayton District.


O1

O2

O3

O4

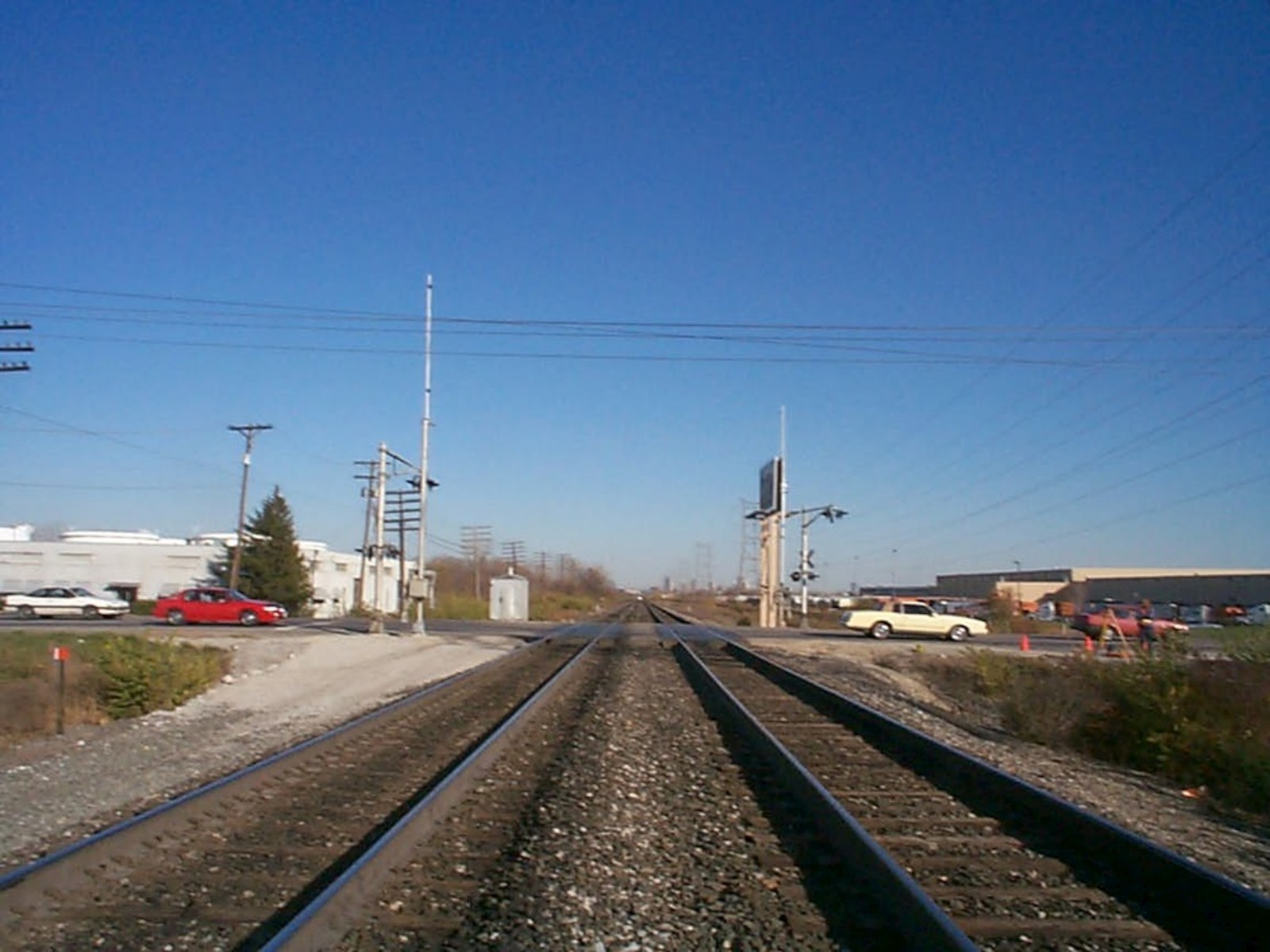

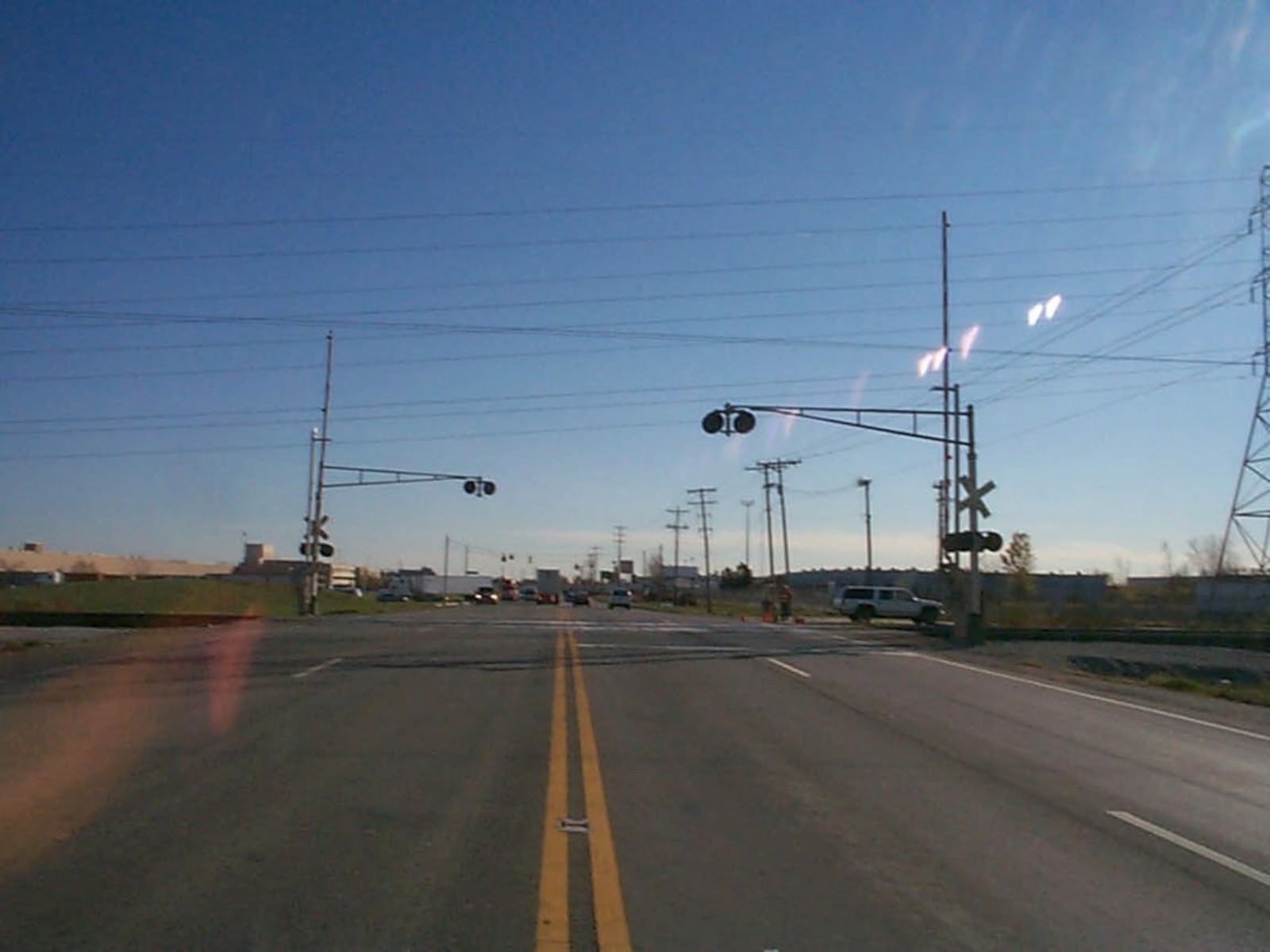

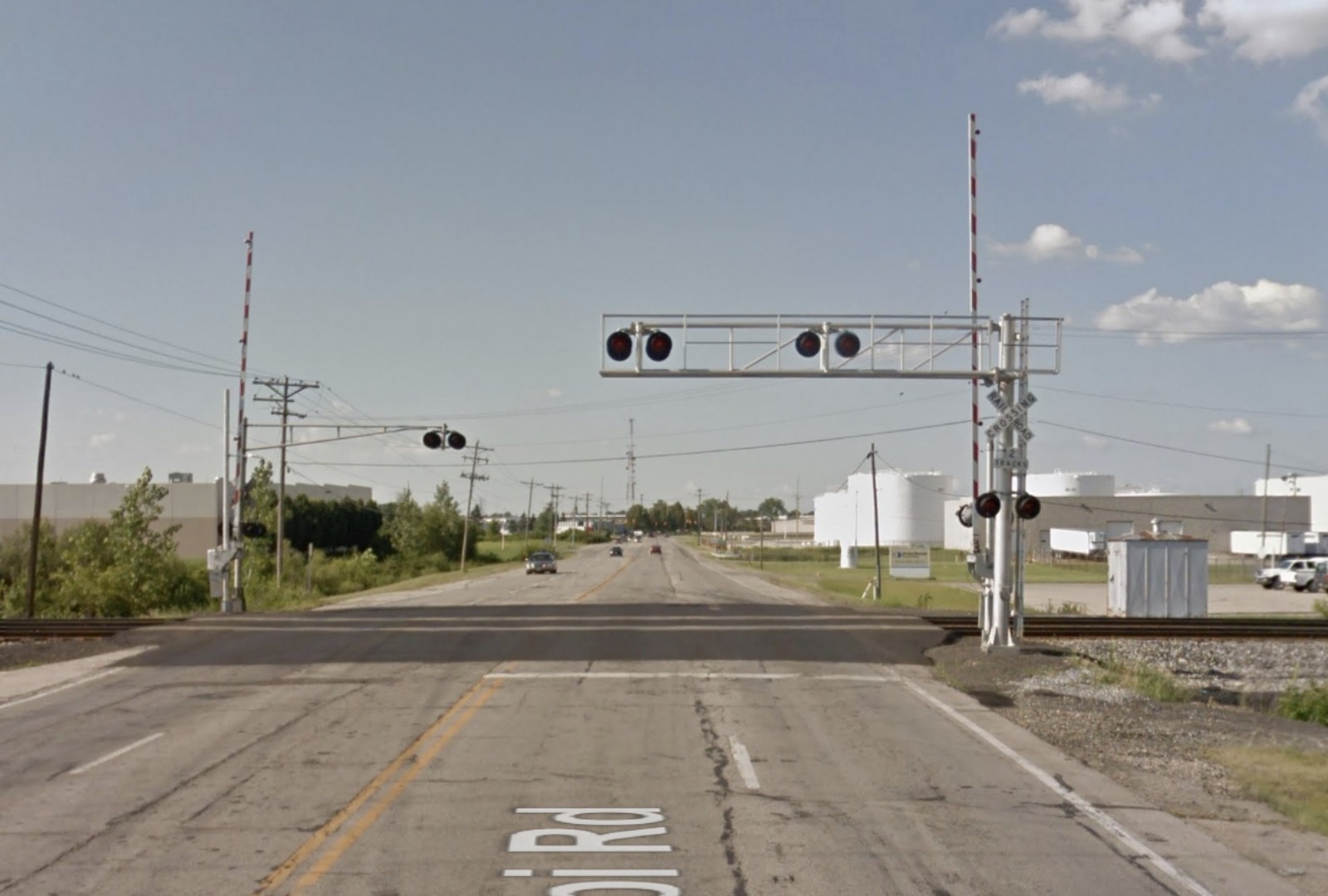

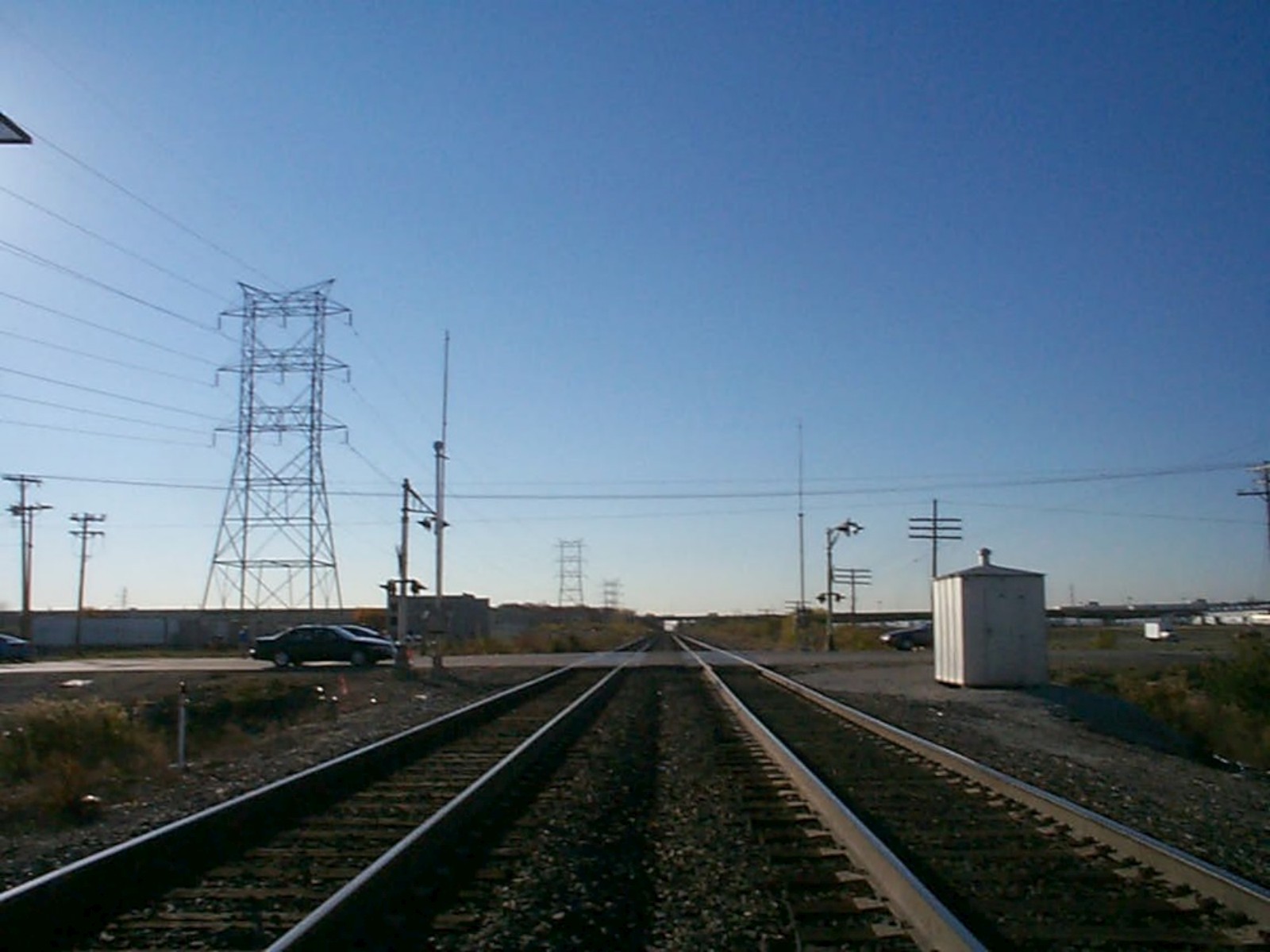

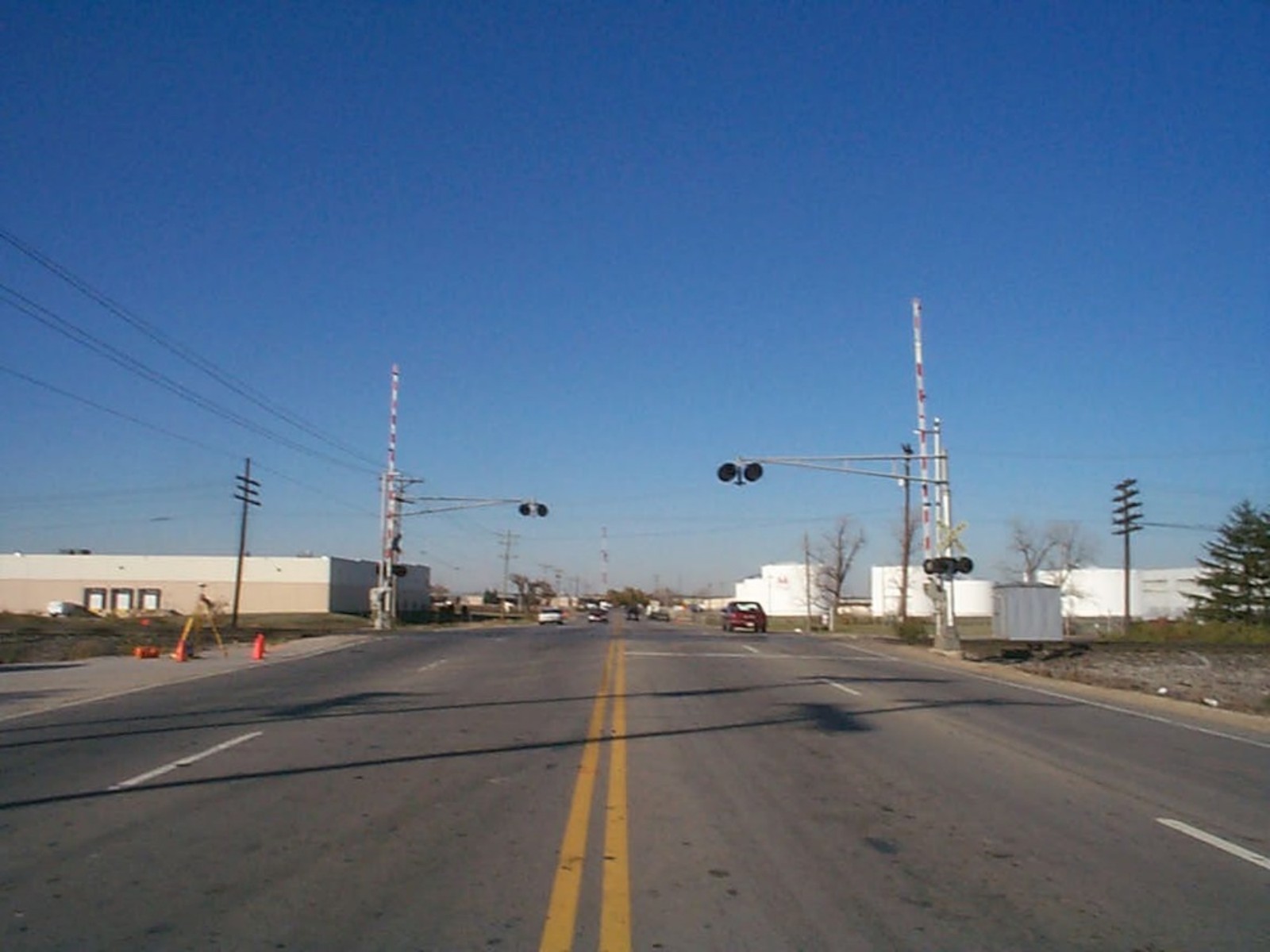

PUCO pictures from the late 90s shows two older FS/WCH cantilever signals with WCH gate mechanisms, FS/WCH 8"x20" incandescents and a Safetran Hybrid Bell. The cantilevers were likely installed by Penn Central while the gate masts were replaced by Conrail.

G1

G2

G3

G4

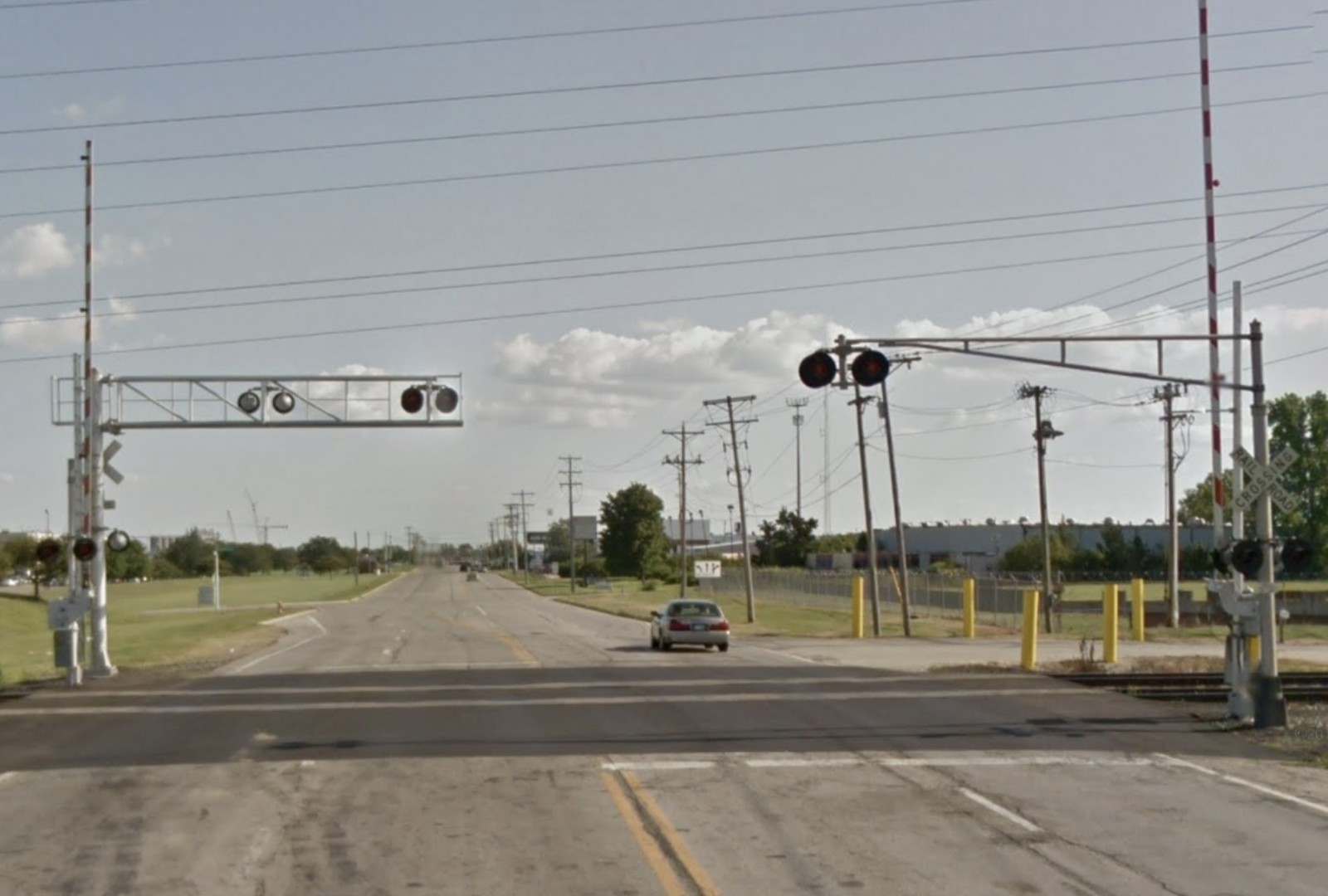

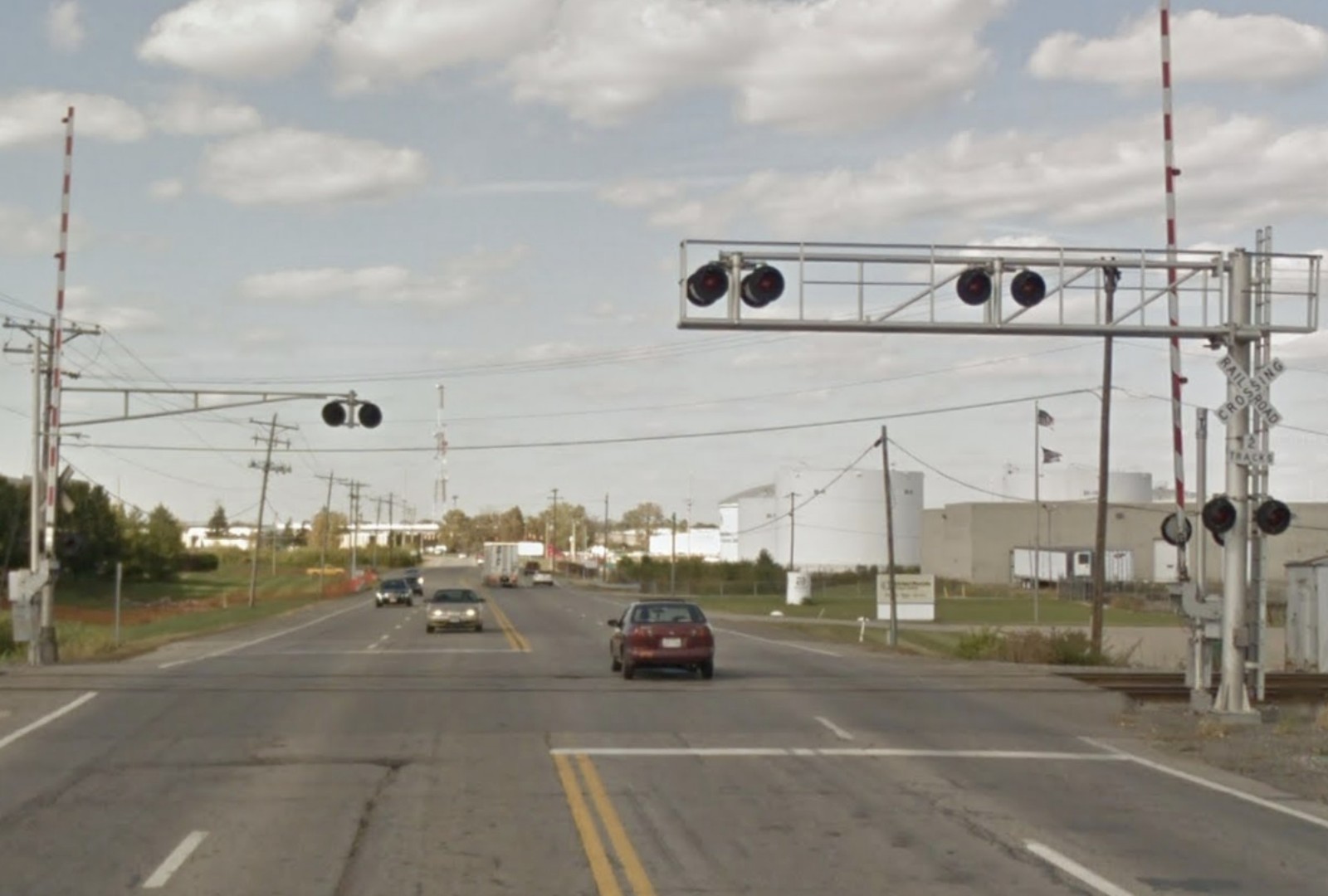

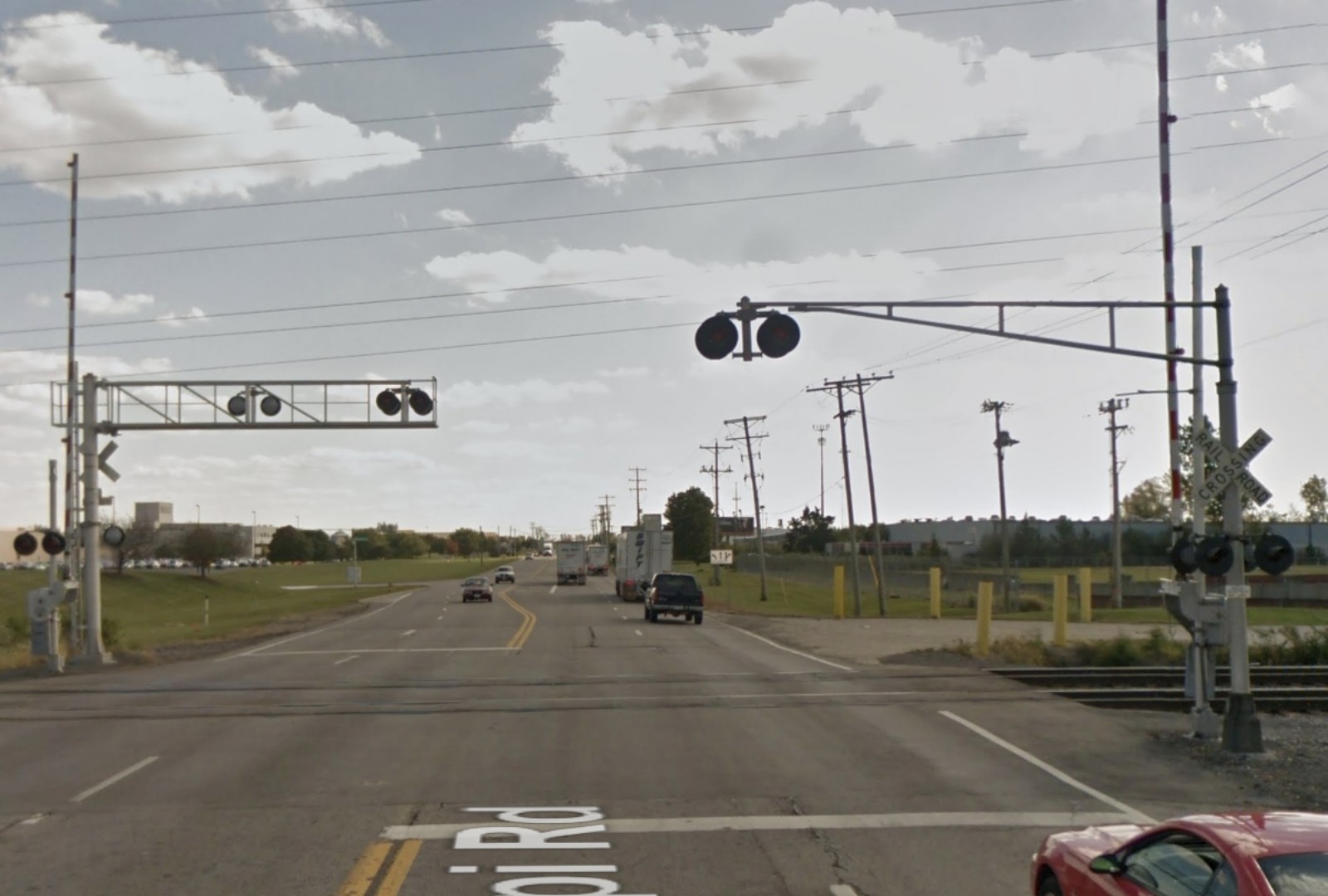

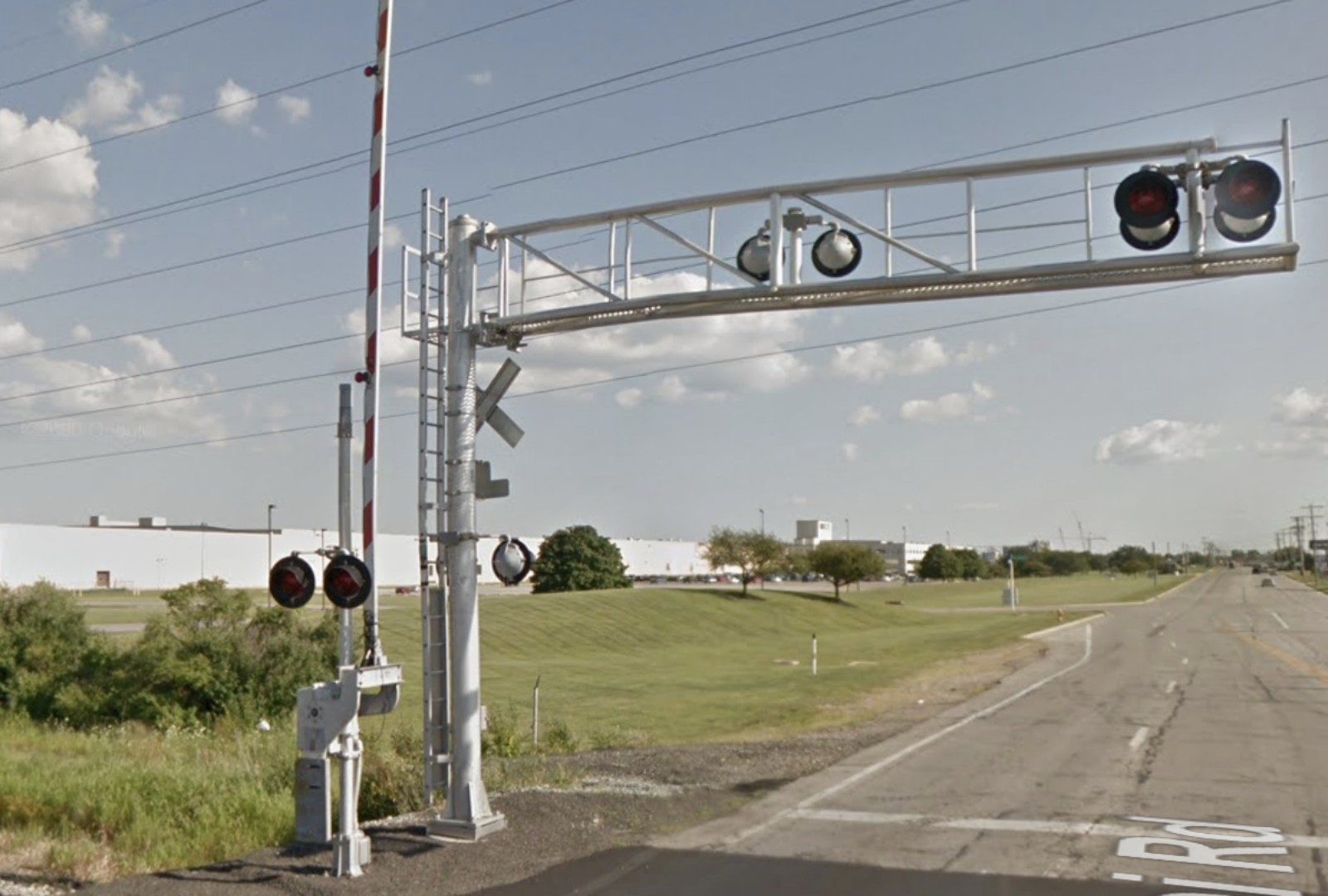

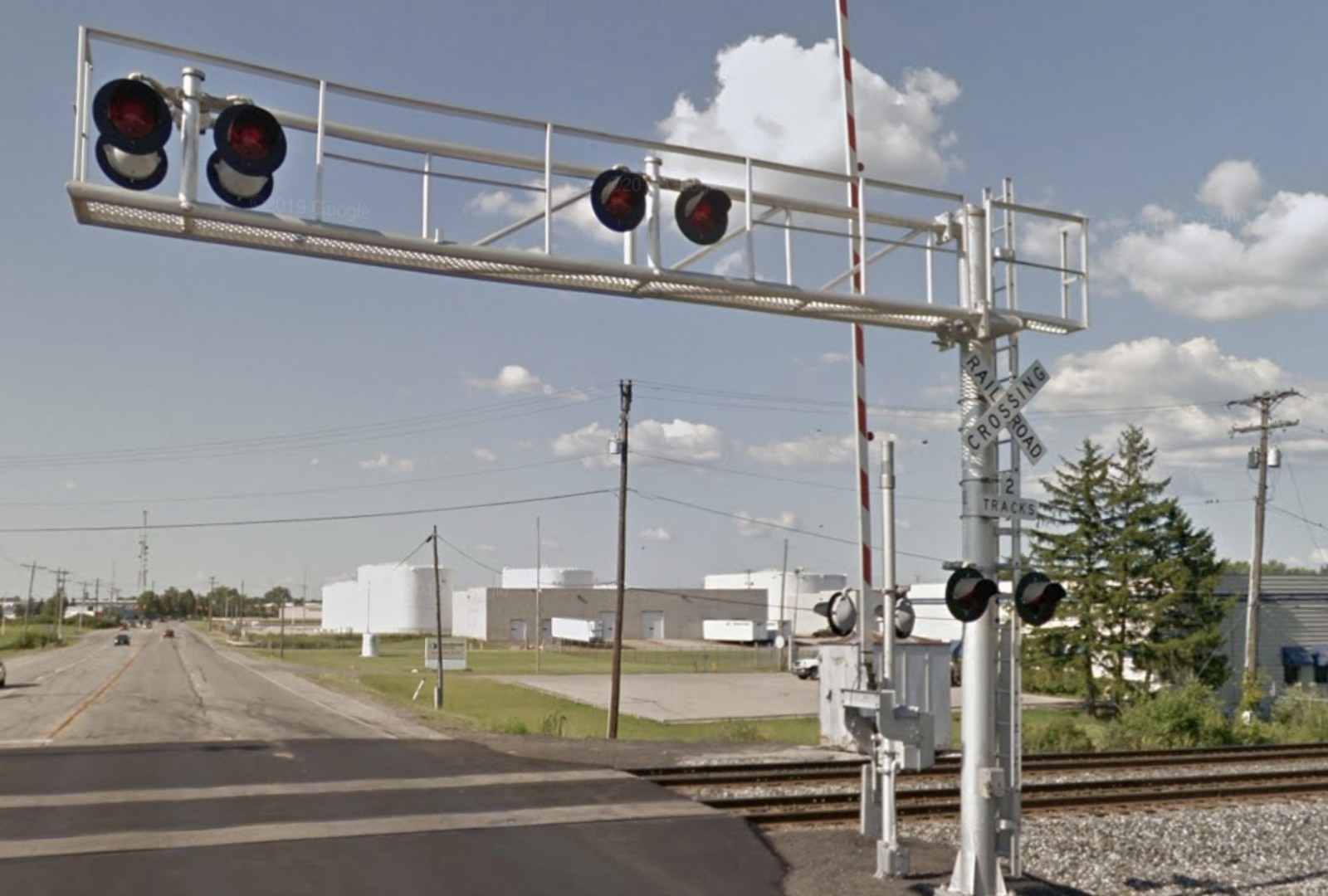

Between 2009 and 2011, the southern signal was completely replaced. At the time, this signal had 12"x20" Safetran incandescents, a Safetran gate mechanism and a Safetran Type 3 E-Bell. The northern signal remained pretty much unchanged.

G5

G6

G7

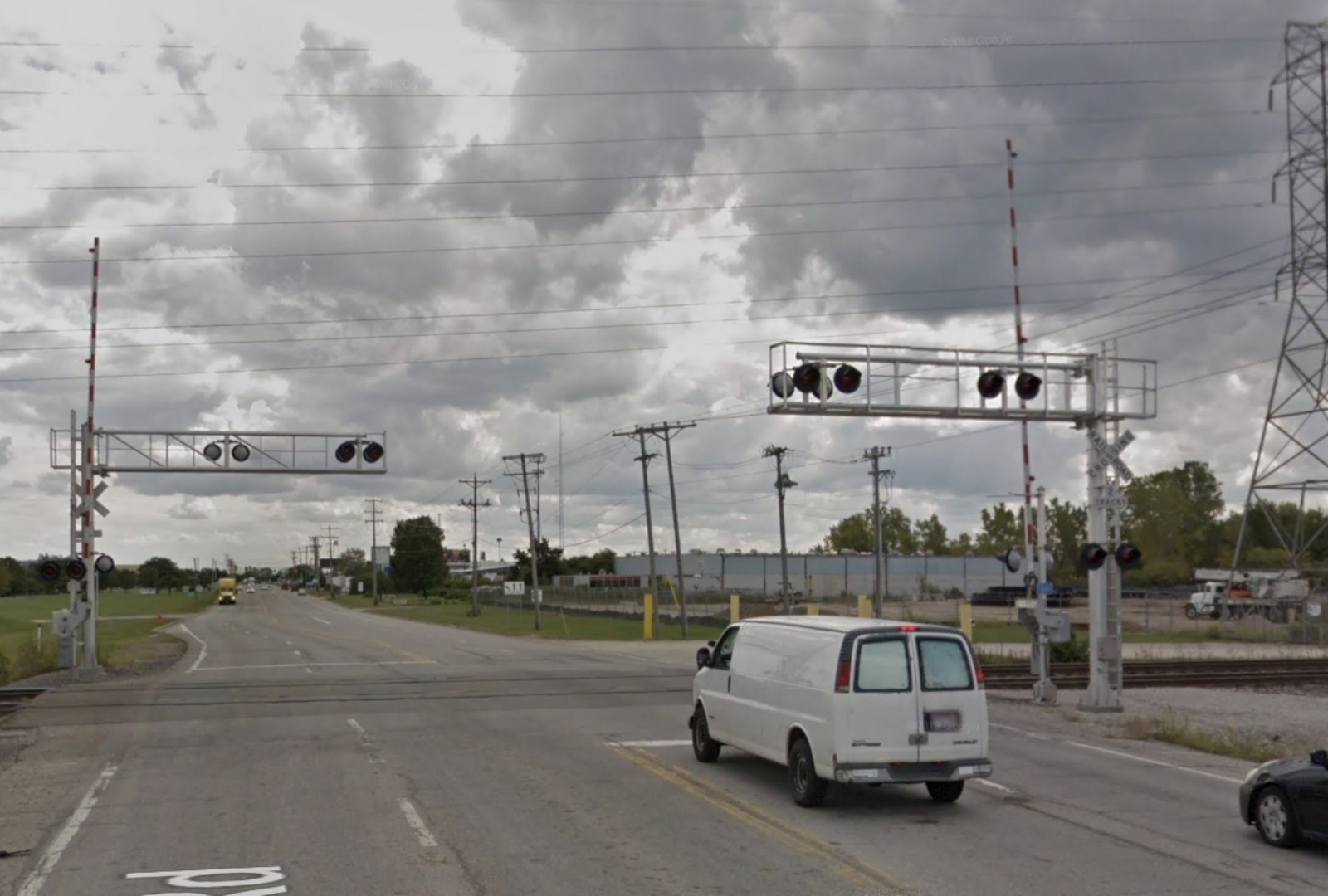

In 2014, we see the bell was replaced with a GS E-Bell. Once again, the northern signal remained unchanged.

G8

G9

G10

G11

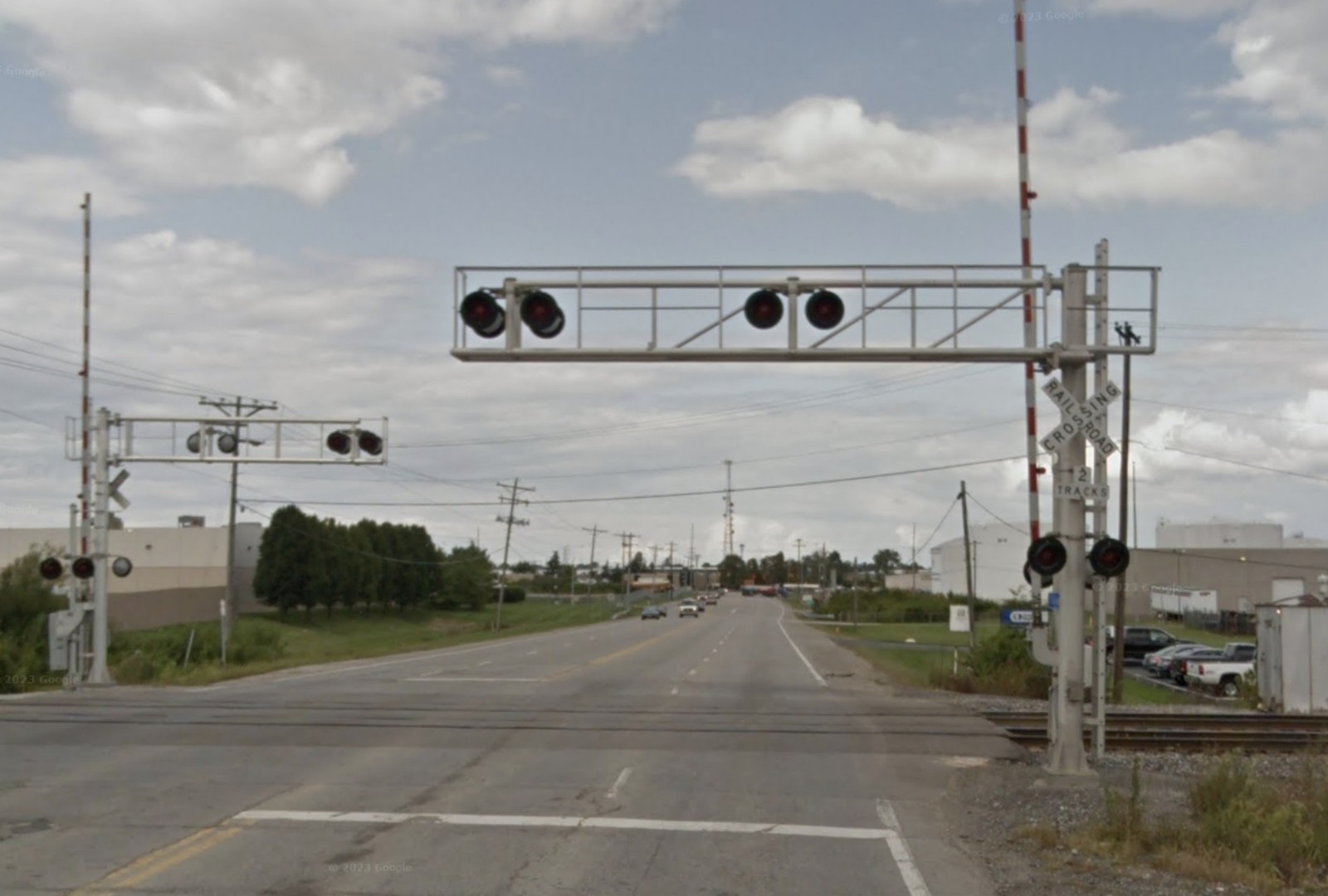

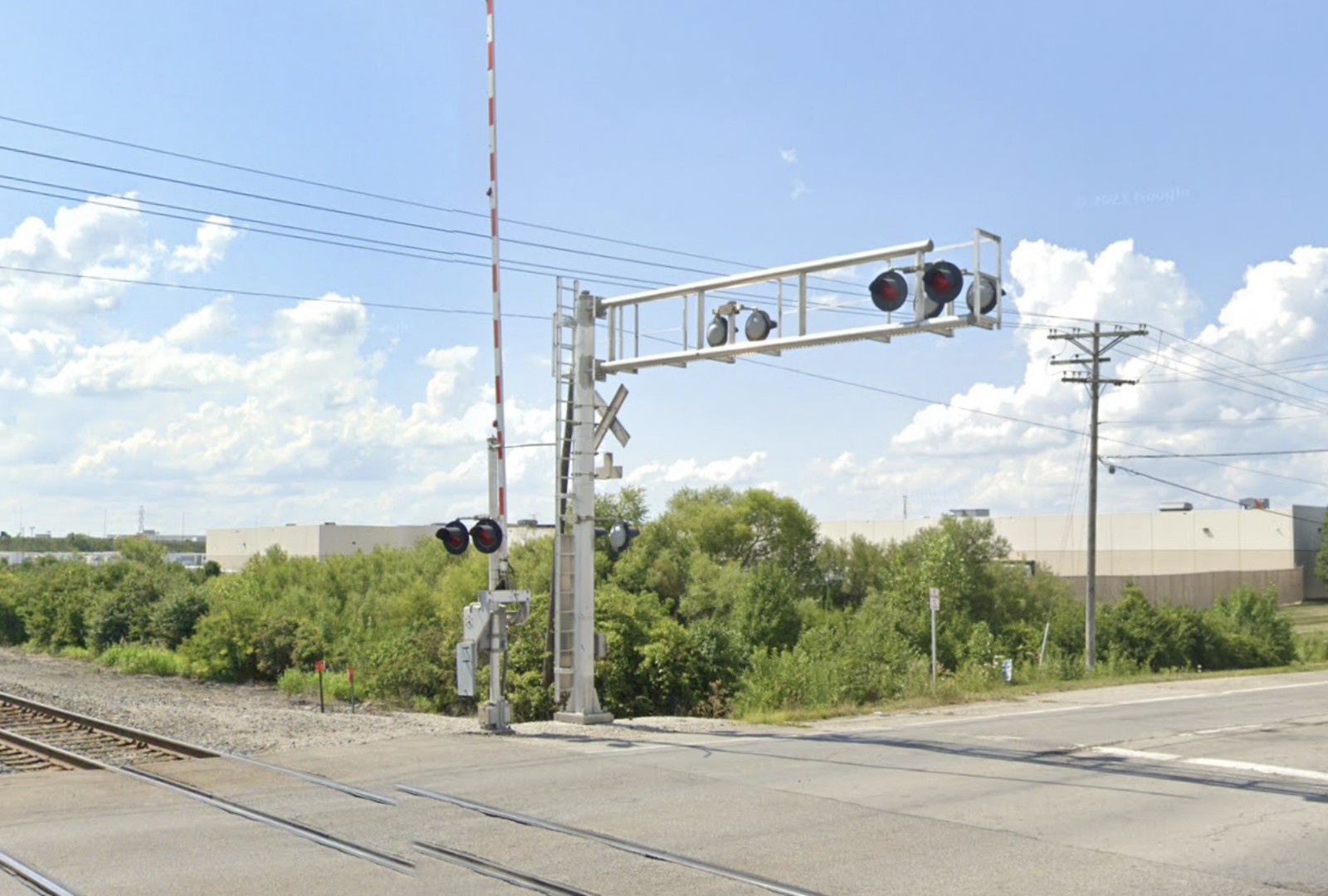

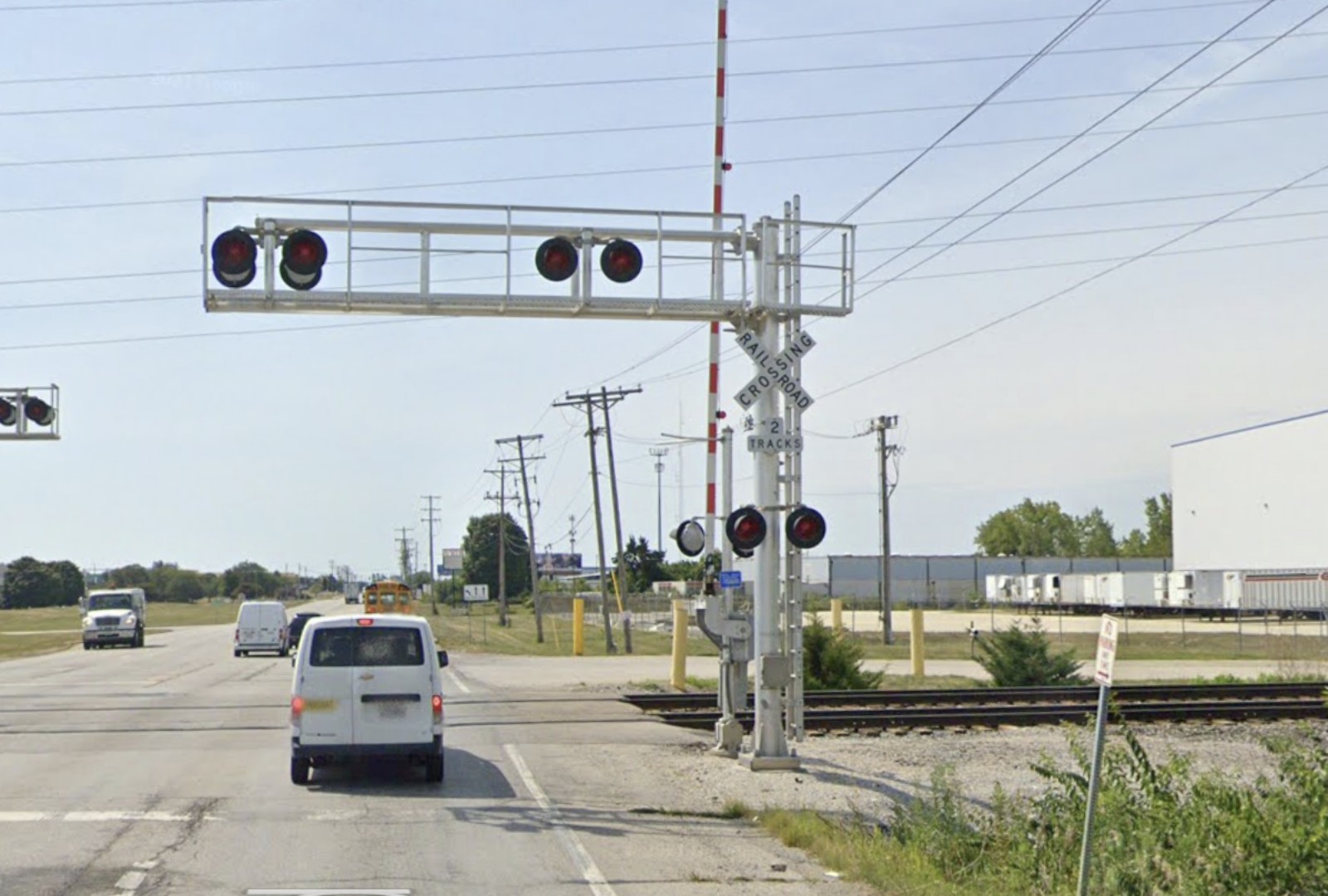

By 2016, the northern signal had been replaced with a newer signal. At the time, this signal had 12"x20" Safetran incandescents, a Siemens? gate mechanism, and no bell. The southern signal remained unchanged. At this point, the only thing left from the old setup was the relay bungalow. This didn't last long though as in 2020, this crossing was completely upgraded with 2 brand new cantilever signals, with the bungalow replaced, a pair of side lights being added and the bell being moved to the northern signal.

1

2

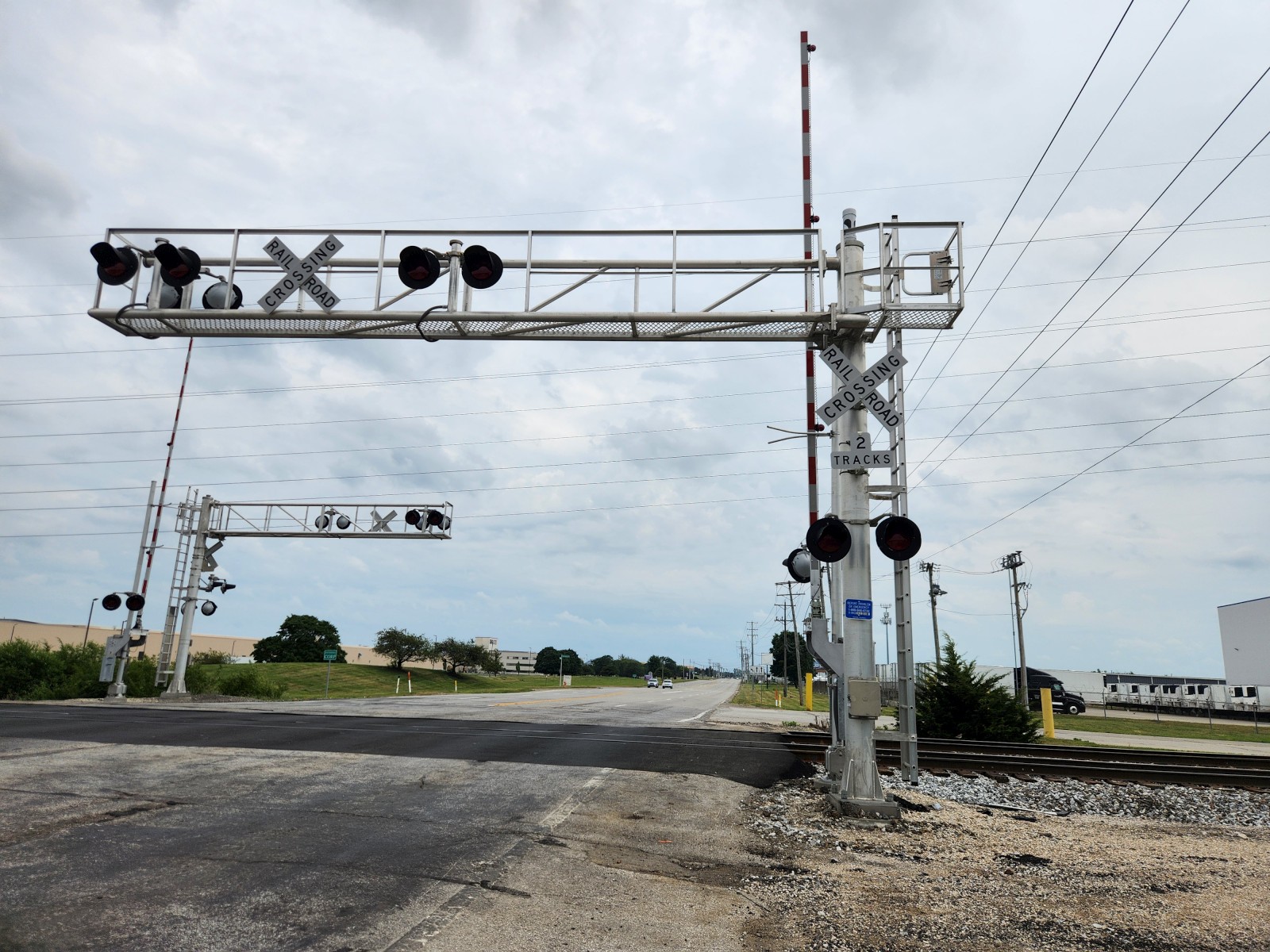

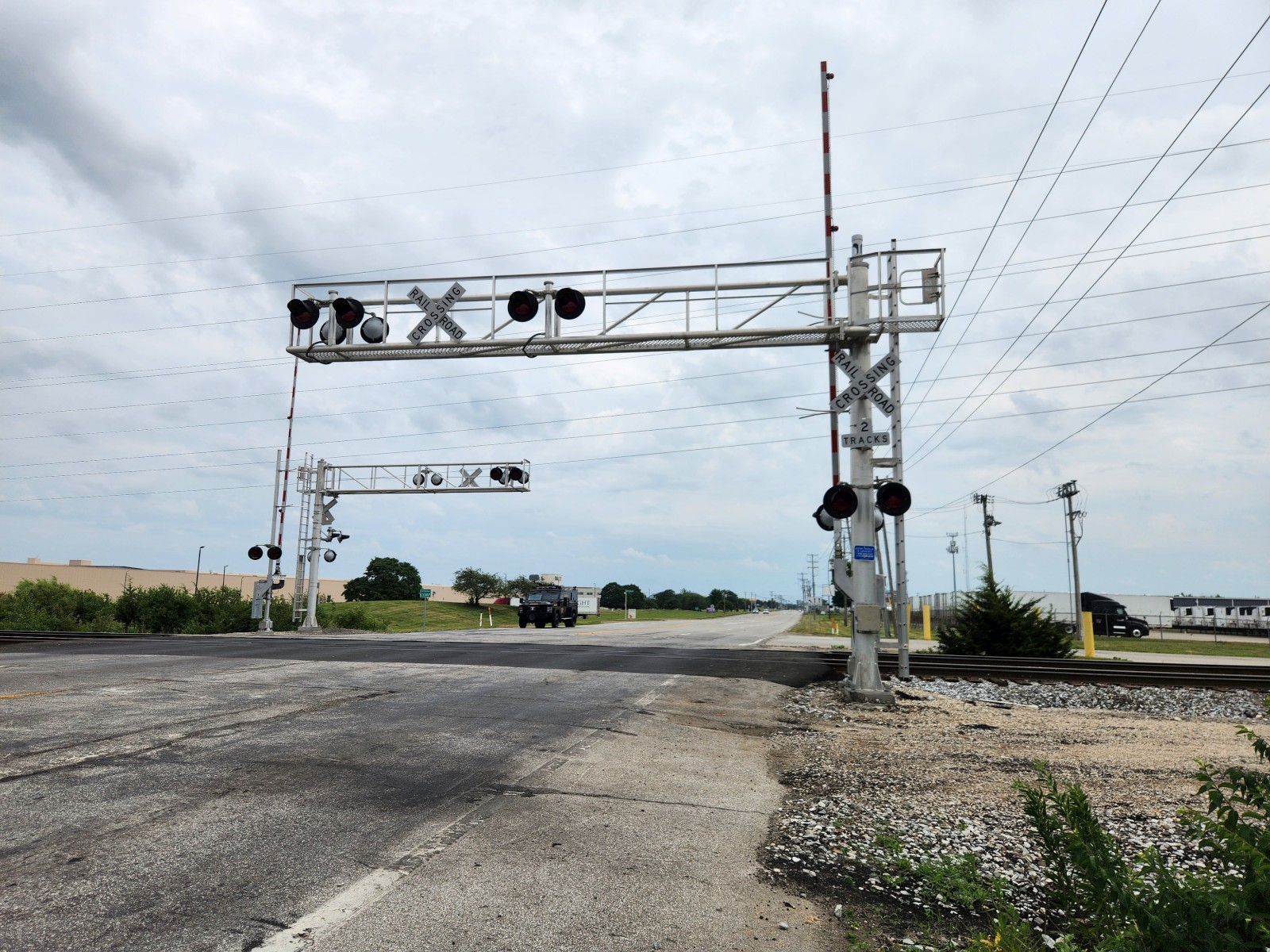

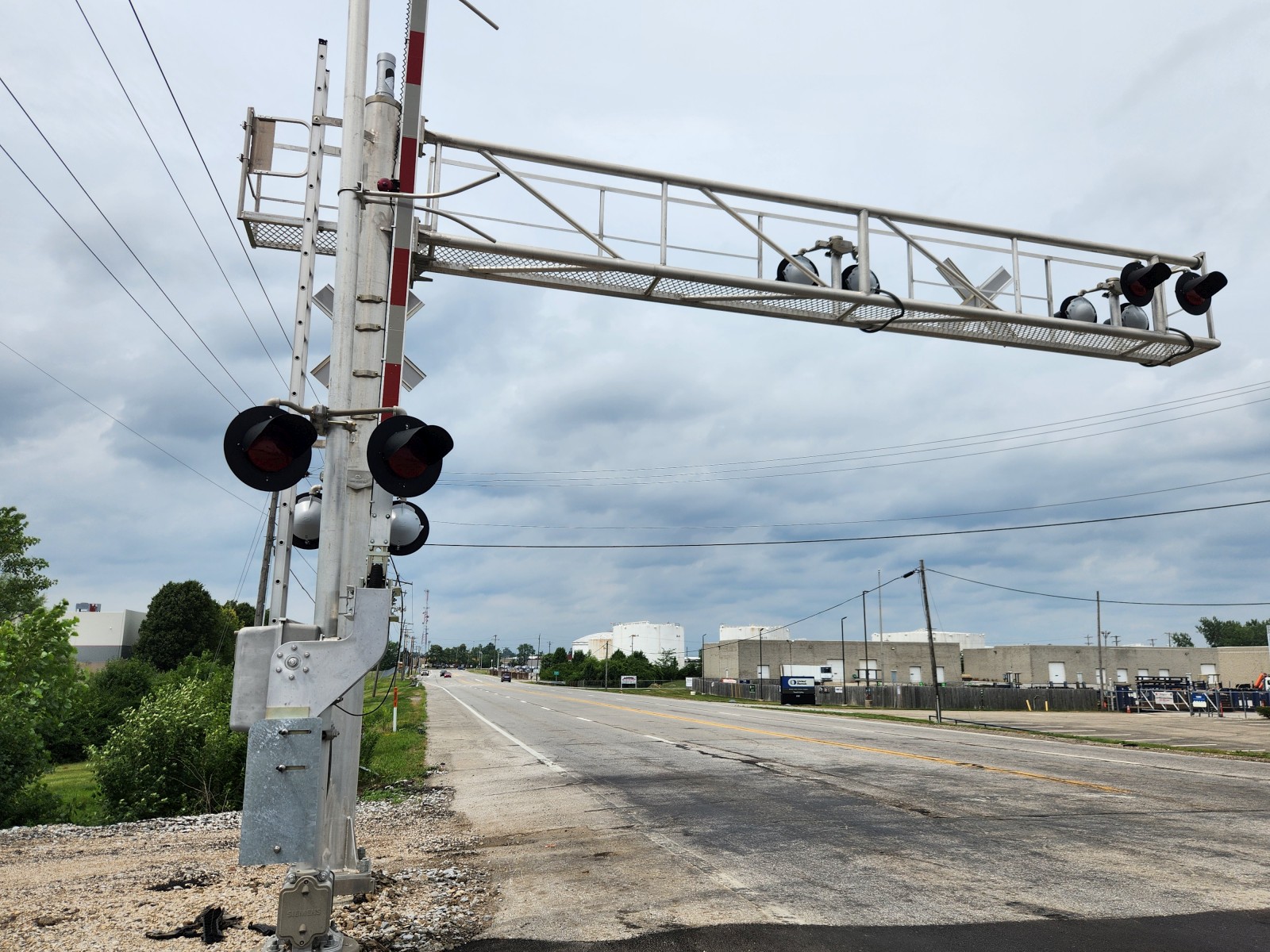

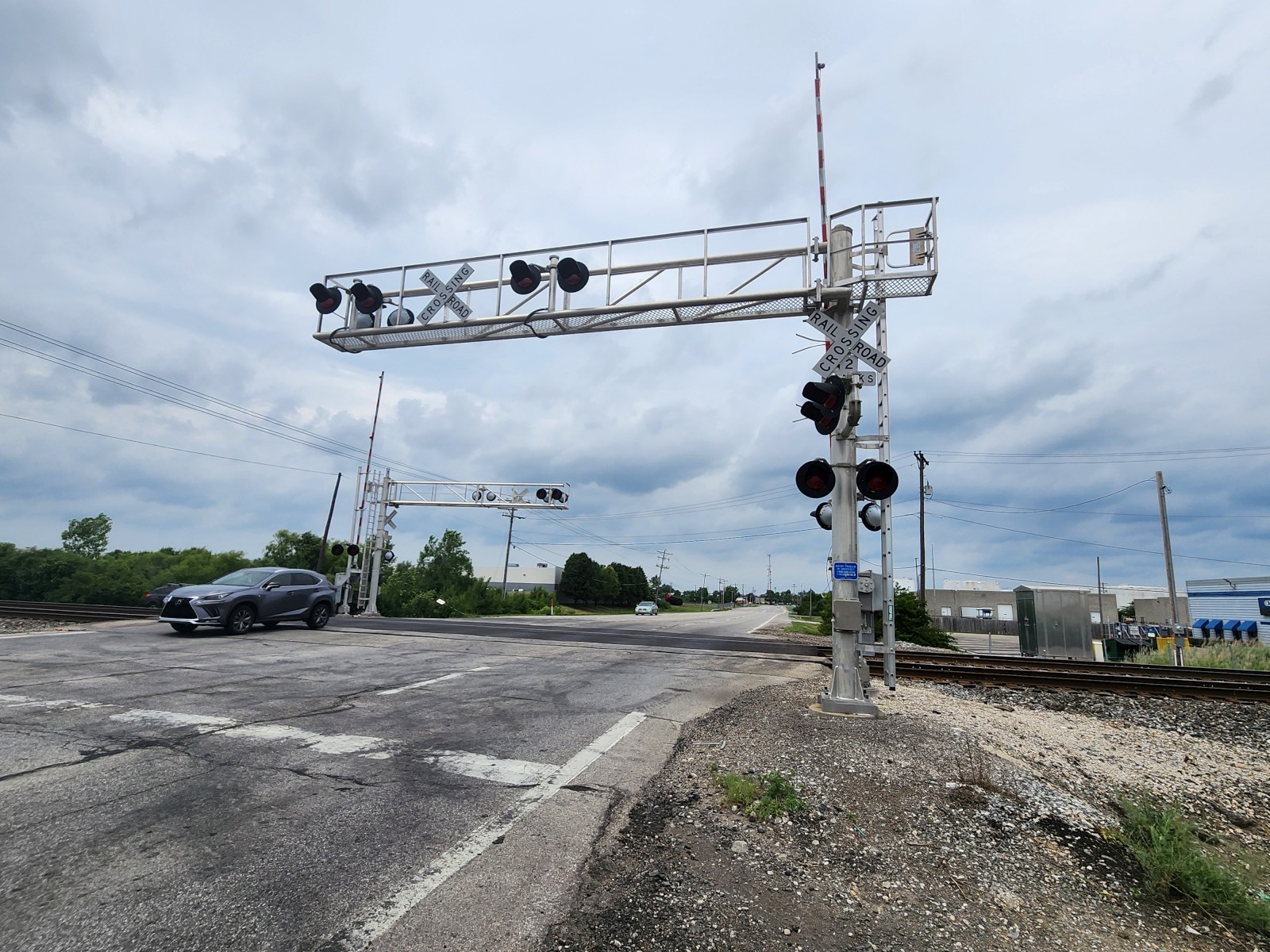

Overview of two newer gated cantilever signals facing south.

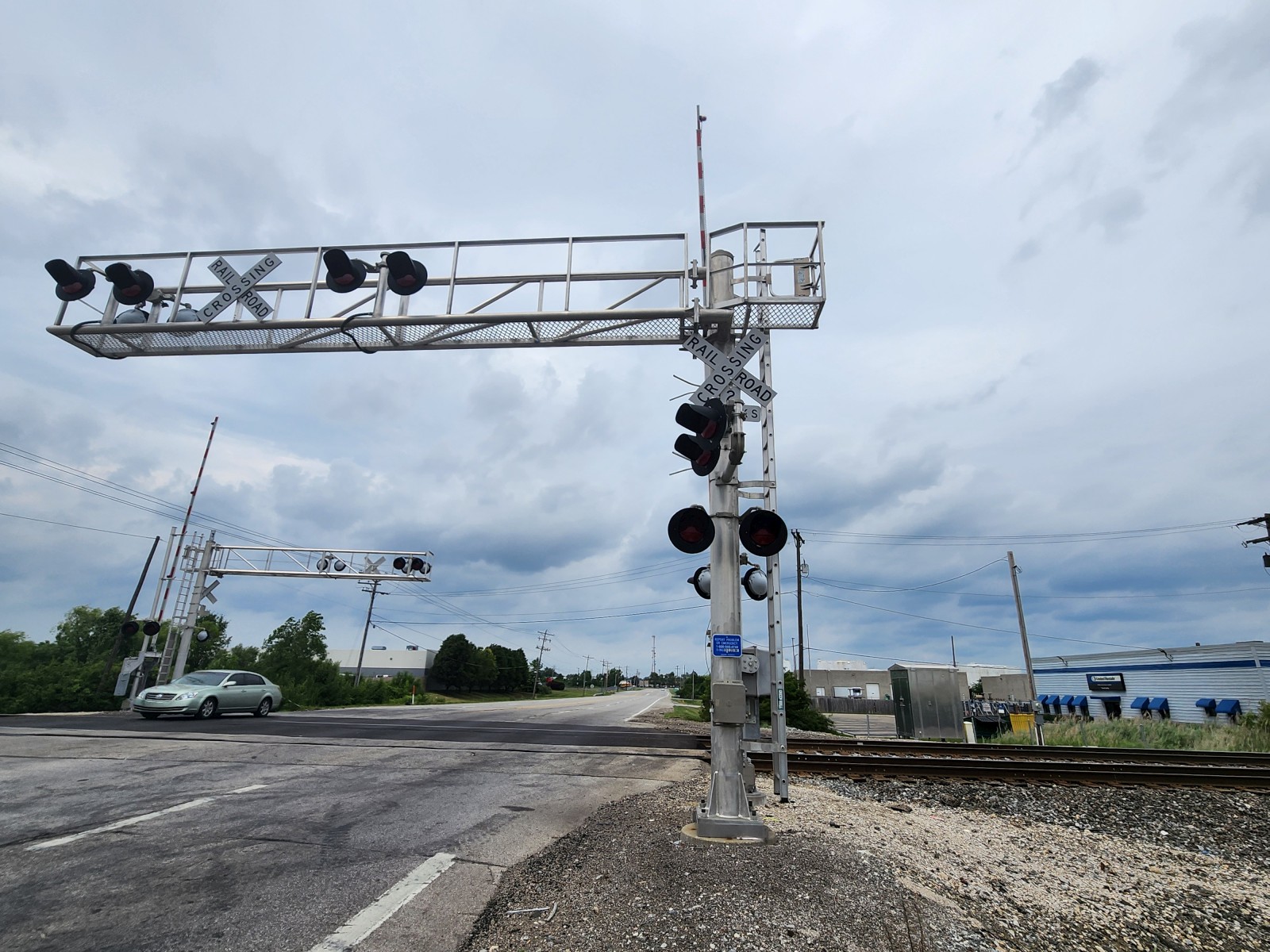

 Overview facing north.

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

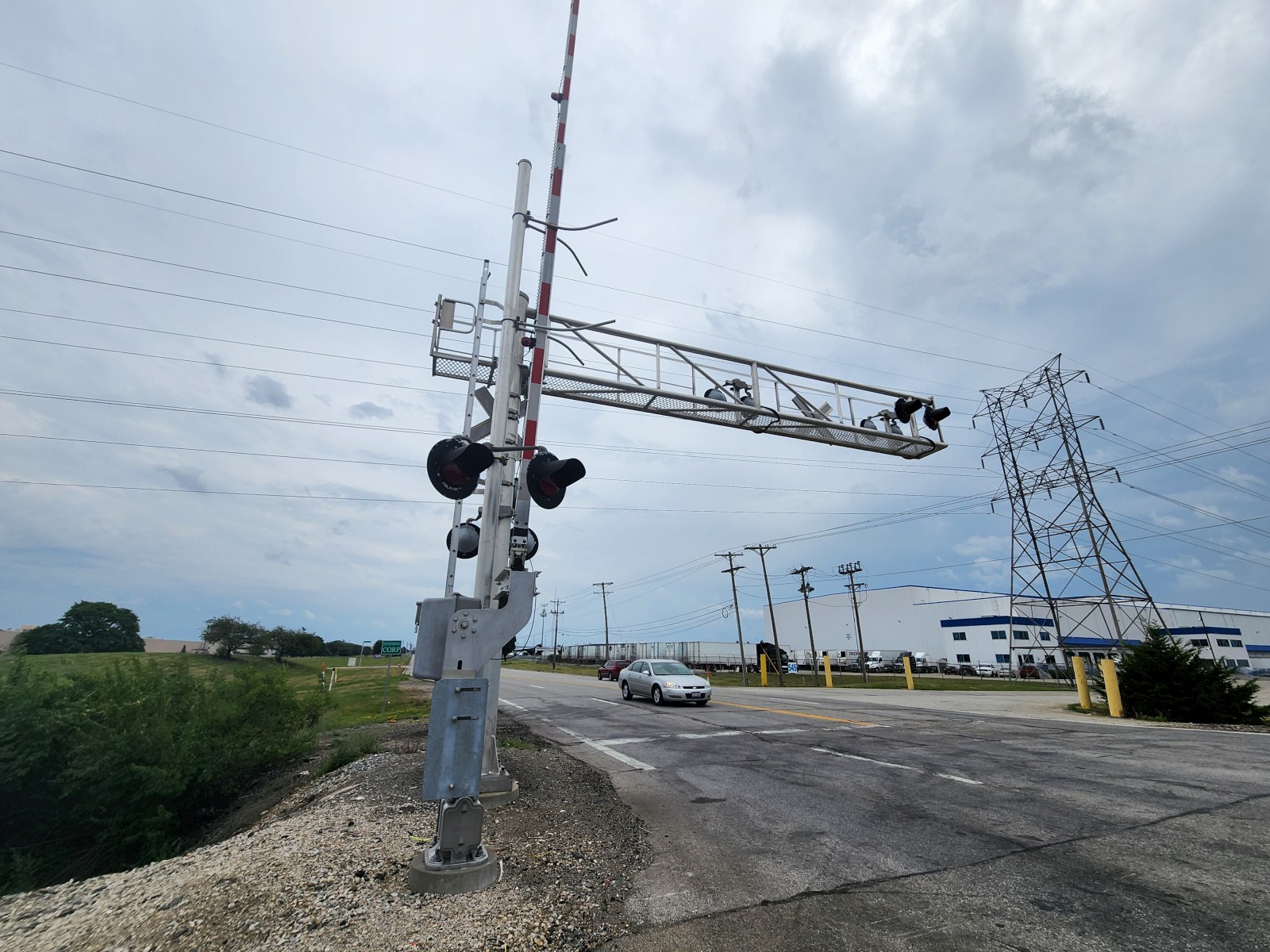

The northern signal.

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37
The southern signal.

38

39

40

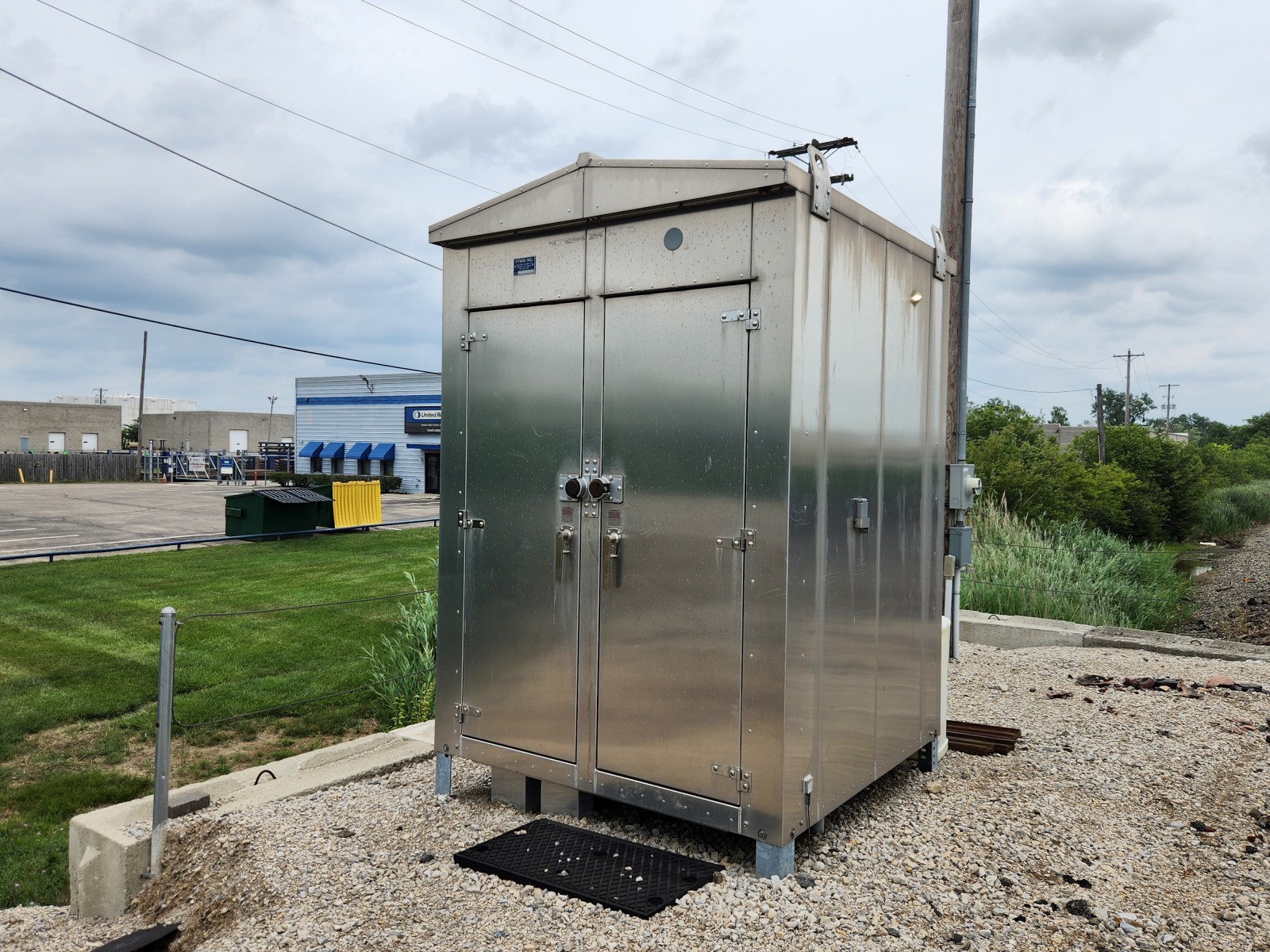

The relay bungalow.

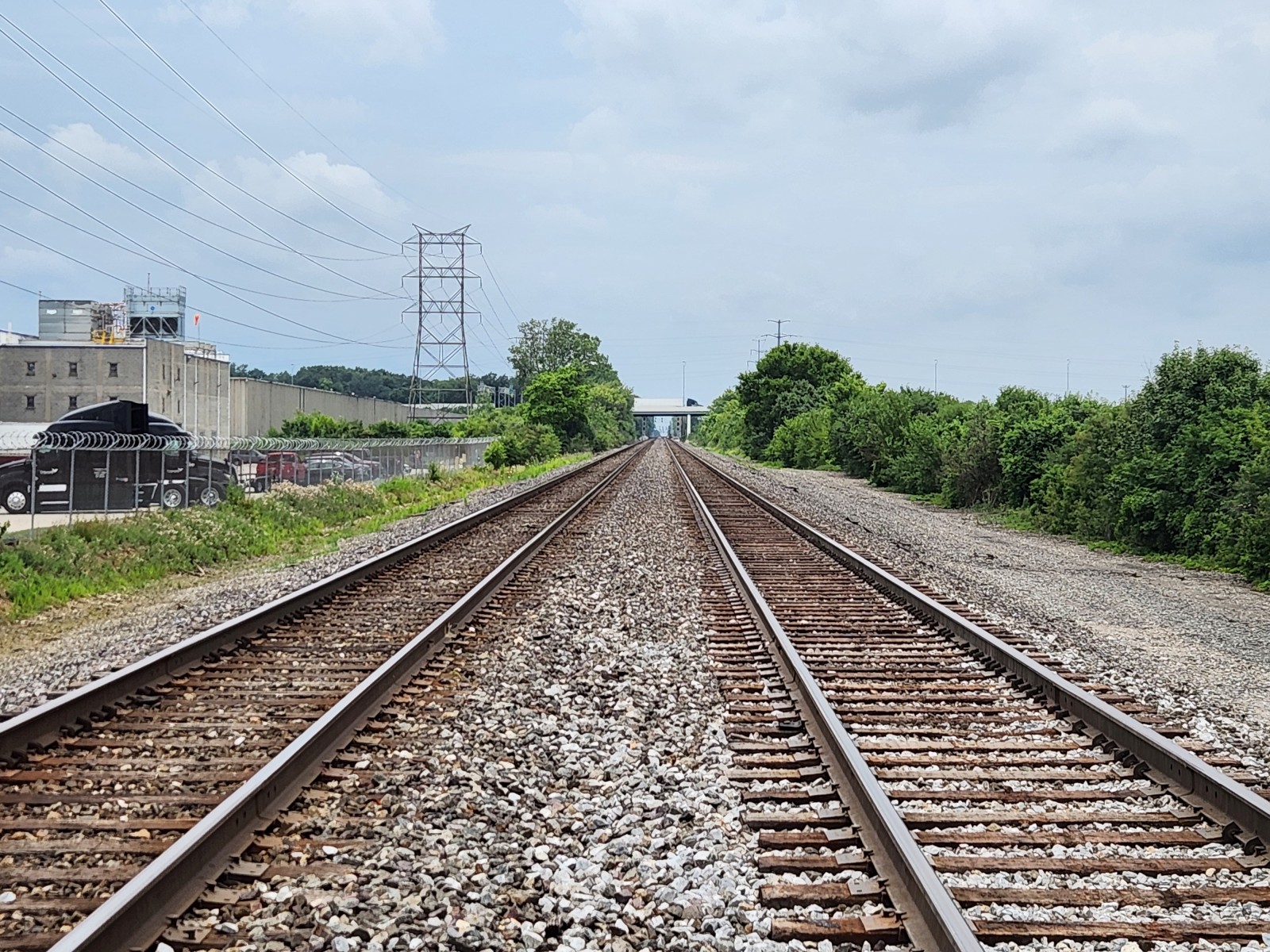

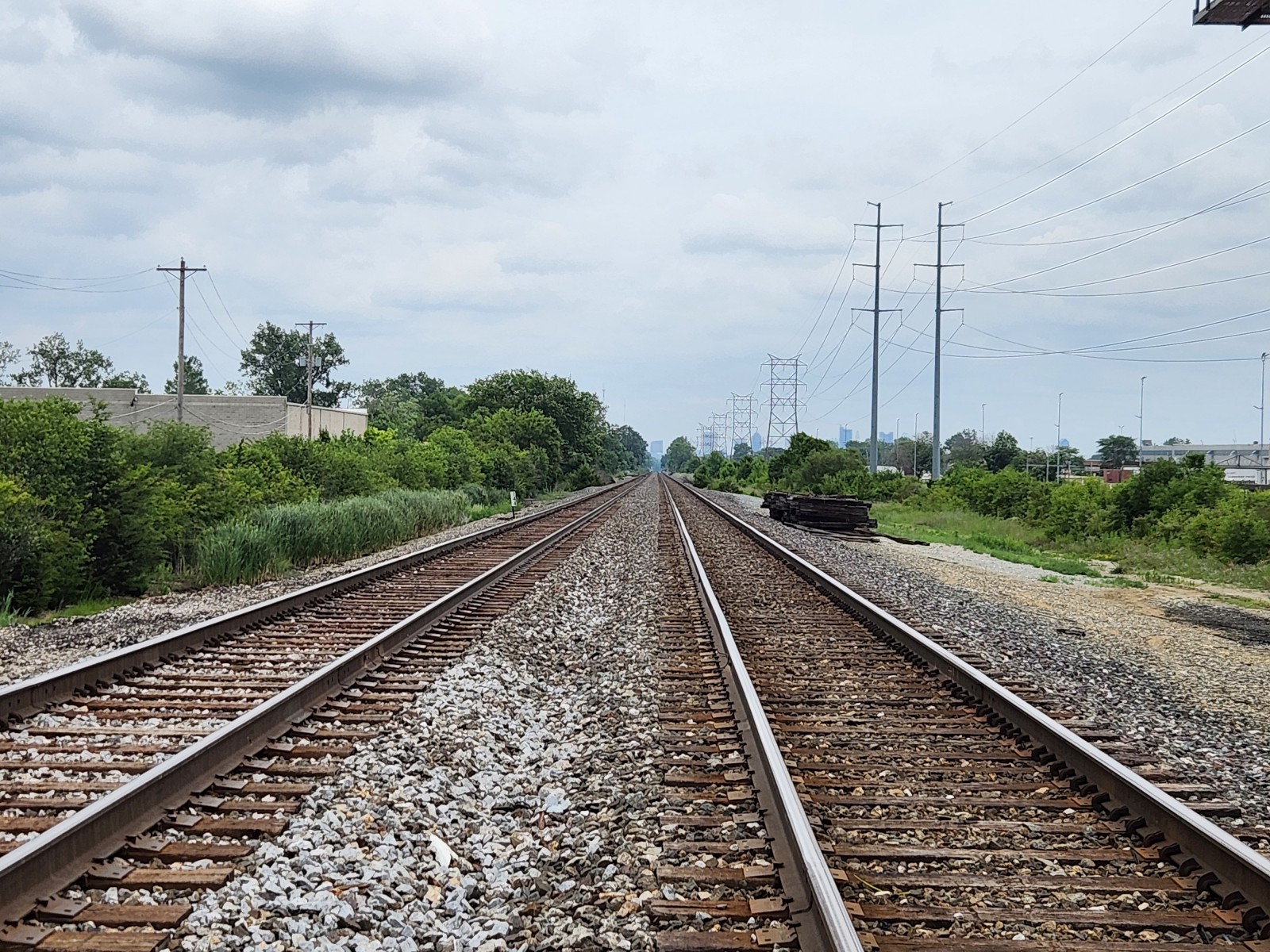

 Track view facing west towards Hilliard Rome Road on the Dayton District and north towards Leap Road on the CSX Scottslawn Subdivision in Hilliard.
 Track view facing east towards Hague Avenue #1. The track splitting off of the mainline in the background leads to Fisher Road #1.
